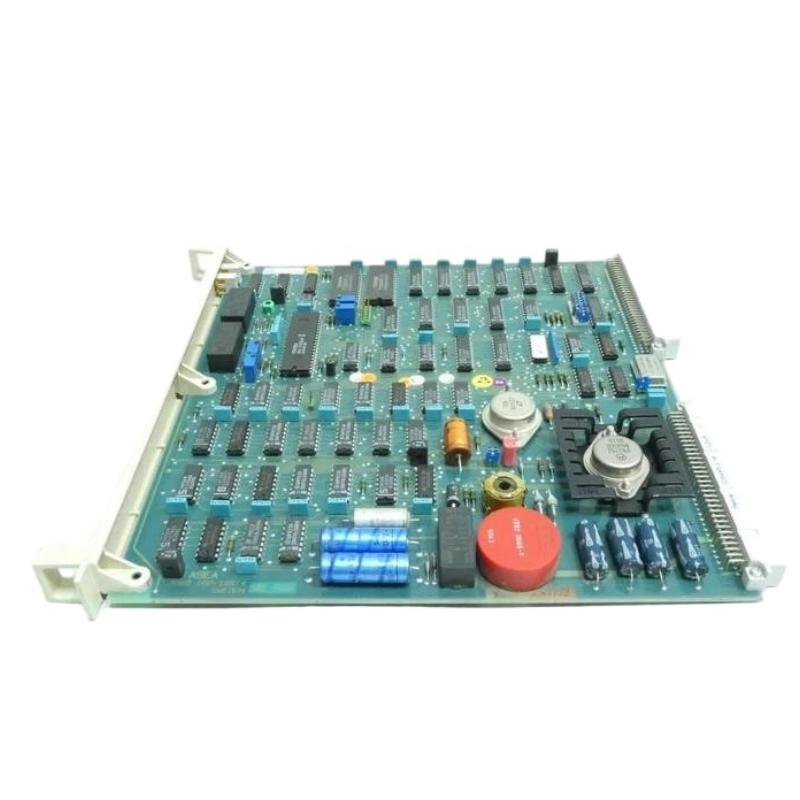

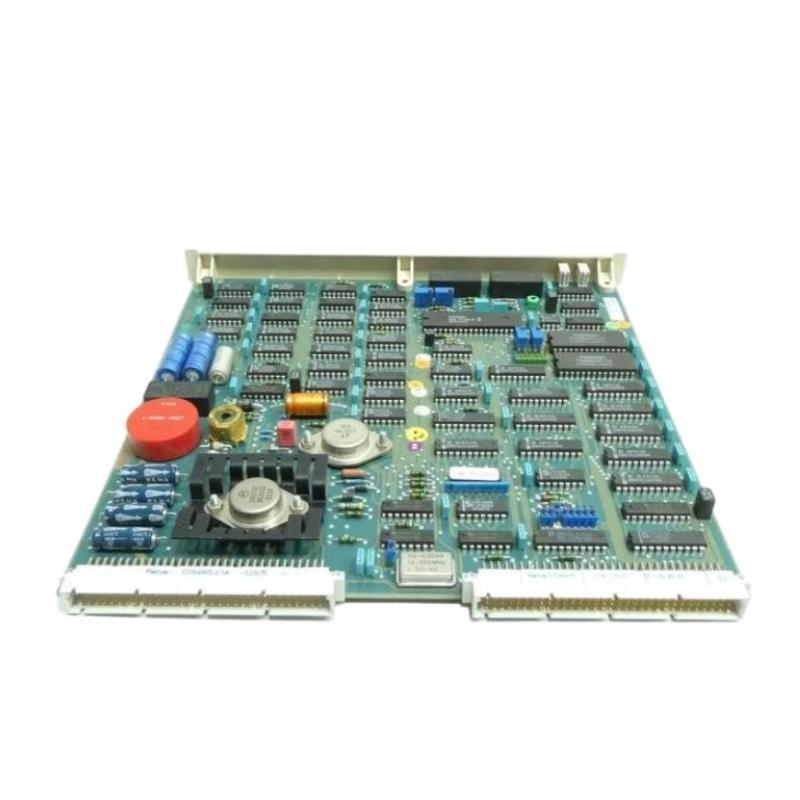

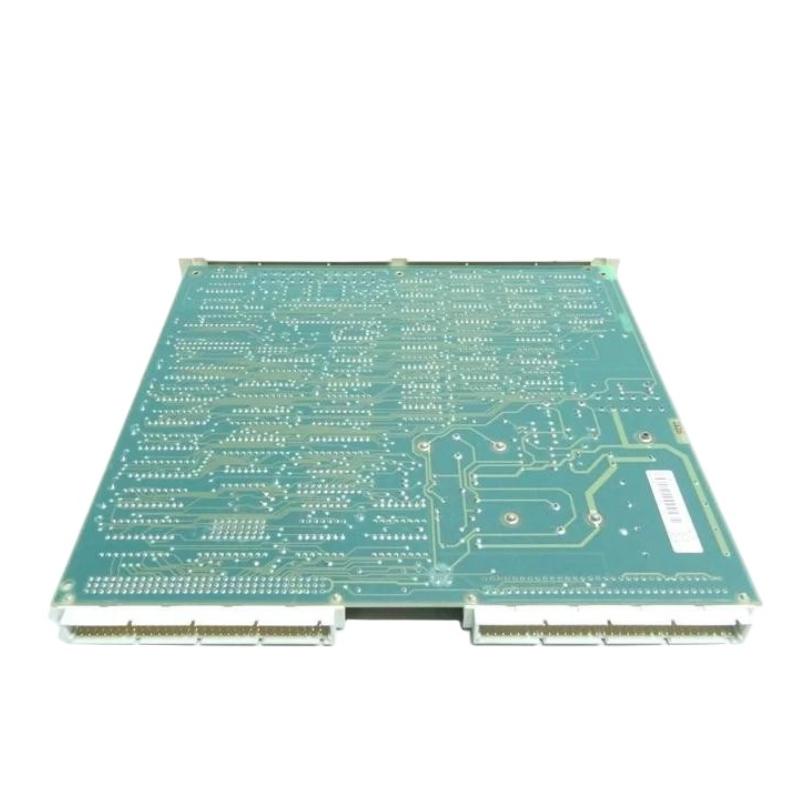

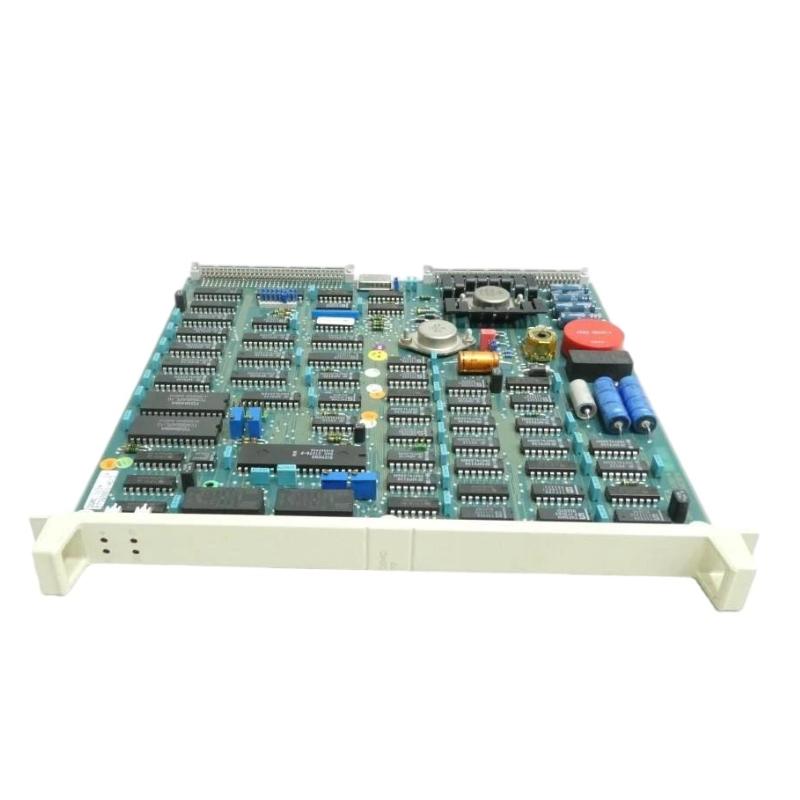

ABB DSMC 112 57360001-HC Floppy Disk Control Board

Overview

The ABB DSMC 112 is a floppy disk control board designed for ABB’s DS system. It manages read and write operations between the DS system and external floppy disk drives, providing secure and reliable data storage for system configurations, logs, and safety-critical information.

General Information

Part Number: 57360001-HC

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS

Type: Floppy Disk Control Board

Mounting: DIN rail or system rack installation

Technology: Interface and control circuitry for floppy disk data management with error detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: System power bus

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LED indicators for power, read/write activity, and fault status

Communication & Interface

Interface Type: Floppy disk data control for DS system

Diagnostic Support: Status monitoring, error detection, and logging

Operator Interface: LED indicators for operational and transfer status

Reset Features: Supports manual or system-triggered reset

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (indoor industrial environment)

Dimensions & Weight

Dimensions (L × W × H): 180 × 180 × 100 mm

Weight: 1 kg
