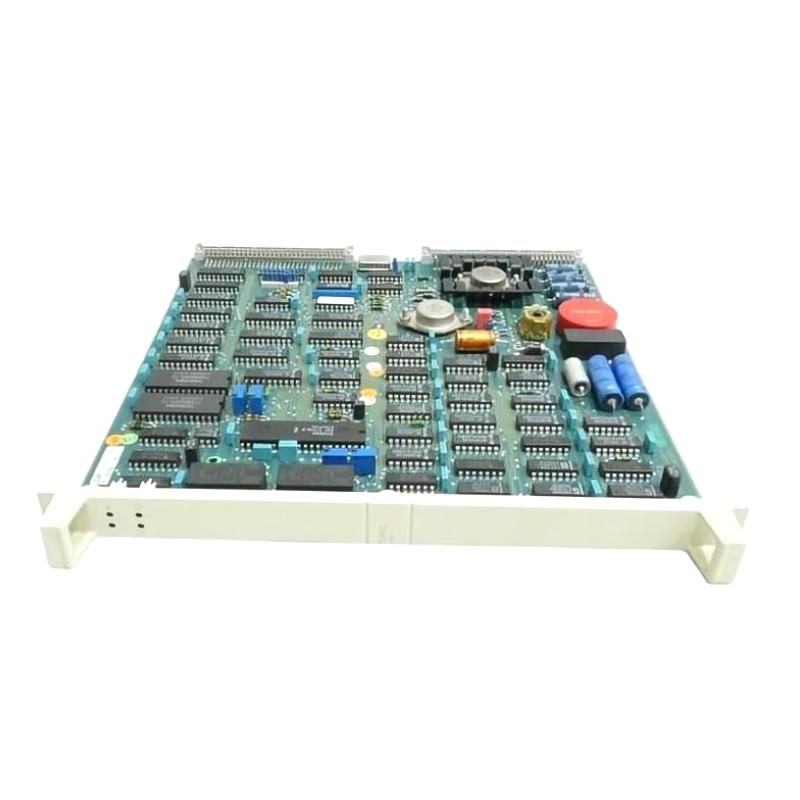

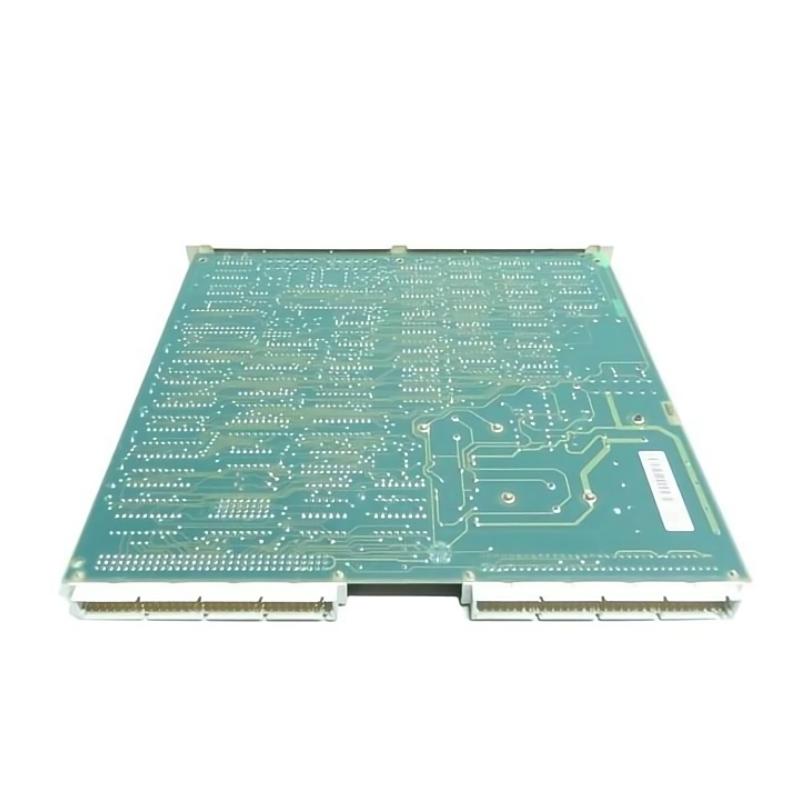

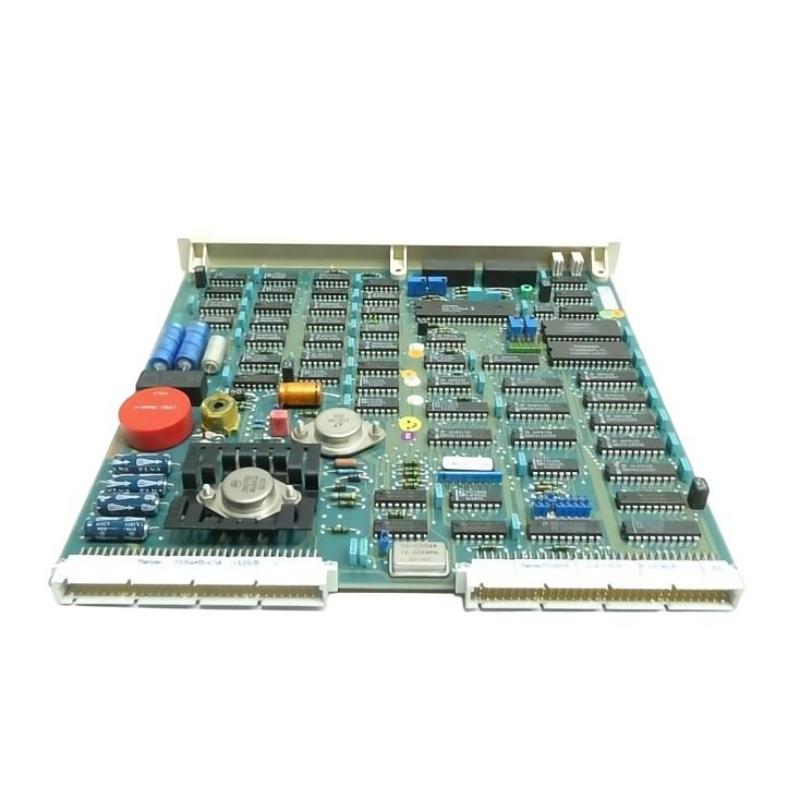

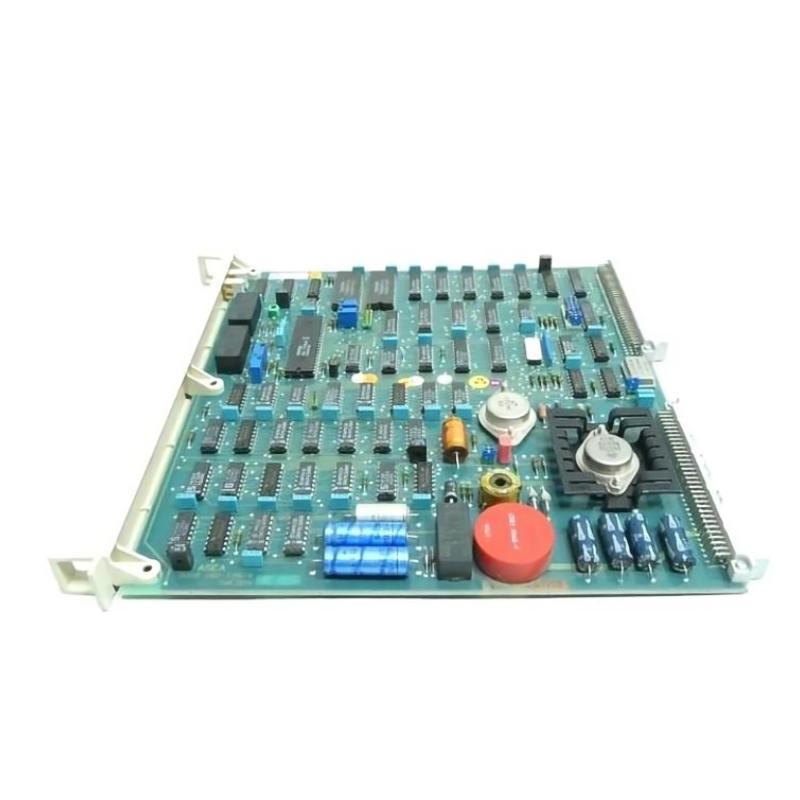

ABB DSMC 120 57360001-DC Floppy Disk Controller

Overview

The ABB DSMC 120 is a floppy disk controller designed for industrial automation and legacy control systems. It manages data storage and retrieval from floppy disks, enabling reliable system backup, configuration management, and historical data logging.

General Information

Part Number: 57360001-DC

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DSMC 120

Type: Floppy Disk Controller

Mounting: Rack or panel installation within control cabinet

Technology: Industrial-grade disk interface with data integrity verification

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input Protection: Surge and reverse-polarity protection

Indicators: LED indicators for power, disk activity, and fault

Communication & Interface

Interface: Standard floppy disk drive interface compatible with DSMC systems

Data Handling: Read/write management with error detection and verification

Diagnostics: Status monitoring for disk readiness, errors, and system communication

Operator Interface: LEDs for power, disk access, and fault indication

Reset Features: Supports system and module reset via control panel

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–85% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration / Shock: Compliant with industrial control standards

Dimensions & Weight

Dimensions (L × W × H): 350 × 47 × 250 mm

Weight: ~ 0.45 kg
