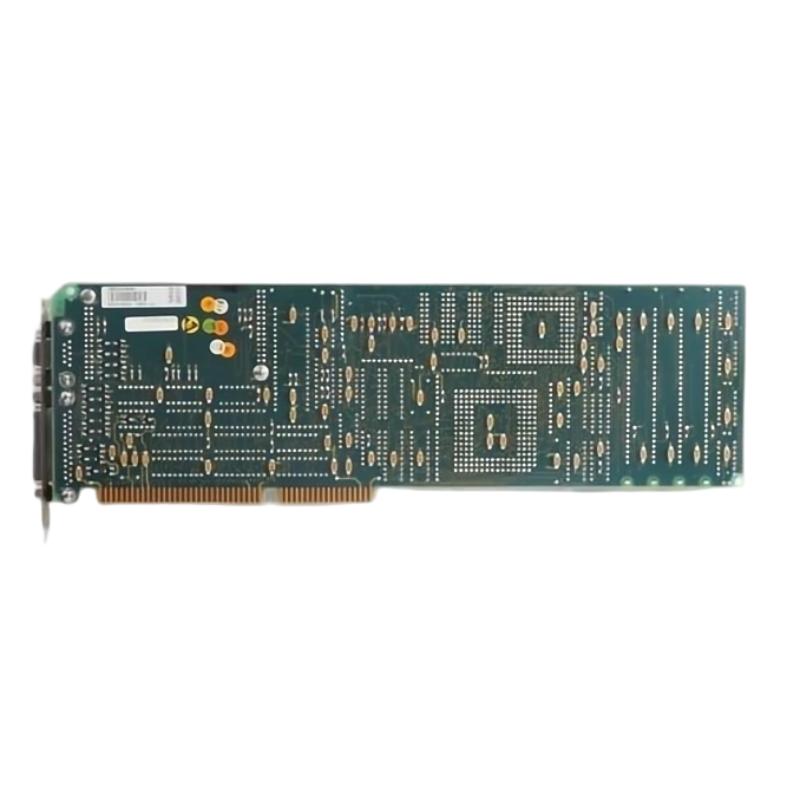

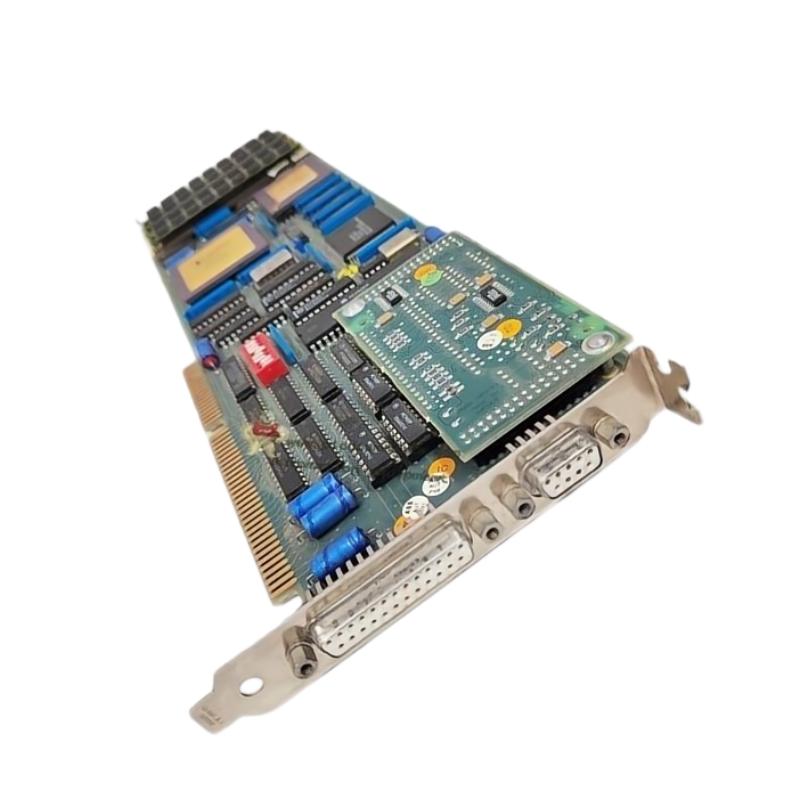

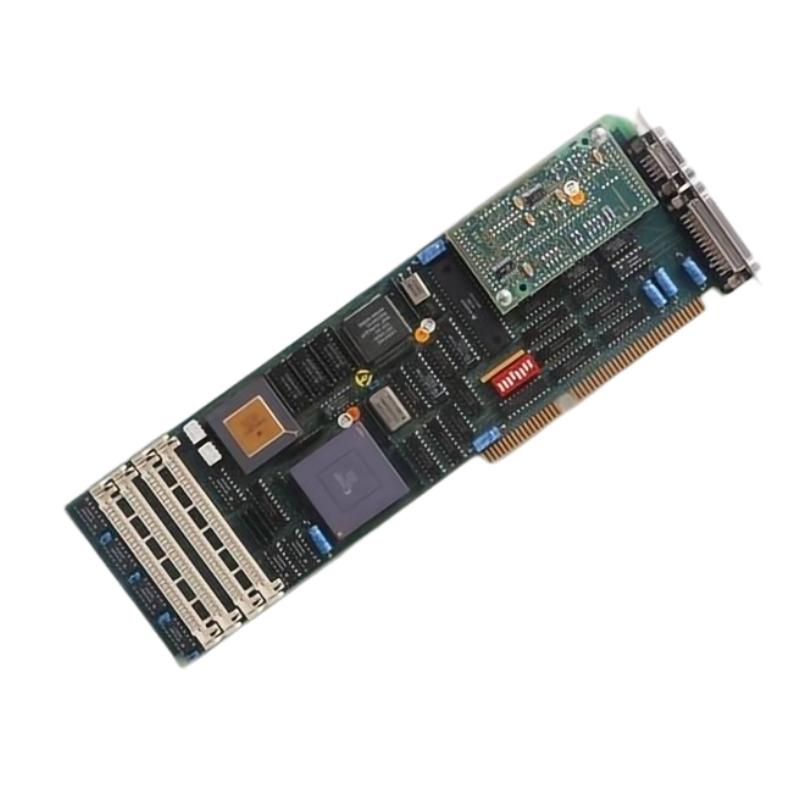

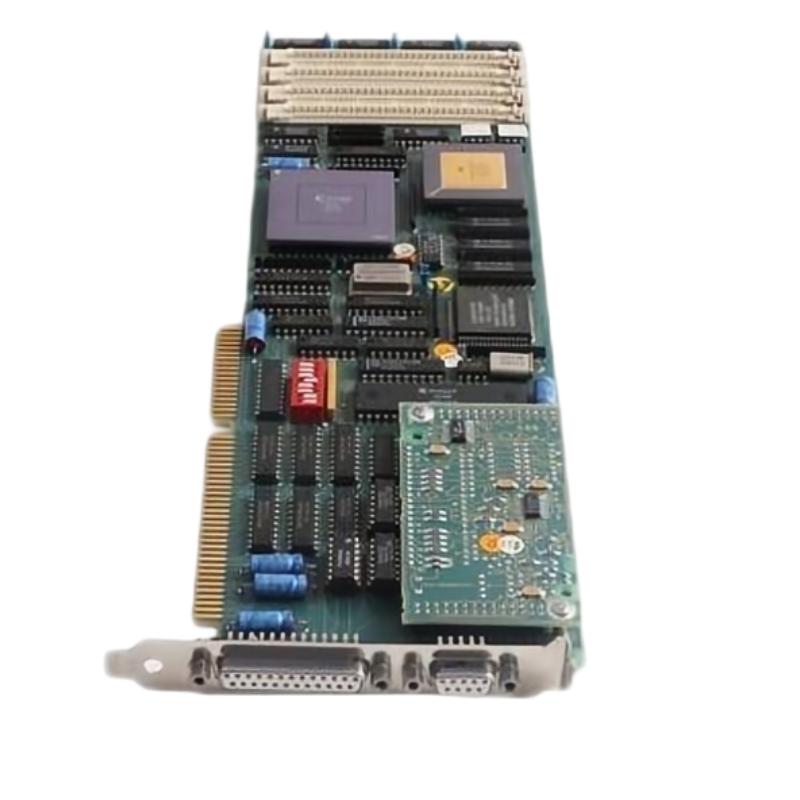

ABB DSPU 131 3BSE000355R1 Interface Board

Overview

The ABB DSPU 131 3BSE000355R1 is an interface board designed for ABB DS systems. It enables reliable communication between processor modules and peripheral devices, supporting efficient data transfer and system integration for industrial automation applications.

General Information

Part Number: 3BSE000355R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: DSPU / Interface Board

Type: Interface Board for Industrial Control Systems

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: Modular connectivity for system communication and control

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via backplane or dedicated power supply

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, communication, and fault monitoring

Communication & Interface

Interface Ports: Supports ABB DS processor and I/O modules

Data Transfer: High-speed communication for control and process data

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, communication, and errors

Reset Features: Hardware and software reset supported

I/O & Channels: Supports multiple input/output channels for peripheral communication

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 120 × 100 × 75 mm

Weight: 0.5 kg
