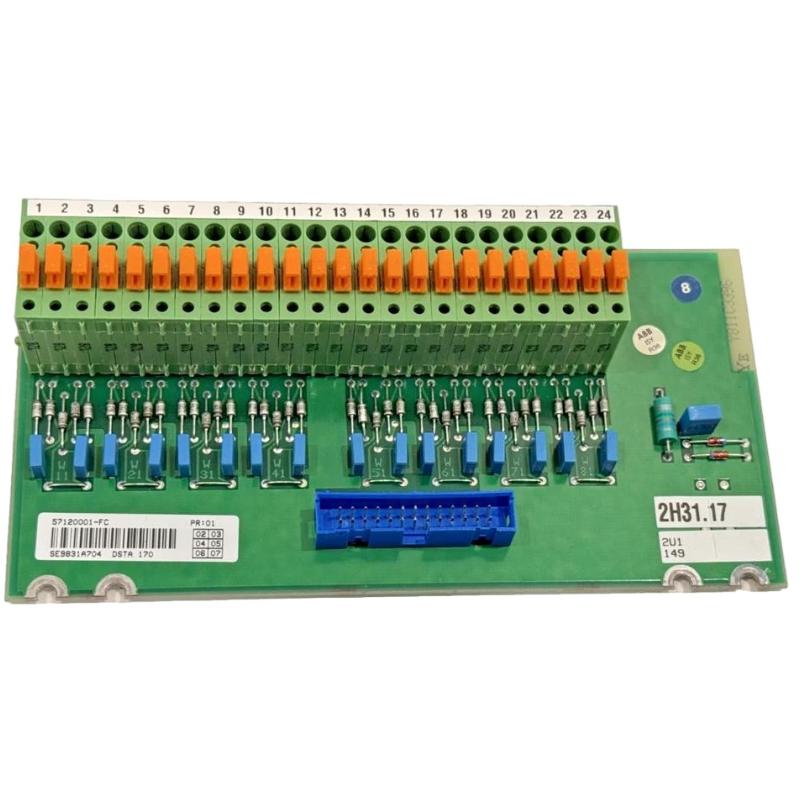

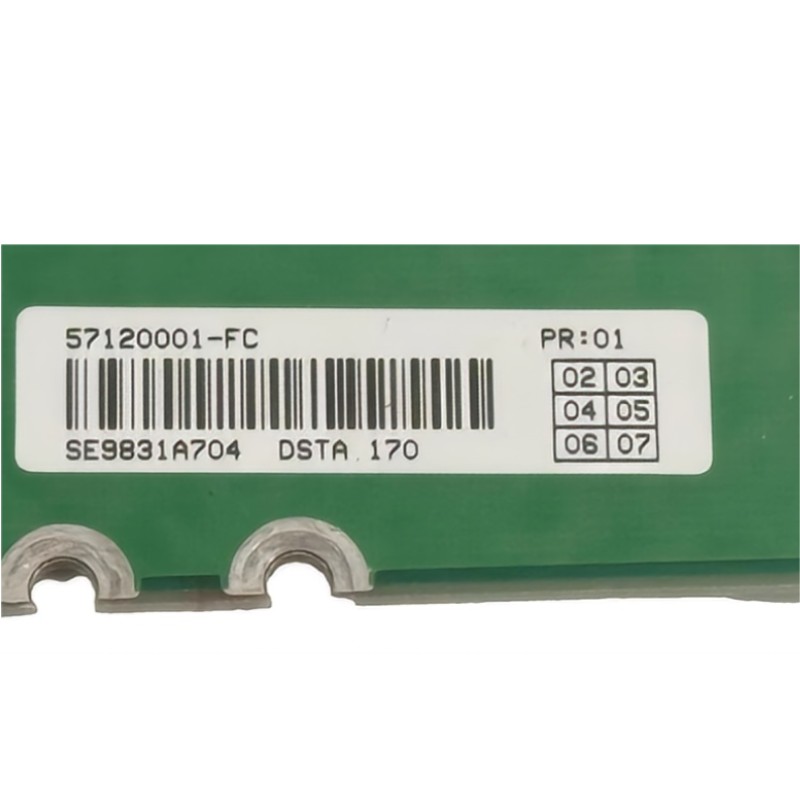

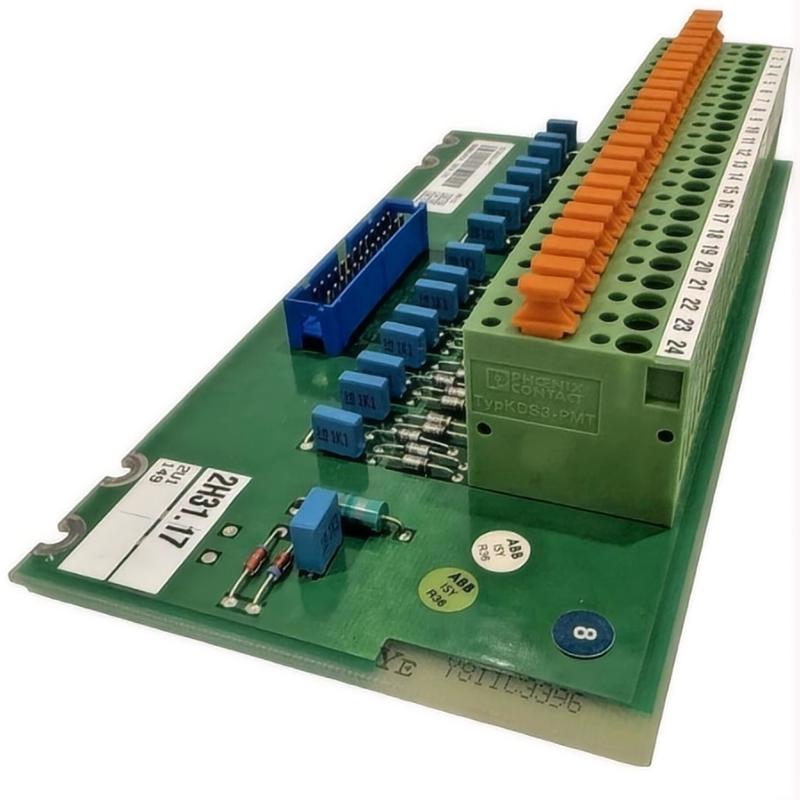

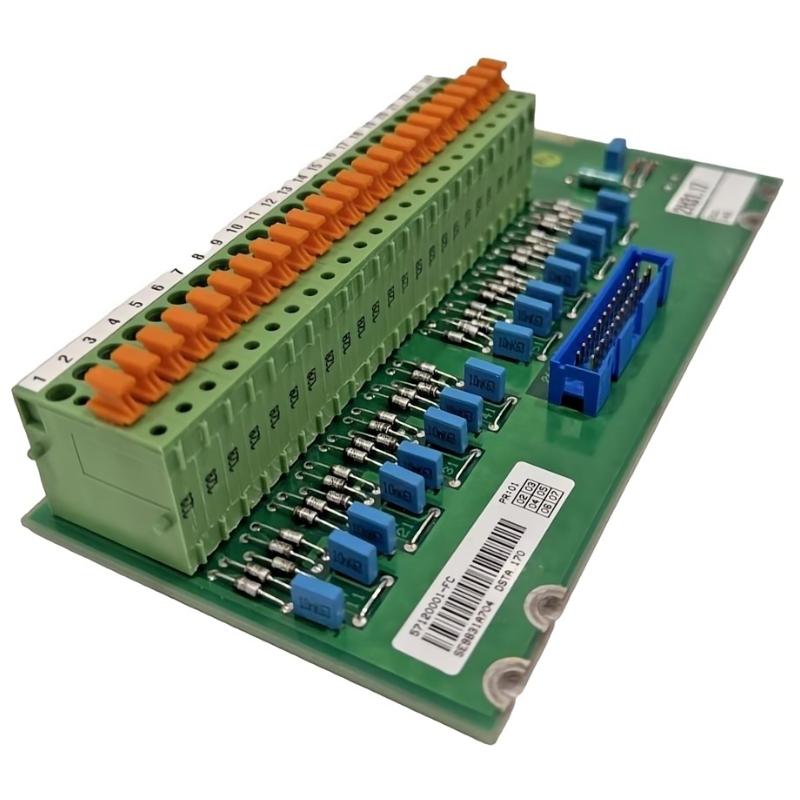

ABB DSTA 170 57120001-FC Connection Unit

Overview

The ABB DSTA 170 57120001-FC is a compact connection unit designed for ABB industrial automation systems. It provides reliable interface and signal routing between controllers and peripheral devices, ensuring efficient communication and stable system operation.

General Information

Part Number: 57120001-FC

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: DSTA / Connection Unit

Type: Connection and Interface Module for Industrial Systems

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: Modular connectivity for seamless signal transfer and system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via backplane or dedicated power supply

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, communication status, and fault detection

Communication & Interface

Interface Ports: Supports ABB controllers and I/O modules

Data Transfer: Reliable communication for control and process signals

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, communication, and errors

Reset Features: Hardware and software reset supported

I/O & Channels: Multiple channels for signal routing and system connectivity

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 157.5 × 31.5 × 90 mm

Weight: 0.185 kg
