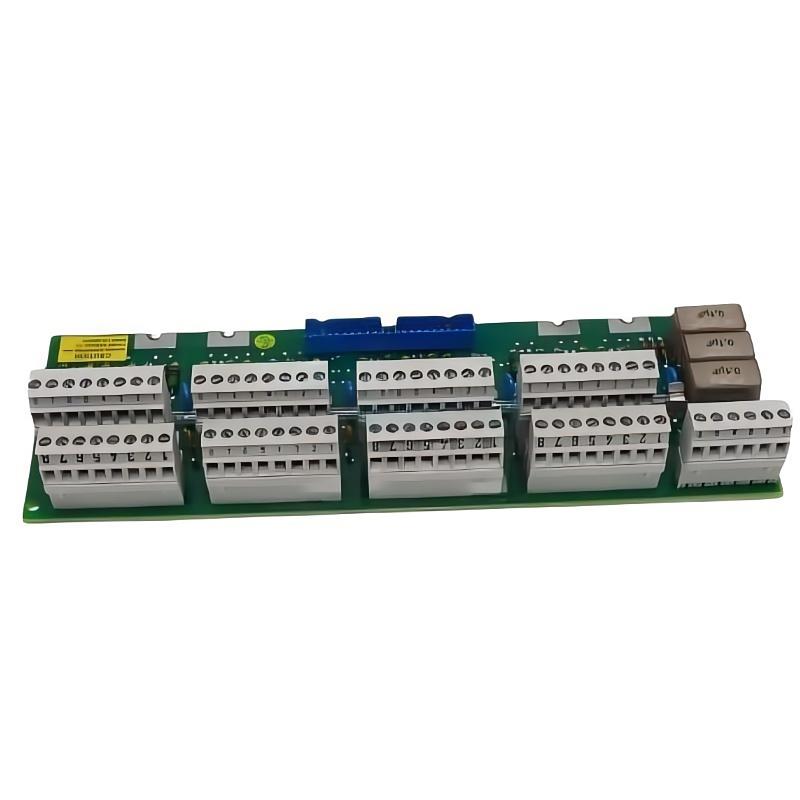

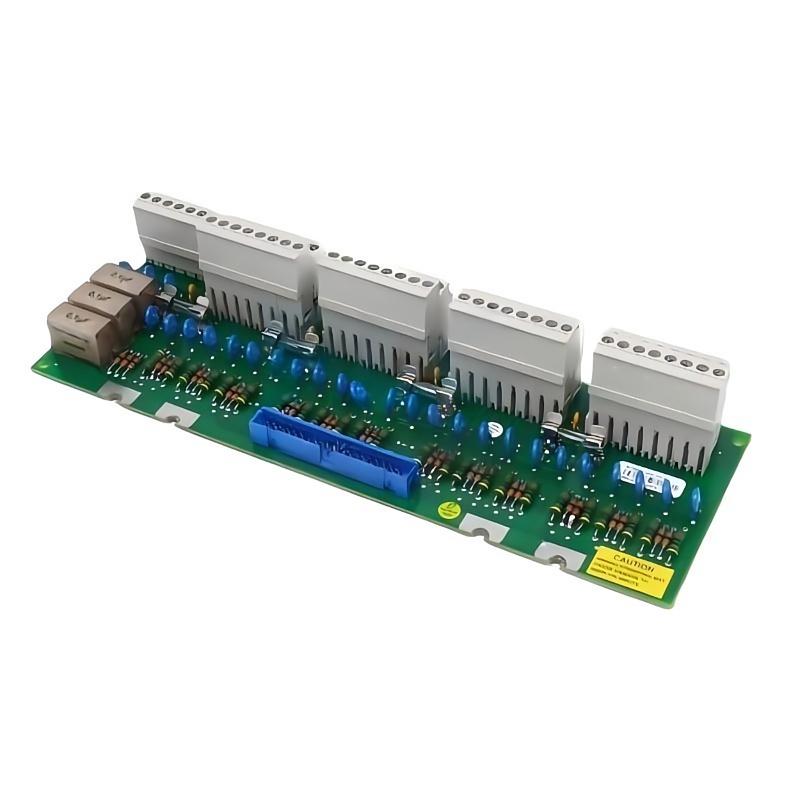

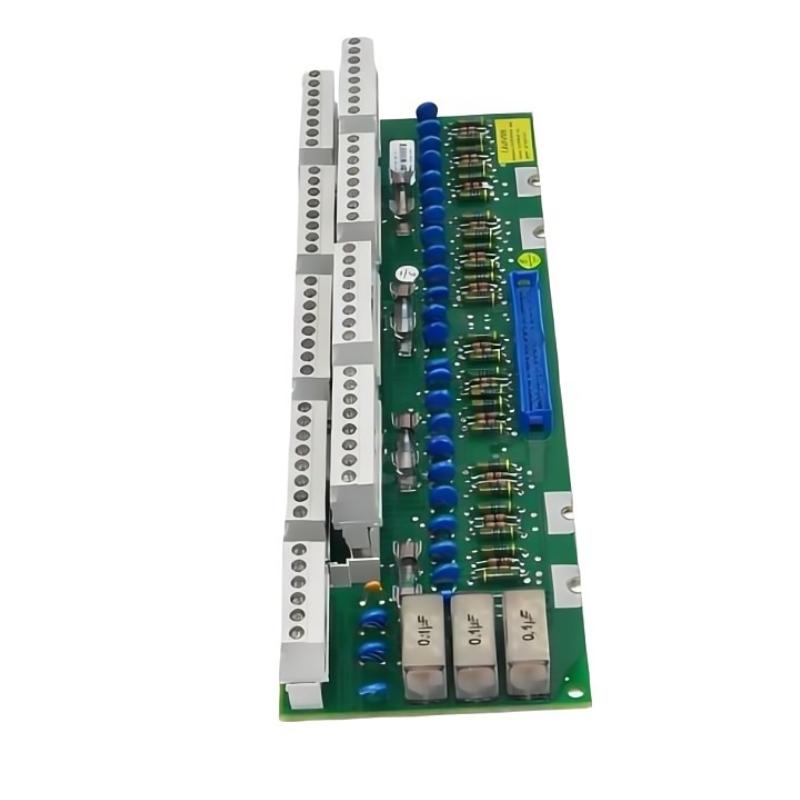

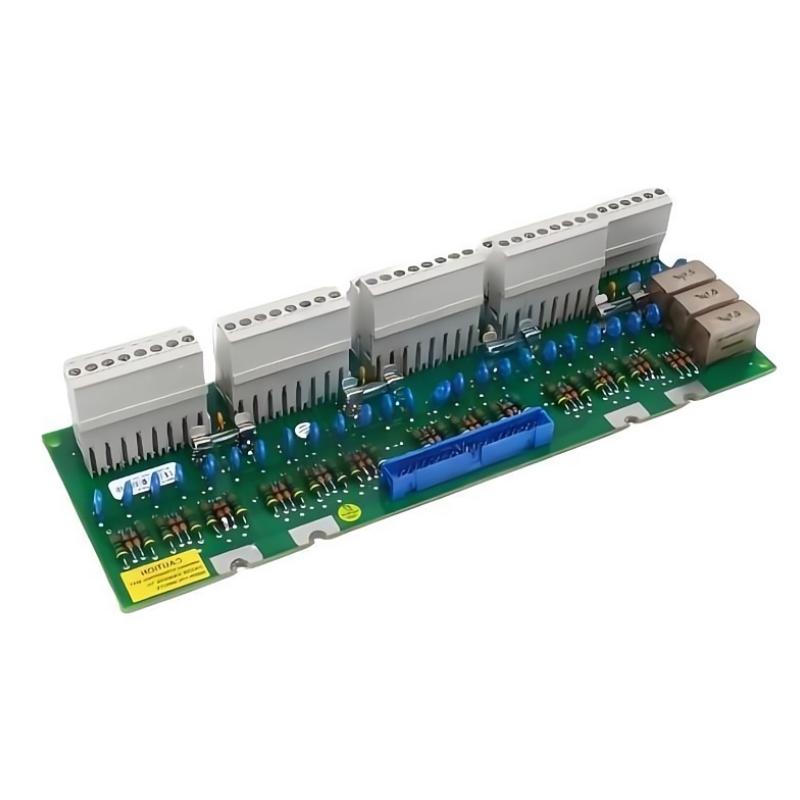

ABB DSTX 180 3BUR980025R1 Connection Unit

Overview

The ABB DSTX 180 3BUR980025R1 is a compact connection unit designed for ABB industrial automation systems. It provides reliable signal routing and interface connections between controllers and I/O modules, ensuring stable communication and efficient operation in industrial environments.

General Information

Part Number: 3BUR980025R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: DSTX / Connection Unit

Type: Connection and Interface Module for Industrial Systems

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: Modular connectivity for seamless signal transfer and system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via backplane or dedicated power supply

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, communication status, and fault detection

Communication & Interface

Interface Ports: Supports ABB controllers and I/O modules

Data Transfer: Reliable communication for control and process signals

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, communication, and errors

Reset Features: Hardware and software reset supported

I/O & Channels: Multiple channels for signal routing and system connectivity

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 112 × 86 × 58 mm

Weight: 0.425 kg
