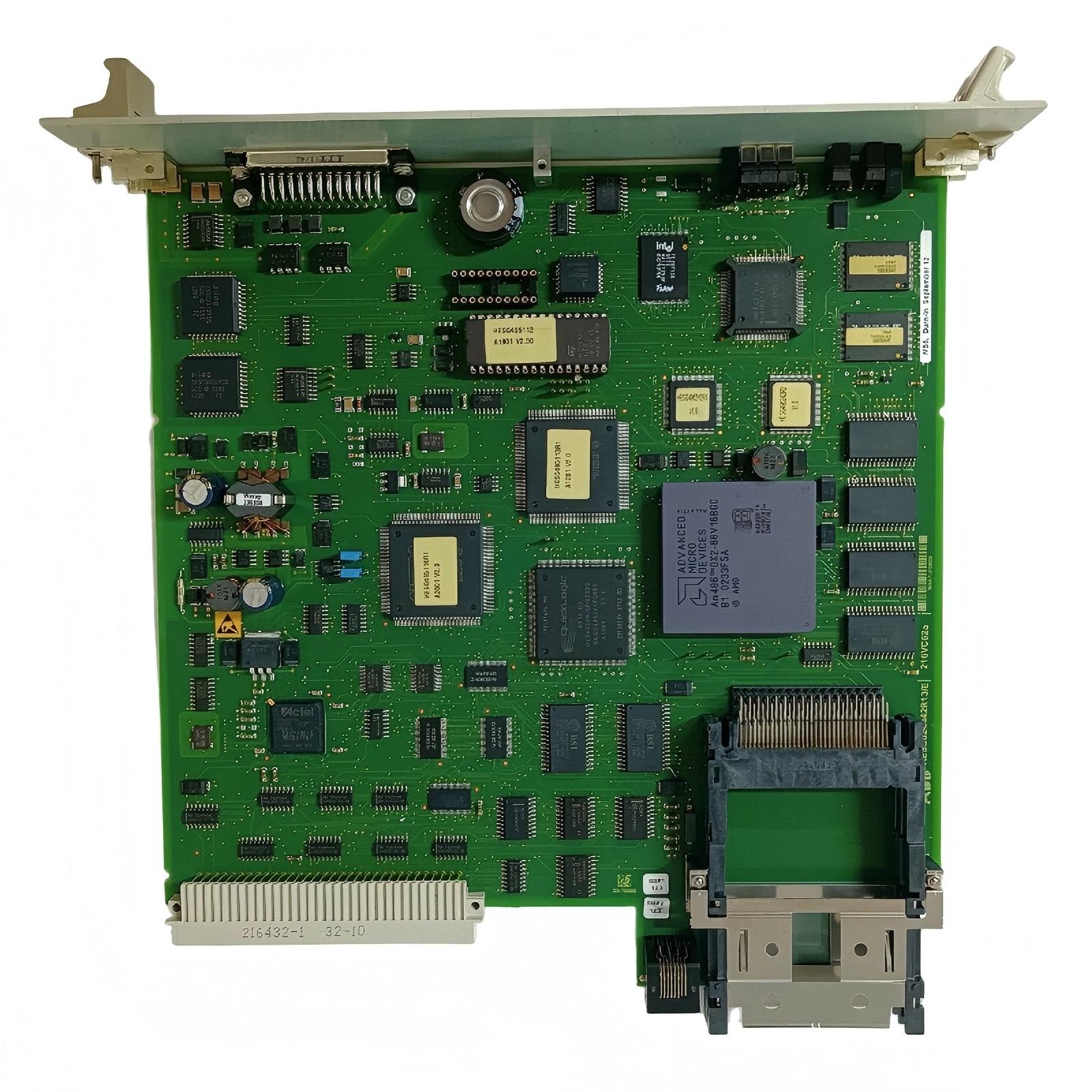

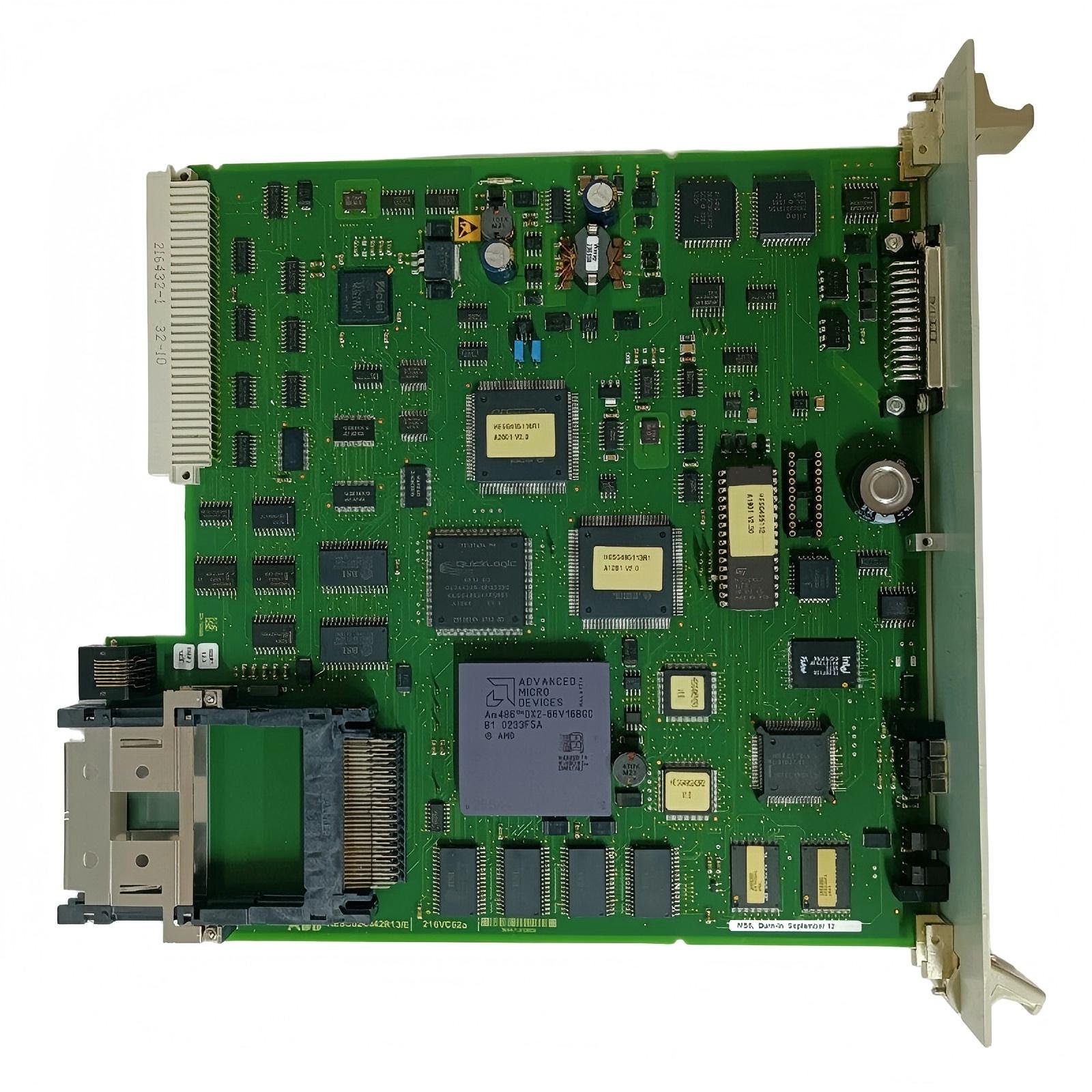

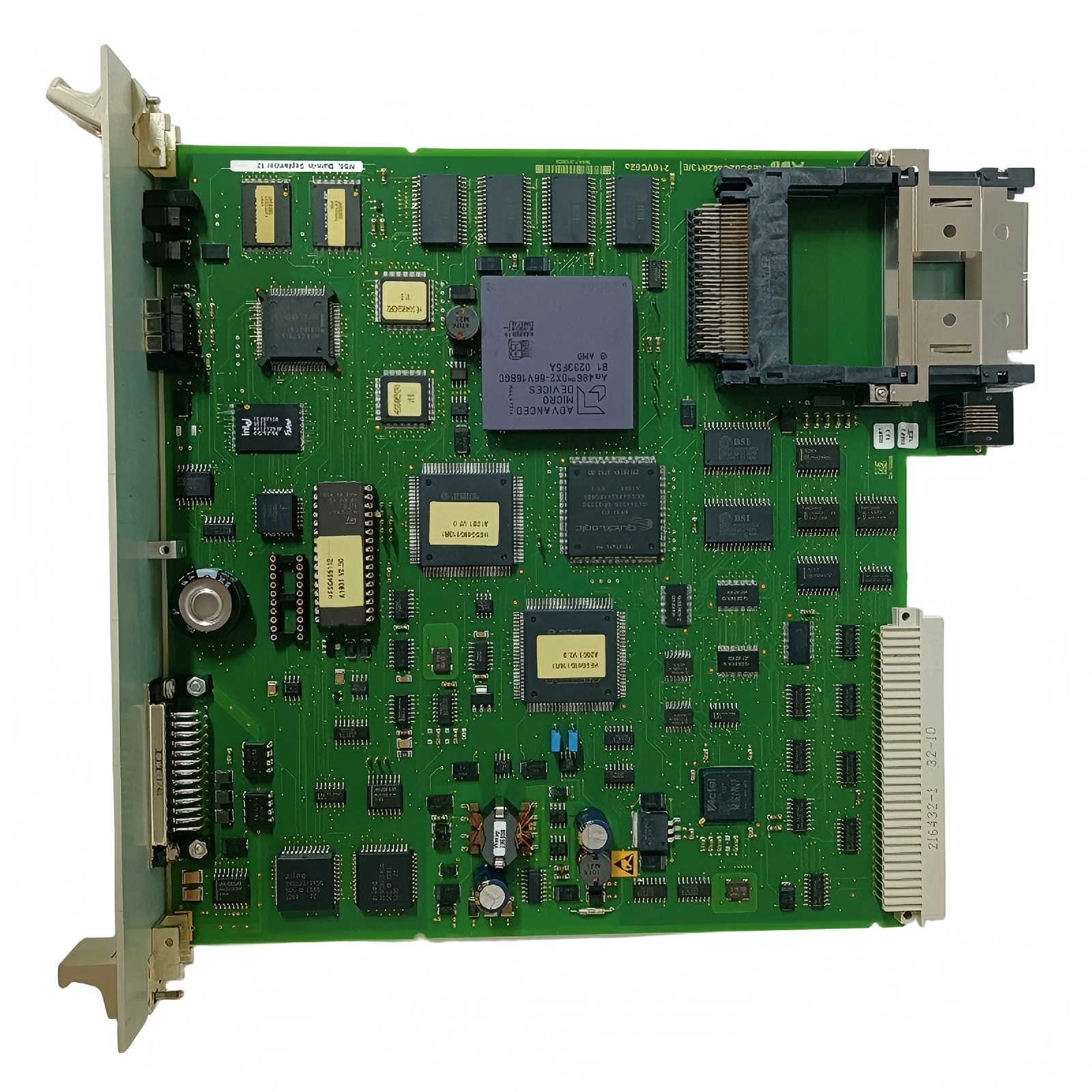

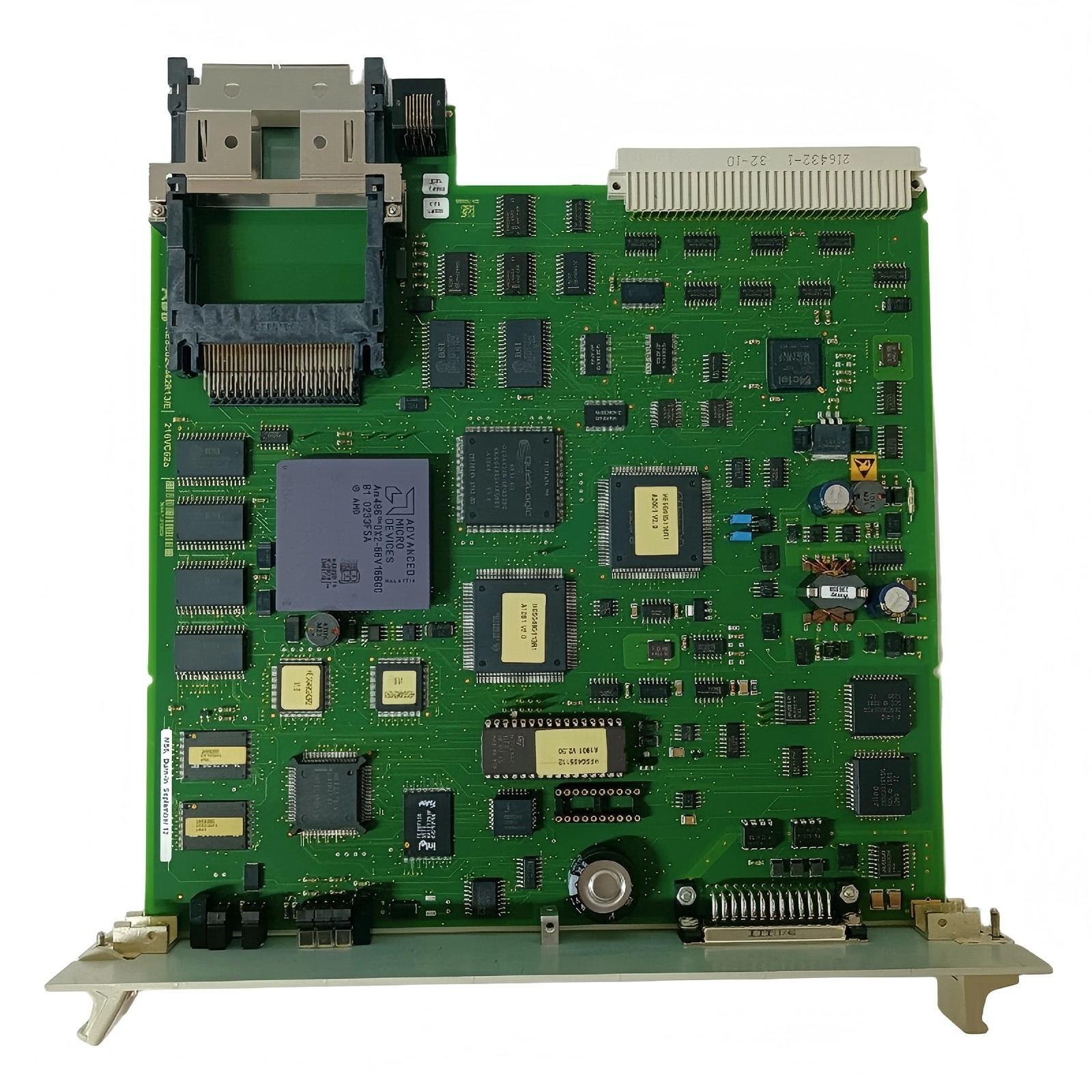

ABB EI802F 3BDH000016R1 Ethernet Module

Overview

The ABB EI802F is an Ethernet communication module designed for ABB’s industrial automation systems. It enables high-speed data exchange between controllers, field devices, and networked equipment, supporting seamless integration and reliable network performance in industrial environments.

General Information

Part Number: 3BDH000016R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: EI802F

Type: Ethernet Communication Module

Mounting: DIN rail or control cabinet installation

Technology: High-speed Ethernet interface, network redundancy capable, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via controller backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, link status, and fault detection

Communication & Interface

Network Ports: 1 × Ethernet RJ45 port

Data Transmission: High-speed Ethernet communication for control and monitoring

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: LED indicators for power and network activity

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or within standard industrial cabinet

Dimensions & Weight

Dimensions (L × W × H): 125 × 155 × 28 mm

Weight: ~ 0.15 kg
