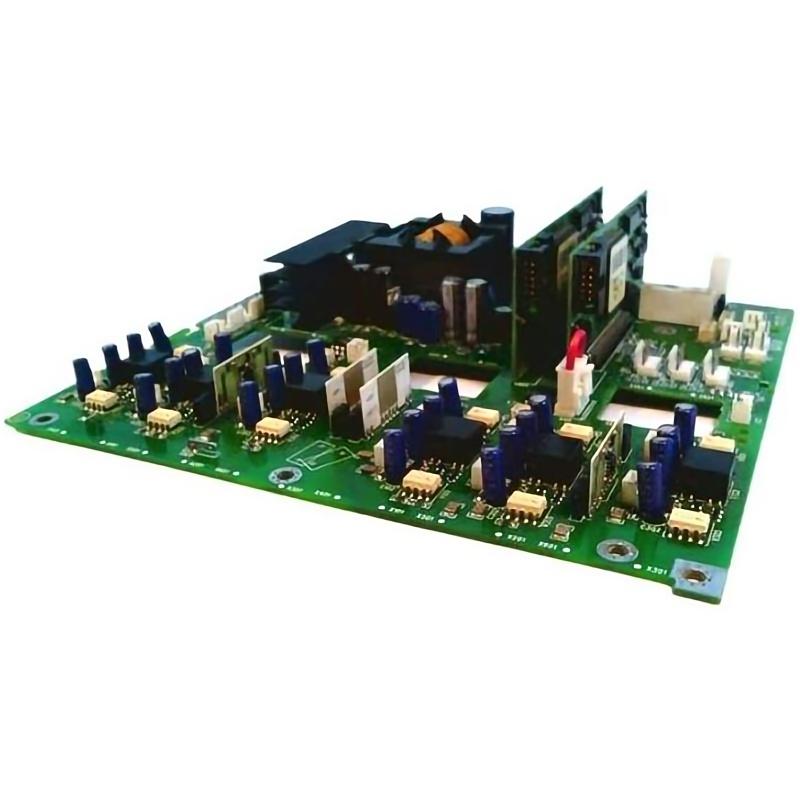

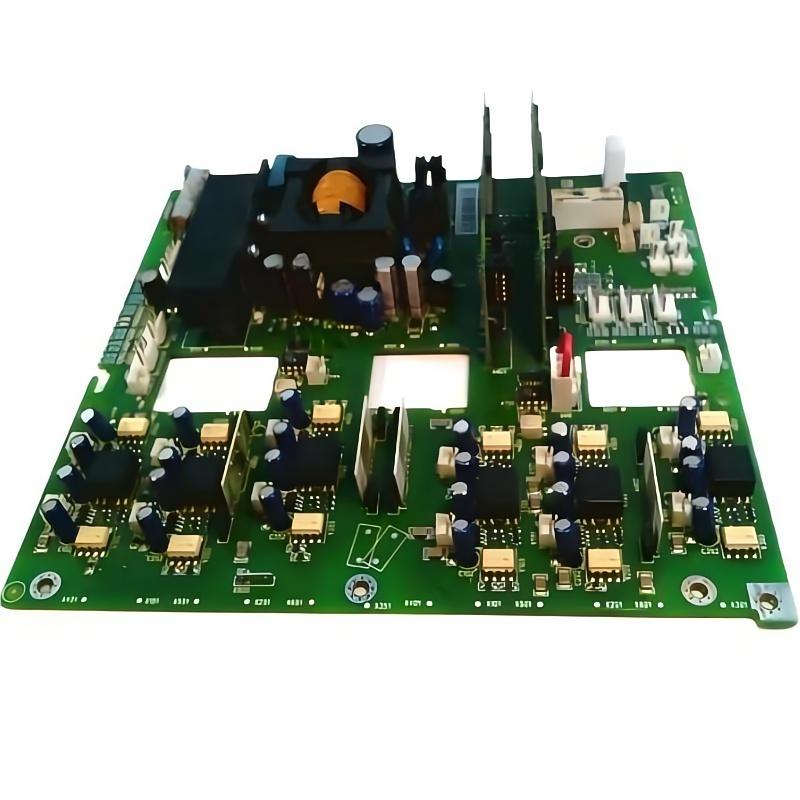

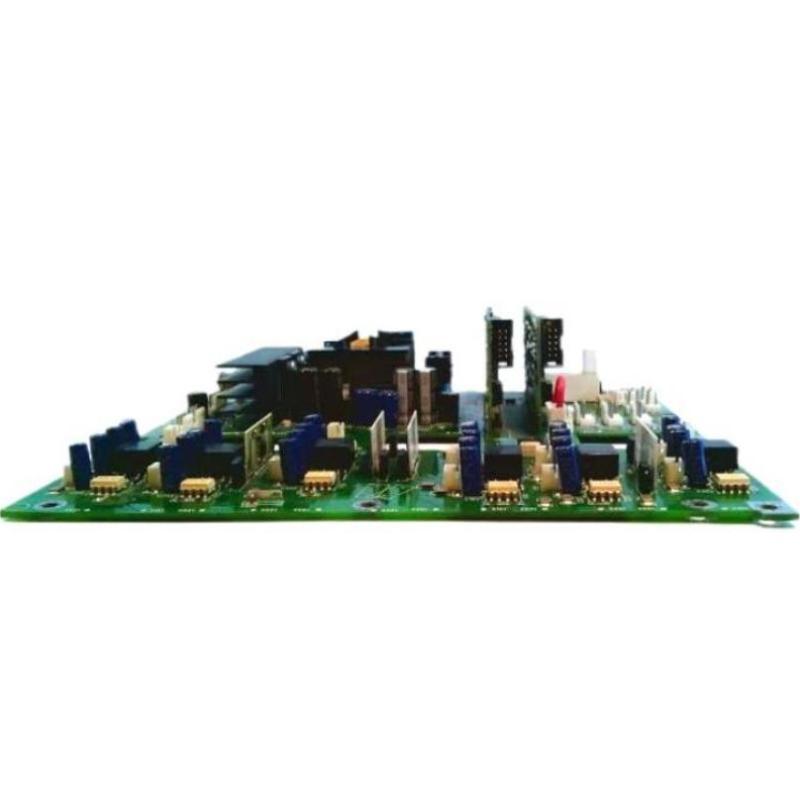

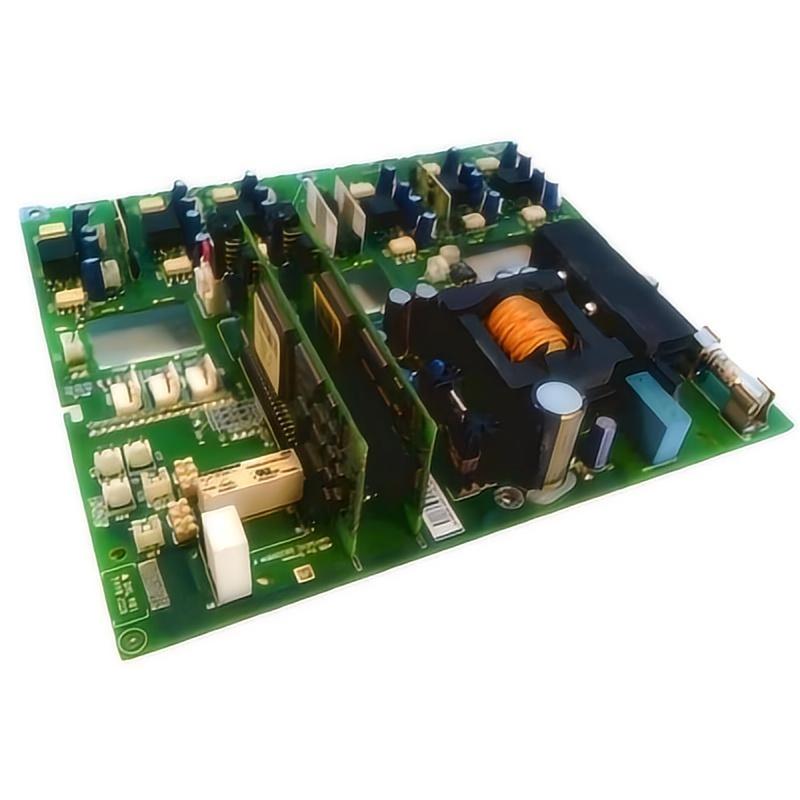

ABB GINT-5611C Termination Unit Circuit Board

Overview

The ABB GINT-5611C is a termination unit circuit board designed for industrial automation systems. It provides reliable termination, signal routing, and connectivity for control and field devices, ensuring stable communication and accurate operation in demanding industrial environments.

General Information

Part Number: GINT-5611C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: GINT

Type: Termination Unit Circuit Board

Mounting: Installed within control cabinet or module chassis

Technology: High-reliability electronic circuits, signal termination, and routing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 7 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: None (status indicated by associated module LEDs)

Communication & Interface

Interface Type: Internal connections for control and field devices

Data Transmission: Routes digital and analog signals within the system

Diagnostics: Module-level fault detection and self-check routines

Operator Interface: None directly on the board

Reset Features: Controlled via parent module soft or hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 220 × 120 × 30 mm

Weight: ~ 0.671 kg
