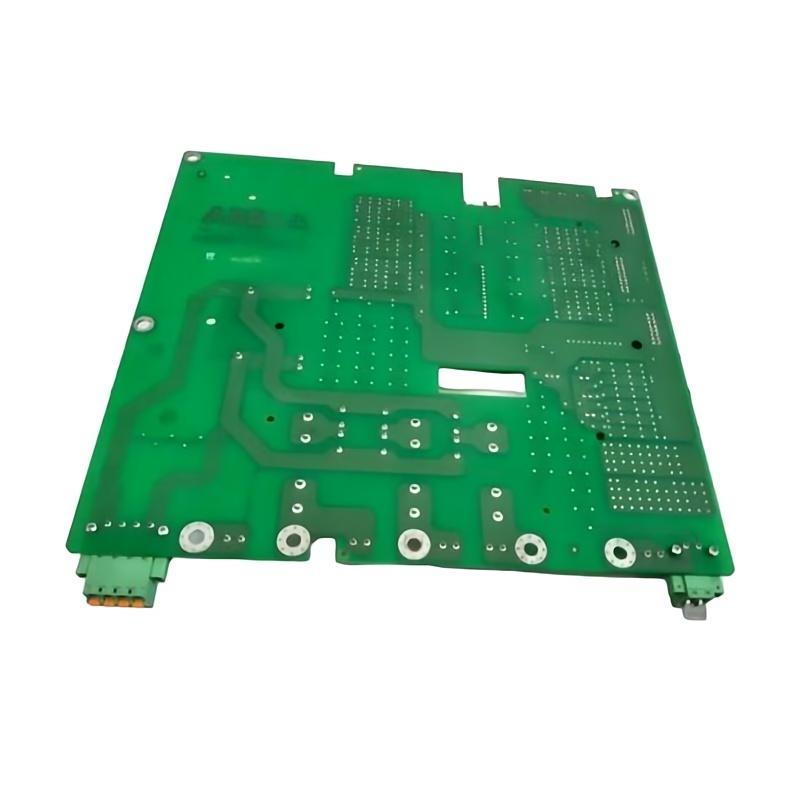

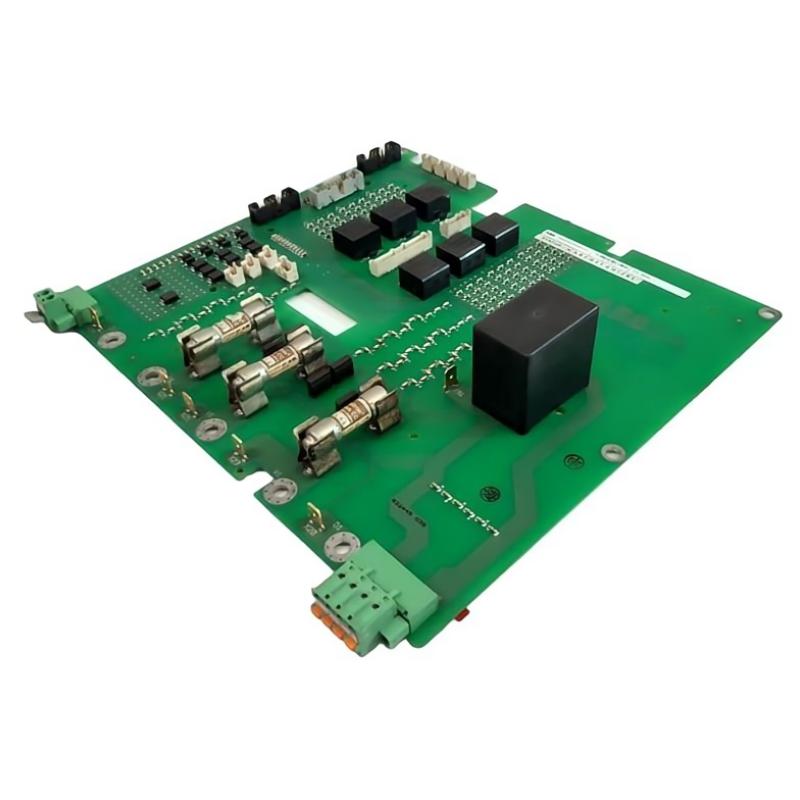

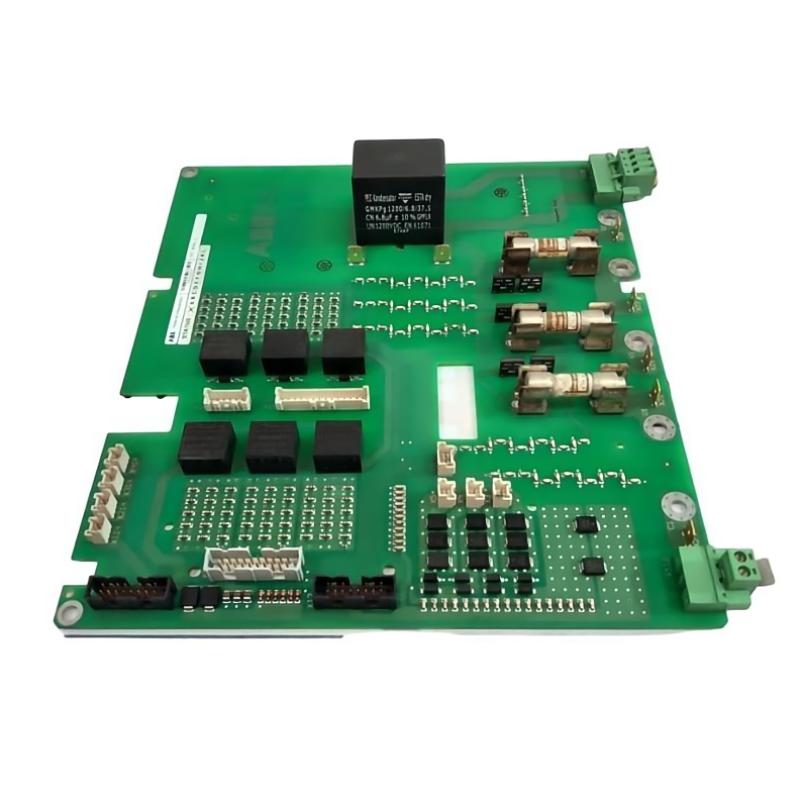

ABB GV D241 A 3BHE022886R0001 PCB Card

Overview

The ABB GV D241 A is a printed circuit board (PCB) card designed for industrial automation and control systems. It provides essential signal processing, connectivity, and logic functions, ensuring reliable operation of safety and control modules.

General Information

Part Number: 3BHE022886R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: GV Series

Type: PCB Card

Mounting: Rack or panel-mounted installation within control cabinets

Technology: High-quality PCB with integrated logic circuits, modular design for flexible system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system or cabinet supply

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for card operation and fault status

Communication & Interface

Interface Ports: Connects to system backplane and adjacent modules

Diagnostics: Card-level monitoring, fault detection, and reporting

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports controlled software and hardware reset via controller

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 177 × 142 × 32 mm

Weight: ~ 0.38 kg

Reliable PCB Design, Perfect for Seamless System Integration!
