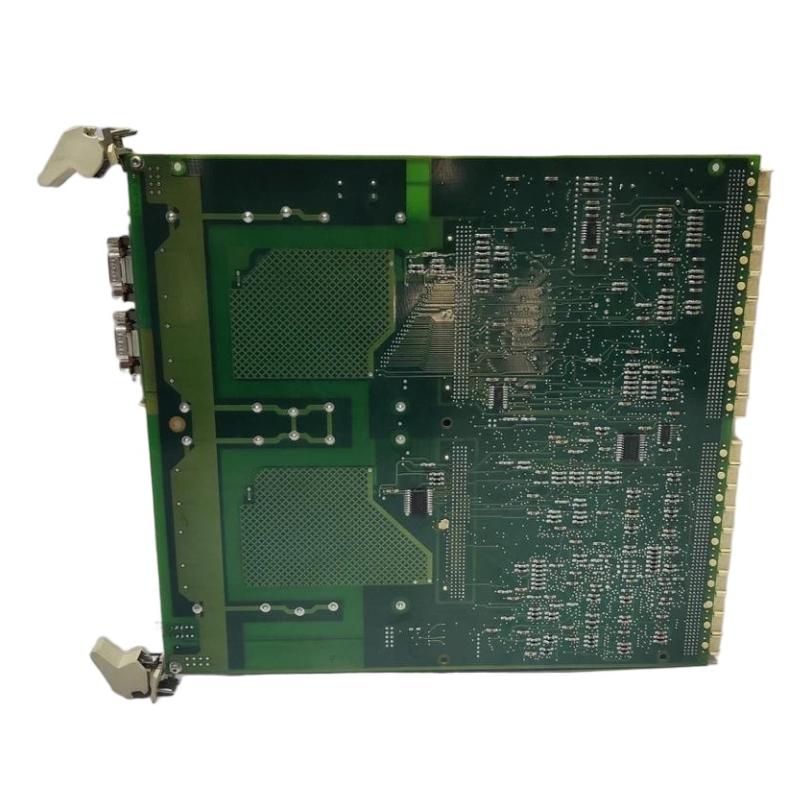

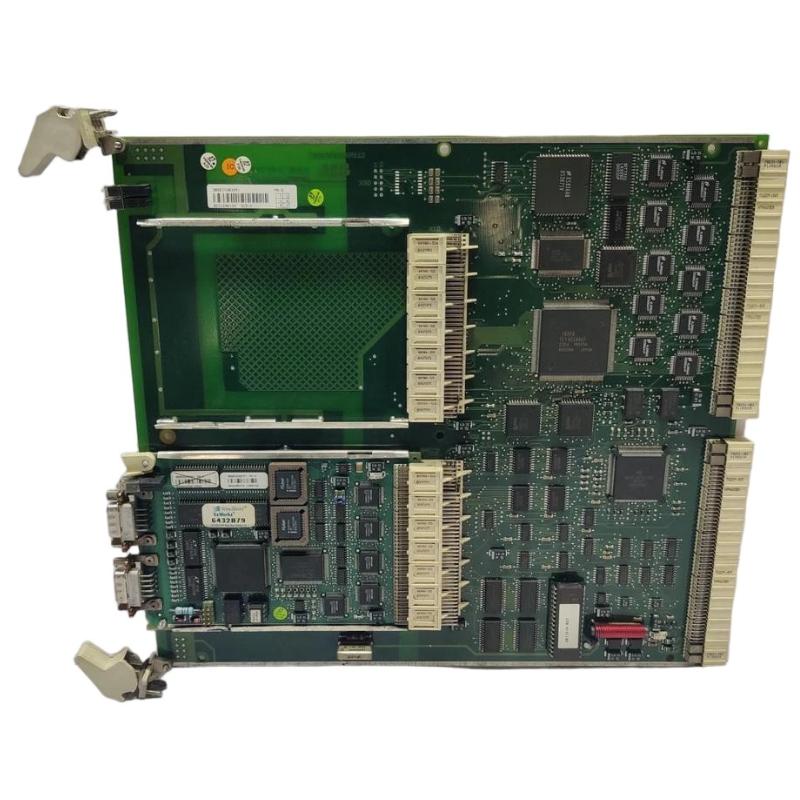

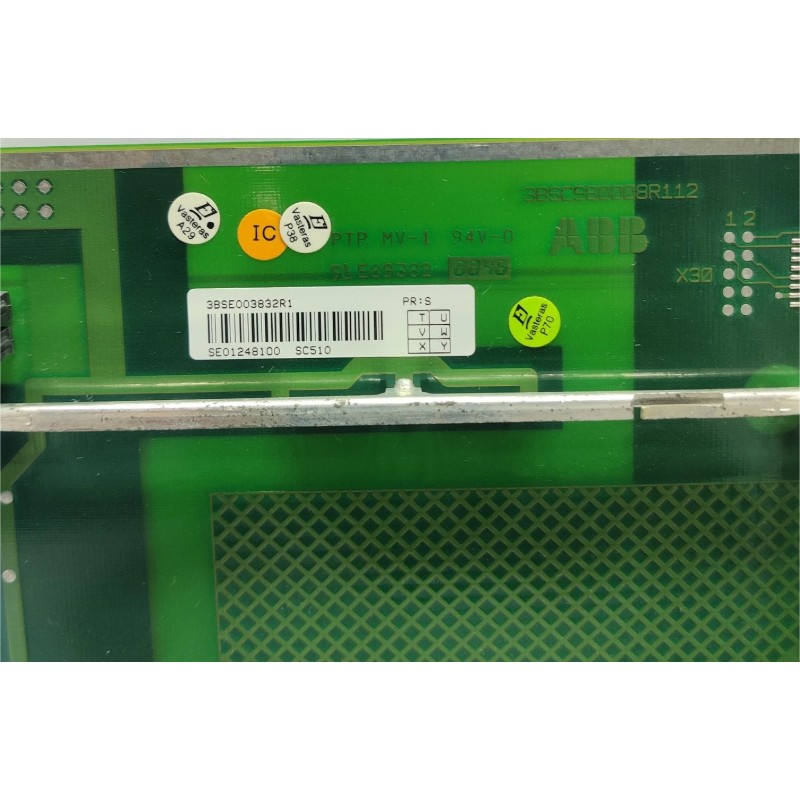

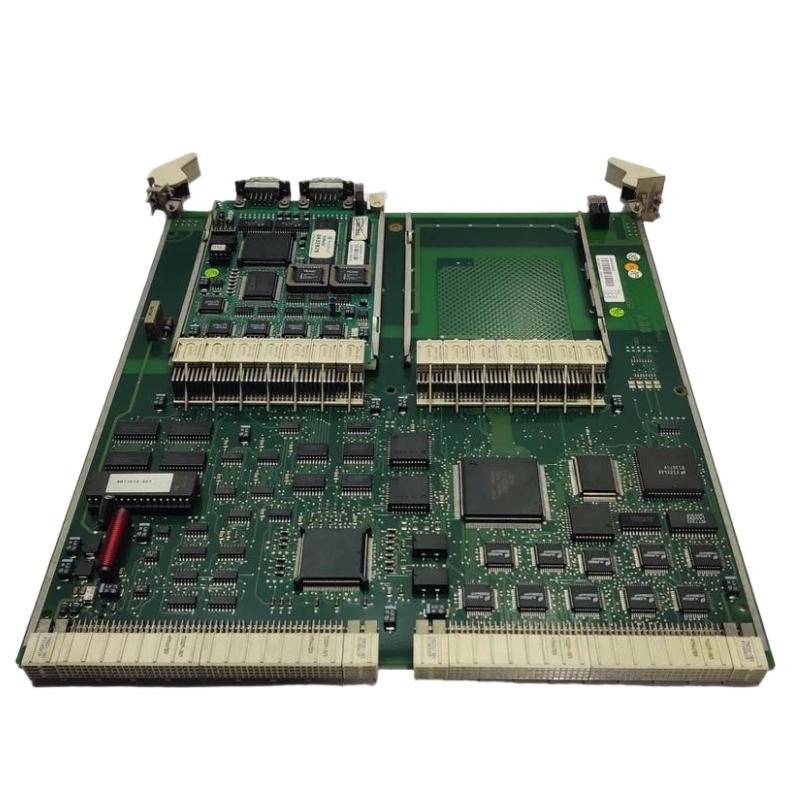

ABB SC510 3BSE003832R1 Submodule Carrier

Overview

The ABB SC510 is a submodule carrier designed for industrial automation systems. It provides secure housing and organized mounting for ABB control and I/O submodules, ensuring efficient integration and reliable operation in complex automation setups.

General Information

Part Number: SC510 / 3BSE003832R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SC Submodule Carrier Series

Type: Submodule Carrier

Mounting: Panel or rack installation within ABB control system chassis

Technology: Modular slot-based design, secure module fixation, structured cabling support

Power Specifications

Supply Voltage: N/A (passive carrier, modules powered individually)

Power Consumption: N/A

Input: N/A

Protection: Mechanical protection for installed submodules

Indicators: None (status displayed by individual modules)

Communication & Interface

Communication Ports: N/A (interfaces provided by installed submodules)

Protocol Support: Dependent on installed ABB modules

Diagnostics: N/A (handled by individual modules)

Operator Interface: N/A

Reset Features: N/A

I/O & Channels

Module Slots: Designed to accommodate multiple ABB control and I/O submodules

External Load Support: N/A

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 288 × 22.5 × 486 mm

Weight: ~ 0.67 kg
