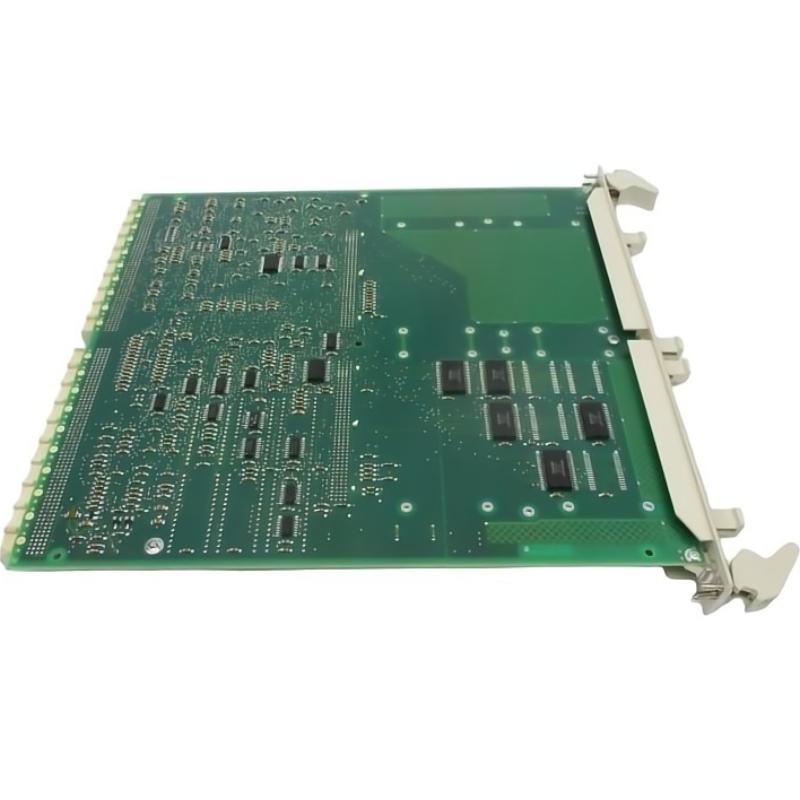

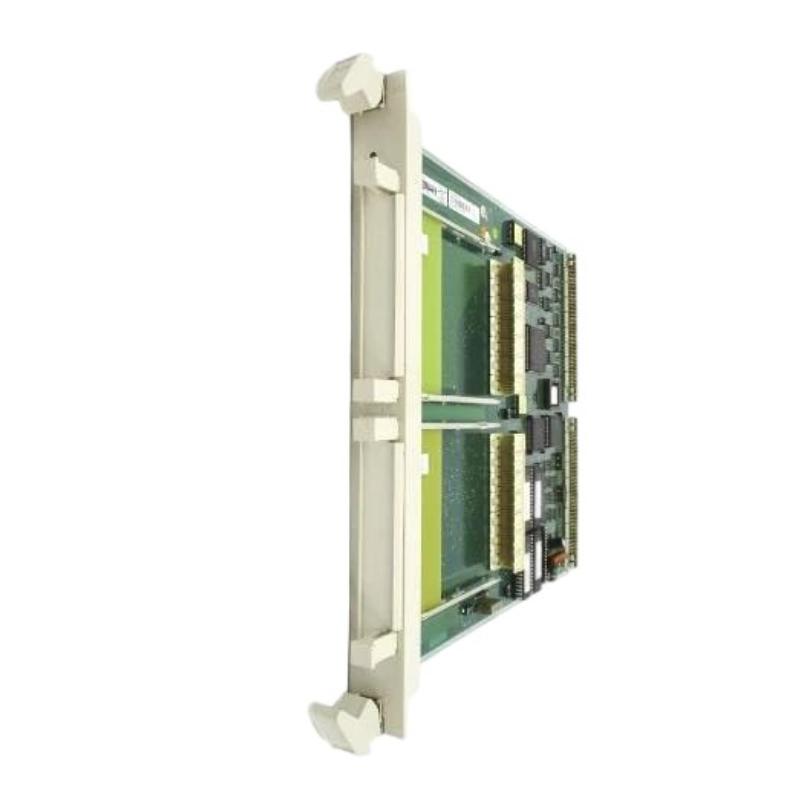

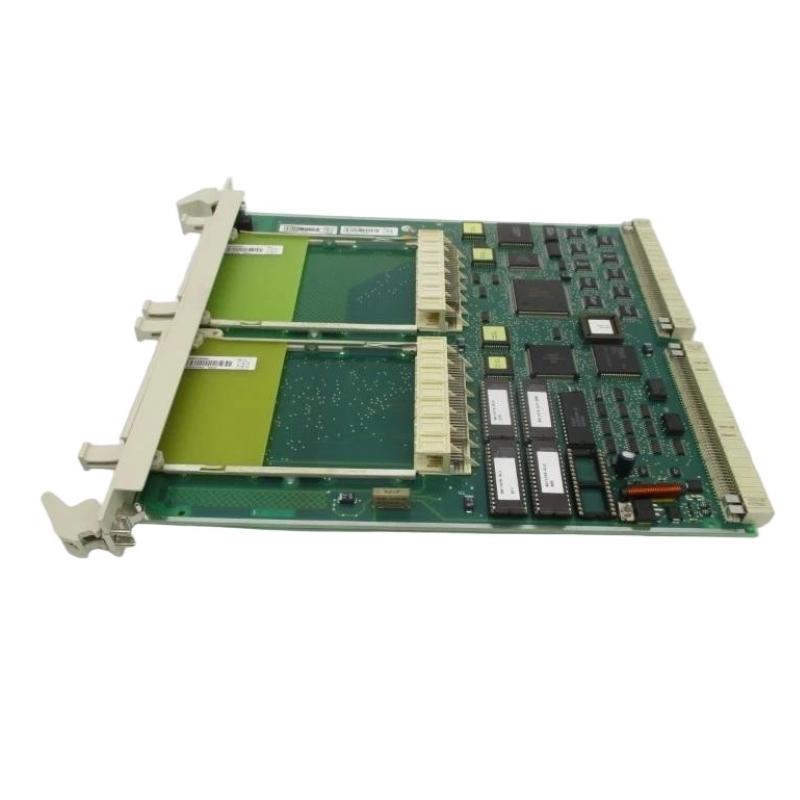

ABB SC520 3BSE003816R1 Submodule Carrier

Overview

The ABB SC520 is a submodule carrier designed for industrial automation systems. It provides structured mounting and secure housing for ABB control and I/O submodules, supporting efficient system integration and reliable operation in demanding industrial environments.

General Information

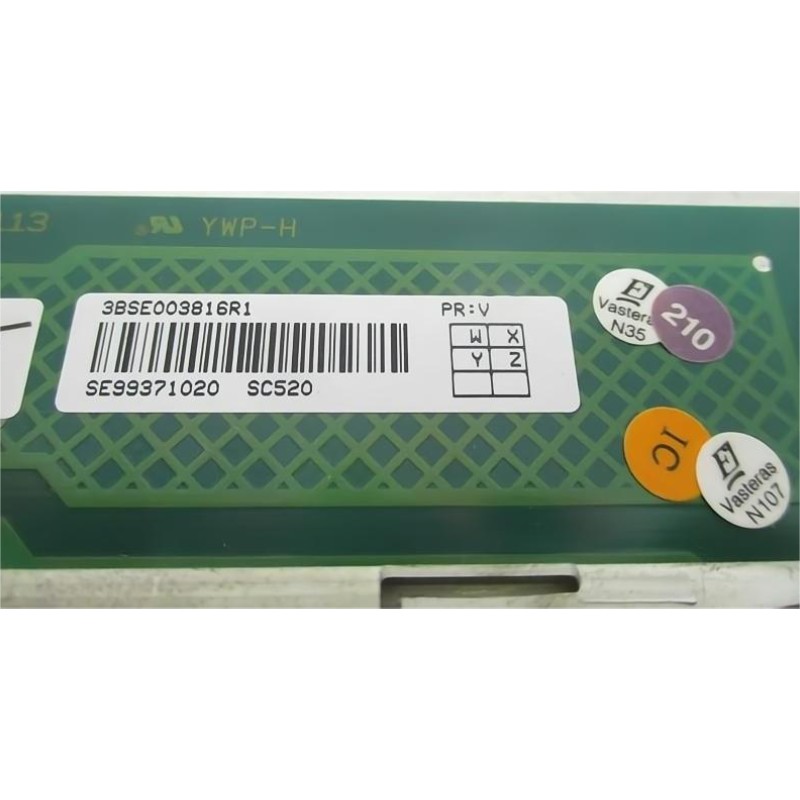

Part Number: SC520 / 3BSE003816R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SC Submodule Carrier Series

Type: Submodule Carrier

Mounting: Panel or rack installation within ABB control system chassis

Technology: Modular slot-based design, secure module fixation, organized cabling support

Power Specifications

Supply Voltage: N/A (passive carrier, modules powered individually)

Power Consumption: N/A

Input: N/A

Protection: Mechanical protection for installed submodules

Indicators: None (status shown by installed submodules)

Communication & Interface

Communication Ports: N/A (interfaces provided by installed submodules)

Protocol Support: Dependent on installed ABB modules

Diagnostics: N/A (handled by individual modules)

Operator Interface: N/A

Reset Features: N/A

I/O & Channels

Module Slots: Supports multiple ABB control and I/O submodules

External Load Support: N/A

Environmental

Operating Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 291 × 300 × 30 mm

Weight: ~ 0.742 kg
