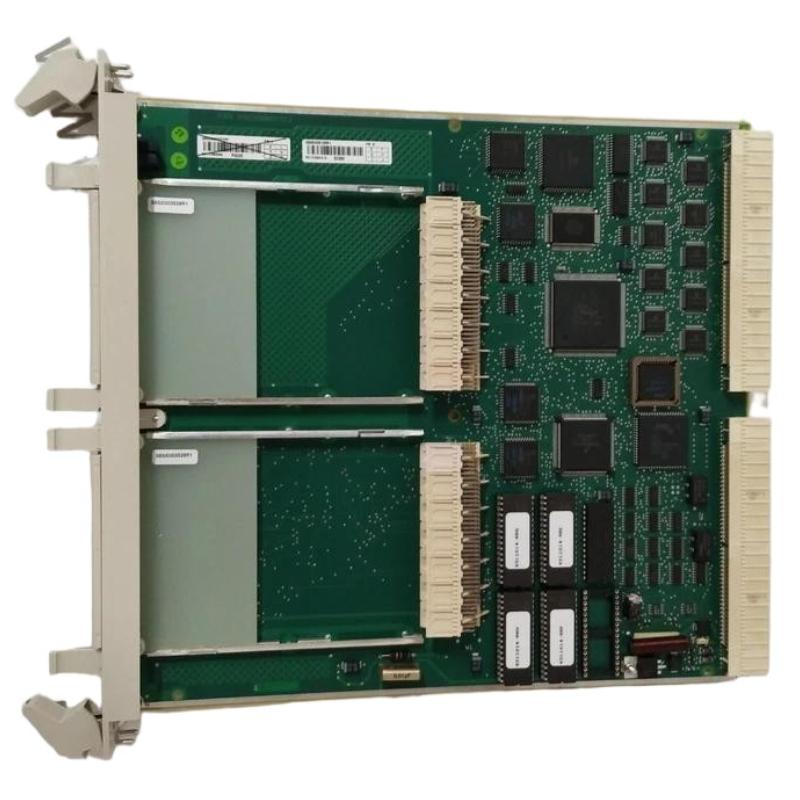

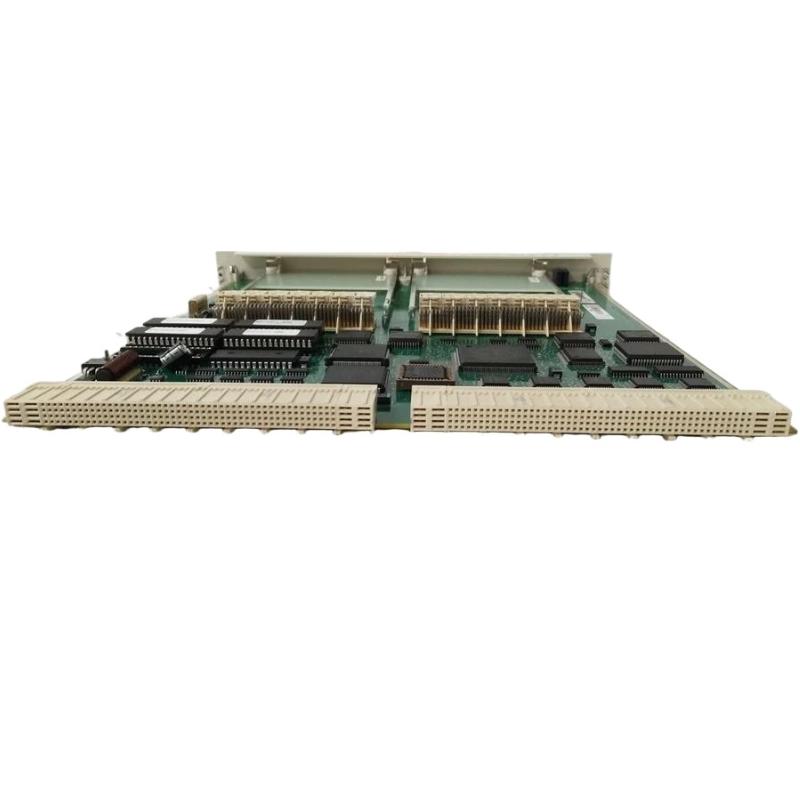

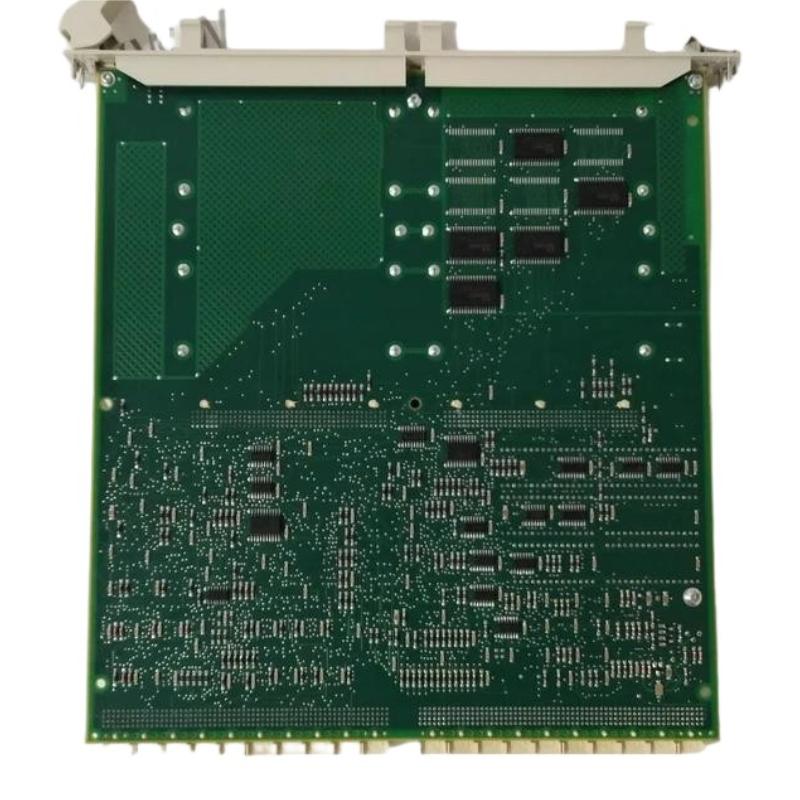

ABB SC560 3BSE008105R1 Submodule Carrier

Overview

The ABB SC560 is a submodule carrier designed for ABB’s Advant / Master / OCS automation systems. It provides a secure platform to mount and interface individual submodules, ensuring efficient power distribution, signal routing, and seamless system integration within the control chassis.

General Information

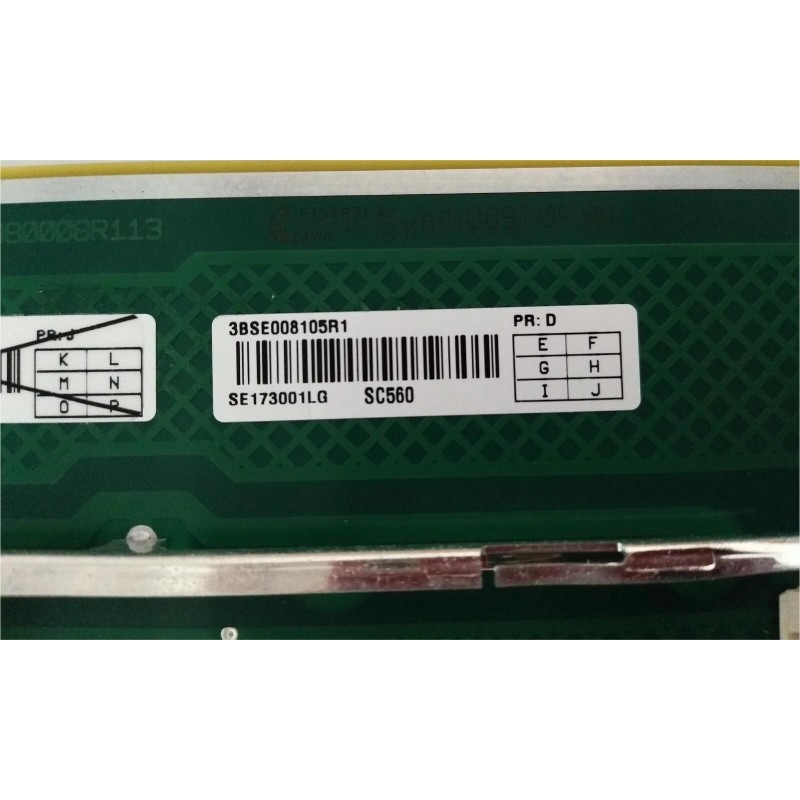

Part Number: 3BSE008105R1

Manufacturer / Brand: ABB

Country of Origin: Switzerland

Series: SC (Submodule Carrier)

Type: Submodule Carrier / Rack Module

Mounting: DIN rail or backplane installation within control chassis

Technology: Modular submodule interface with integrated bus connectivity and diagnostic logic

Power Specifications

Supply Voltage: 5 V DC (logic) / 24 V DC (module powering)

Power Consumption: ≤ 15 W (fully loaded)

Input: Power supplied from controller backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power status, module presence, and fault

Communication & Interface

Bus Interface: Backplane bus connectivity to the main controller

Submodule Slots: Supports multiple submodules with automatic recognition

Diagnostics: Slot-level monitoring, fault detection, and status reporting

Operator Interface: Status LEDs and optional test points

Reset Features: Supports soft reset via system commands or hardware reset via front panel

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial environment)

Vibration & Shock: Designed to meet IEC 60068 standards for industrial use

Dimensions & Weight

Dimensions (L × W × H): 486 × 27 × 288 mm

Weight: ~ 0.76 kg
