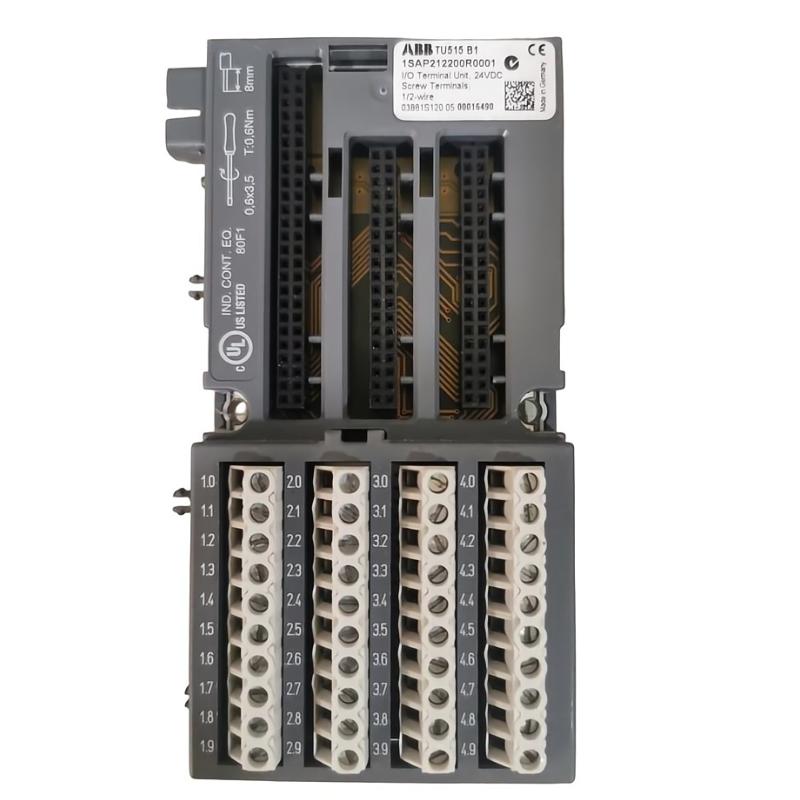

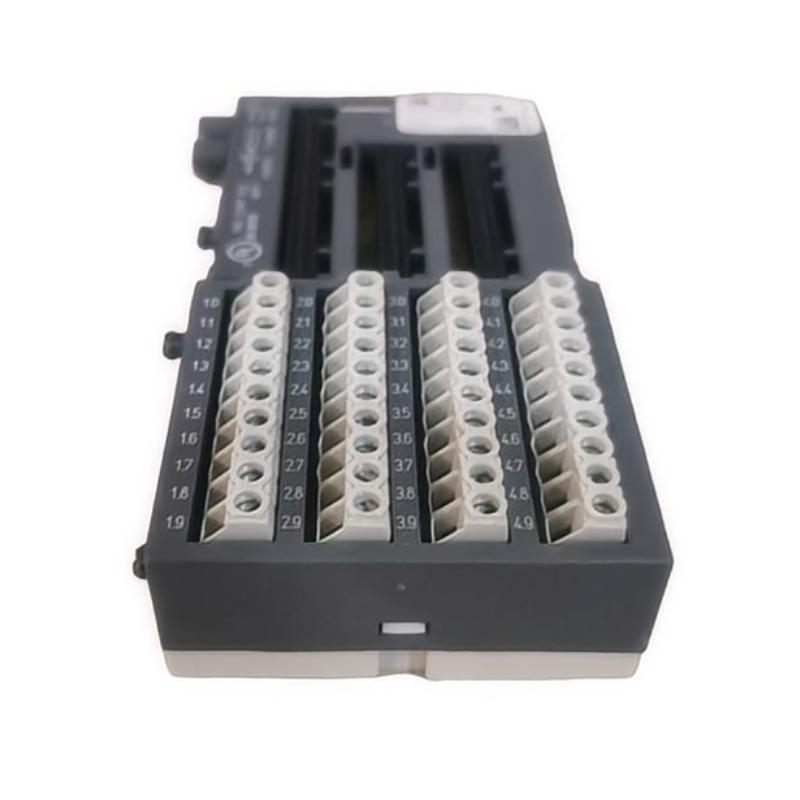

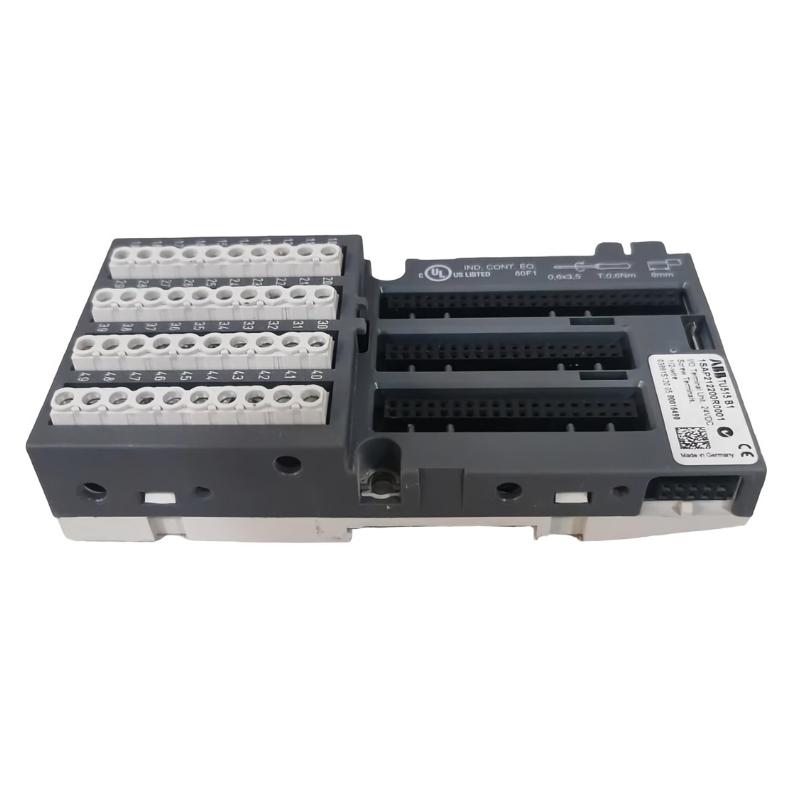

ABB TU515 1SAP212200R0001 I/O Terminal Mnit

Overview

The ABB TU515 is an I/O terminal unit designed for ABB’s Advant / Master / OCS automation systems. It provides reliable interfacing for digital and analog signals, ensuring accurate data exchange between the control system and field devices.

General Information

Part Number: 1SAP212200R0001

Manufacturer / Brand: ABB

Country of Origin: Switzerland

Series: TU (I/O Terminal Unit)

Type: Terminal Unit / I/O Module

Mounting: DIN rail or backplane installation within control chassis

Technology: Signal interfacing with integrated diagnostics and status monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via controller backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, communication, and fault status

Communication & Interface

Bus Interface: Backplane connectivity to the main controller

I/O Channels: Supports digital and analog inputs and outputs

Diagnostics: Module-level monitoring, fault detection, and status reporting

Operator Interface: Status LEDs and optional test points

Reset Features: Supports soft reset via system commands or hardware reset via front panel

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial environment)

Vibration & Shock: Designed to meet IEC 60068 standards for industrial use

Dimensions & Weight

Dimensions (L × W × H): 28 × 135 × 67.5 mm

Weight: ~ 0.232 kg
