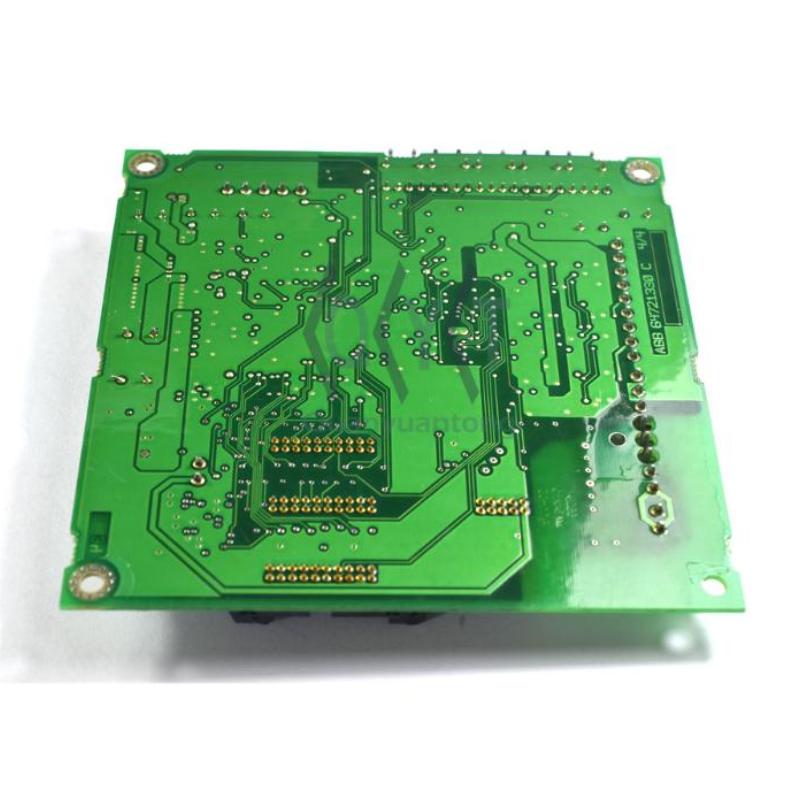

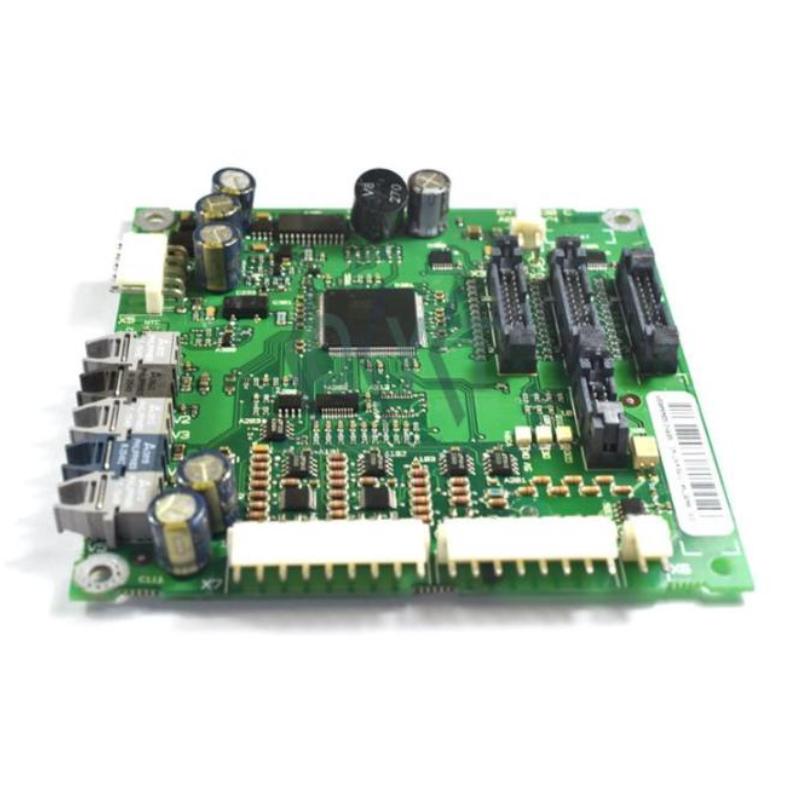

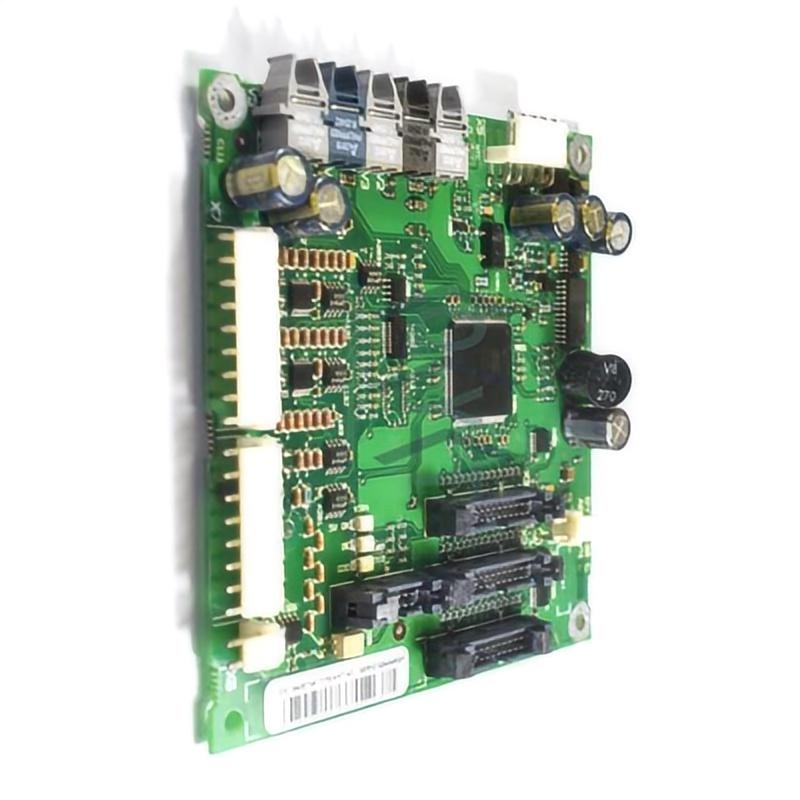

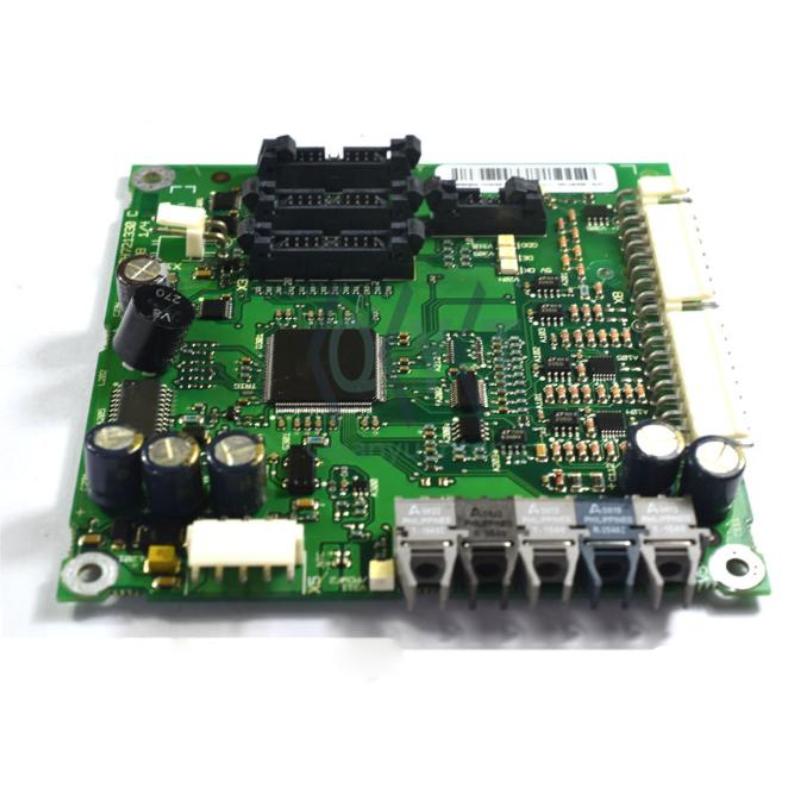

ABB AINT-01C Communication Fiber Optic Board

Overview

The ABB AINT-01C is a communication fiber optic board designed for ABB’s Advant / Master / OCS automation systems. It enables high-speed, reliable data transmission over fiber optic networks, ensuring seamless connectivity and system integration.

General Information

Part Number: AINT-01C

Manufacturer / Brand: ABB

Country of Origin: Switzerland

Series: AINT (Communication Interface Board)

Type: Fiber Optic Communication Board

Mounting: DIN rail or backplane installation within control chassis

Technology: Fiber optic data transmission with integrated diagnostics and status monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via controller backplane

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LEDs for power, communication link, and fault

Communication & Interface

Bus Interface: Backplane connectivity to the main controller

Fiber Ports: Supports multiple fiber optic connections for high-speed data

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: Status LEDs and test points

Reset Features: Supports soft reset via system commands or hardware reset via front panel

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial environment)

Vibration & Shock: Designed to meet IEC 60068 standards for industrial use

Dimensions & Weight

Dimensions (L × W × H): 50 × 100 × 120 mm

Weight: ~ 0.25 kg
