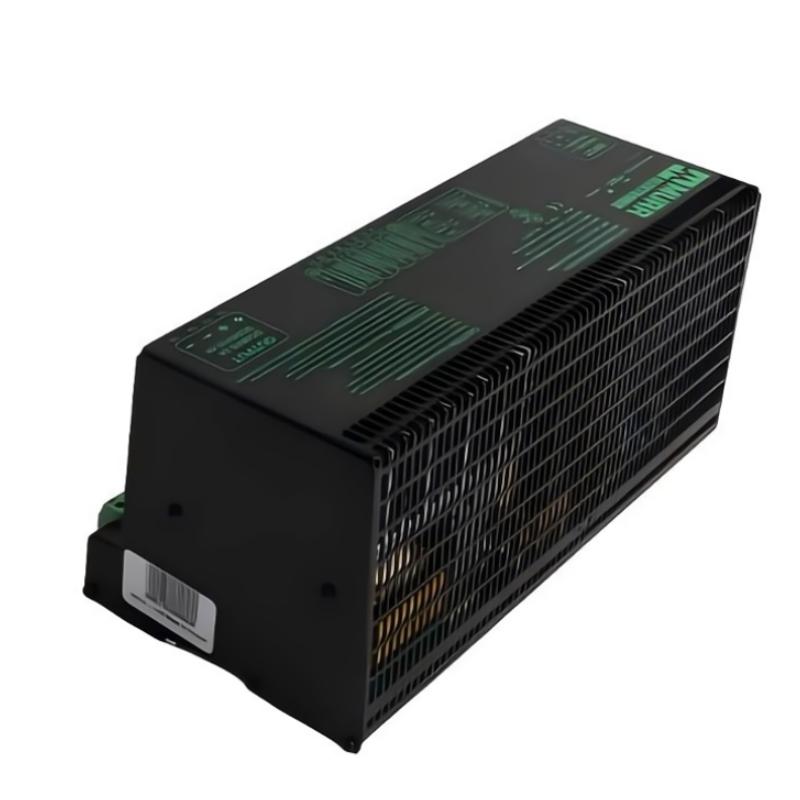

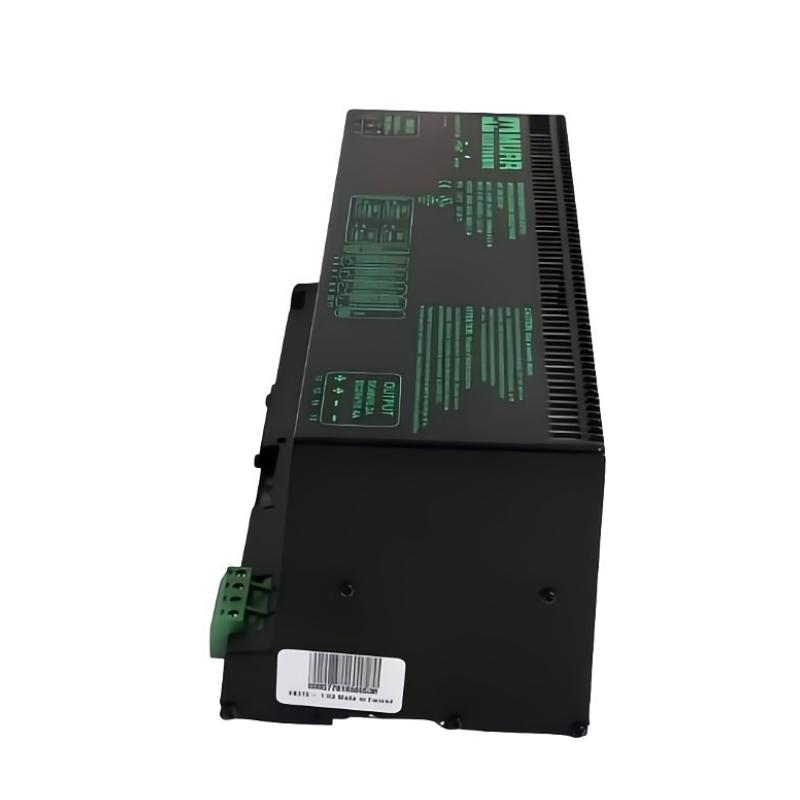

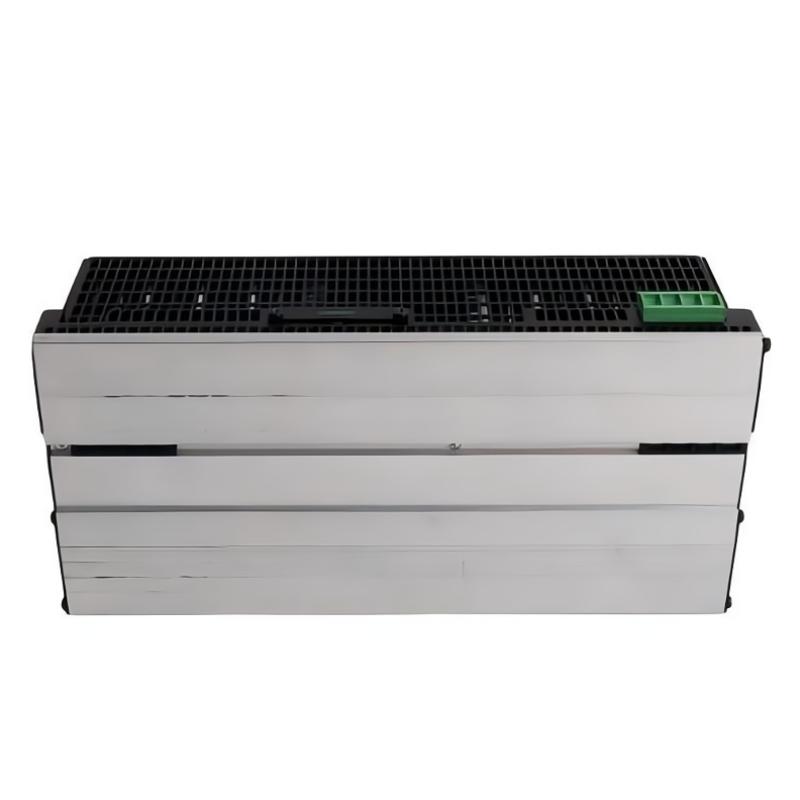

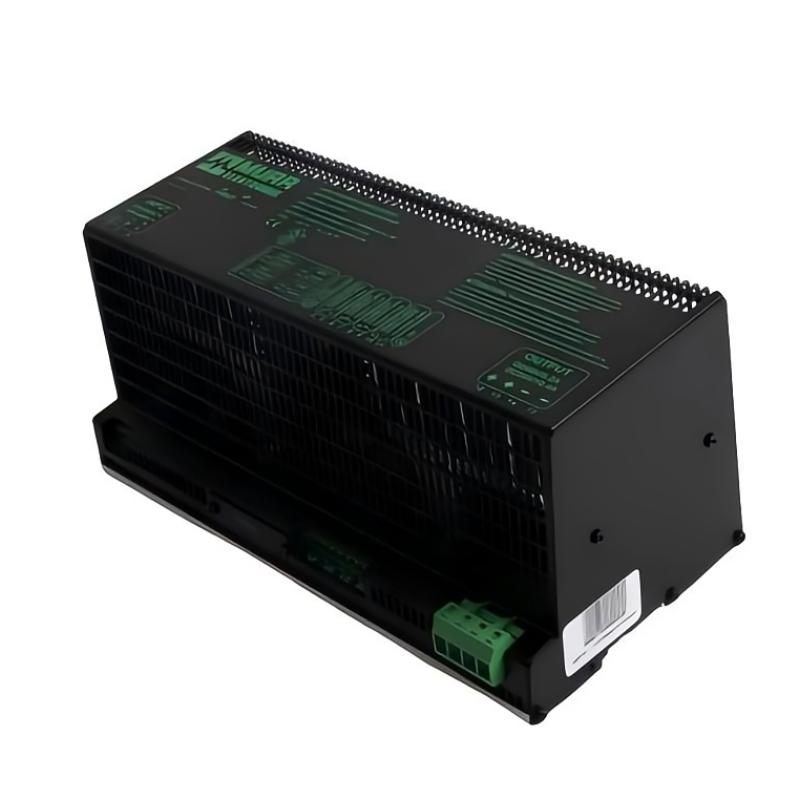

ABB MPS105-230/24/48 3BHB006449R0002 Power Supply Device

Overview

The ABB MPS105-230/24/48 is a high-performance industrial power supply designed for continuous operation in automation and control systems. It provides stable DC output voltages with integrated protection features, ensuring safe operation of connected devices. Its compact design allows seamless installation in standard industrial cabinets or DIN rail setups.

General Information

Part Number: 3BHB006449R0002

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: MPS (Modular Power Supply)

Type: Industrial Power Supply Device

Mounting: DIN rail or panel installation

Technology: Switching power supply with high efficiency and low ripple

Power Specifications

Input Voltage: 230 V AC ±10%

Input Frequency: 50/60 Hz

Output Voltages: 24 V DC, 48 V DC

Output Current: Up to 4.4 A (24 V) / 2.1 A (48 V)

Power Rating: 105 W

Efficiency: ≥ 90%

Protection Features: Overvoltage, overload, short-circuit, and thermal protection

Indicators: LED for power status and fault

Communication & Interface

Control Interface: None (standard MPS105 series; external monitoring possible via PLC)

Diagnostic Features: LED indication for output and fault status

Remote Monitoring: Optional with external modules

Reset Features: Automatic recovery after fault conditions

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration: IEC 60068-2-6 compliant

Shock Resistance: IEC 60068-2-27 compliant

Protection Rating: IP20 (installed in standard industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 29 × 29 × 29 mm

Weight: 2.7 kg
