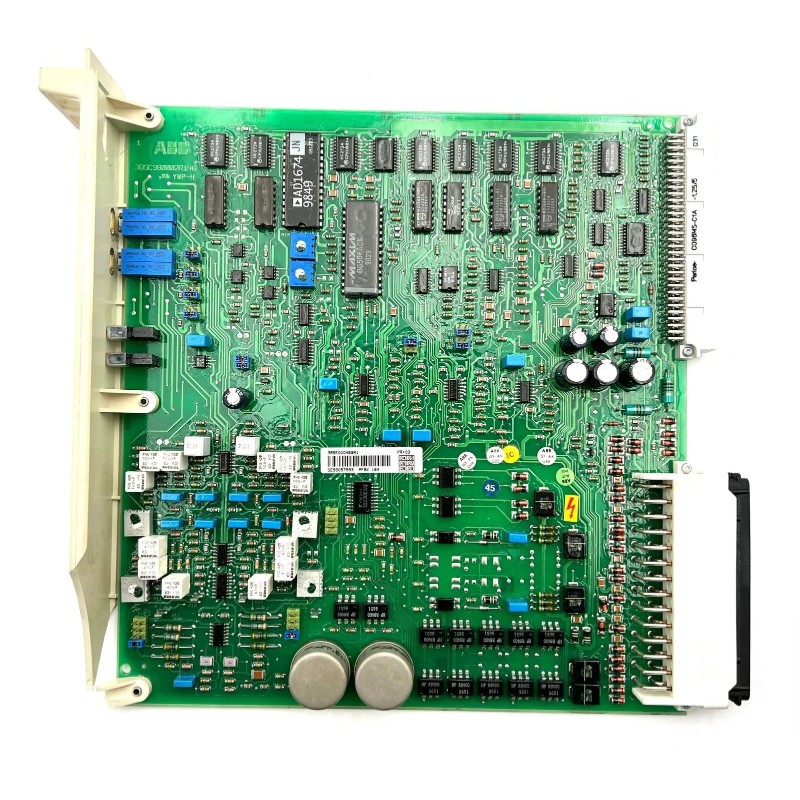

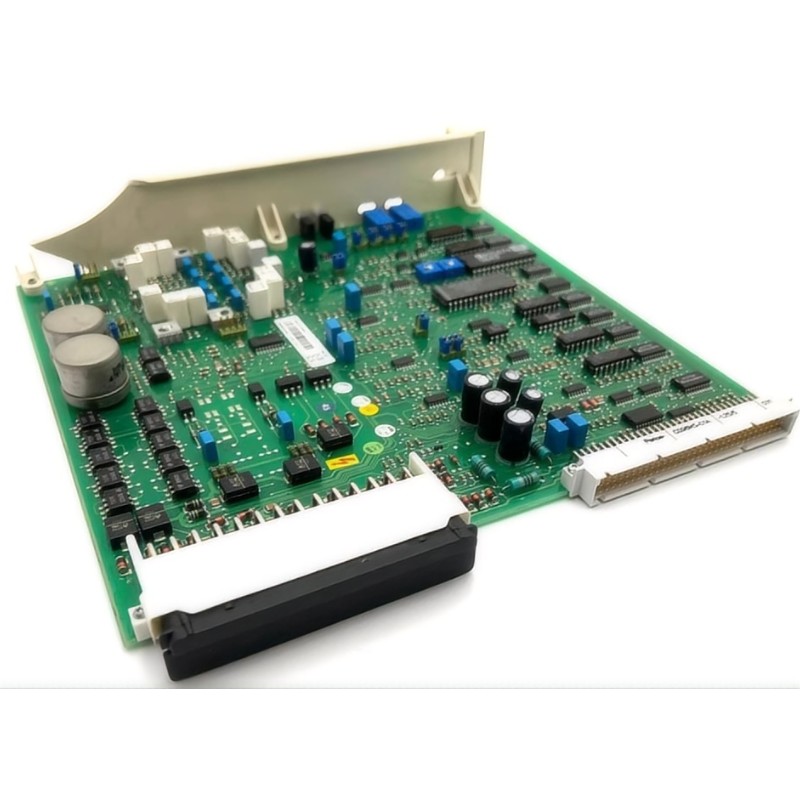

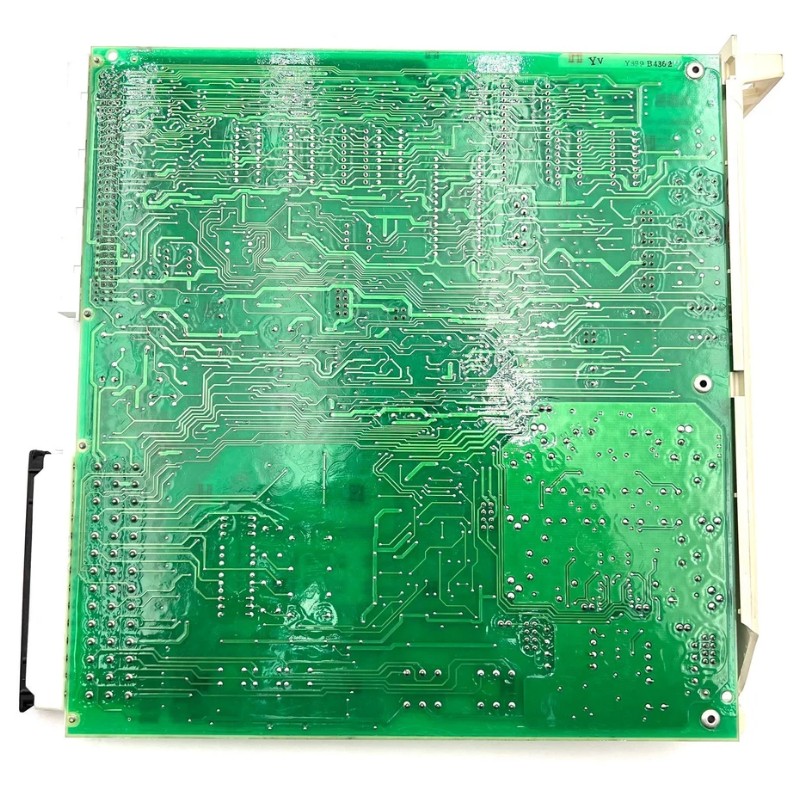

ABB PFBK164 3BSE000469R1 Signal Processing Board

Overview

The ABB PFBK164 is a high-performance signal processing board designed for industrial automation systems. It ensures accurate signal handling, reliable operation, and seamless integration with control modules. Its compact design allows easy installation in standard control cabinets or panels.

General Information

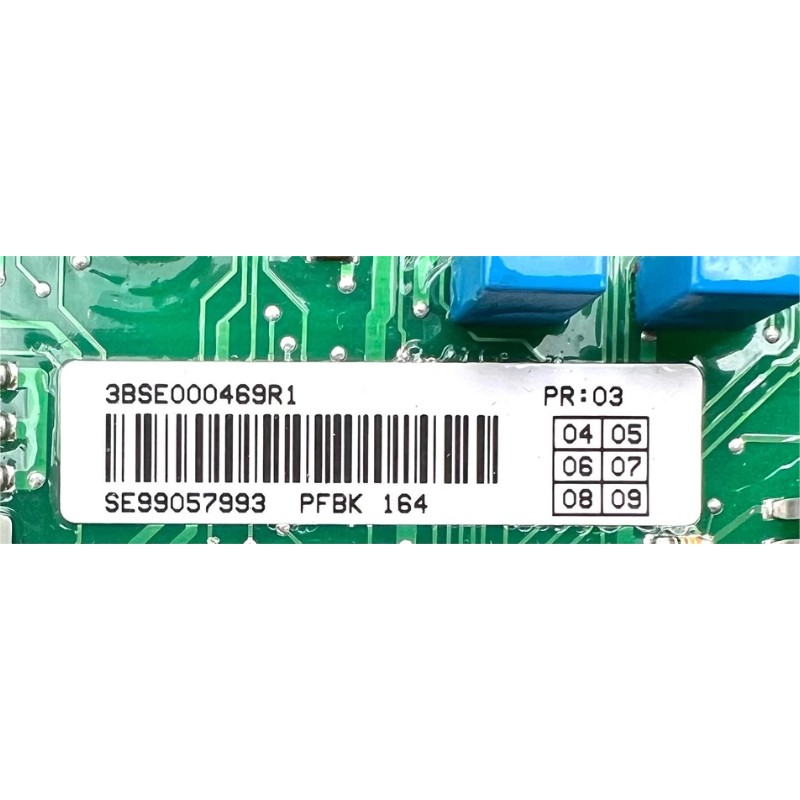

Part Number: 3BSE000469R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFBK (Power Function Board Kit)

Type: Signal Processing Board

Mounting: Panel or module installation

Technology: Advanced printed circuit design for precise signal processing and monitoring

Power Specifications

Supply Voltage: Compatible with system-specific requirements

Power Consumption: Low, optimized for efficiency

Protection Features: Overvoltage, short-circuit, and thermal protection

Indicators: None (status monitored via connected system)

Communication & Interface

Control Interface: Digital and analog I/O for integration with industrial modules

Diagnostics: Fault detection, signal monitoring, and self-test capabilities

Remote Monitoring: Optional via external communication modules

Reset Features: System-controlled reset via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration: IEC 60068-2-6 compliant

Shock Resistance: IEC 60068-2-27 compliant

Protection Rating: IP20 (installed in standard industrial cabinet)

Dimensions & Weight

Dimensions (L × W × H): 224 × 180 × 40 mm

Weight: 0.52 kg
