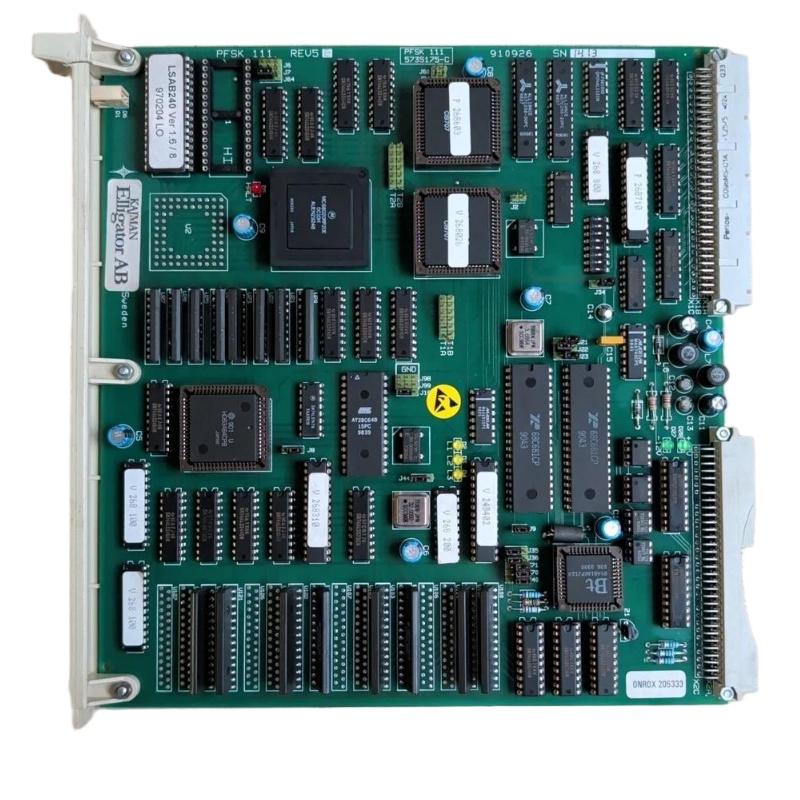

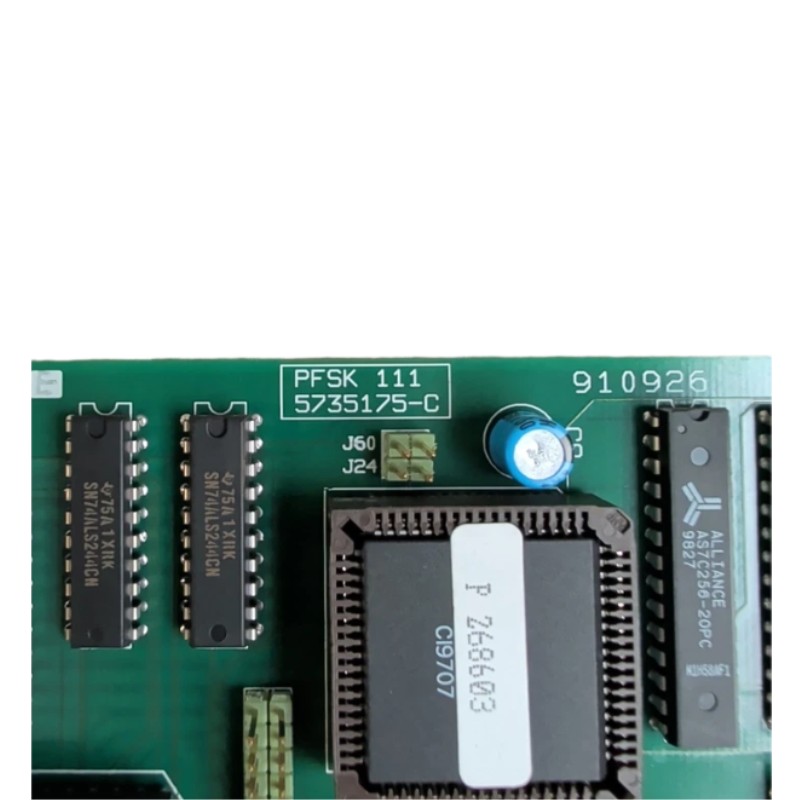

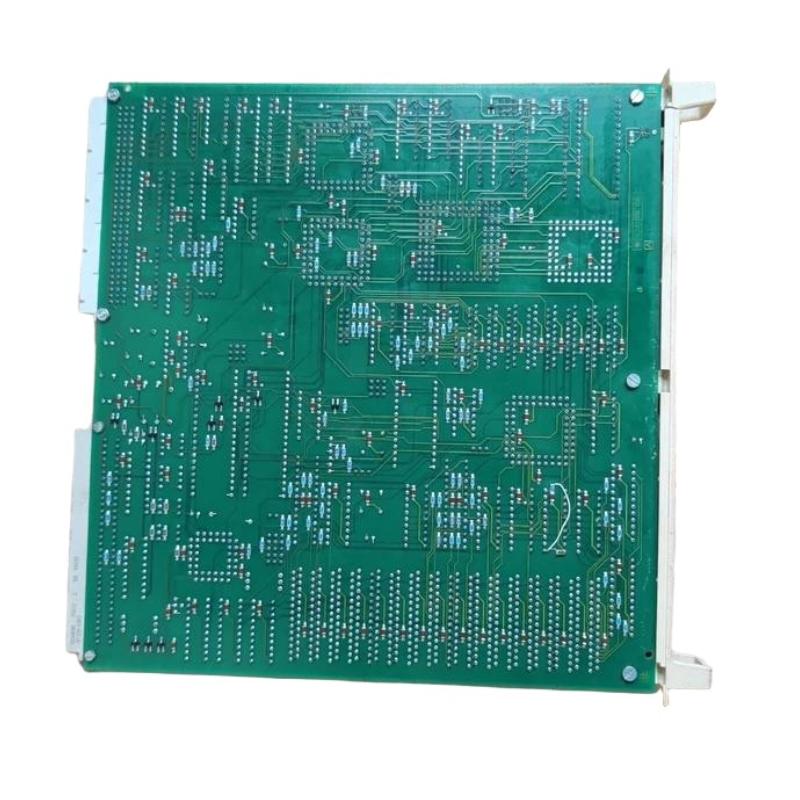

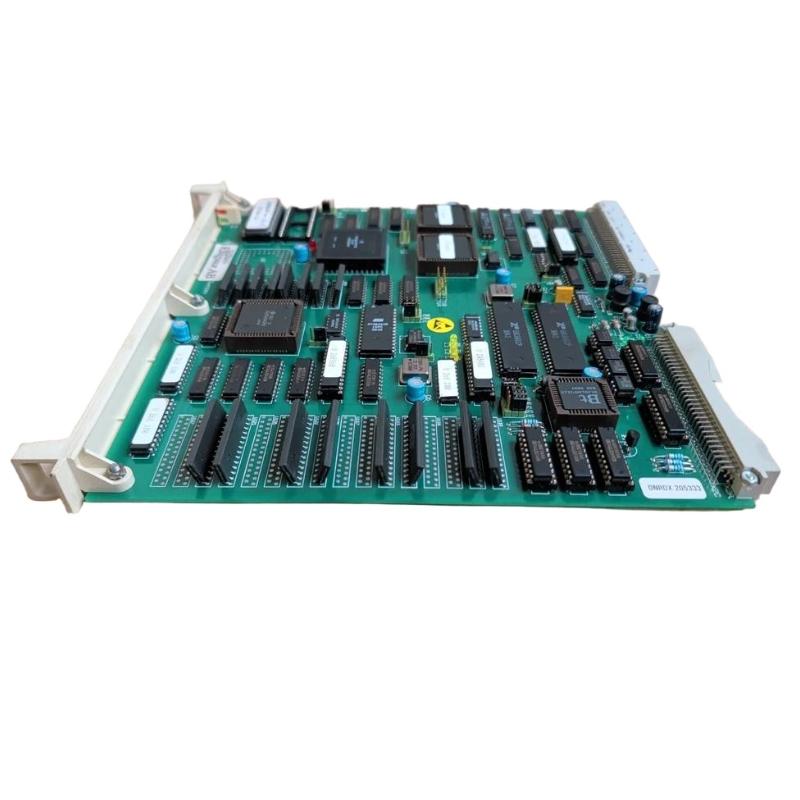

ABB PFSK 111 5735175-C VDU Board

Overview

The ABB PFSK 111 5735175-C is a Visual Display Unit (VDU) board used in industrial automation systems. It provides high-quality graphical display capabilities, allowing operators to monitor, control, and interact with complex processes with ease. Built for reliability, it integrates seamlessly into industrial control environments.

General Information

Part Number: 5735175-C

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PFSK

Type: VDU Board / Display Module

Mounting: Card slot installation within industrial control panels

Technology: LCD/LED display interface, real-time signal processing, graphical rendering

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via controller backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LEDs for power, status, and fault

Communication & Interface

Data Interface: Compatible with ABB process control backplane bus

Display Interface: Parallel or serial communication with host controller

Diagnostics: Built-in self-test, error logging, and status monitoring

Operator Interface: LEDs and optional touch or push-button input

Reset Features: Supports both hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20 for standard industrial panel environments

Dimensions & Weight

Dimensions (L × W × H): 248 × 244 × 21 mm

Weight: 0.7 kg
