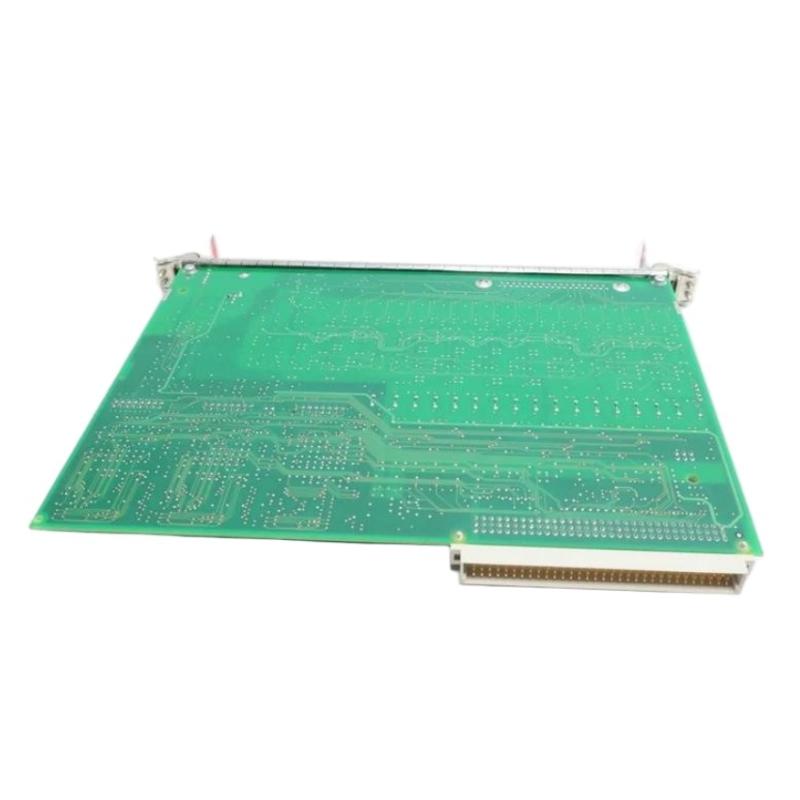

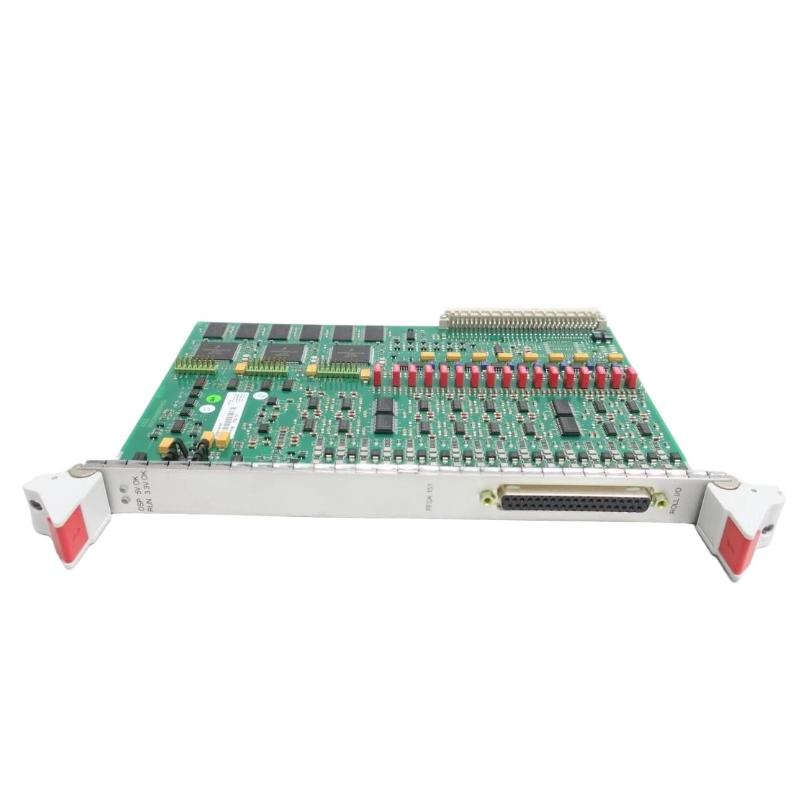

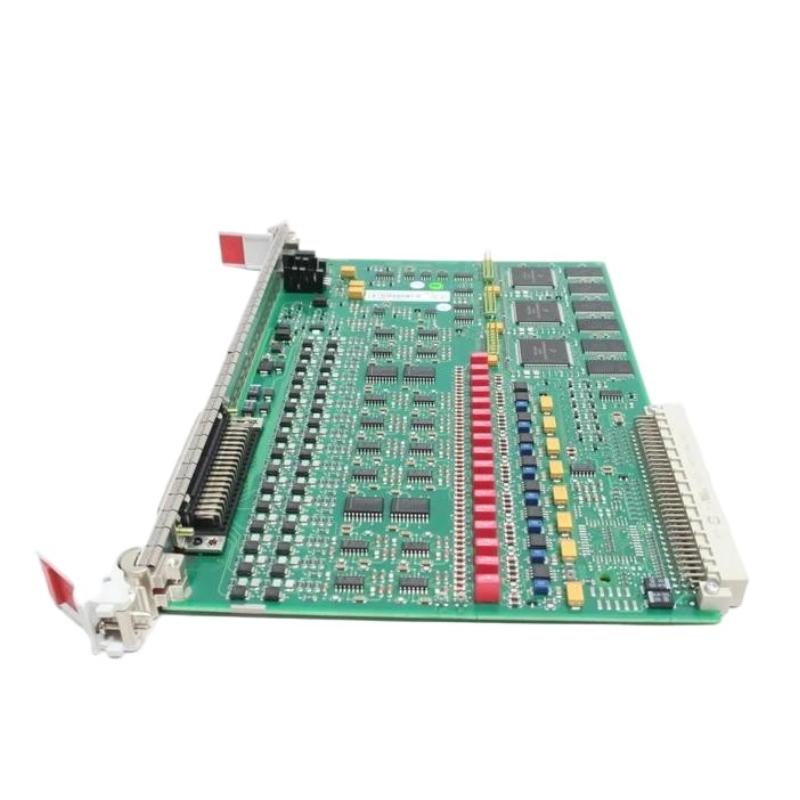

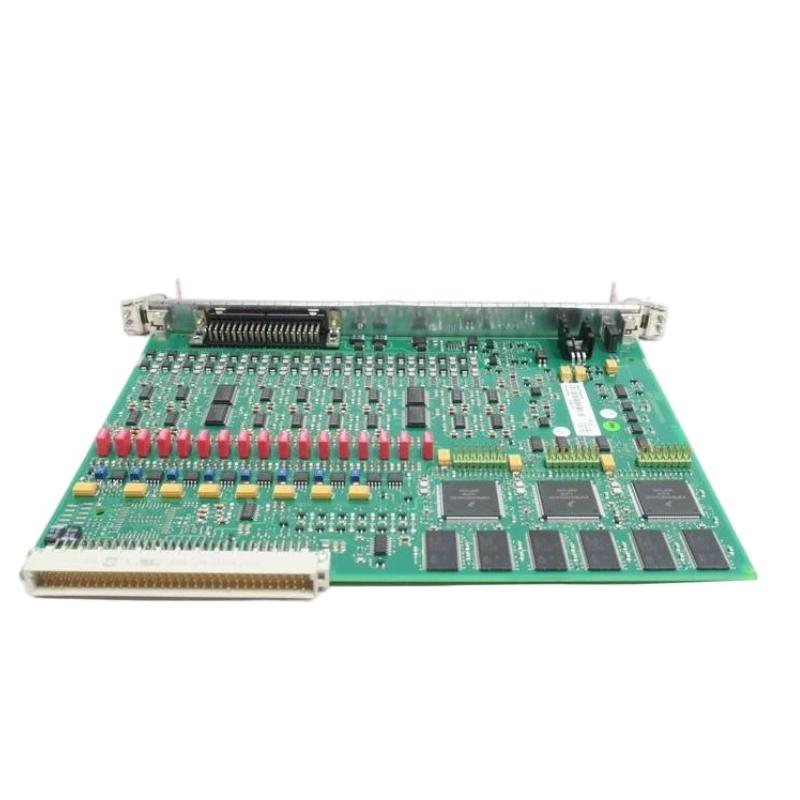

ABB PFSK 151 3BSE018876R1 Signal Processing Module

Overview

The ABB PFSK 151 3BSE018876R1 is a signal processing module designed for industrial automation systems. It processes analog and digital signals from field devices, enabling accurate data acquisition and real-time control. The module ensures reliable signal conversion and monitoring for seamless system performance.

General Information

Part Number: 3BSE018876R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PFSK

Type: Signal Processing Module

Mounting: DIN rail or panel installation within control cabinets

Technology: Analog and digital signal processing, real-time data handling

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from the control system backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LEDs for power, status, and fault

Communication & Interface

Data Interface: Compatible with ABB process control bus systems

Input Channels: Multiple analog and digital signal inputs

Output Channels: Processed signal outputs to control systems

Diagnostics: Signal integrity check, error logging, and status monitoring

Operator Interface: LED indicators and configuration switches

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 170 × 120 × 70 mm

Weight: 0.4 kg
