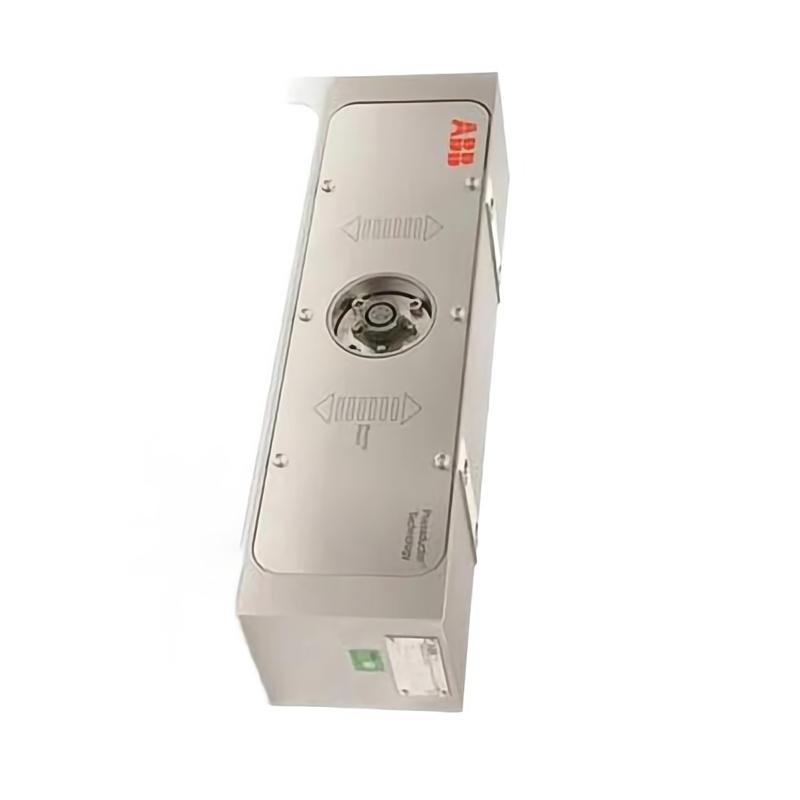

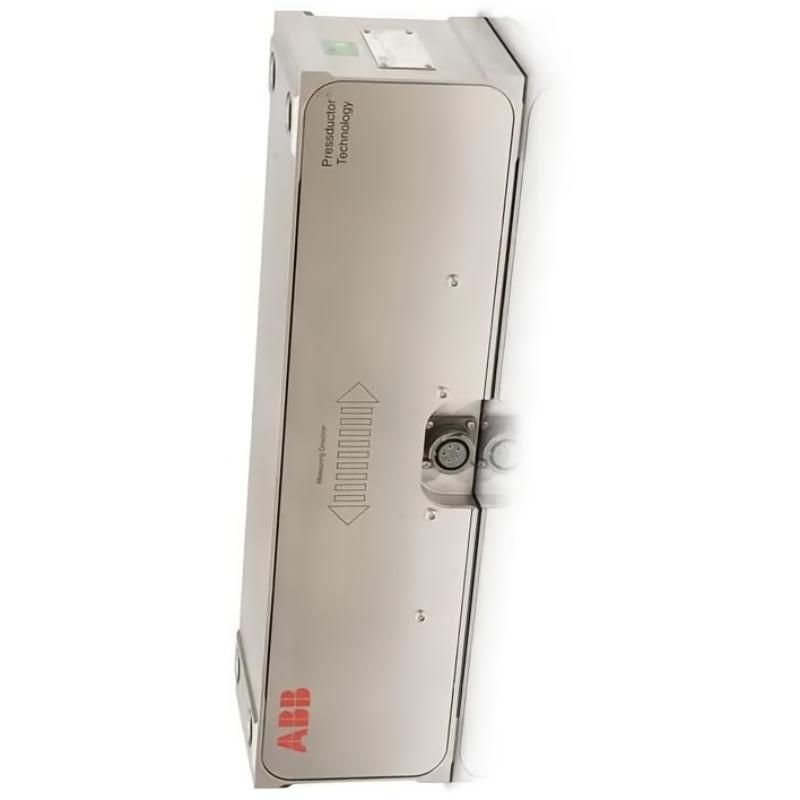

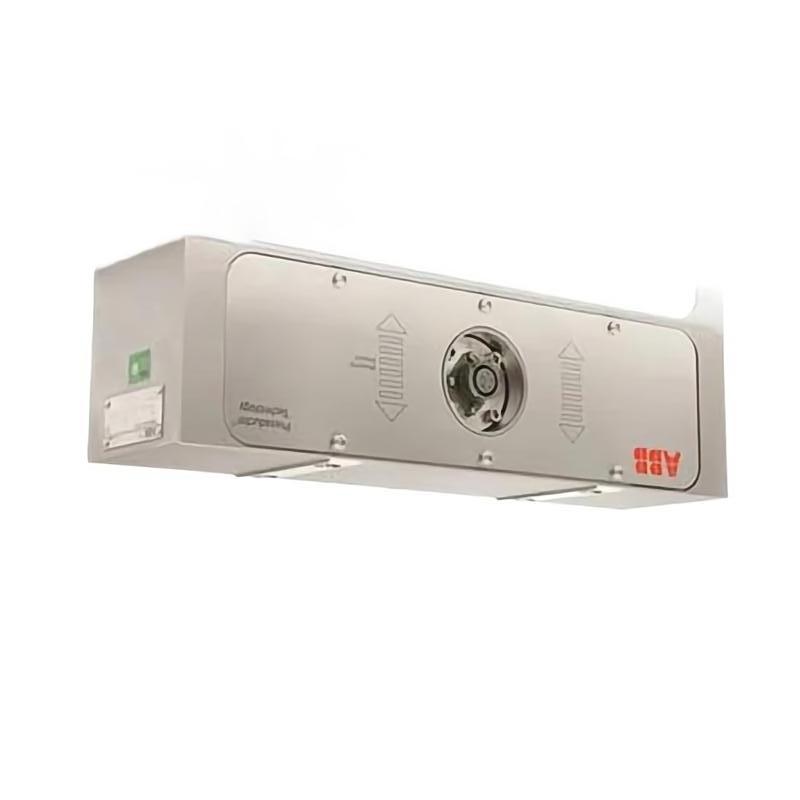

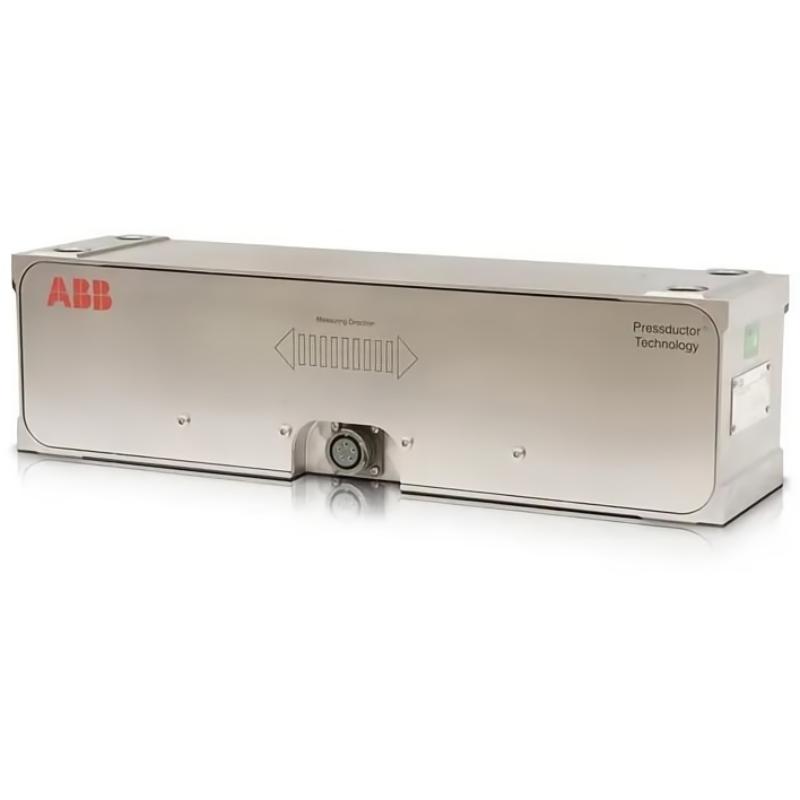

ABB PFTL201CD Weighing Sensor

Overview

The ABB PFTL201CD is a high-precision weighing sensor designed for industrial automation and process monitoring. It delivers accurate measurement of force and load, supporting reliable control, safety, and data acquisition in demanding industrial environments. The sensor ensures consistent performance under varying operational conditions.

General Information

Part Number: PFTL201CD

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PFTL

Type: Weighing Sensor / Load Cell

Mounting: Panel or base installation with secure fasteners

Technology: Strain gauge-based load measurement with high-precision output

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via sensor interface or control system

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: Optional LED status depending on system integration

Communication & Interface

Data Interface: Compatible with ABB process control bus systems

Input Channels: Direct force/load measurement

Output Channels: Analog or digital signals to controller

Diagnostics: Load monitoring, fault detection, and signal verification

Operator Interface: Optional LED indicators or display interface

Reset Features: Supports system-level reset via controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65 for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 150 × 120 × 90 mm

Weight: 1.5 kg

Engineered for Accurate and Reliable Industrial Weighing!
