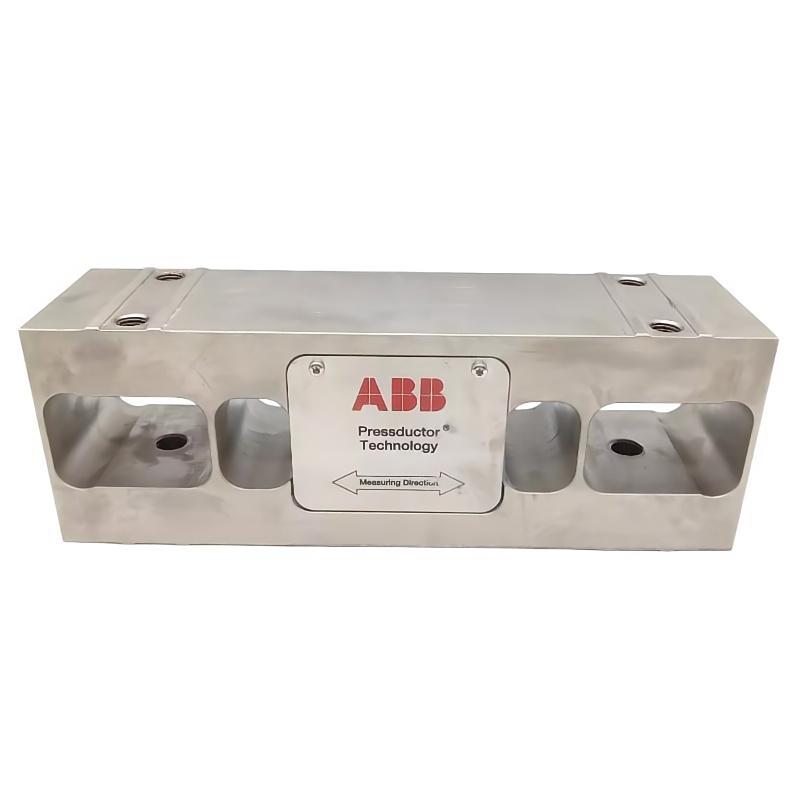

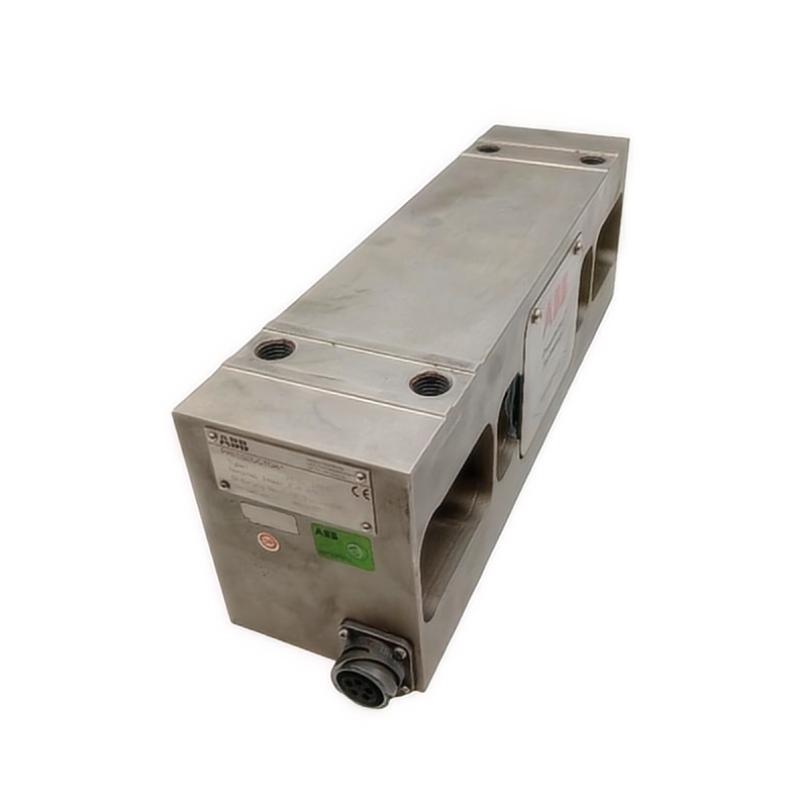

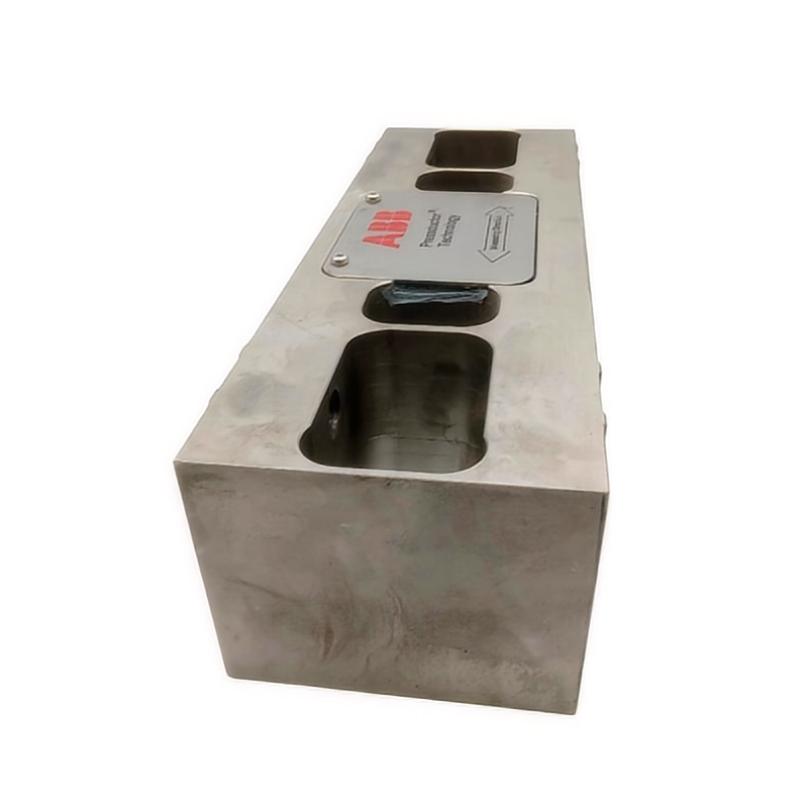

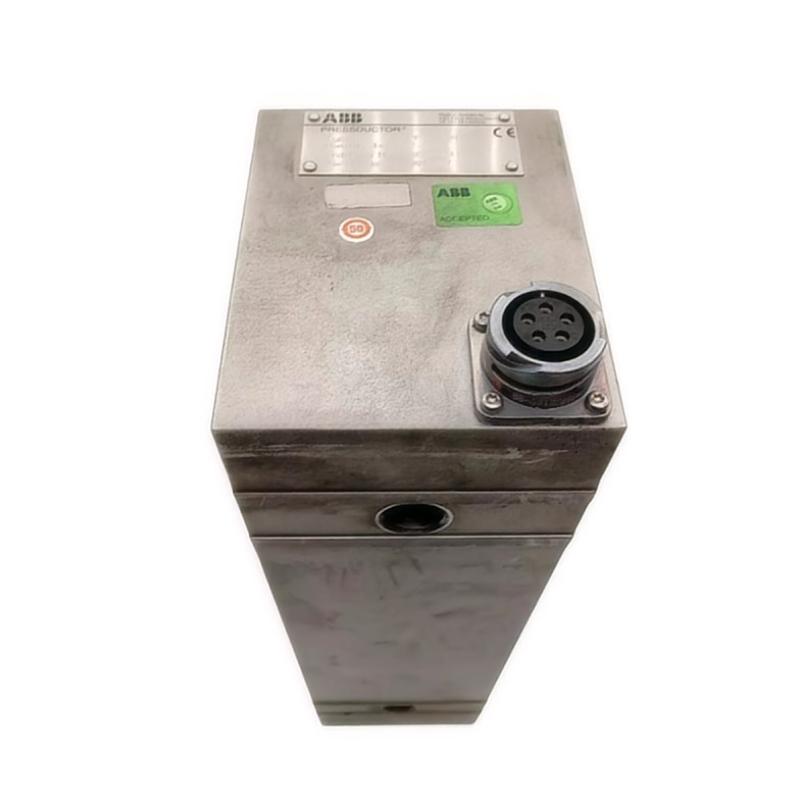

ABB PFVL141C-60MN 3BSX670292D0064 Rolling Force Load Cell

Overview

The ABB PFVL141C-60MN 3BSX670292D0064 is a rolling force load cell designed for industrial automation and process monitoring applications. It measures dynamic and static forces with high precision, providing reliable data for process control, quality assurance, and equipment safety. The load cell ensures accurate force monitoring in demanding industrial environments.

General Information

Part Number: 3BSX670292D0064

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PFVL

Type: Rolling Force Load Cell / Force Sensor

Mounting: Panel or base installation with secure fasteners

Technology: Strain gauge-based force measurement, high-precision signal output

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via sensor interface or control system

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: Optional LED status depending on system integration

Communication & Interface

Data Interface: Compatible with ABB process control bus systems

Input Channels: Direct force measurement

Output Channels: Analog or digital signal output to controller

Diagnostics: Force monitoring, fault detection, and signal verification

Operator Interface: Optional LED indicators or display interface

Reset Features: Supports system-level reset via controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65 for industrial applications

Dimensions & Weight

Dimensions (L × W × H): 240 × 40 × 120 mm

Weight: 1.5 kg
