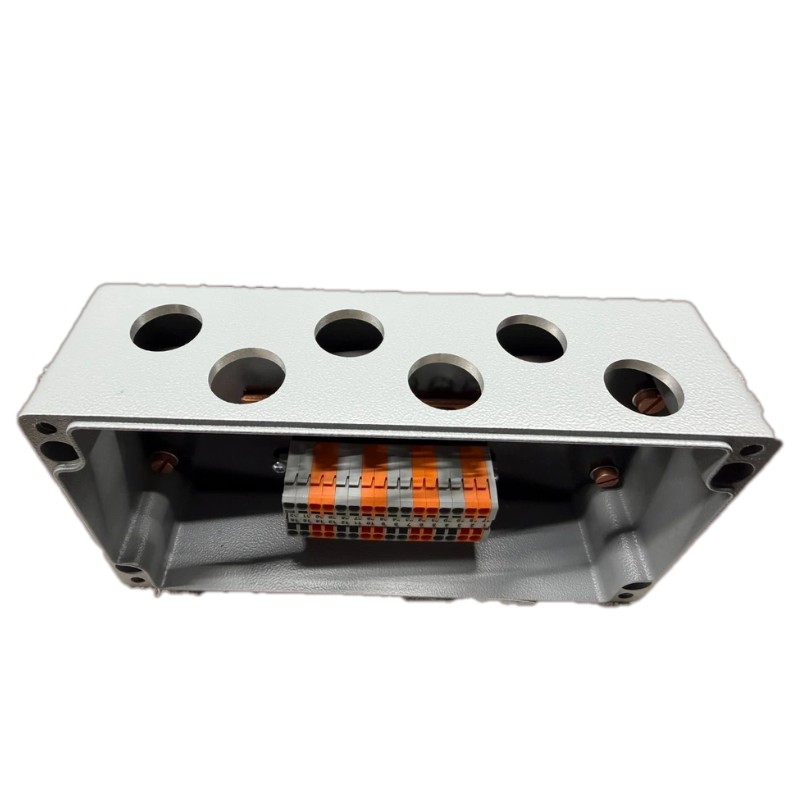

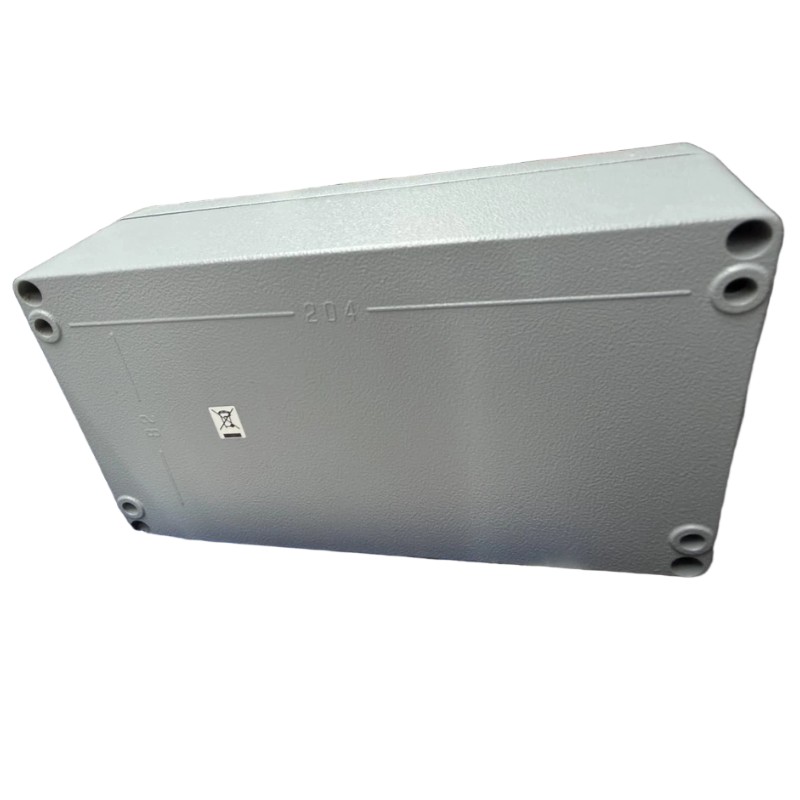

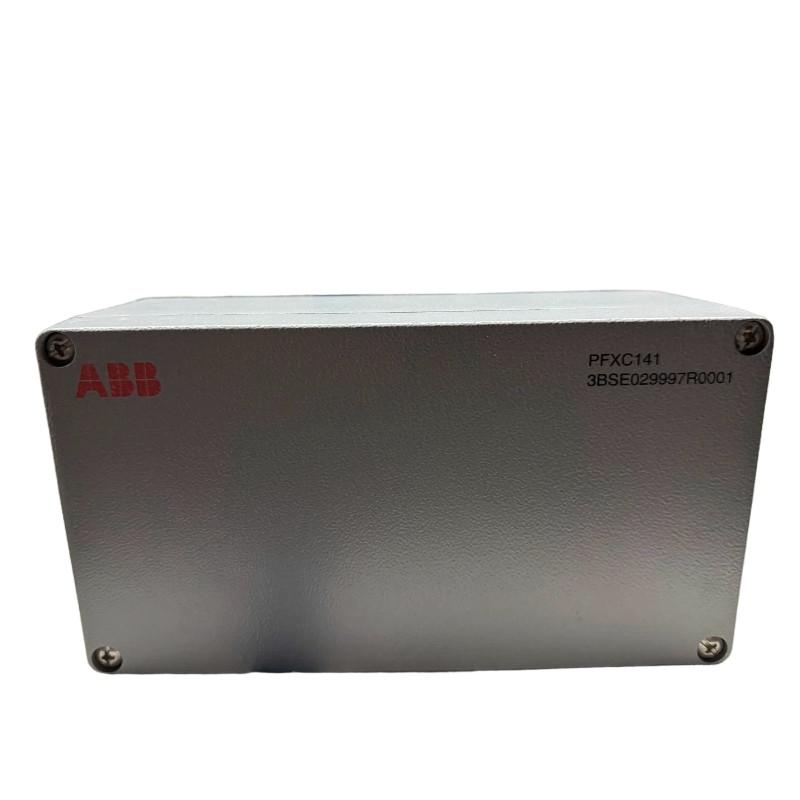

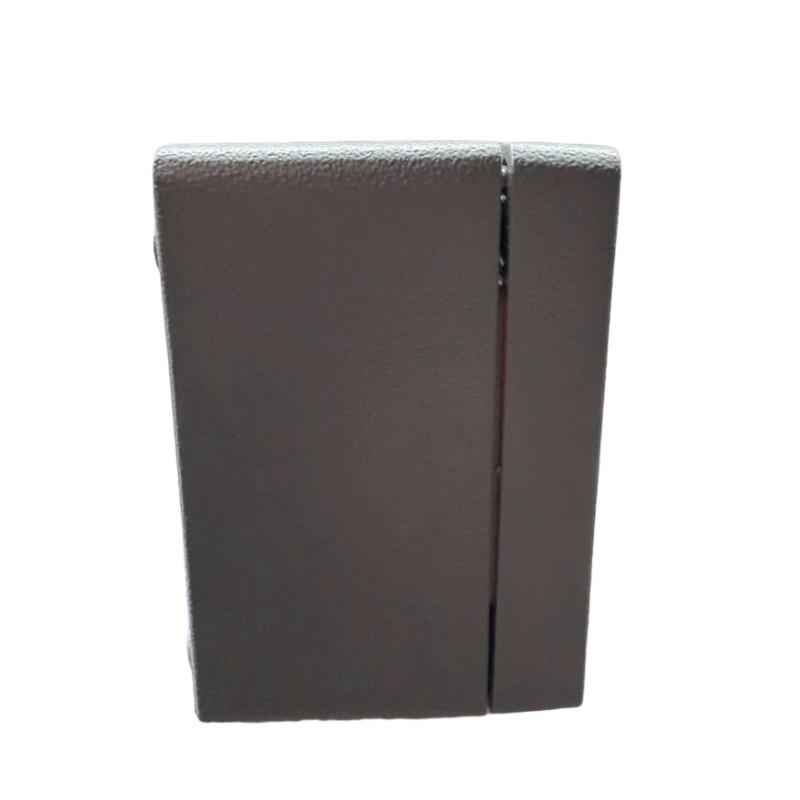

ABB PFXC141 3BSE029997R0001 Sensor Accessories Junction Box

Overview

The ABB PFXC141 3BSE029997R0001 is a junction box designed for sensor accessory integration in industrial automation systems. It provides a secure and organized connection point for multiple sensors, ensuring reliable signal distribution and protection in demanding environments.

General Information

Part Number: 3BSE029997R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PFXC

Type: Sensor Accessories Junction Box

Mounting: Panel or wall installation within control cabinets

Technology: Signal routing, sensor integration, and protective housing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Minimal, dependent on connected sensors

Input: Powered via connected sensors or control system interface

Protection: Overvoltage and short-circuit protection for connected circuits

Indicators: Optional LED indicators for signal and power status

Communication & Interface

Data Interface: Compatible with ABB process control bus systems

Input Channels: Multiple sensor signal inputs

Output Channels: Routed outputs to control or monitoring devices

Diagnostics: Signal integrity verification and fault monitoring

Operator Interface: Optional LED indicators for status

Reset Features: Supports system-level reset via connected controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65 for industrial sensor applications

Dimensions & Weight

Dimensions (L × W × H): 124 × 124 × 119 mm

Weight: 1.2 kg
