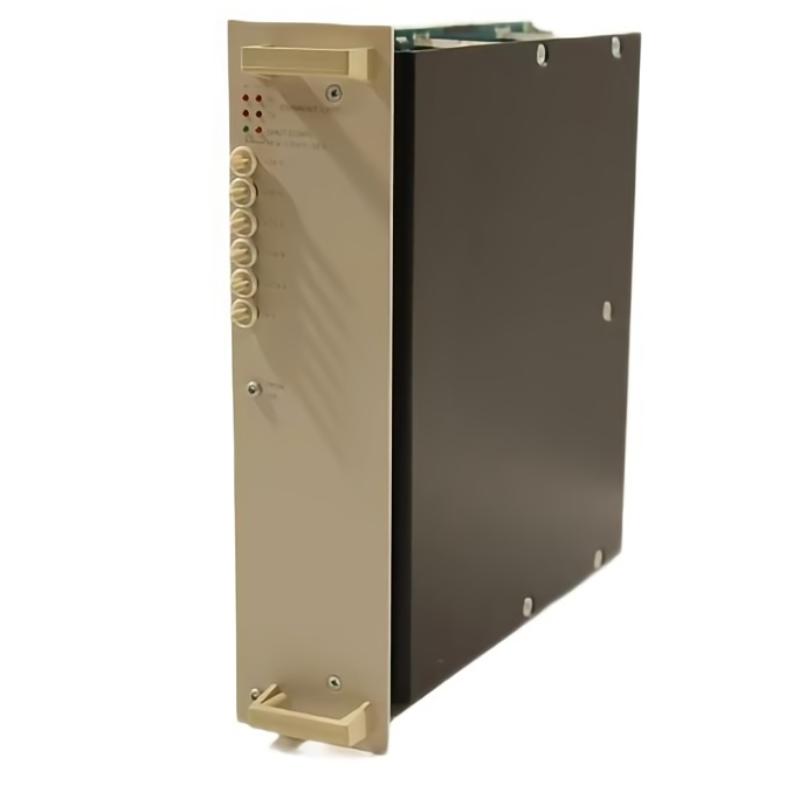

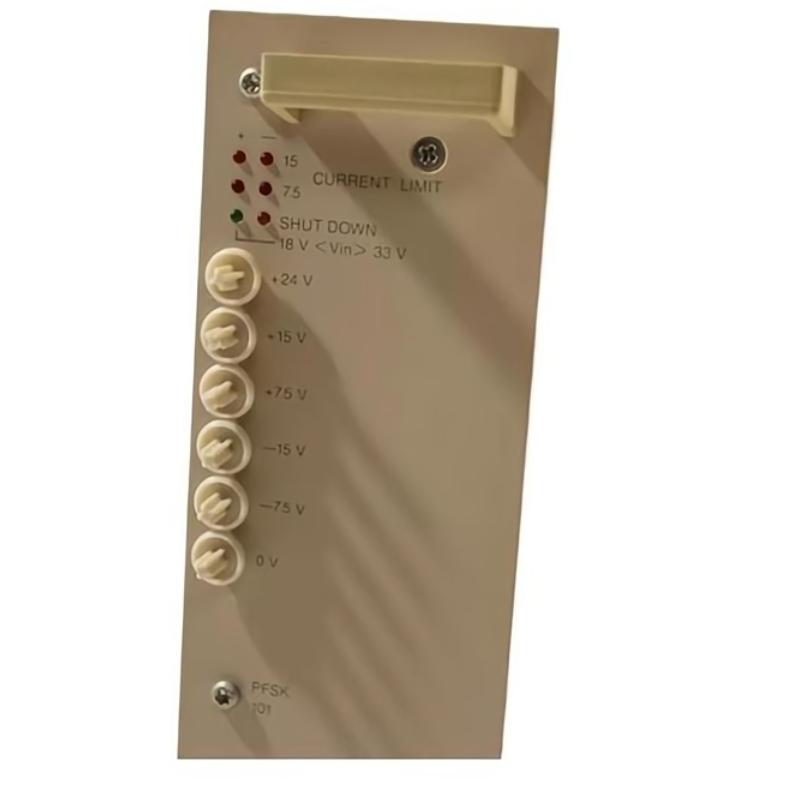

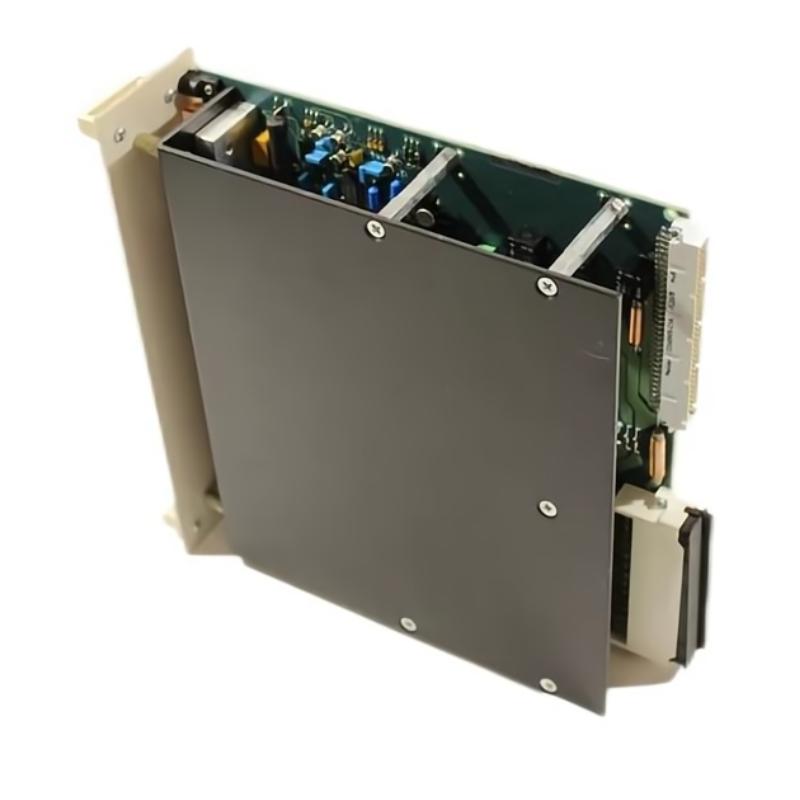

ABB PFSK101 YM322001-ED Power Supply Device

Overview

The ABB PFSK101 YM322001-ED is a compact power supply device designed for ABB control and automation systems. It delivers stable and reliable DC power to modules and devices within industrial control applications, ensuring consistent operation and protection against voltage fluctuations.

General Information

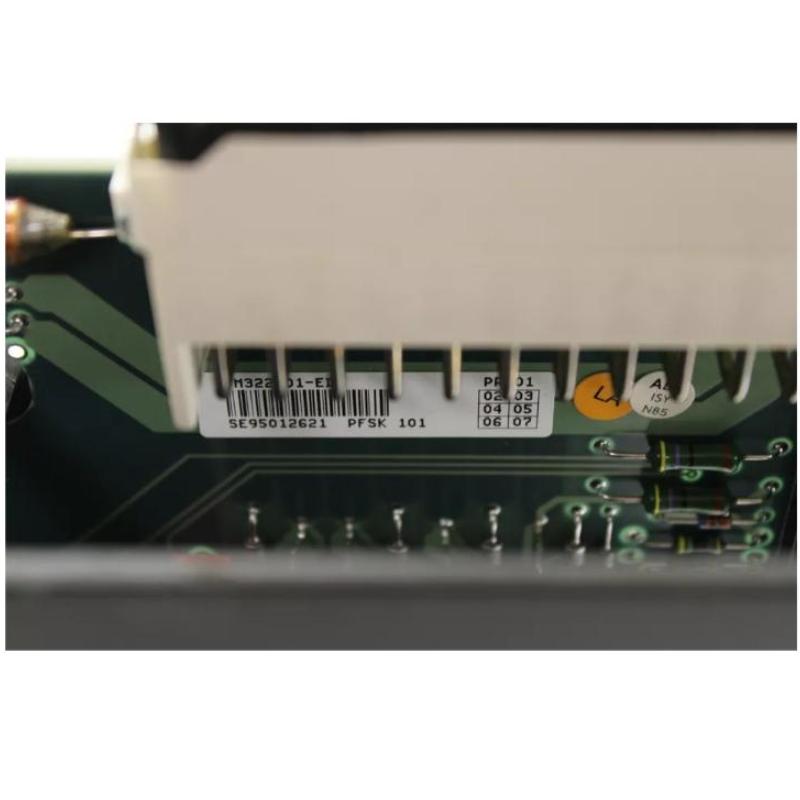

Part Number: YM322001-ED

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFSK

Type: Power Supply Device

Mounting: DIN rail or panel installation within control cabinet

Technology: DC power conversion, overload and short-circuit protection, LED status indication

Power Specifications

Input Voltage: 100–240 V AC

Output Voltage: 24 V DC

Power Output: 30 W

Efficiency: ≥ 85%

Protection: Overload, short-circuit, and overvoltage protection

Indicators: LED for power status

Communication & Interface

Interface: Direct DC output to control modules

Diagnostics: LED power status indication

Reset Features: Automatic recovery after fault conditions

Environmental

Operating Temperature: −10 to +60 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 90 × 36 × 66 mm

Weight: 0.25 kg
