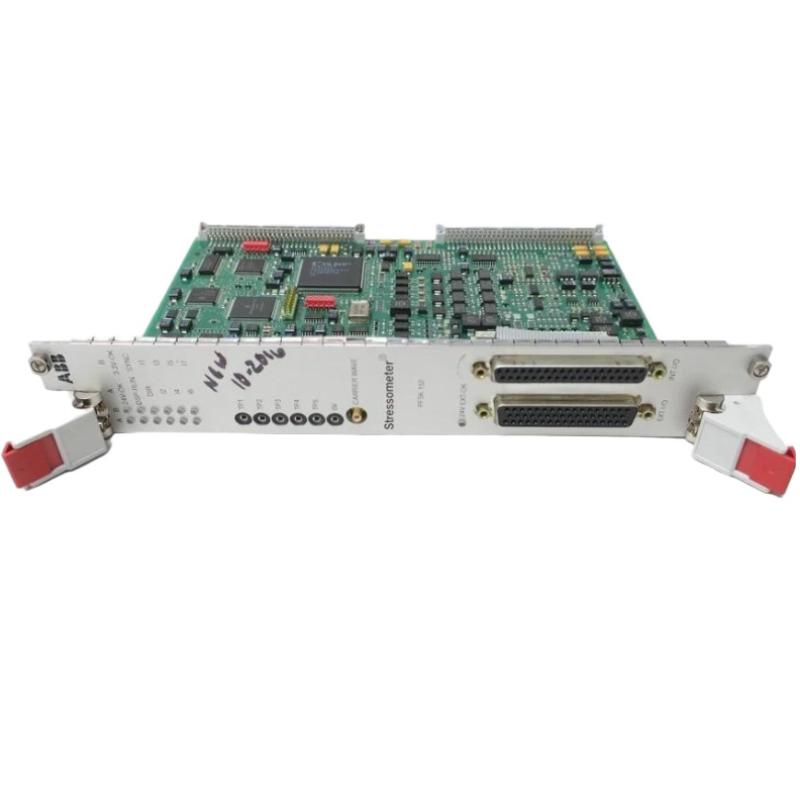

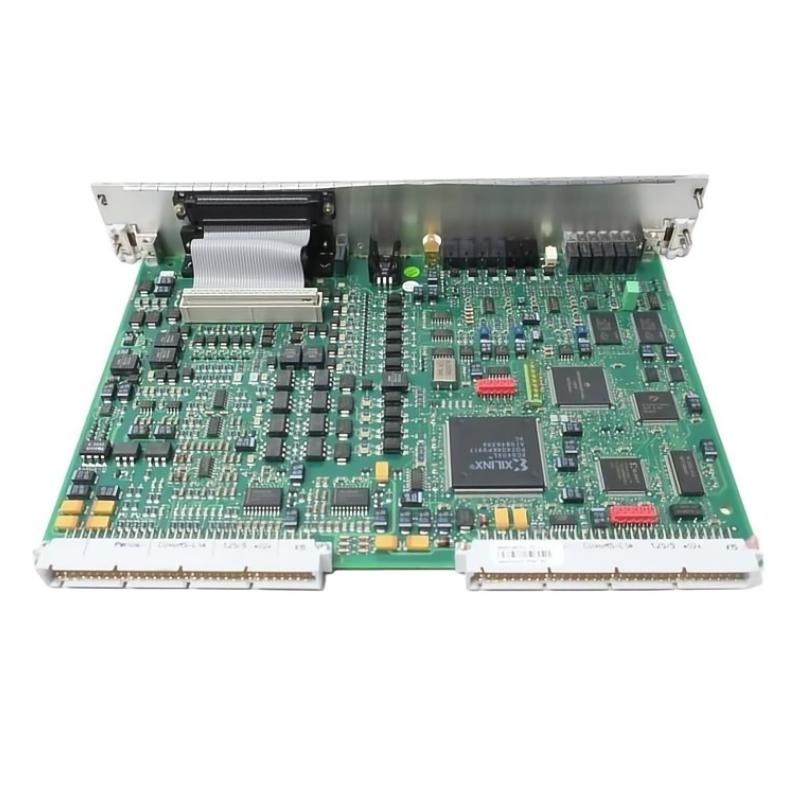

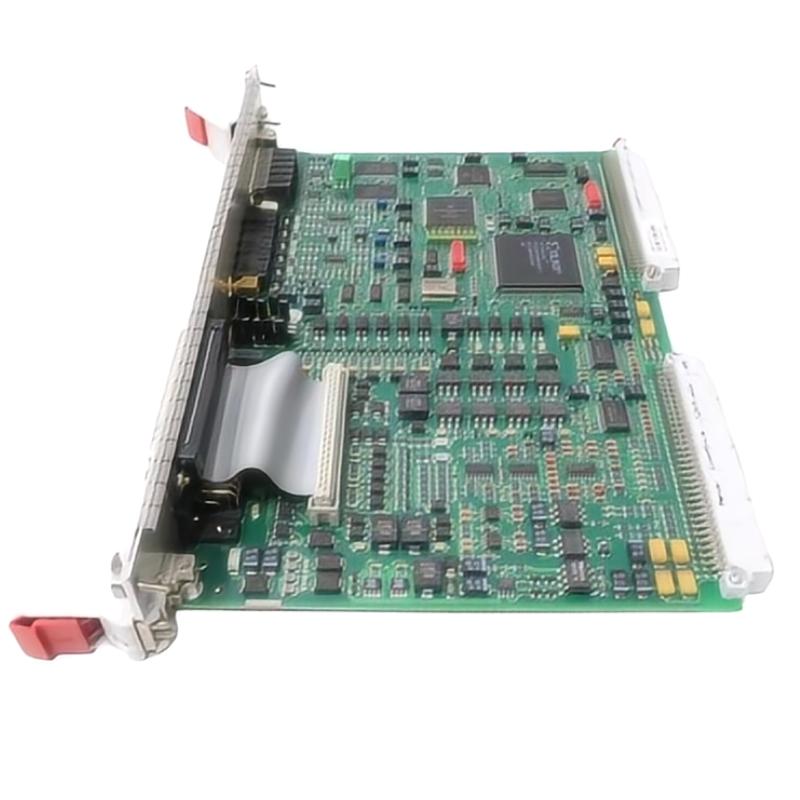

ABB PFSK152 3BSE018877R1 Signal Processing Module

Overview

The ABB PFSK152 3BSE018877R1 is a signal processing module designed for ABB automation and control systems. It processes analog and digital signals from field devices, providing reliable data acquisition, filtering, and transmission for accurate system control and monitoring.

General Information

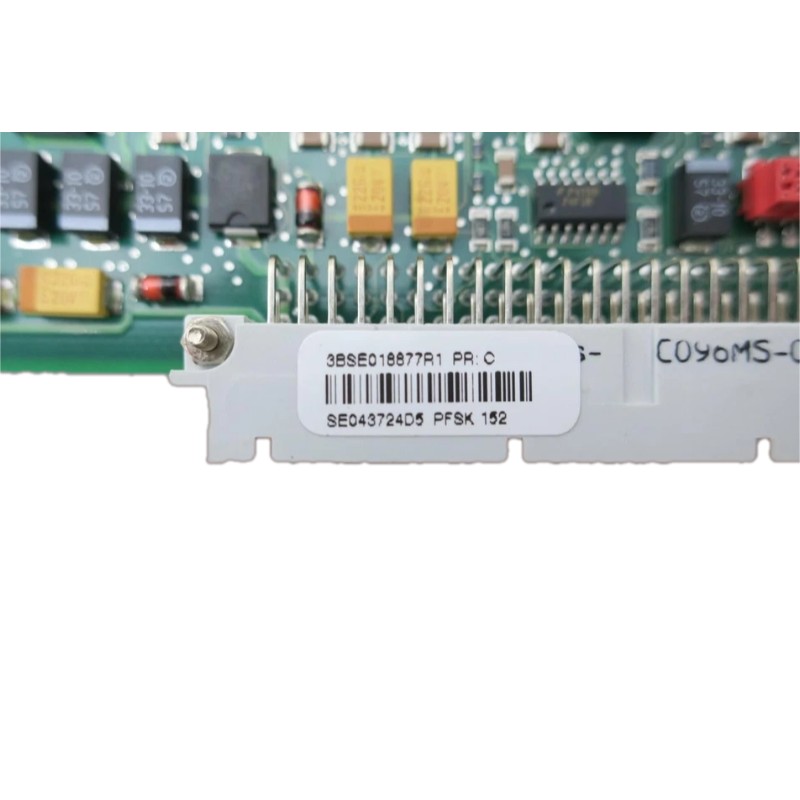

Part Number: 3BSE018877R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFSK

Type: Signal Processing Module

Mounting: Rack or panel installation within control system chassis

Technology: Signal acquisition, processing, filtering, and diagnostic monitoring

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: ≤ 12 W

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power, signal processing status, and fault detection

Communication & Interface

Input/Output Channels: Multiple analog and digital signal channels

Interface: Backplane or bus connection to ABB controllers

Diagnostics: Signal integrity checks, error detection, and status reporting

Operator Interface: LED indicators for channel activity and fault conditions

Reset Features: Supports system-level reset

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 235 × 211 × 40 mm

Weight: 0.48 kg

Reliable Signal Processing for Every Application!
