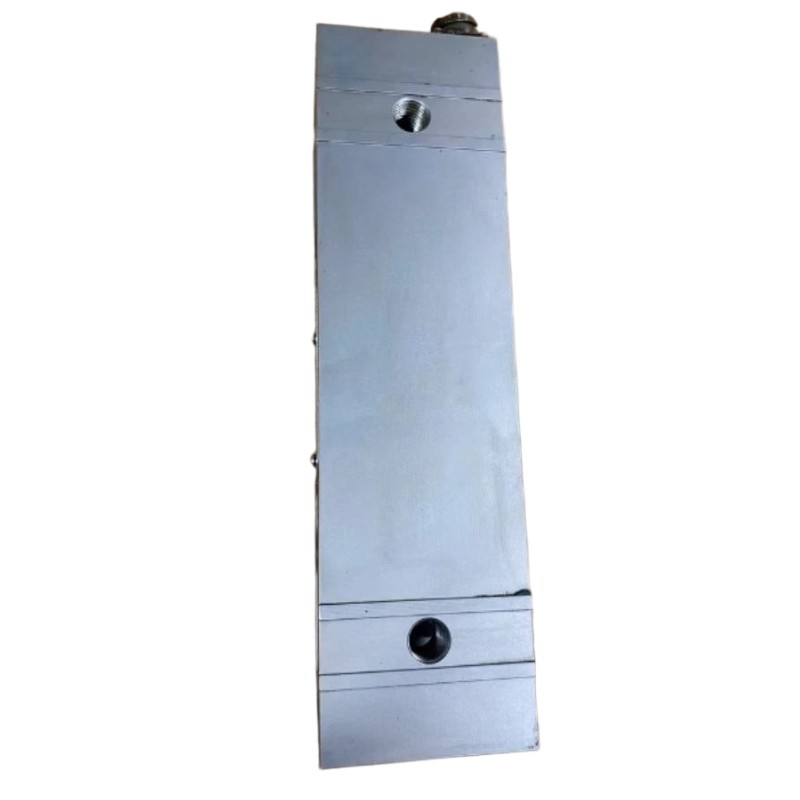

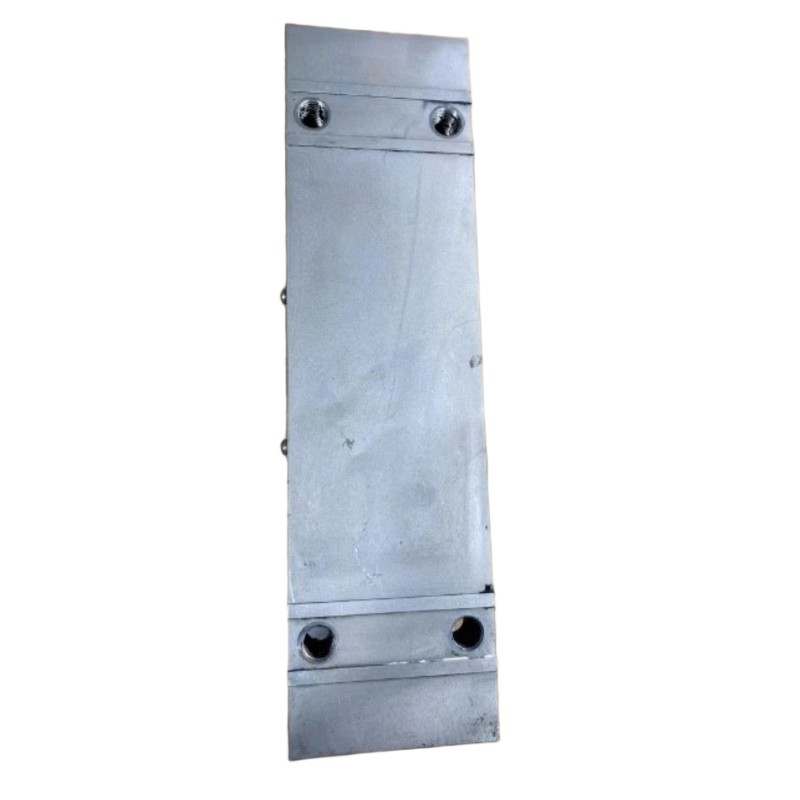

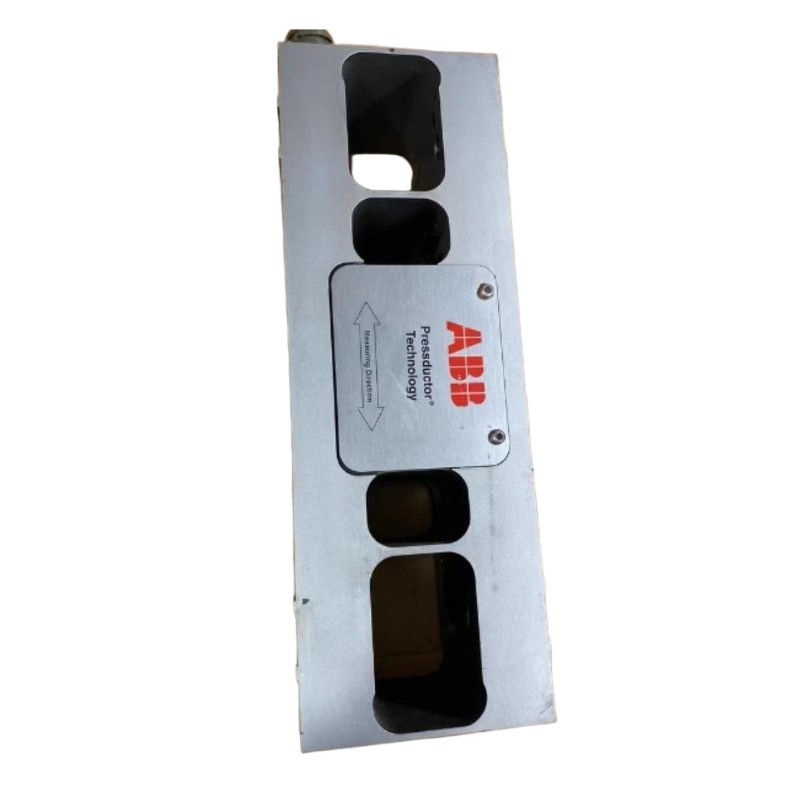

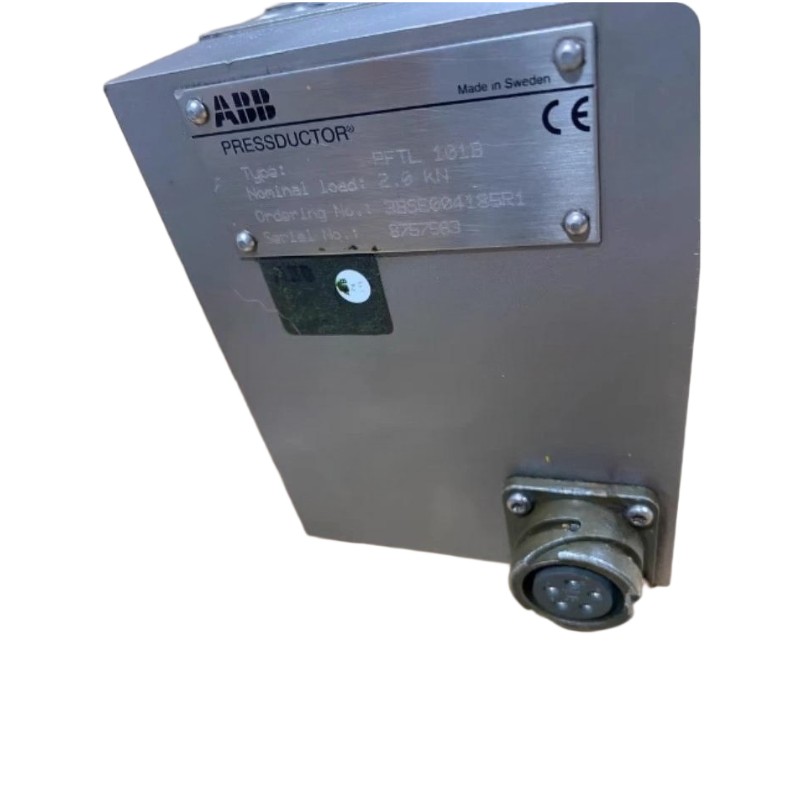

ABB PFTL101B-2.0KN 3BSE004185R1 Weighing Sensor

Overview

The ABB PFTL101B-2.0KN 3BSE004185R1 is a high-precision weighing sensor designed for ABB automation and process control systems. It accurately measures weight and force, providing reliable data for material handling, batching, and industrial weighing applications.

General Information

Part Number: 3BSE004185R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFTL

Type: Weighing Sensor

Mounting: Platform or machine-mount installation within industrial systems

Technology: Strain gauge sensing, high-precision weight measurement, and diagnostic monitoring

Power Specifications

Supply Voltage: 10–30 V DC

Power Consumption: ≤ 8 W

Protection: Overload and short-circuit protection

Indicators: None (sensor output monitored via connected controller)

Communication & Interface

Output: Analog or digital signal compatible with ABB controllers

Diagnostics: Signal integrity checks, overload detection, and status reporting

Operator Interface: Monitored through connected system controller

Reset Features: Automatic recovery after overload conditions

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP67 or installed within protected industrial environment

Dimensions & Weight

Dimensions (L × W × H): 220 × 125 × 50 mm

Weight: 2.5 kg

Accurate Measurements for Every Industrial Application!
