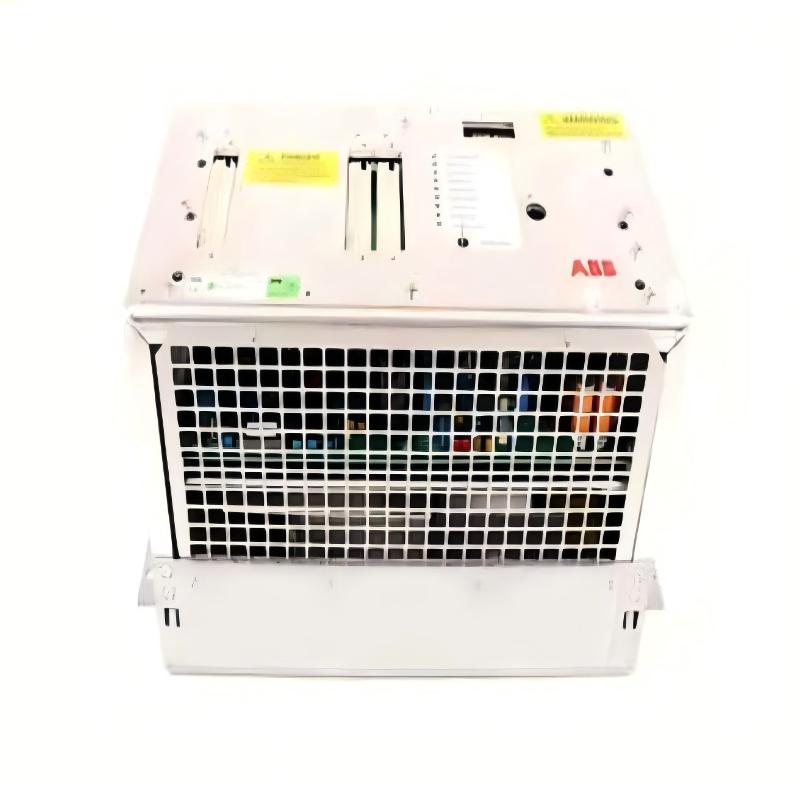

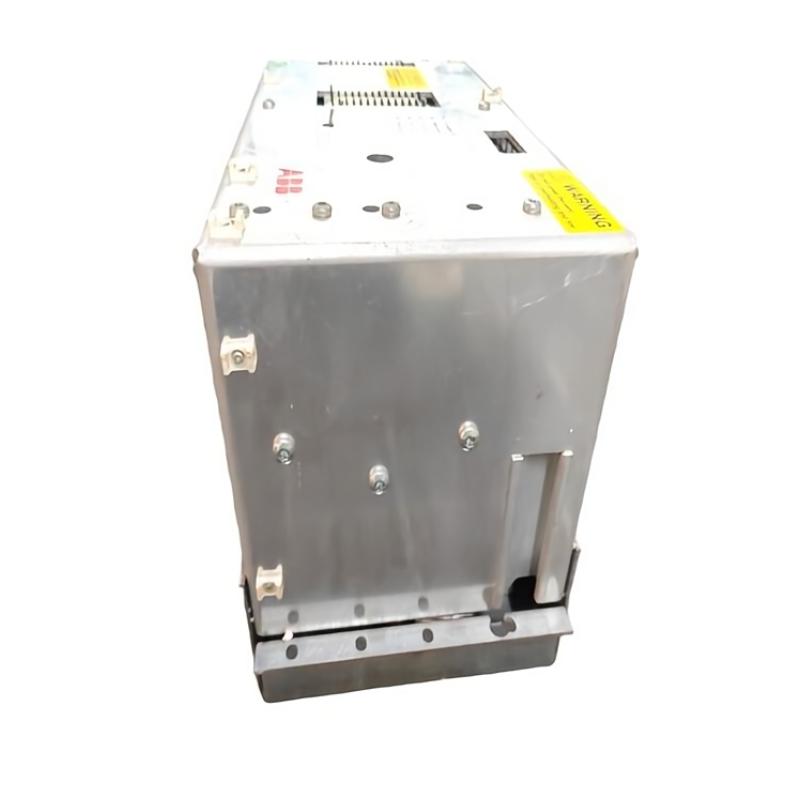

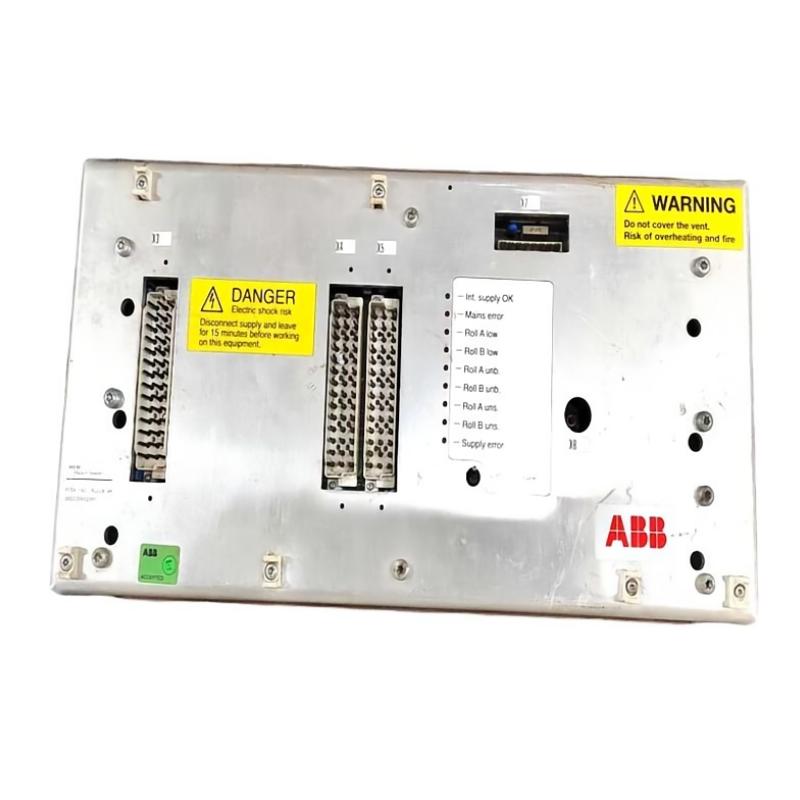

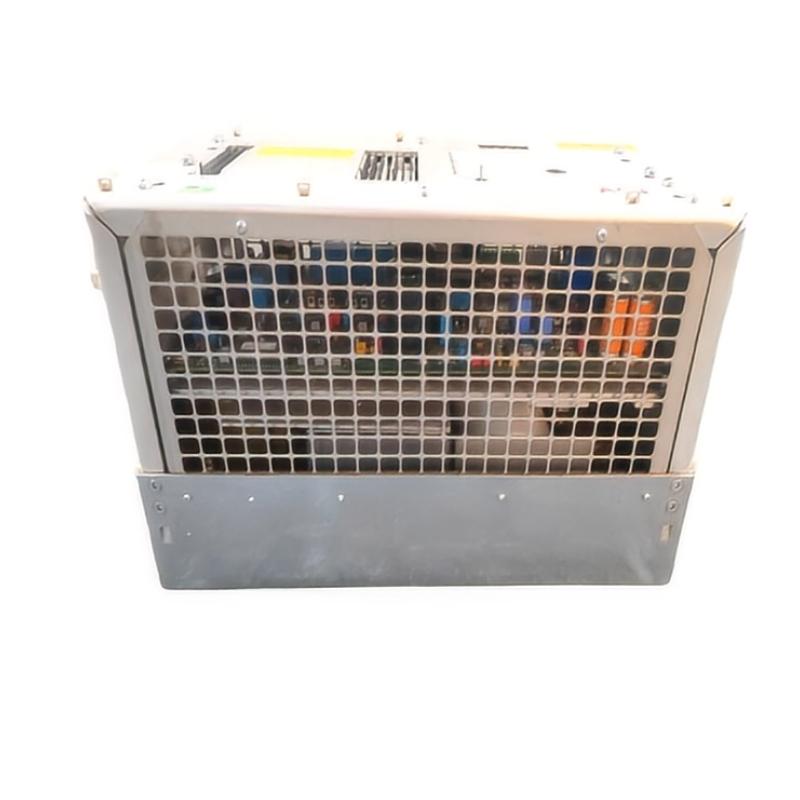

ABB PFSA103D 3BSE002492R0001 Motor Controller

Overview

The ABB PFSA103D 3BSE002492R0001 is a compact motor controller designed for ABB industrial automation and control systems. It provides reliable start/stop control, speed regulation, and protection functions for motors in process automation and manufacturing applications.

General Information

Part Number: 3BSE002492R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFSA

Type: Motor Controller

Mounting: Panel or DIN rail installation within control cabinet

Technology: Motor start/stop control, speed regulation, overload protection, and diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Protection: Overload, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, motor status, and fault detection

Communication & Interface

Interface: Direct connection to ABB controllers or automation systems

Diagnostics: Motor operation monitoring, fault detection, and status reporting

Operator Interface: LED indicators for motor activity and fault conditions

Reset Features: Supports system-level reset

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 45 × 99 × 115 mm

Weight: 0.5 kg

Compact Control for Maximum Motor Performance!
