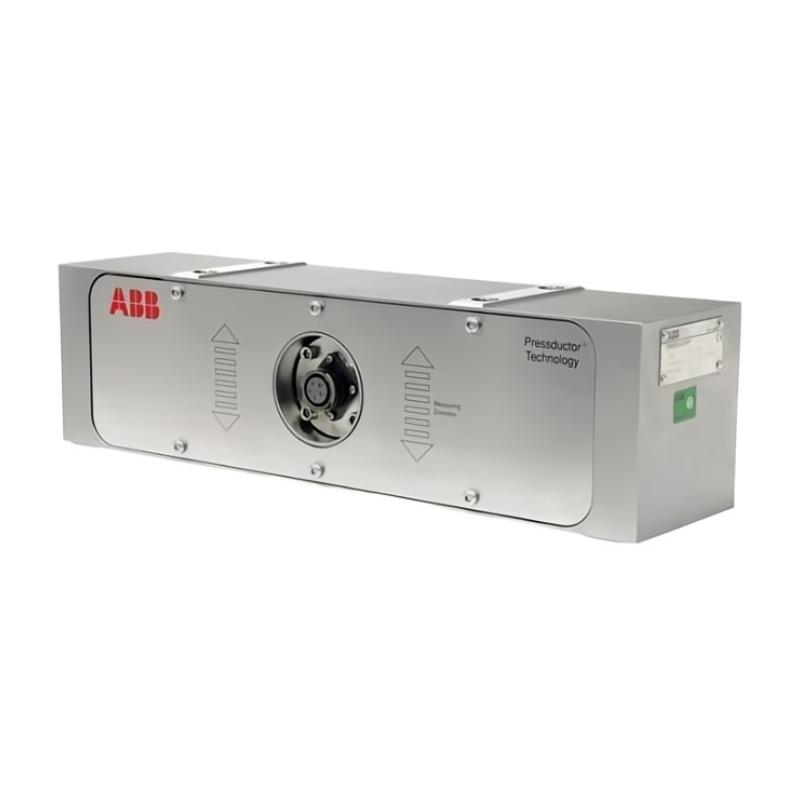

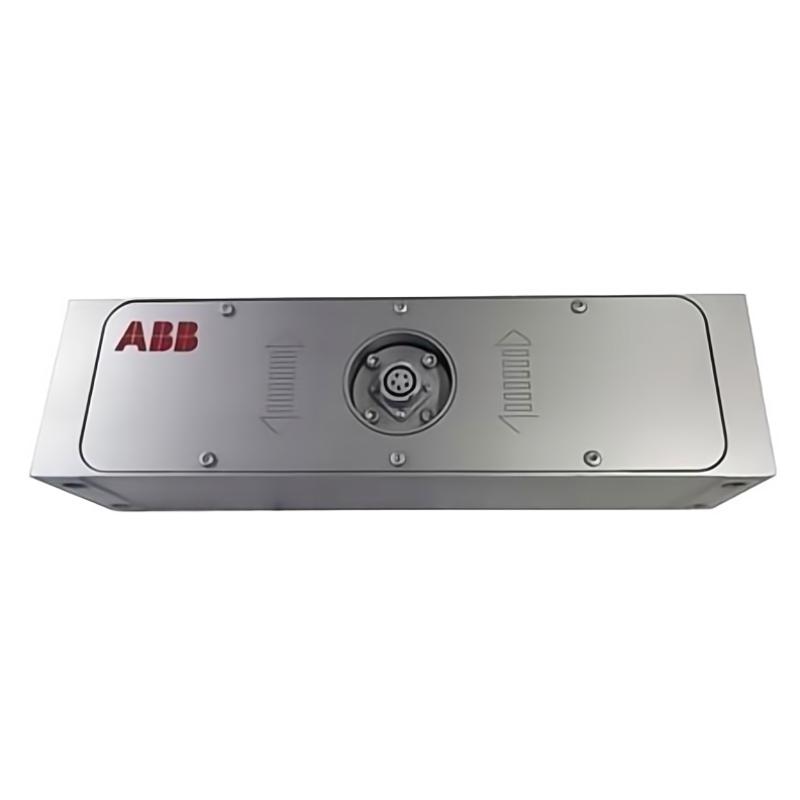

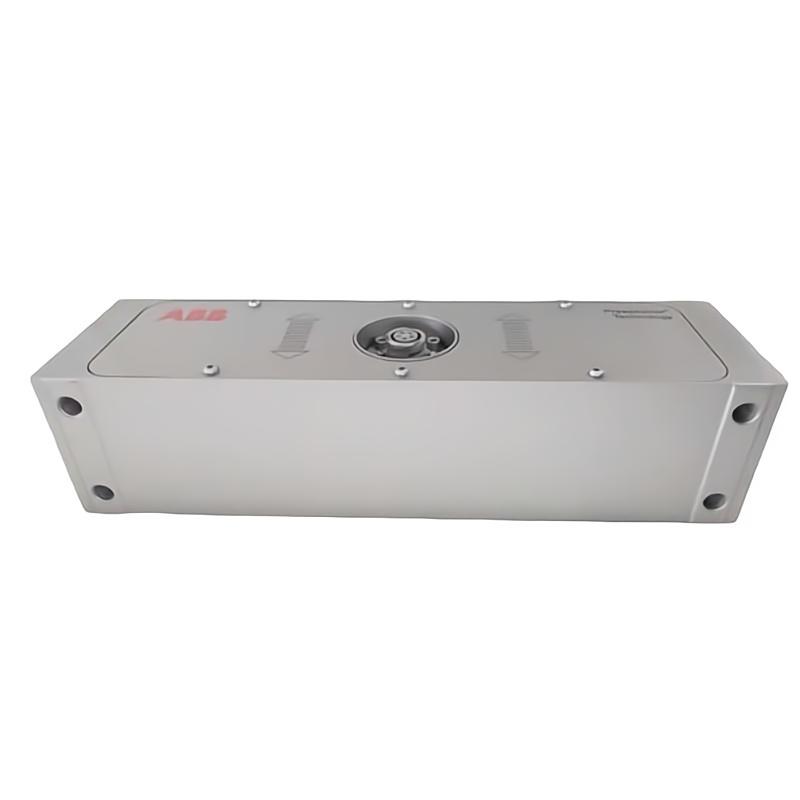

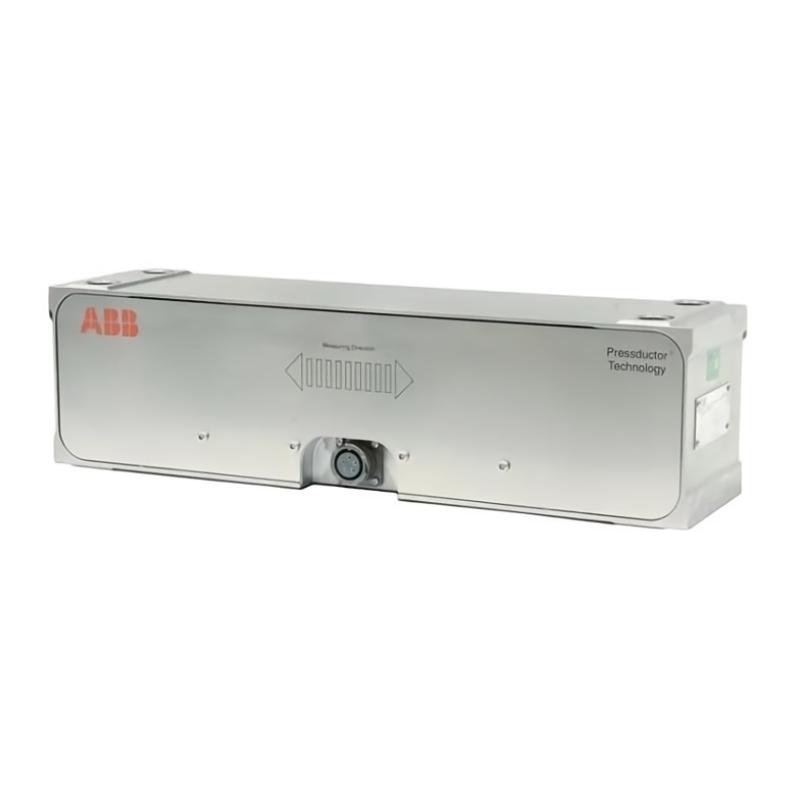

ABB PFCL201CE 3BSX804008-108 Load Cells

Overview

The ABB PFCL201CE 3BSX804008-108 is a high-precision load cell designed for industrial weighing and force measurement applications. It provides accurate and reliable measurements, ensuring consistent performance in process automation and material handling systems.

General Information

Part Number: 3BSX804008-108

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PFCL

Type: Load Cell / Force Measurement Sensor

Mounting: Platform or structural integration

Technology: Strain gauge load cell, analog output, industrial-grade construction

Power Specifications

Supply Voltage: 10–15 V DC (typical)

Power Consumption: ≤ 2 W

Input: Powered via external signal conditioning module

Protection: Overload and short-circuit protection

Indicators: None (requires external monitoring equipment)

Communication & Interface

Output Signal: Analog voltage or current proportional to applied load

Signal Conditioning: Requires external amplifier or controller

Diagnostics: Provides high-accuracy force measurement with minimal drift

Operator Interface: Dependent on connected controller or display

Reset Features: Not applicable (passive sensing device)

Environmental

Operating Temperature: −10 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP65

Dimensions & Weight

Dimensions (L × W × H): 45 × 65 × 150 mm

Weight: 0.4 kg
