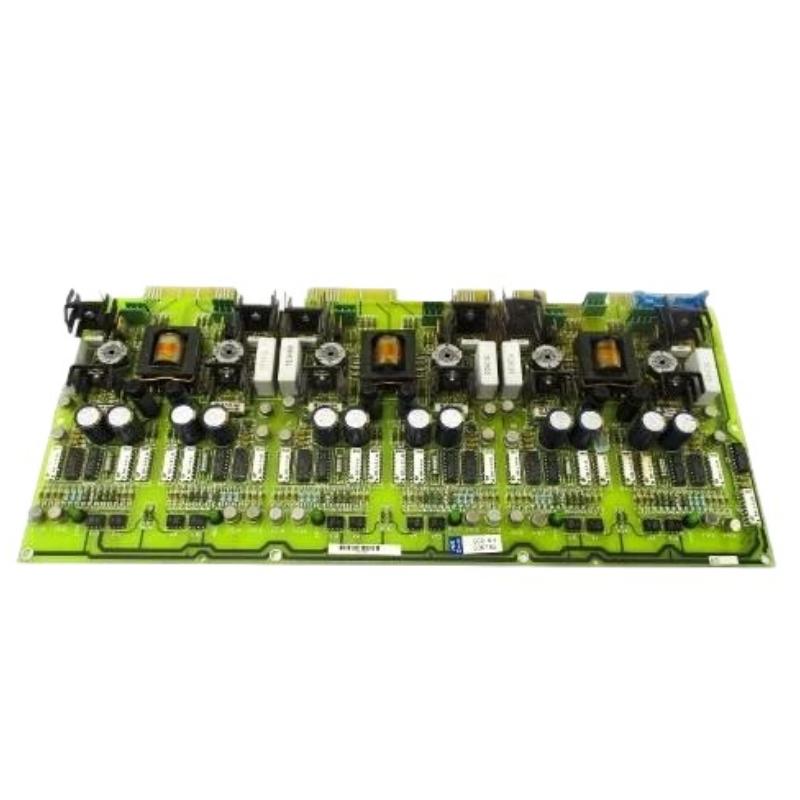

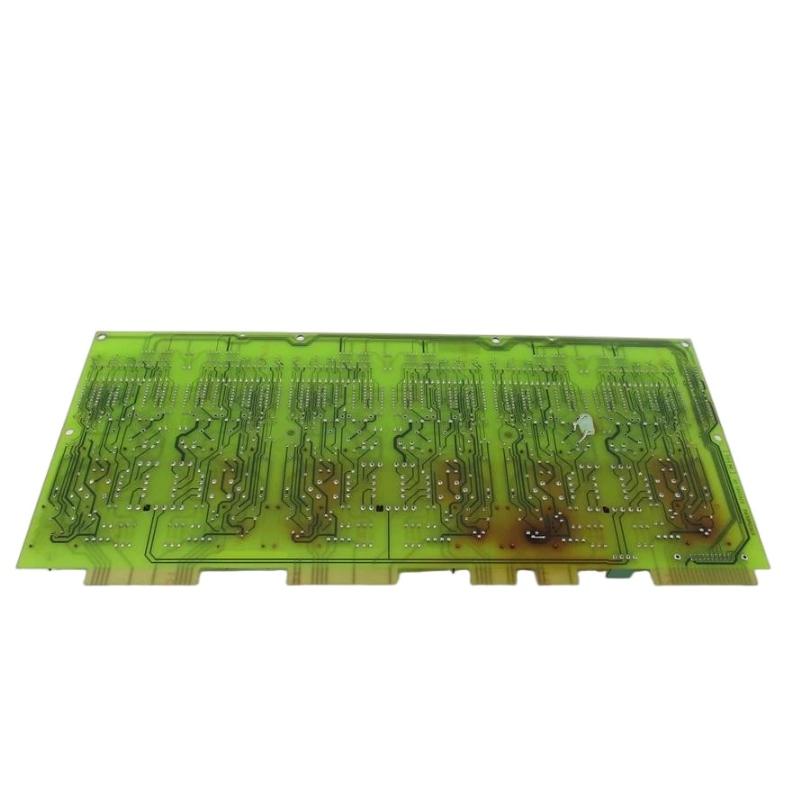

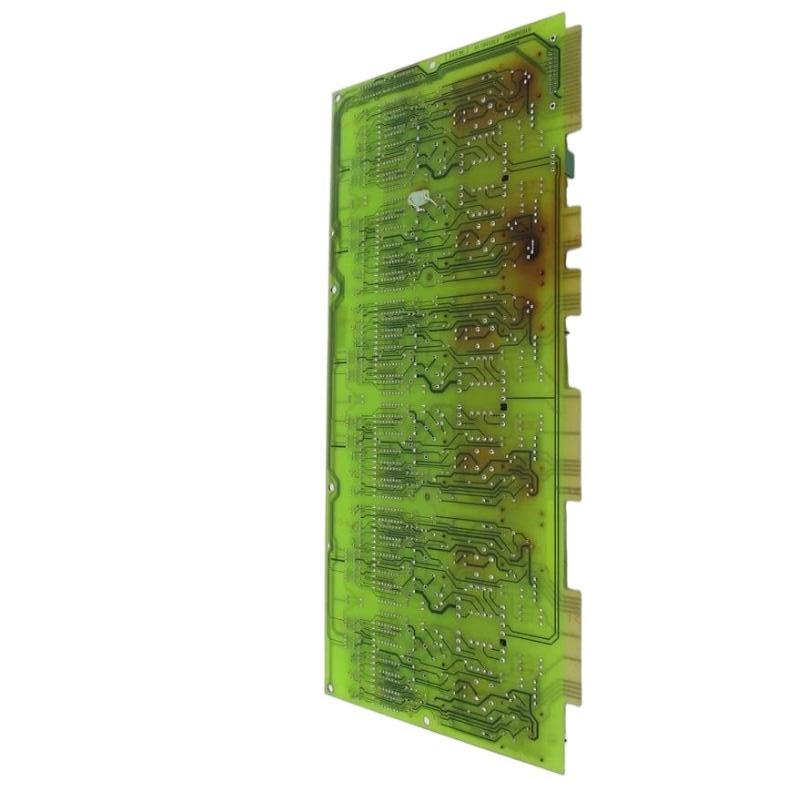

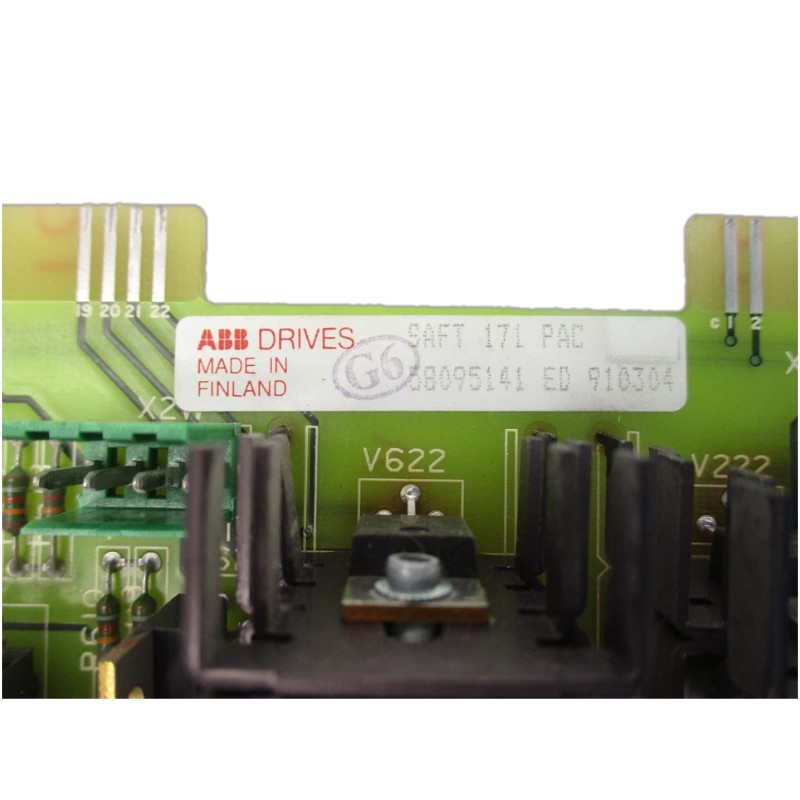

ABB SAFT 171 PAC 58095141 Pulse Amplifier Board

Overview

The ABB SAFT 171 PAC 58095141 is a pulse amplifier board designed for industrial automation and control systems. It amplifies and conditions pulse signals from field devices, ensuring accurate signal transmission and reliable system performance.

General Information

Part Number: 58095141

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SAFT 171 PAC

Type: Pulse Amplifier Board

Mounting: Panel or DIN rail installation

Technology: Industrial pulse signal amplification, conditioning, and interface

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 7 W

Input: Powered via system bus or dedicated 24 V DC line

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power and signal activity

Communication & Interface

Input Channels: Multiple pulse inputs compatible with standard field devices

Output: Conditioned pulse signals suitable for controller or PLC inputs

Diagnostics: Signal verification, fault detection, and status reporting

Operator Interface: LED indicators for input and output status

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 200 × 140 × 30 mm

Weight: 0.65 kg
