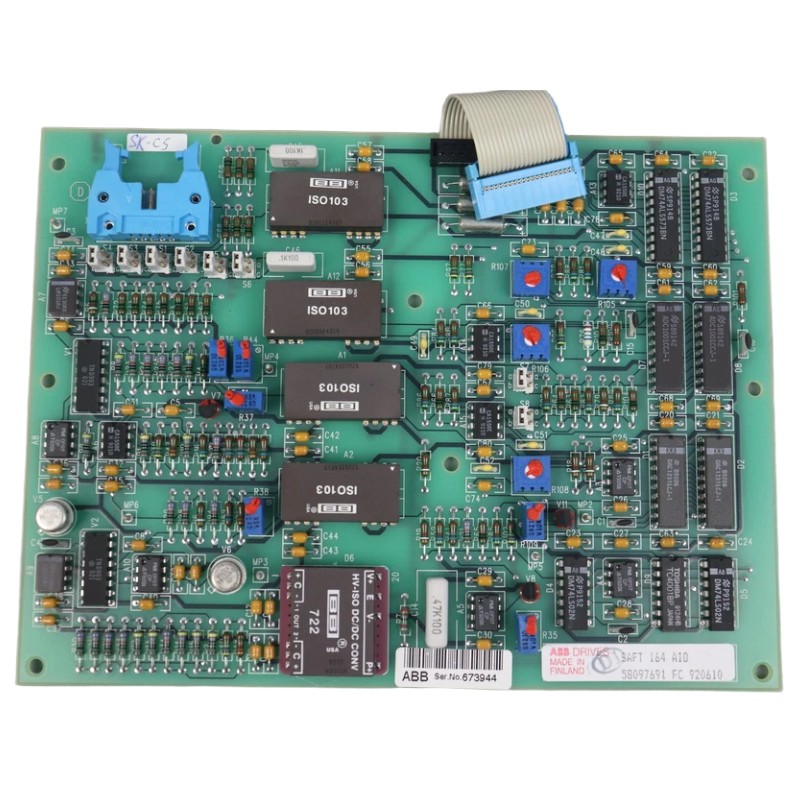

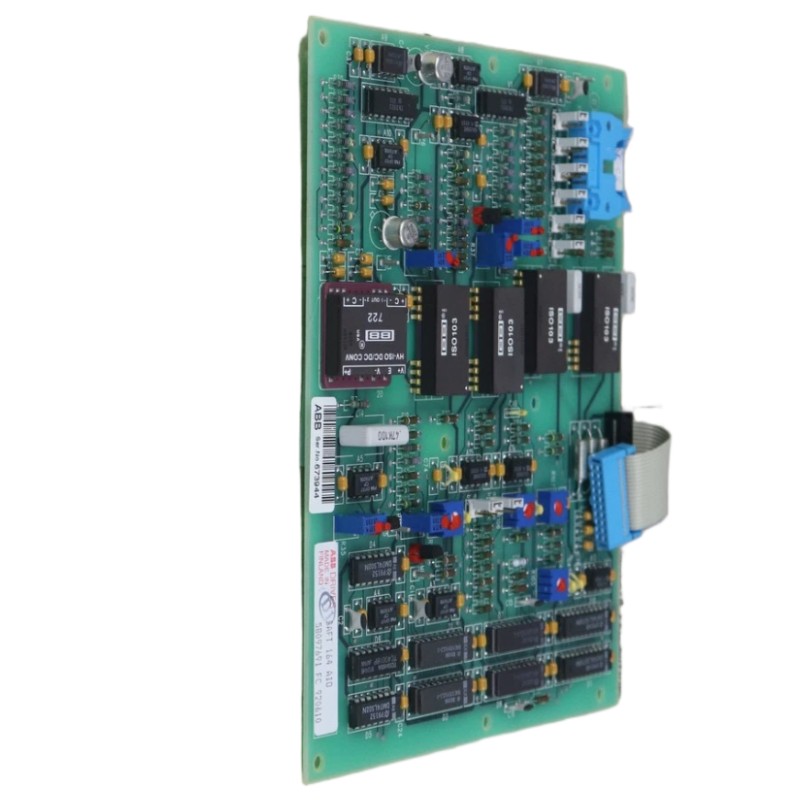

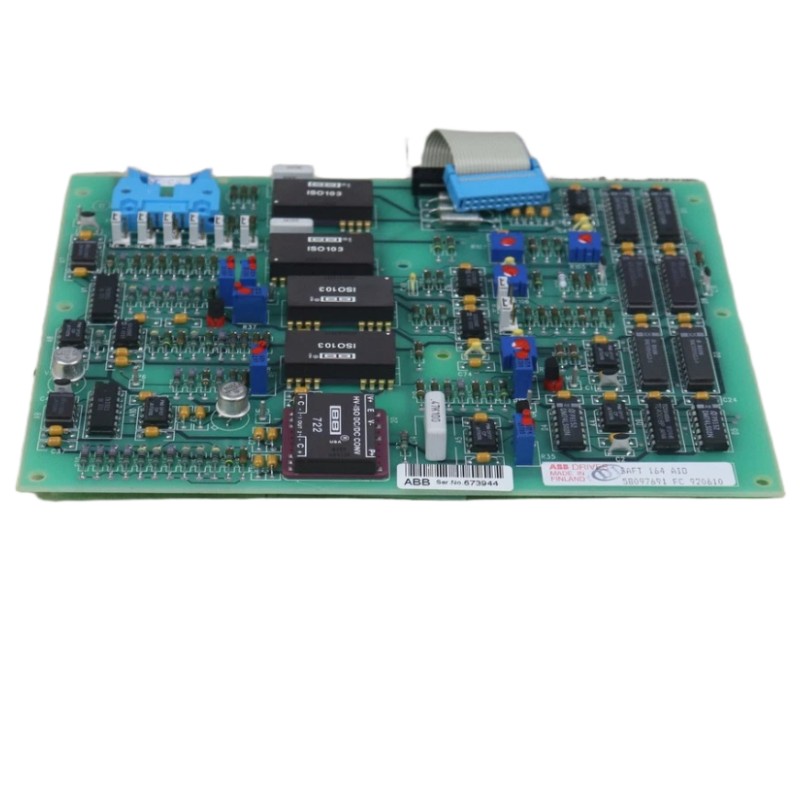

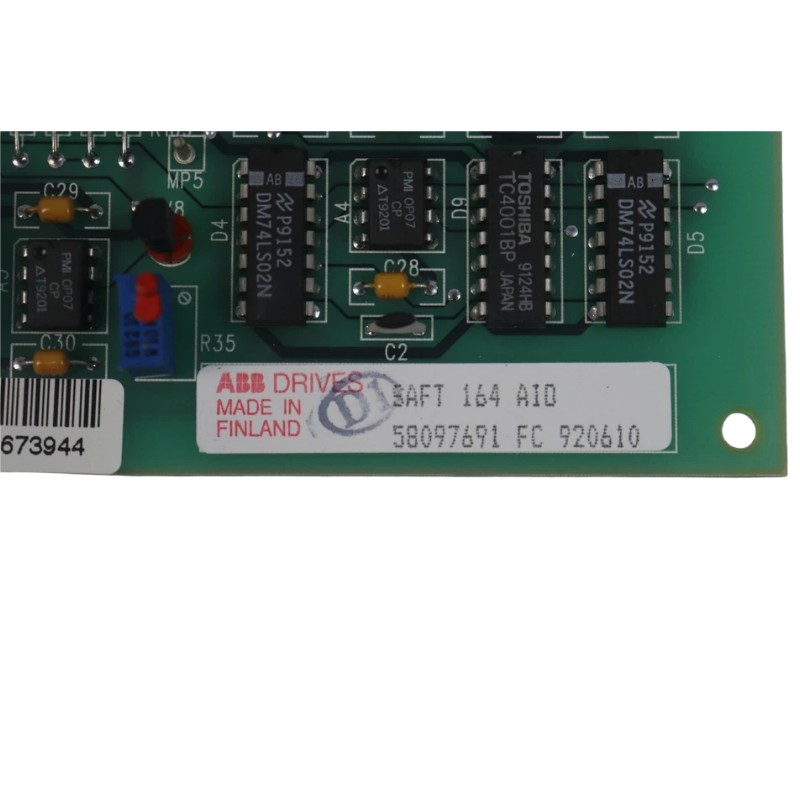

ABB SAFT 164 AIO 58097691 Analog Input/Output Board

Overview

The ABB SAFT 164 AIO 58097691 is an analog input/output board designed for industrial automation and control systems. It provides precise analog signal acquisition and output, enabling accurate process monitoring, control, and system integration.

General Information

Part Number: 58097691

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SAFT 164 AIO

Type: Analog Input/Output Board

Mounting: Panel or DIN rail installation

Technology: Industrial analog I/O interface, signal conditioning, and processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via system bus or dedicated 24 V DC line

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power and signal status

Communication & Interface

Input Channels: Multiple analog inputs compatible with standard industrial sensors

Output Channels: Multiple analog outputs for control devices or actuators

Signal Conditioning: Filtering, scaling, and linearization for precise signal handling

Diagnostics: Fault detection, input/output monitoring, and status reporting

Operator Interface: LED indicators for operational and signal status

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 180 × 20 × 198 mm

Weight: 0.45 kg
