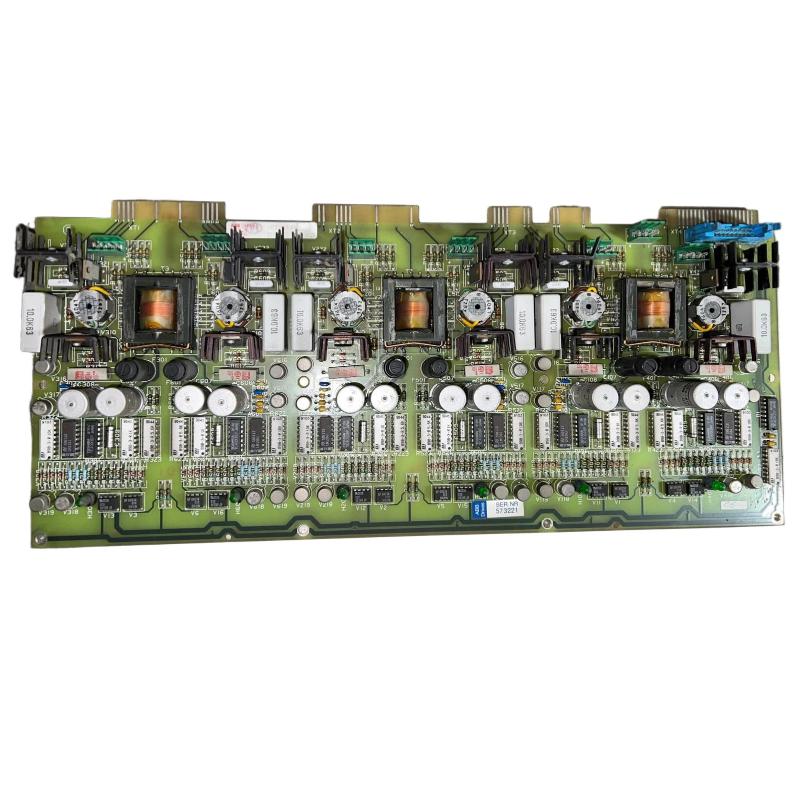

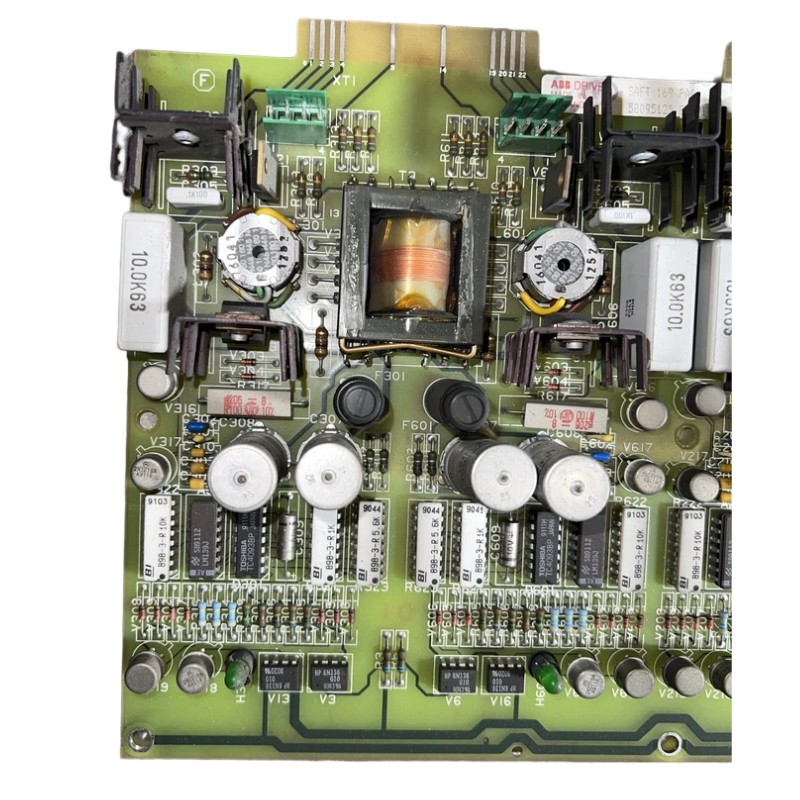

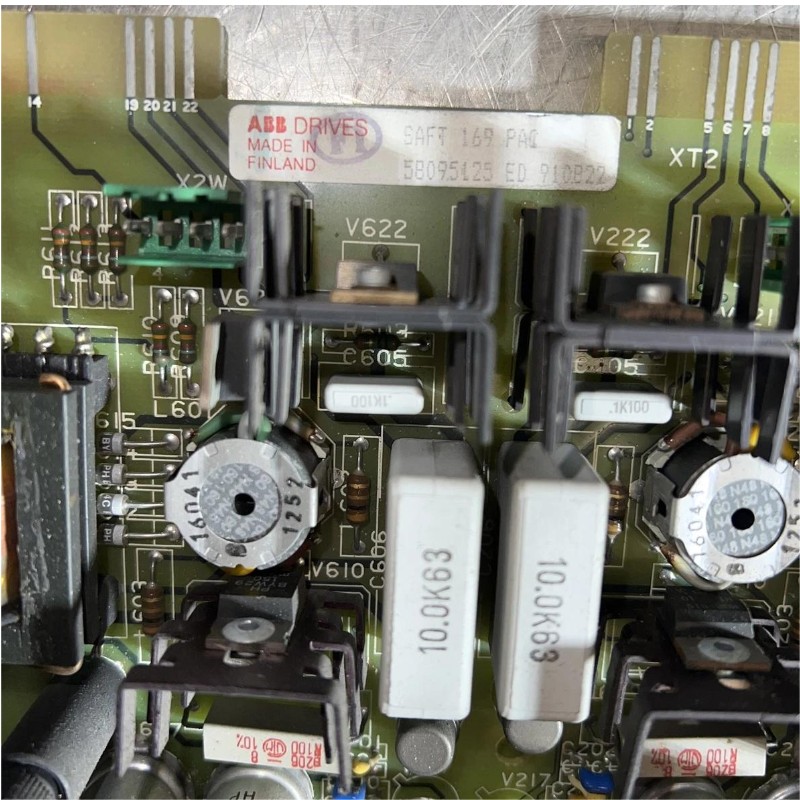

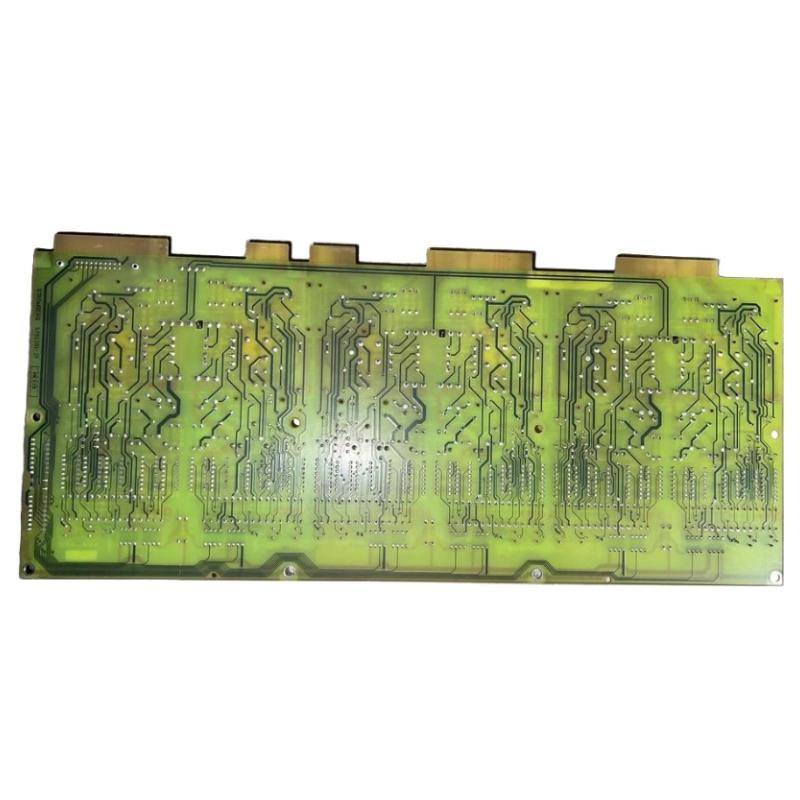

ABB SAFT 169 PAC 58095125 Pulse Amplifier Panel

Overview

The ABB SAFT 169 PAC 58095125 is a pulse amplifier panel designed for industrial automation and control systems. It amplifies and conditions pulse signals from field devices, providing accurate signal transmission and ensuring reliable system performance across large-scale installations.

General Information

Part Number: 58095125

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SAFT 169 PAC

Type: Pulse Amplifier Panel

Mounting: Panel or DIN rail installation

Technology: Industrial pulse signal amplification, conditioning, and interface

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via system bus or dedicated 24 V DC line

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power and signal activity

Communication & Interface

Input Channels: Multiple pulse inputs compatible with standard field devices

Output: Conditioned pulse signals suitable for PLC or controller inputs

Diagnostics: Signal verification, fault detection, and status reporting

Operator Interface: LED indicators for power and signal status

Reset Features: Supports hardware and software reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 188 × 30 × 220 mm

Weight: 0.91 kg
