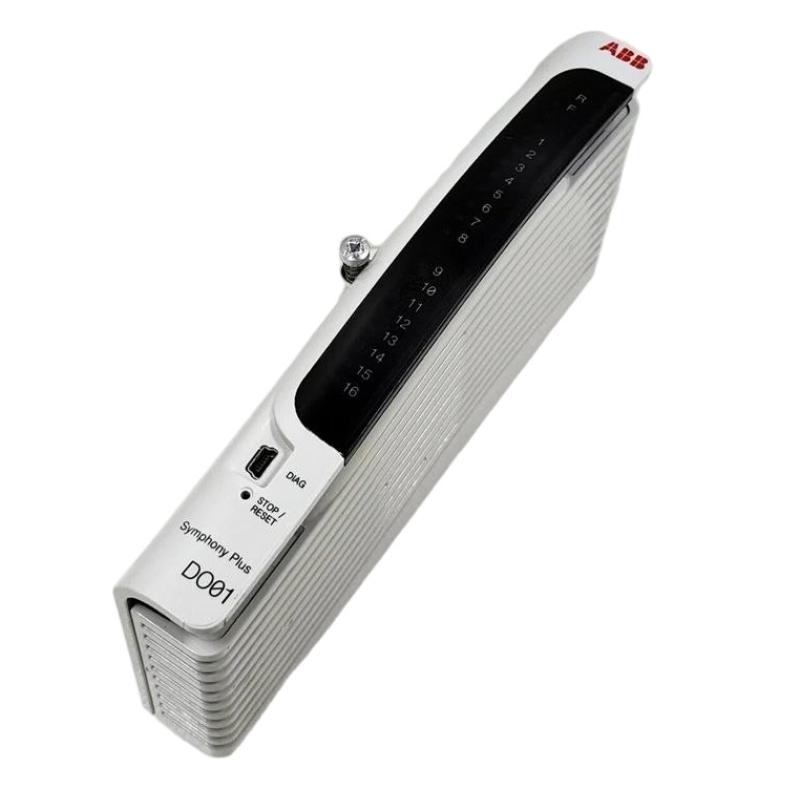

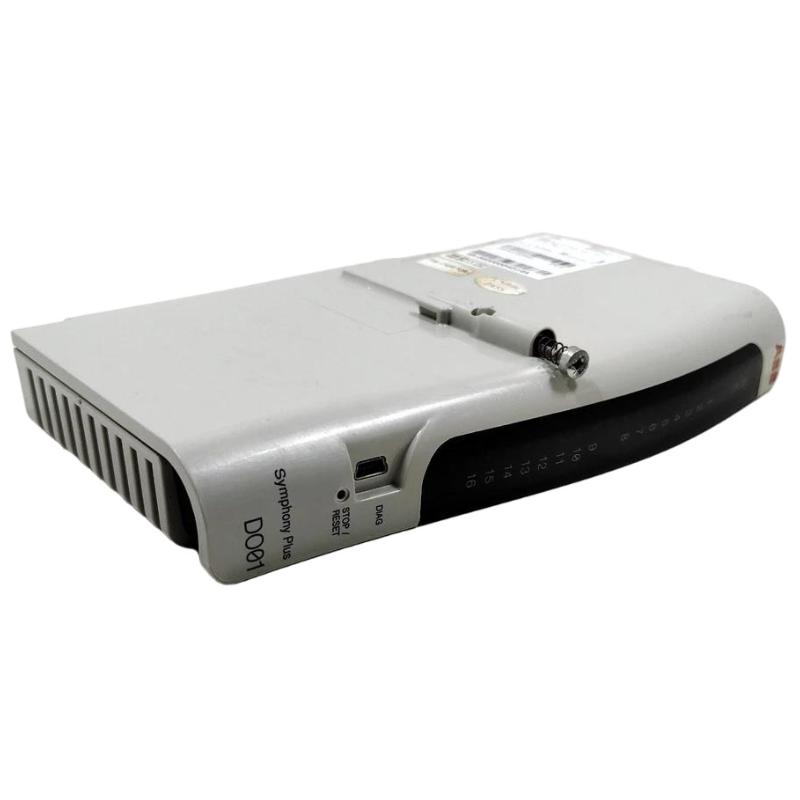

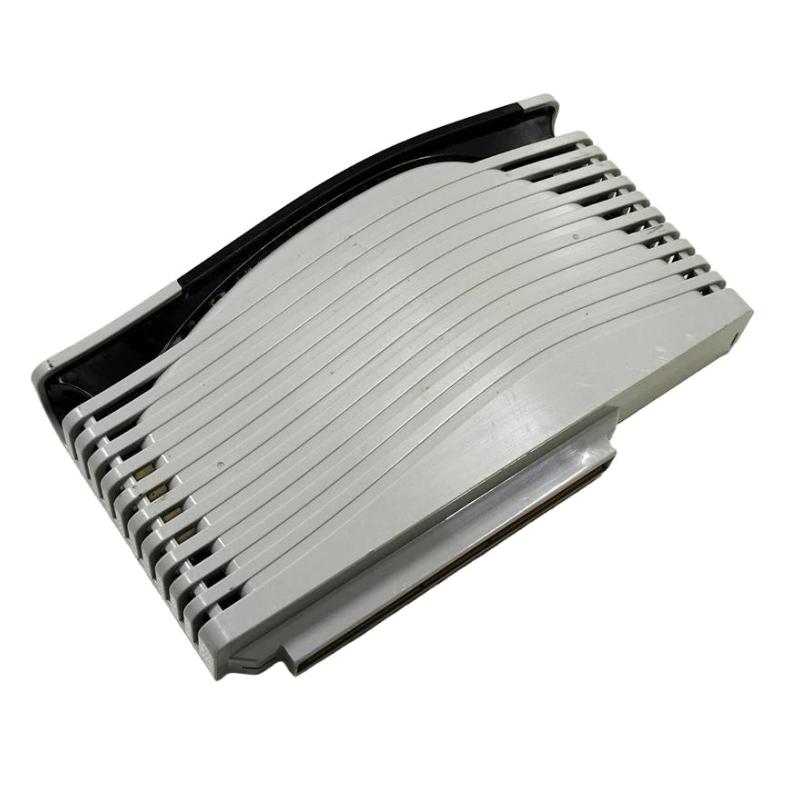

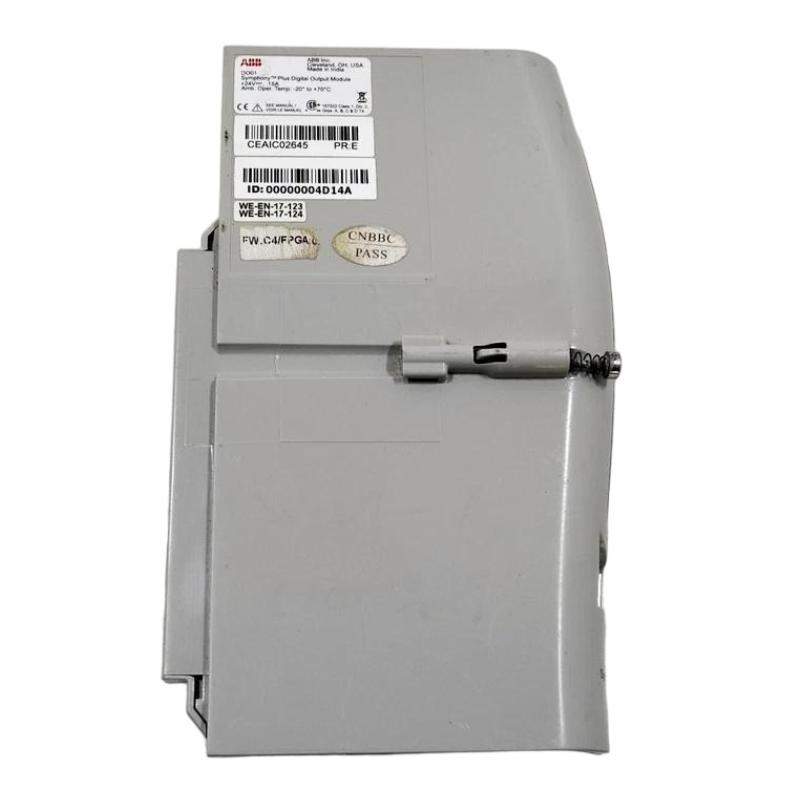

ABB DO01 Digital Output Module

Overview

The ABB DO01 is a reliable digital output module designed for industrial automation systems. It provides precise switching of digital signals to field devices, ensuring stable operation and seamless integration within ABB control networks.

General Information

Part Number: DO01

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DO Series

Type: Digital Output Module

Application: Switching and controlling digital signals to field devices

Mounting: Rack-mounted or backplane installation

Technology: Multi-channel digital output with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input Power Source: Provided via system backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LED indicators for power, channel status, and faults

Communication & Interface

Backplane Interface: Proprietary ABB system bus

Output Type: Digital switching outputs

Channels: Multiple output channels for field device control

Signal Handling: High-speed switching with noise suppression

Diagnostics: Channel monitoring and fault detection

Configuration: Software-configurable via ABB control system

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet installation

Vibration Resistance: Designed for standard industrial conditions

Dimensions & Weight

Dimensions (L × W × H): 482.6 × 129.54 × 350.52 mm

Weight: 0.22 kg
