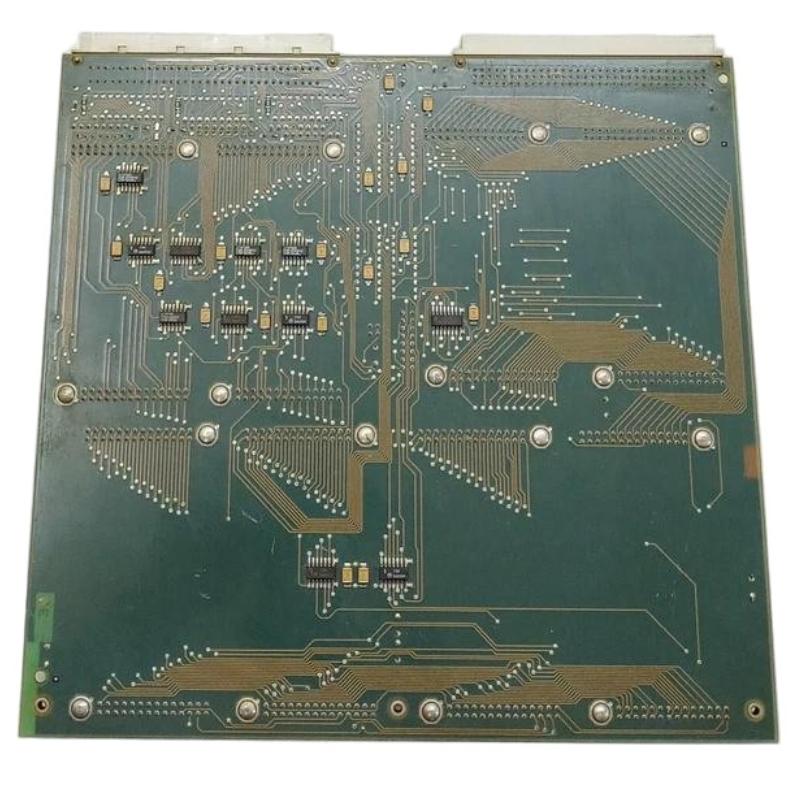

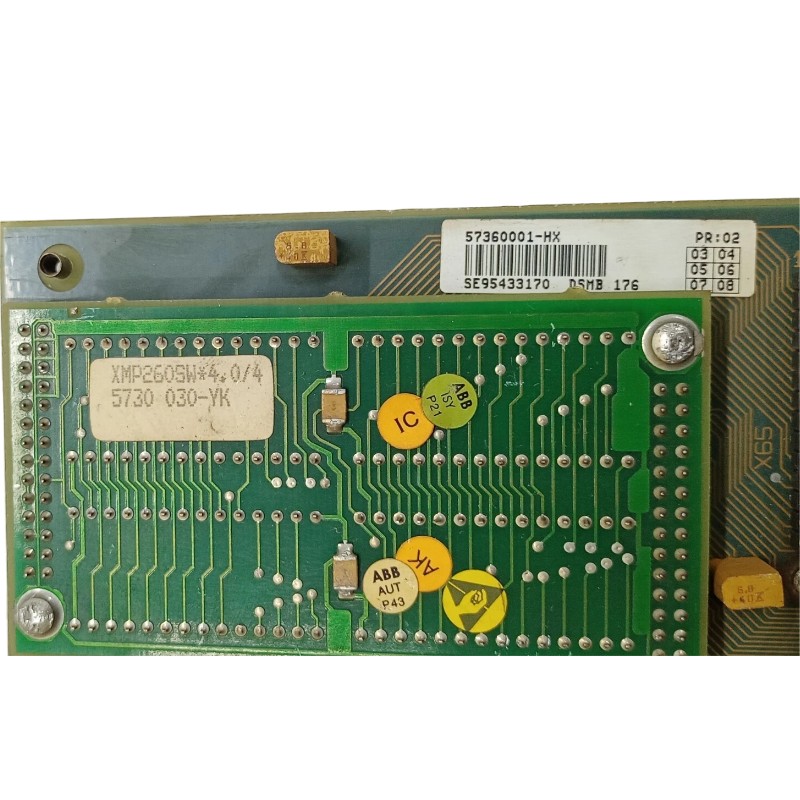

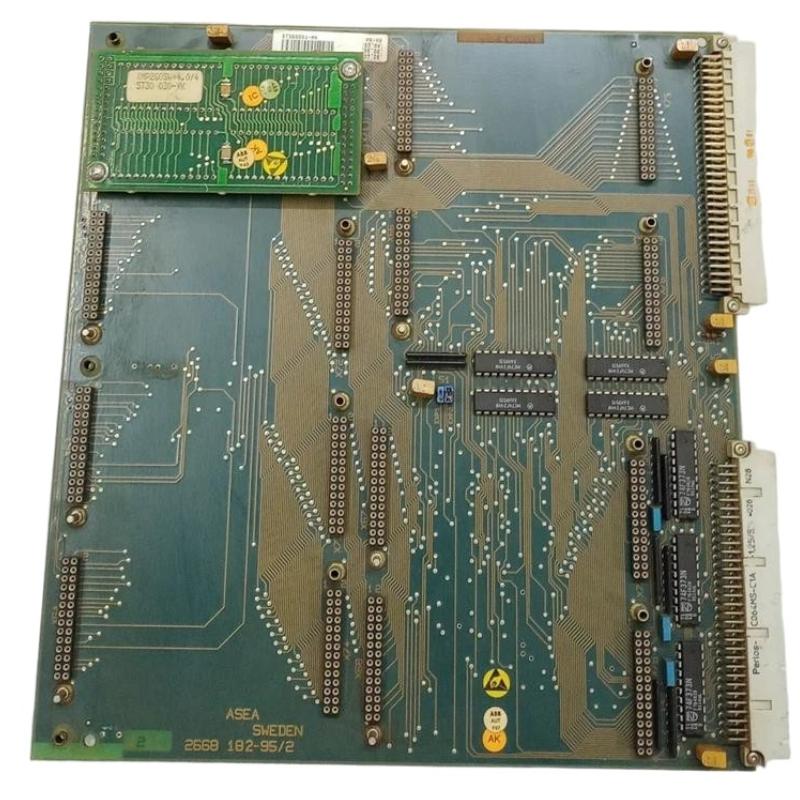

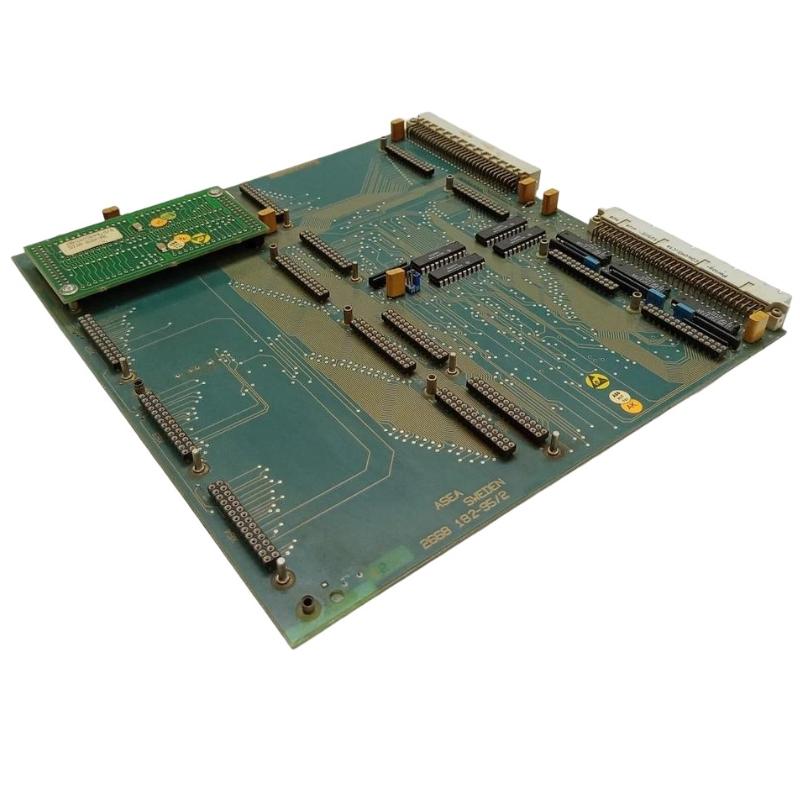

ABB DSMB 176 57360001-HX DS Memory Module

Overview

The ABB DSMB 176 is a high-performance memory module designed for distributed control systems. It provides reliable storage and fast access to program data and configuration settings, ensuring smooth operation and stability of automation processes.

General Information

Part Number: 57360001-HX

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS (Distributed System I/O)

Type: Memory Module

Application: Data storage and program management in industrial automation

Mounting: Rack-mounted module within control system chassis

Technology: Non-volatile memory with integrated error detection and diagnostics

Power Specifications

Supply Voltage: 5 V DC (via system backplane)

Power Consumption: ≤ 3 W

Input Power Source: Controller backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED for module status and error detection

Communication & Interface

System Interface: Direct connection to ABB control system backplane

Data Interface: High-speed memory access for program and configuration data

Diagnostics: Continuous self-monitoring and error reporting

Configuration: Configurable via system software

Isolation: Electrical isolation from other system modules

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (cabinet installation)

EMC Compliance: Meets industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 234 × 255 × 18 mm

Weight: 0.34 kg
