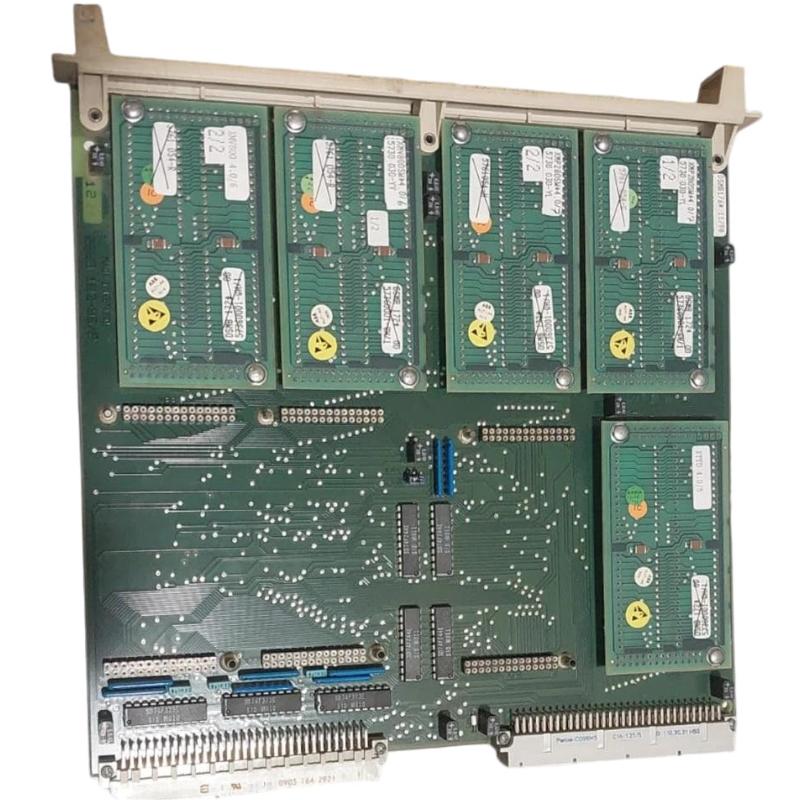

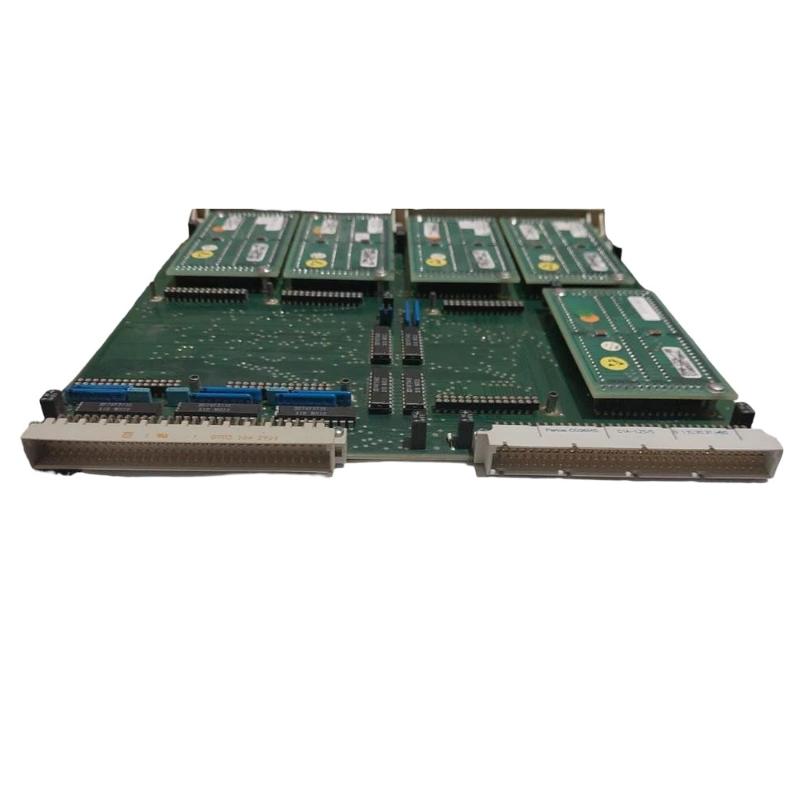

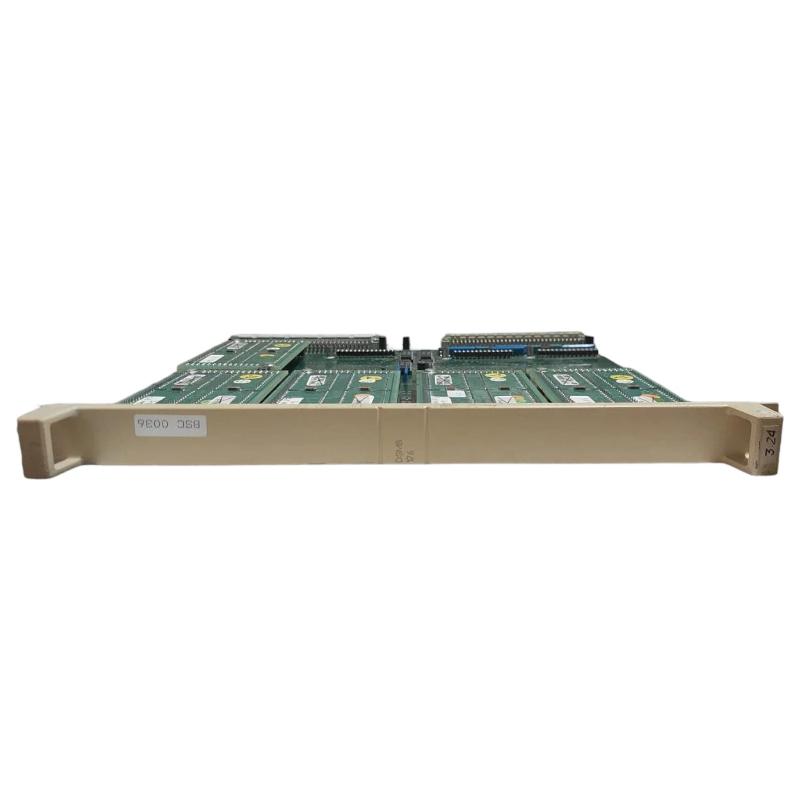

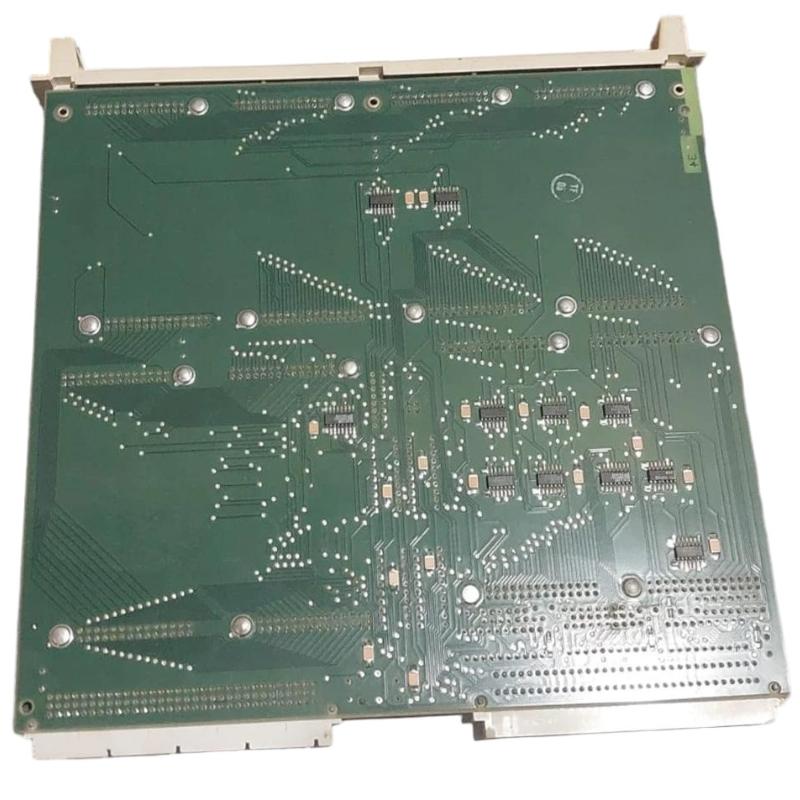

ABB DSMB 176 57960001-HX Memory Module

Overview

The ABB DSMB 176 is a reliable memory module designed for distributed control systems. It provides secure storage for program data and configuration settings, supporting efficient operation and stability of industrial automation processes.

General Information

Part Number: 57960001-HX

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS (Distributed System I/O)

Type: Memory Module

Application: Data storage and program management in industrial automation systems

Mounting: Rack-mounted within control system chassis

Technology: Non-volatile memory with built-in diagnostics and error detection

Power Specifications

Supply Voltage: 5 V DC (via system backplane)

Power Consumption: ≤ 3 W

Input Power Source: Controller backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LED for module status and fault detection

Communication & Interface

System Interface: Direct connection to ABB control system backplane

Data Interface: High-speed memory access for program and configuration data

Diagnostics: Continuous self-monitoring and fault reporting

Configuration: Configurable through system software

Isolation: Electrical isolation from other system modules

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (cabinet installation)

EMC Compliance: Complies with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 234 × 255 × 18 mm

Weight: 0.34 kg
