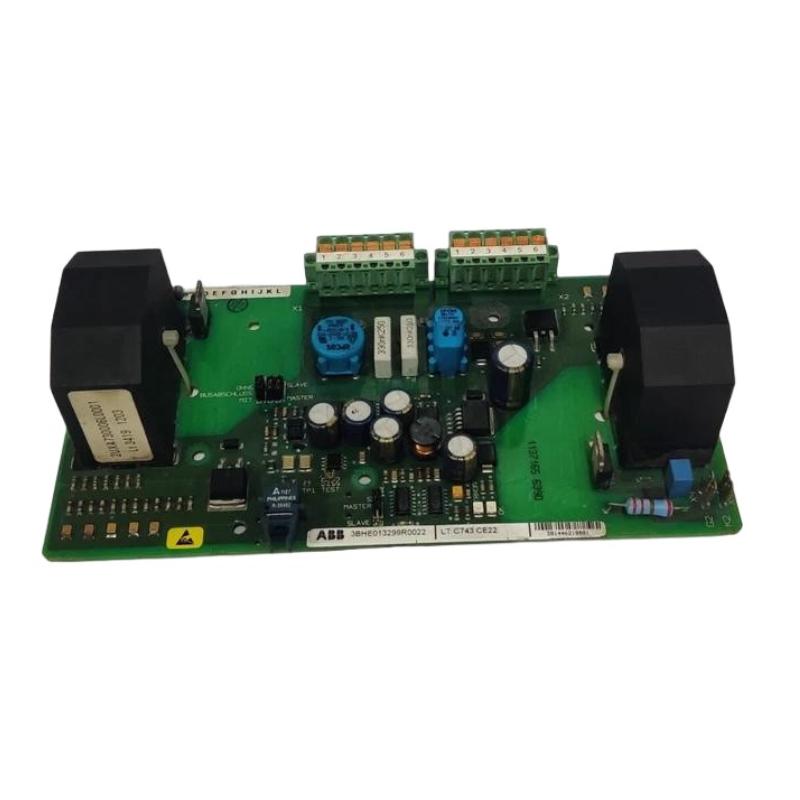

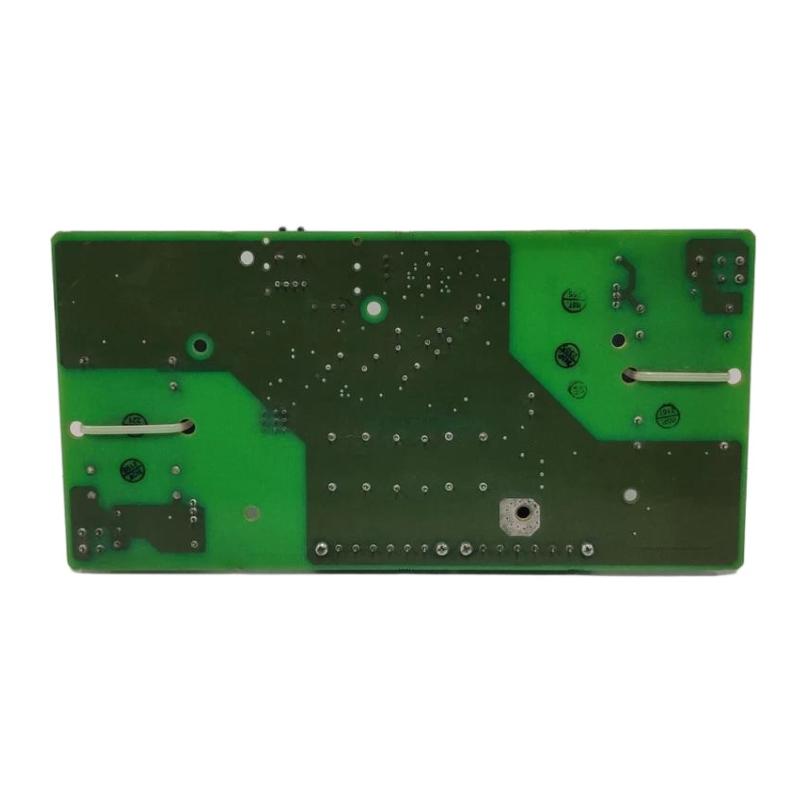

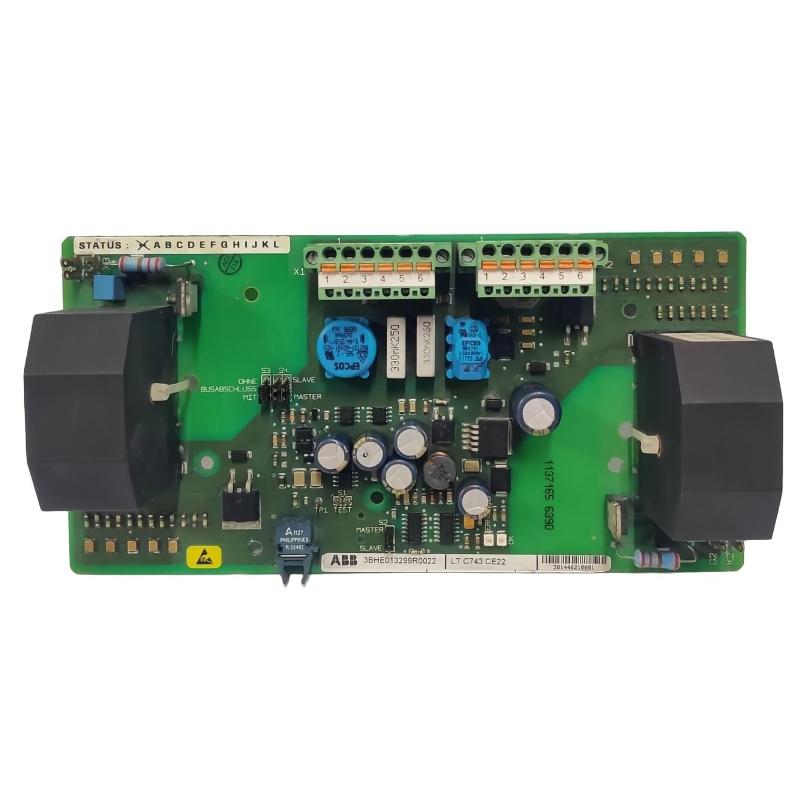

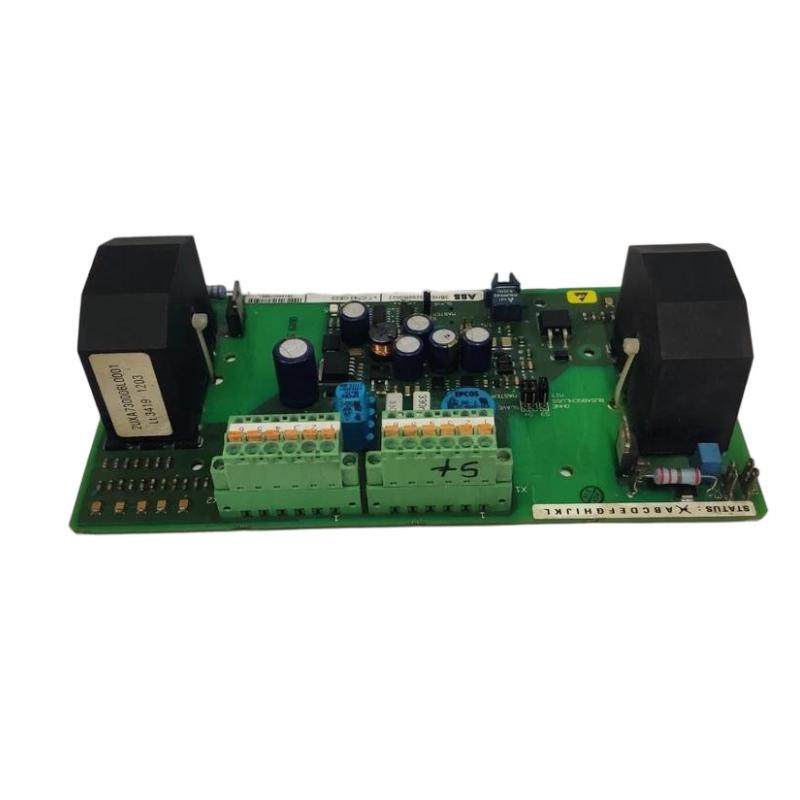

ABB LT C743 CE22 3BHE013299R0022 Control Power Drive Board Card

Overview

The ABB LT C743 CE22 is a high-performance control power drive board card designed for industrial automation and drive systems. It delivers precise power control and signal processing, ensuring stable operation and efficient energy management for connected drives.

General Information

Part Number: 3BHE013299R0022

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: LT

Type: Control Power Drive Board Card

Application: Drive control, power management, and signal processing in industrial automation

Mounting: Card-mounted within control system or drive chassis

Technology: Integrated power control and signal processing with built-in diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input Power Source: System backplane

Protection: Overvoltage, reverse polarity, and short-circuit protection

Indicators: LED indicators for power and operational status

Communication & Interface

System Interface: Direct connection to drive control system

Signal Interface: Supports analog and digital control signals

Diagnostics: Continuous self-monitoring and fault reporting

Configuration: Software-based configuration through control system

Isolation: Electrical isolation between board and peripheral devices

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside cabinet or chassis)

EMC Compliance: Designed to meet industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 200 × 150 × 25 mm

Weight: 0.4 kg

Efficient Control – Maximize Your Drive Performance!
