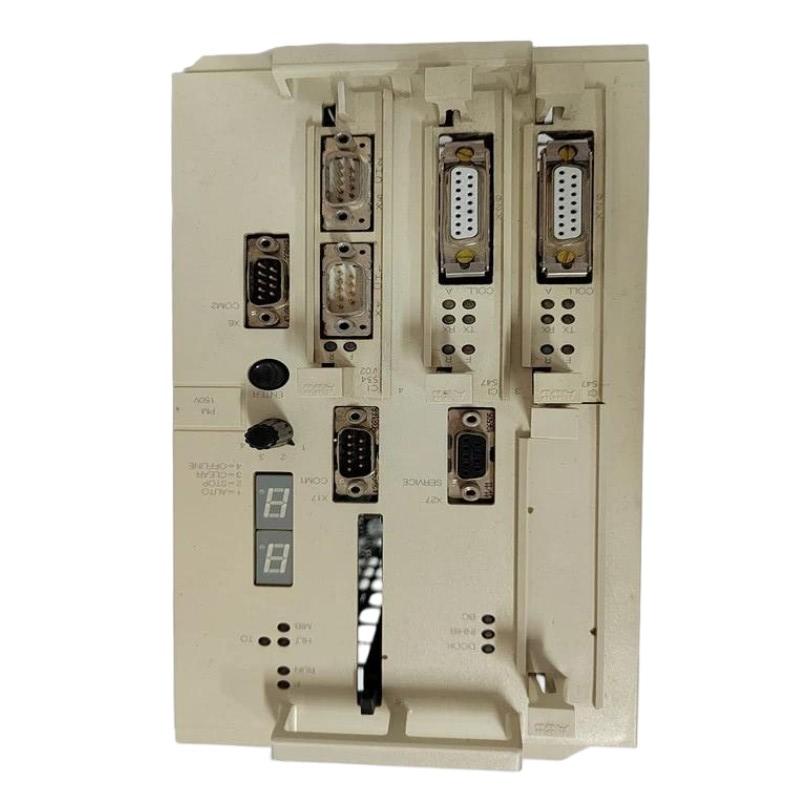

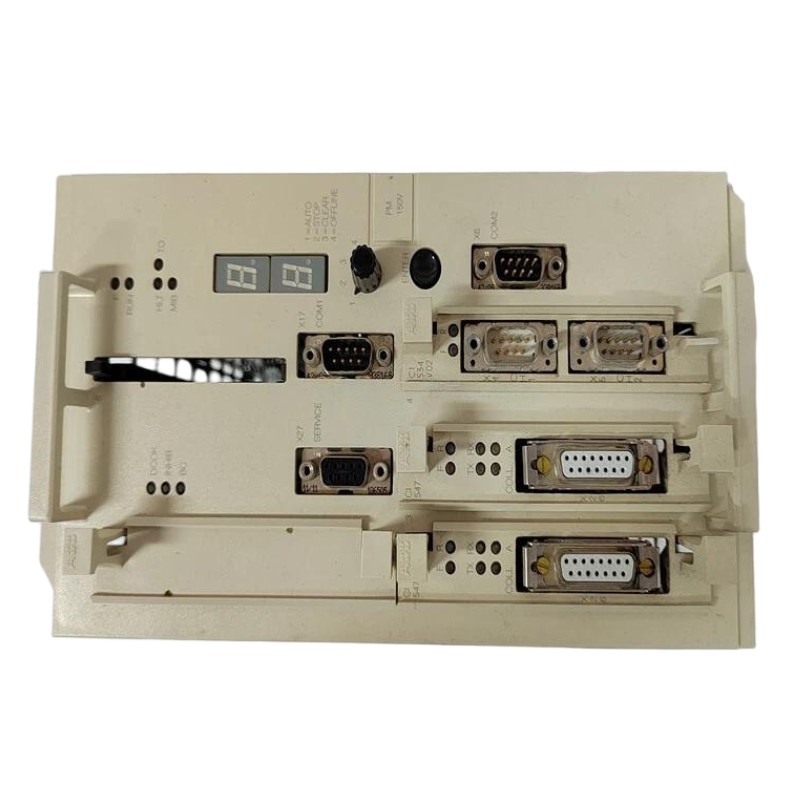

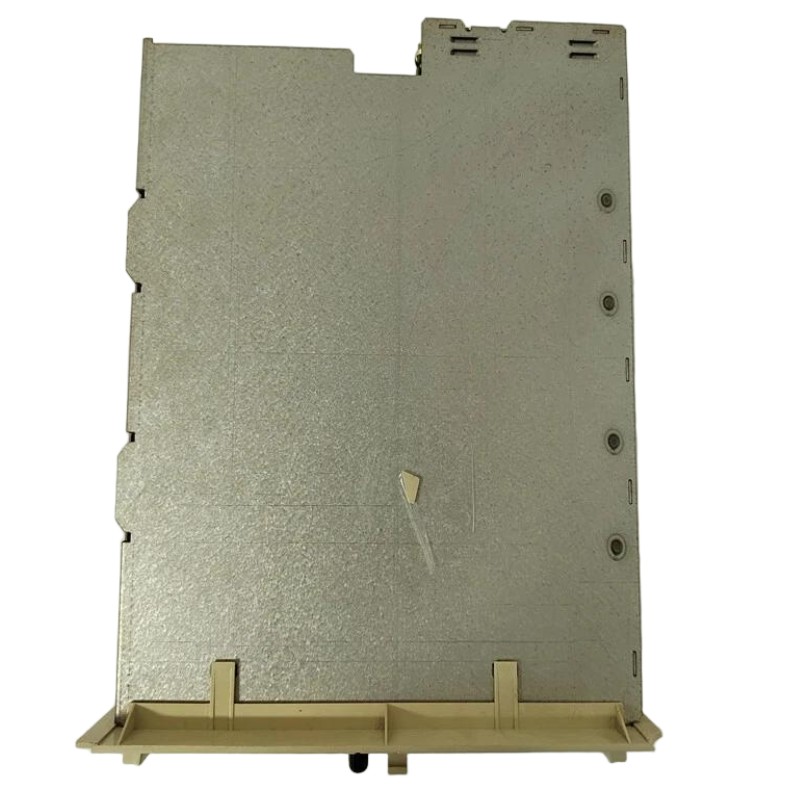

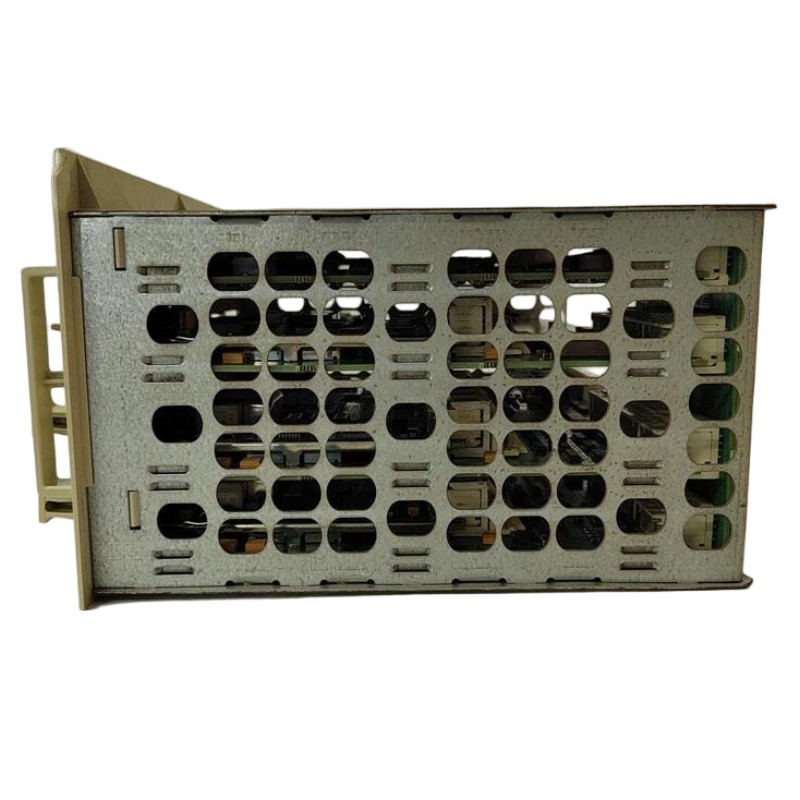

ABB PM150V08 3BSE009598R1 CPU Processor Module

Overview

The ABB PM150V08 is a high-performance CPU processor module designed for industrial automation and process control systems. It provides fast and reliable control execution, seamless data handling, and efficient communication between modules for complex industrial operations.

General Information

Part Number: 3BSE009598R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PM

Type: CPU Processor Module

Application: Process control, automation logic execution, and system management

Mounting: Rack-mounted within control system chassis

Technology: High-speed processor with integrated memory, diagnostics, and fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 55 W

Input Power Source: System backplane or external DC supply

Protection: Overvoltage, reverse polarity, and thermal protection

Indicators: LED indicators for power, CPU status, and fault conditions

Communication & Interface

System Interface: Direct integration with ABB control systems

Communication Ports: Ethernet and fieldbus interfaces

Protocol Support: Industrial protocols for seamless communication with connected modules

Diagnostics: Real-time monitoring, fault detection, and status reporting

Configuration: Software-based configuration via ABB engineering tools

Isolation: Electrical isolation between processor and connected modules

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (cabinet or chassis installation)

EMC Compliance: Meets industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 216 × 99 × 234 mm

Weight: 2.85 kg

Advanced Performance – Take Your Automation to the Next Level!
