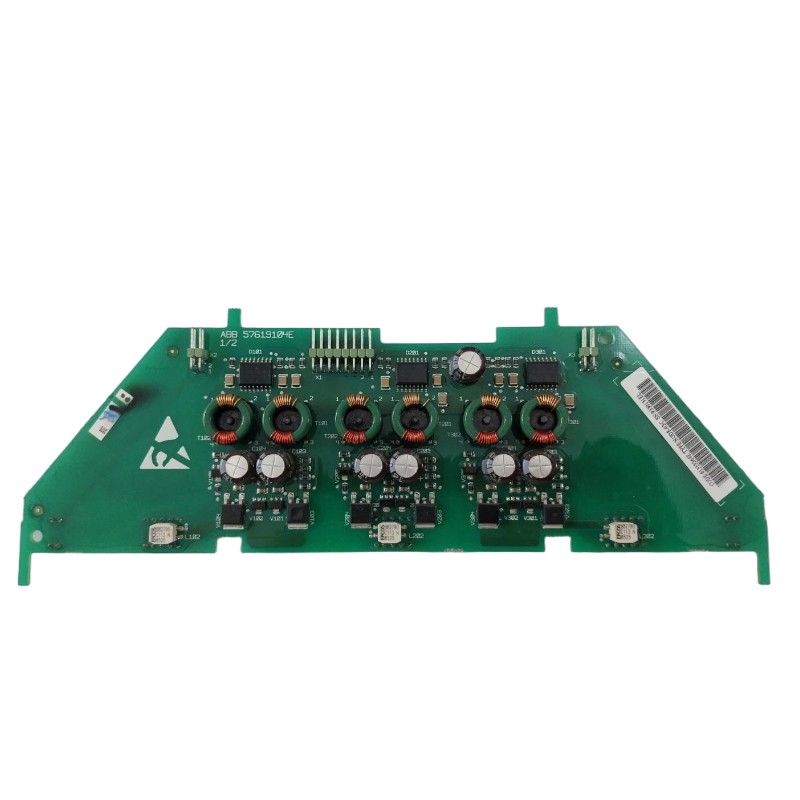

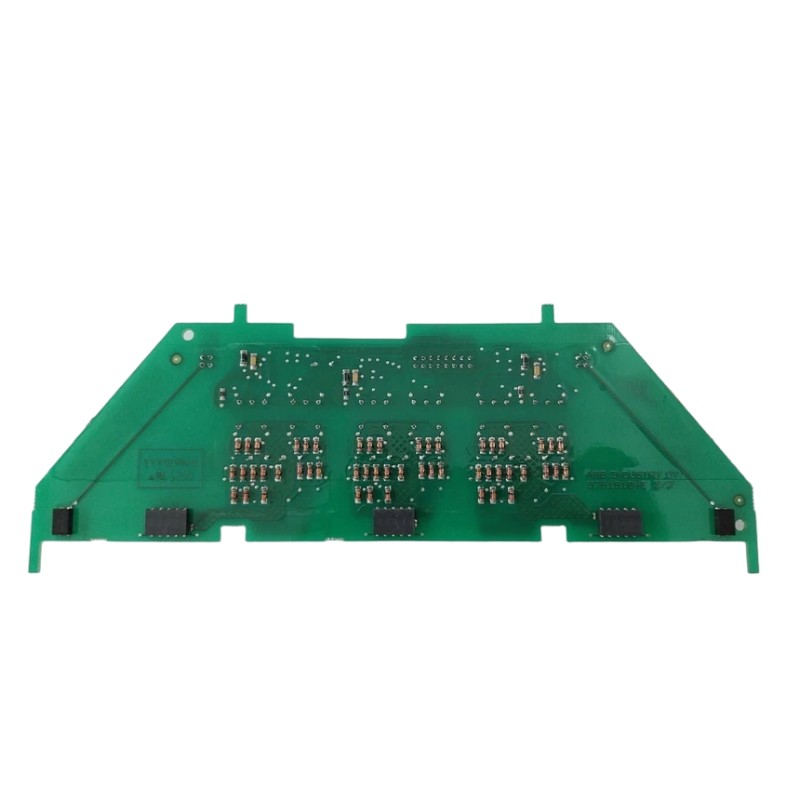

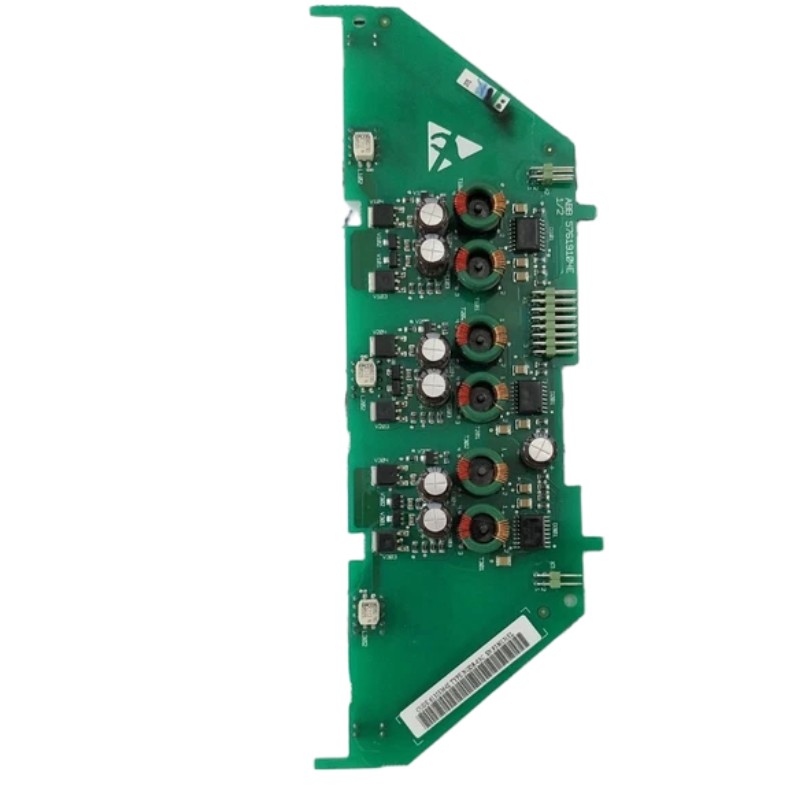

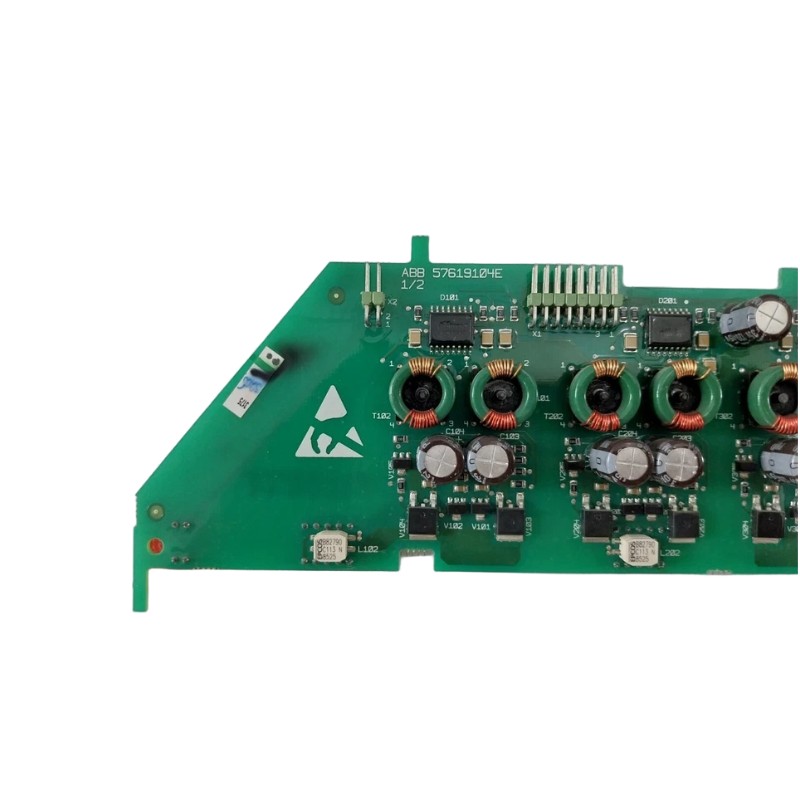

ABB NGDR-03C 57619104E Inverter PCB Card

Overview

The ABB NGDR-03C 57619104E is a high-quality inverter PCB card designed for use in industrial drive systems. It plays a critical role in signal processing and control within inverter units, ensuring stable operation, precise control, and reliable system performance.

General Information

Part Number: 57619104E

Model: NGDR-03C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Drive Control PCB Series

Type: Inverter PCB Card

Mounting: Installed within inverter or drive system enclosure

Function: Provides control and signal processing for inverter operation

Power Specifications

Supply Voltage: Powered internally by inverter system

Power Consumption: Low power consumption design

Signal Processing: High-speed signal handling for drive control

Protection: Integrated circuit protection and signal isolation

Indicators: On-board diagnostic indicators (model dependent)

Communication & Interface

System Interface: Direct PCB integration with inverter control system

Signal Transmission: Handles control signals between inverter components

Diagnostics: Supports system diagnostics through integrated circuitry

Operator Interface: No direct interface; managed through inverter system

Compatibility: Designed for ABB inverter and drive systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Installed within protected inverter housing

Vibration Resistance: Meets industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 159 × 65 × 20 mm

Weight: 0.045 kg

Precision Control Board – Enhance Your Drive System Performance!
