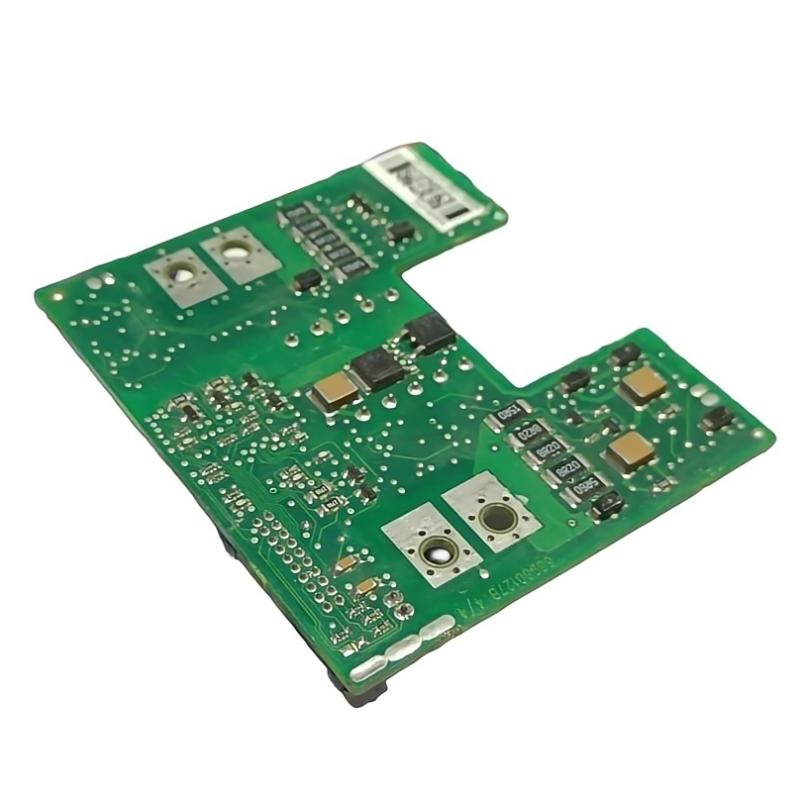

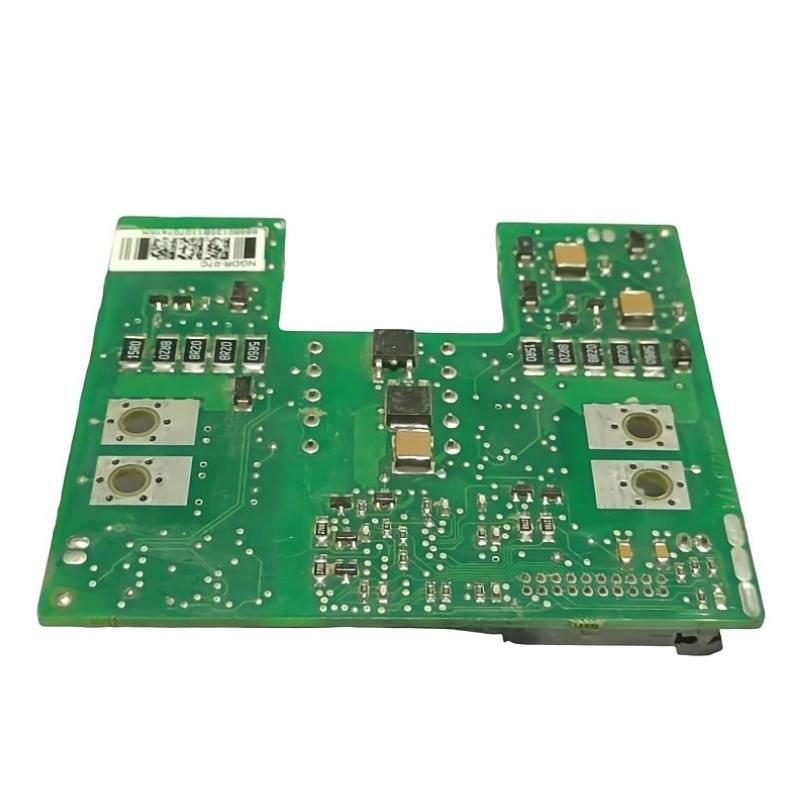

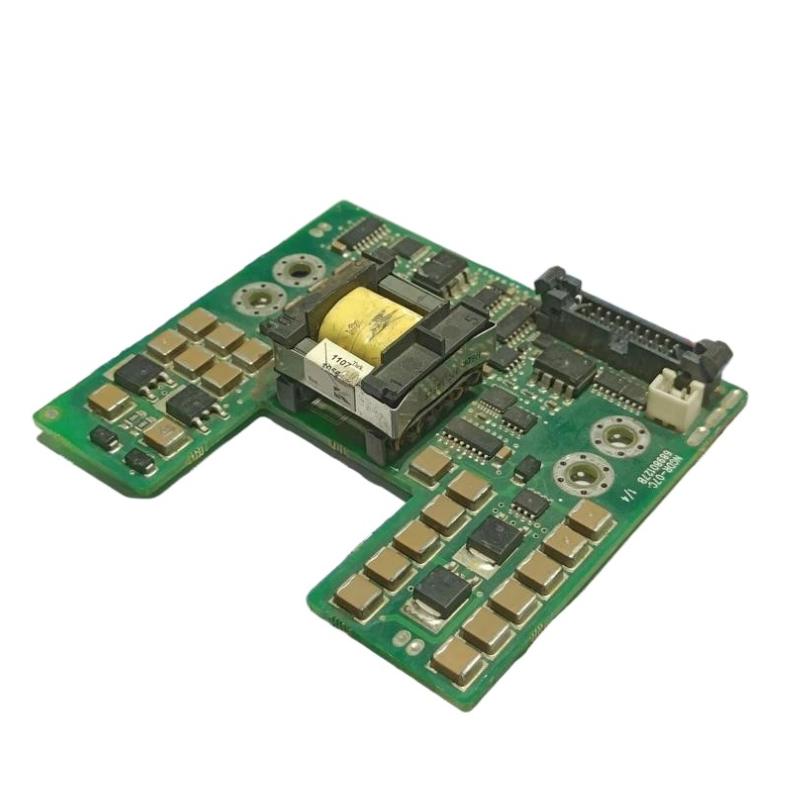

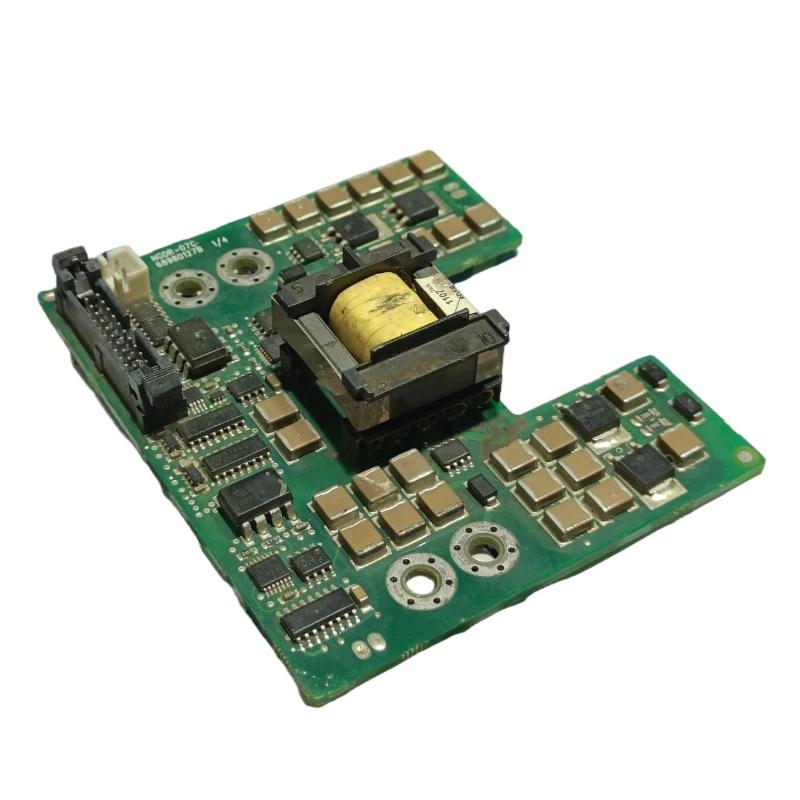

ABB NGDR-07C 68980127B Inverter Trigger Board

Overview

The ABB NGDR-07C 68980127B is a specialized inverter trigger board designed for precise control of power semiconductor switching in industrial drive systems. It ensures accurate triggering signals for inverter components, contributing to stable operation and efficient power conversion.

General Information

Part Number: 68980127B

Model: NGDR-07C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Drive Control PCB Series

Type: Inverter Trigger Board

Mounting: Installed within inverter or drive system enclosure

Function: Generates and manages trigger signals for inverter switching devices

Power Specifications

Supply Voltage: Powered internally by inverter system

Power Consumption: Low power design

Signal Type: High-speed trigger signal output

Performance: Ensures precise timing and synchronization for switching

Protection: Integrated circuit protection and signal isolation

Indicators: On-board status indicators (model dependent)

Communication & Interface

System Interface: Direct PCB integration with inverter control system

Signal Transmission: Provides trigger signals to power semiconductor devices

Diagnostics: Supports internal diagnostics through system integration

Operator Interface: No direct user interface; operates within inverter system

Compatibility: Designed for ABB inverter and drive platforms

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Installed within protected inverter housing

Vibration Resistance: Meets industrial standards for vibration and shock

Dimensions & Weight

Dimensions (L × W × H): 159 × 149 × 20 mm

Weight: 0.11 kg

Accurate Trigger Control – Optimize Your Inverter Performance!
