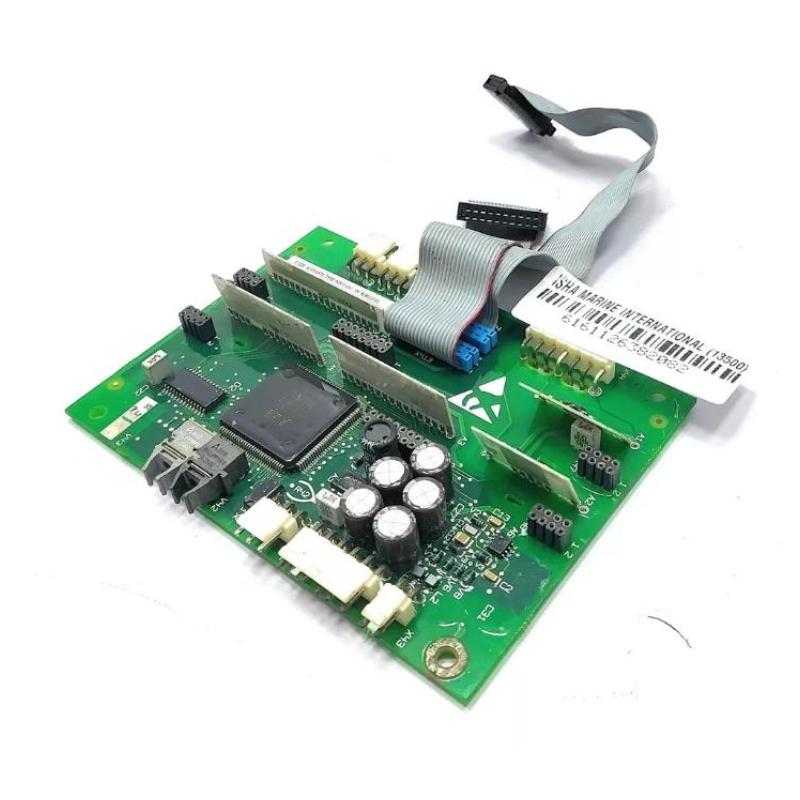

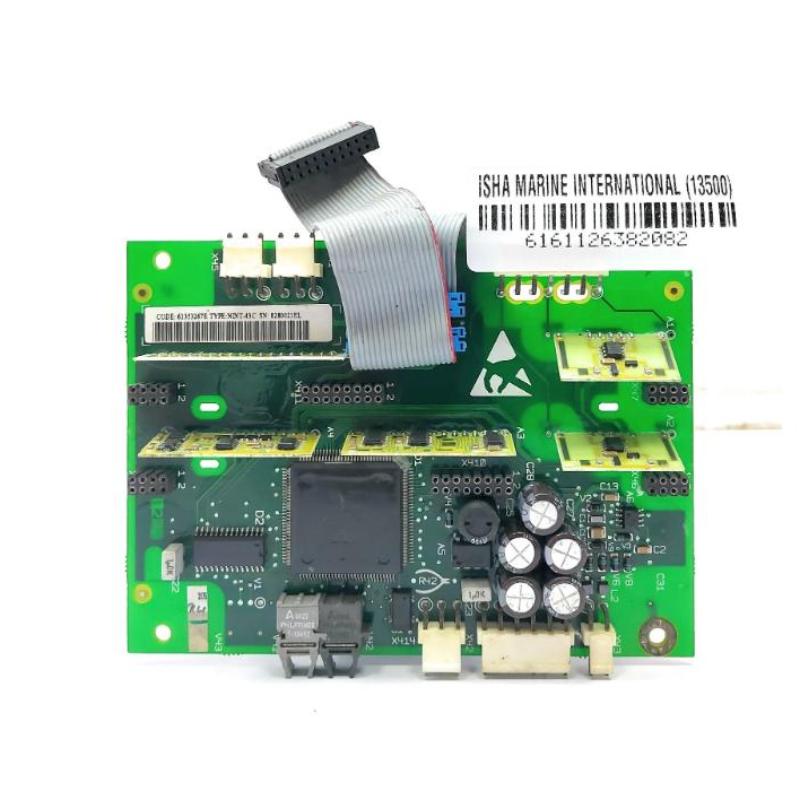

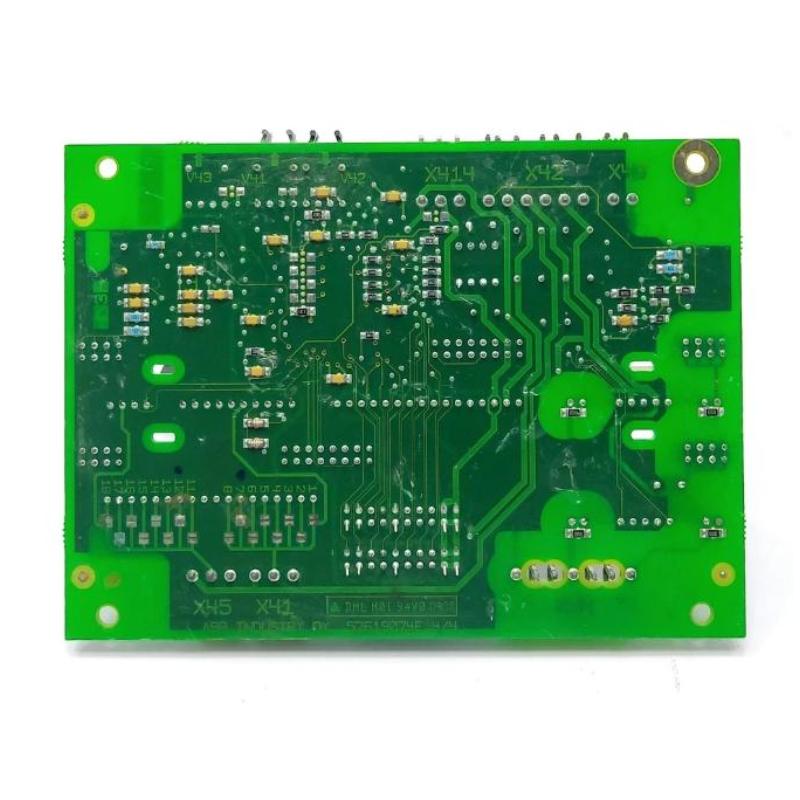

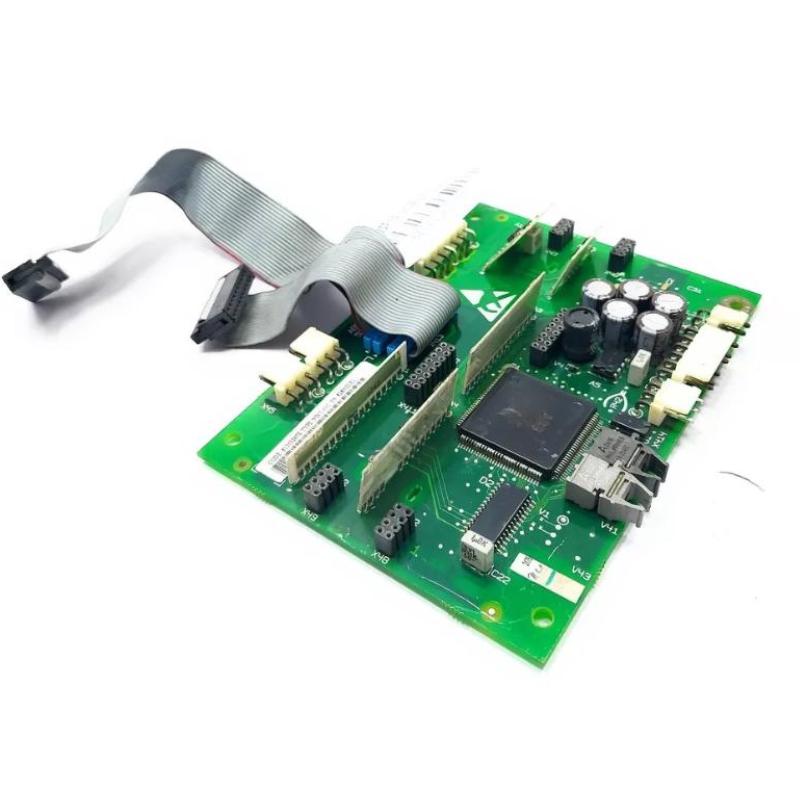

ABB NINT-43C 61353267E Fiber Optic Board

Overview

The ABB NINT-43C 61353267E is a fiber optic communication board designed for high-speed and noise-resistant data transmission in industrial drive systems. It ensures reliable communication between control units and power modules, even in electrically demanding environments.

General Information

Part Number: 61353267E

Model: NINT-43C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Drive Communication Board Series

Type: Fiber Optic Board

Mounting: Installed within drive or control system enclosure

Function: Provides fiber optic communication interface for signal transmission

Power Specifications

Supply Voltage: Powered internally by the system

Power Consumption: Low power consumption design

Signal Type: Optical signal transmission for high immunity to interference

Performance: High-speed and stable data communication

Protection: Electrical isolation through fiber optic interface

Indicators: On-board status indicators (model dependent)

Communication & Interface

System Interface: Direct PCB integration with control and drive modules

Communication Type: Fiber optic data transmission

Signal Transmission: Ensures secure and interference-free communication

Diagnostics: Supports system diagnostics and communication status monitoring

Operator Interface: No direct interface; operates within system architecture

Compatibility: Designed for ABB industrial drive and automation systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Installed within protected industrial enclosure

Vibration Resistance: Meets industrial vibration and shock standards

Dimensions & Weight

Dimensions (L × W × H): 152 × 130 × 26 mm

Weight: 0.55 kg

High-Speed Optical Communication – Built for Harsh Industrial Environments!
