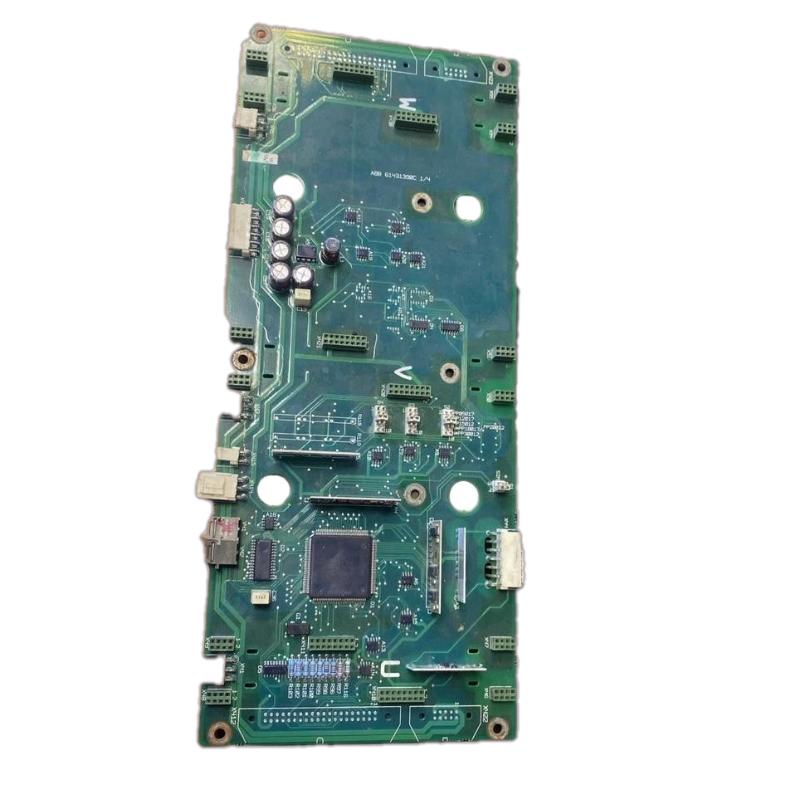

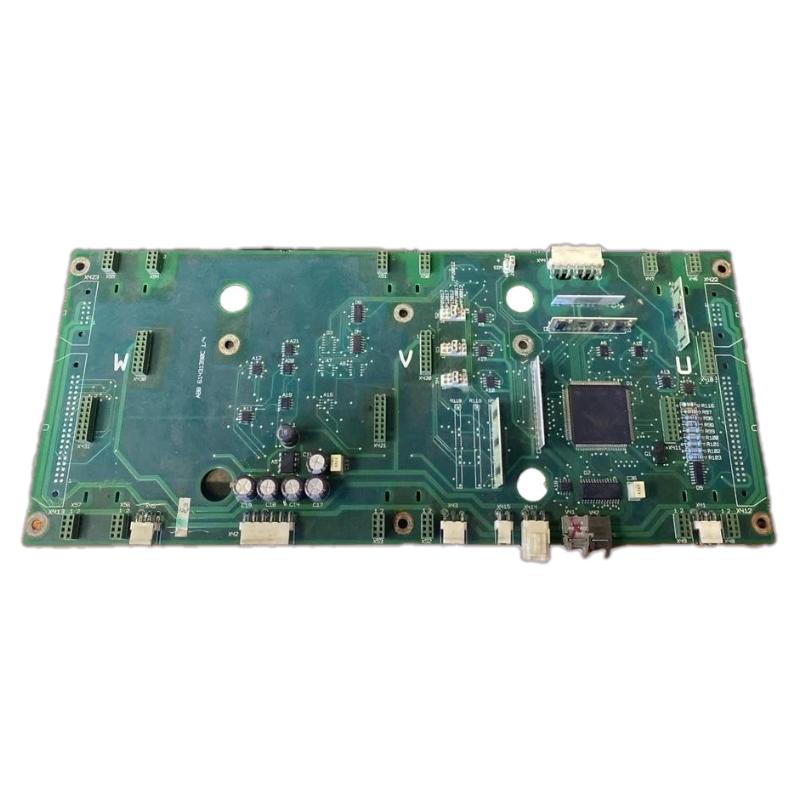

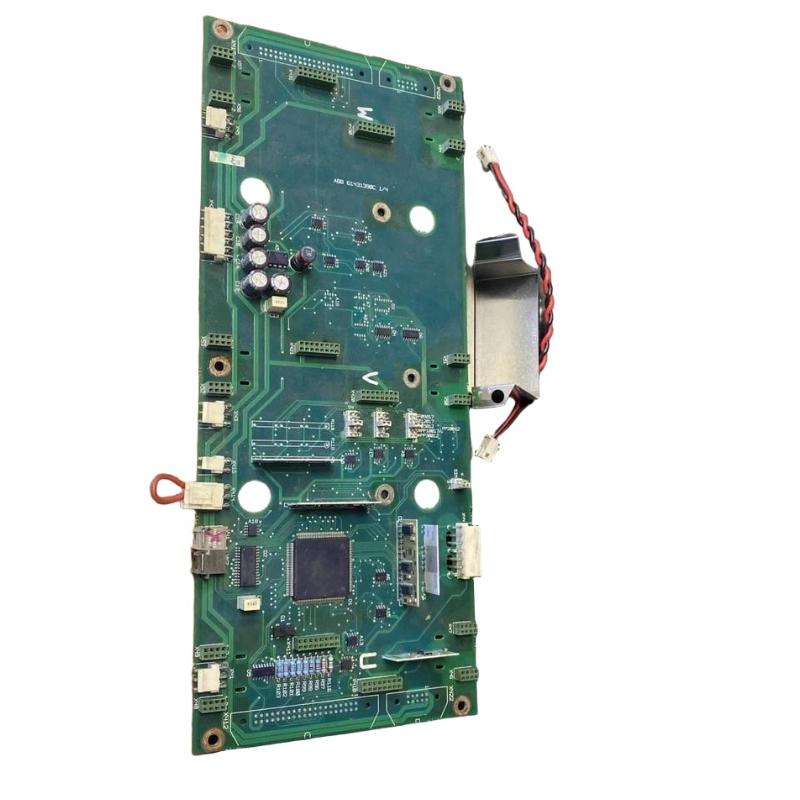

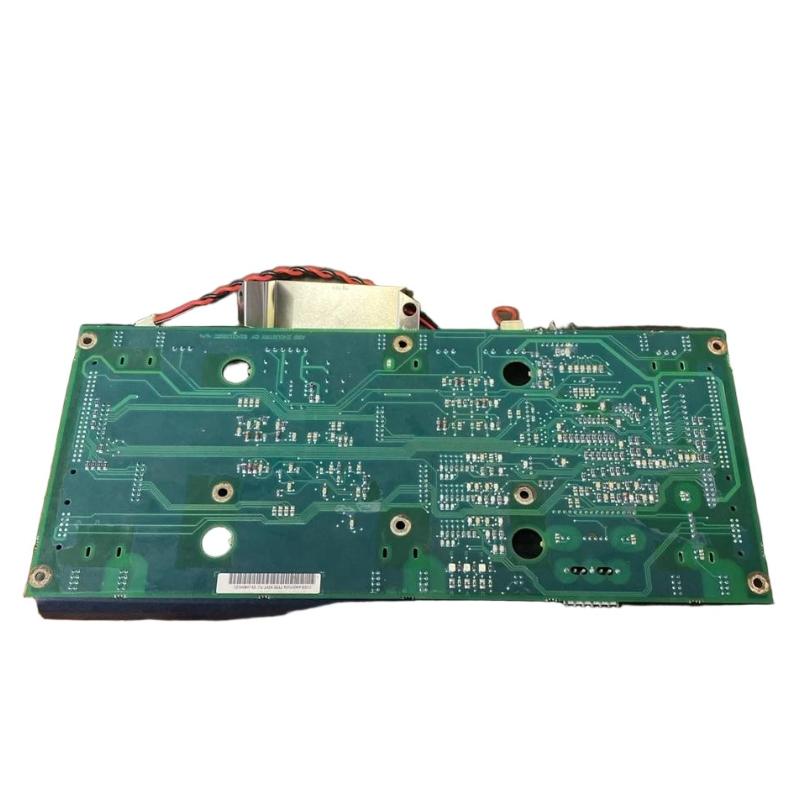

ABB NINT-71C 64513583 Main Circuit Board Interface Board

Overview

The ABB NINT-71C 64513583 is a main circuit interface board designed for industrial drive systems. It provides a reliable connection between the control unit and the main power circuit, ensuring accurate signal transmission and stable coordination of system operations.

General Information

Part Number: 64513583

Model: NINT-71C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Drive Interface Board Series

Type: Main Circuit Interface Board

Mounting: Installed within drive or control system enclosure

Function: Interfaces control signals with the main circuit for coordinated system performance

Power Specifications

Supply Voltage: Powered internally by the system

Power Consumption: Low power consumption design

Signal Handling: Stable transmission between control and power circuits

Protection: Integrated electrical protection and signal isolation

Indicators: On-board status indicators (model dependent)

Communication & Interface

System Interface: Direct PCB integration with control and power modules

Signal Transmission: Transfers control signals to the main circuit

Diagnostics: Supports system-level diagnostics and monitoring

Operator Interface: No direct user interface; operates within system architecture

Compatibility: Designed for ABB industrial drive systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Installed within protected industrial enclosure

Vibration Resistance: Meets industrial vibration and shock standards

Dimensions & Weight

Dimensions (L × W × H): 180 × 150 × 40 mm

Weight: 0.43 kg

Reliable Interface Performance – Keep Your Drive System Running Smoothly!
