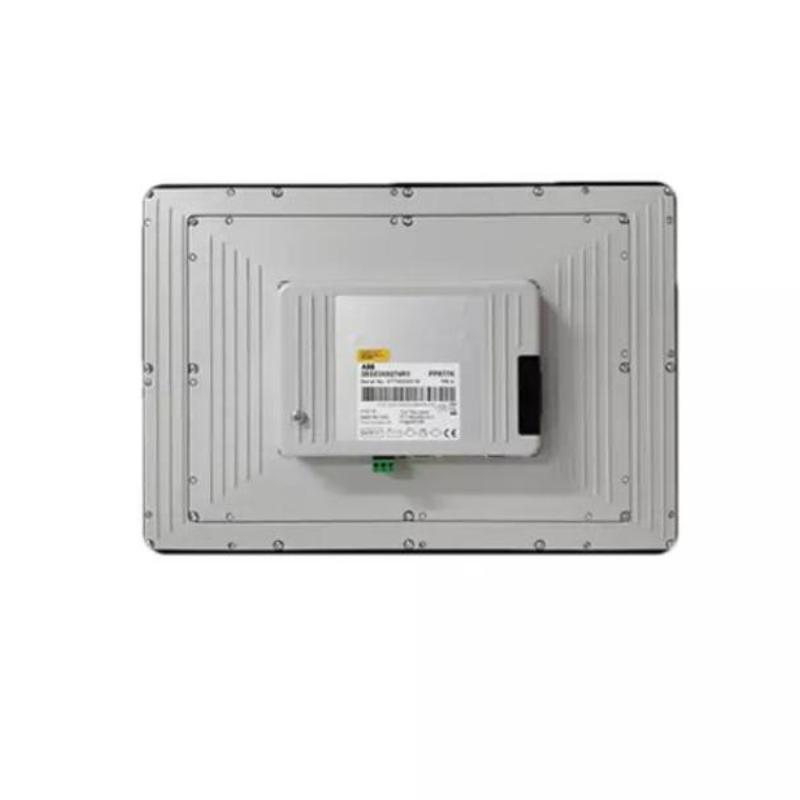

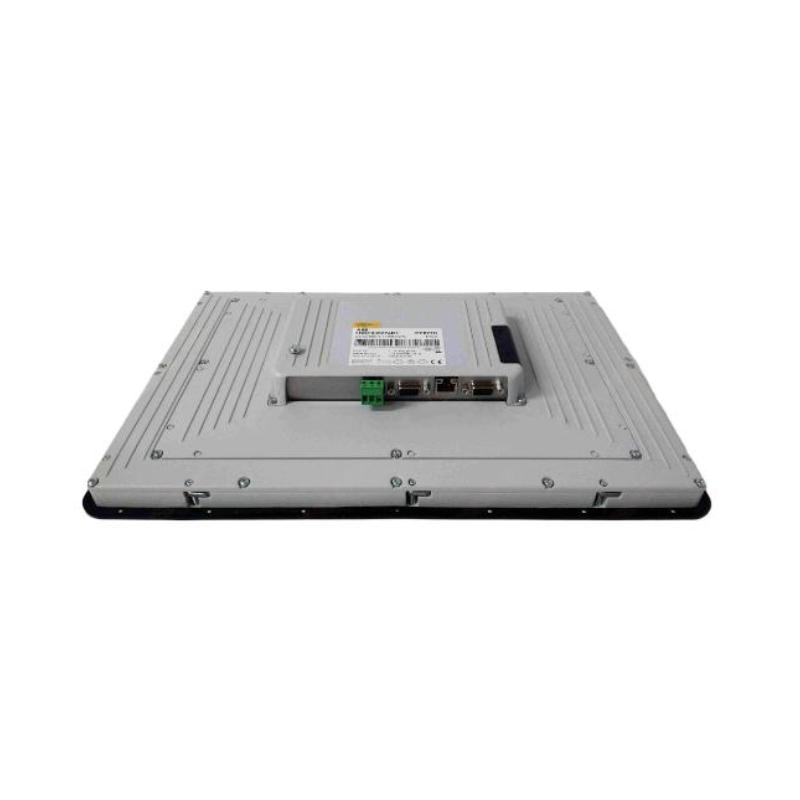

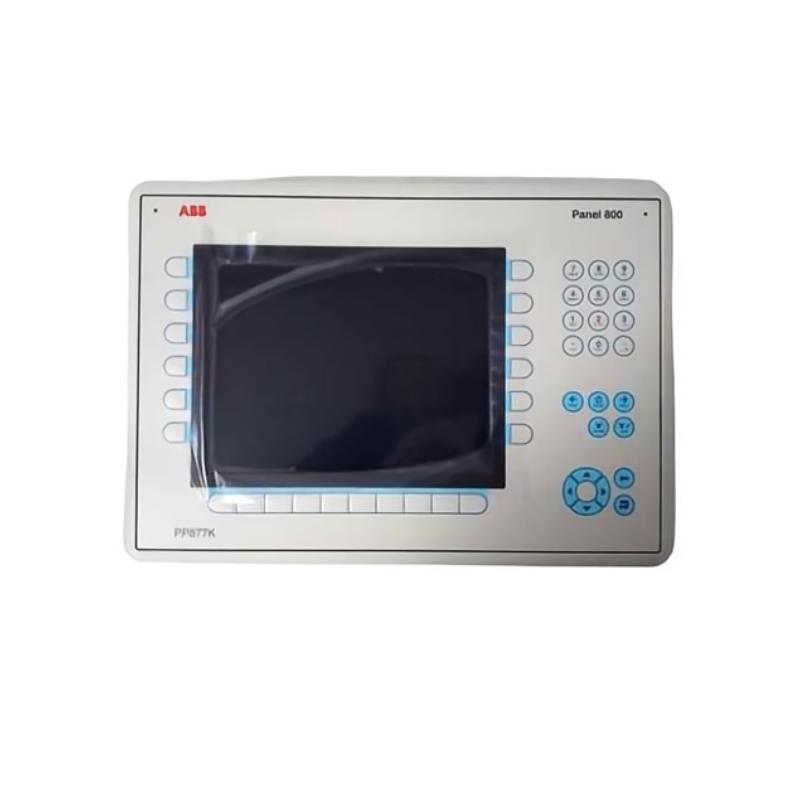

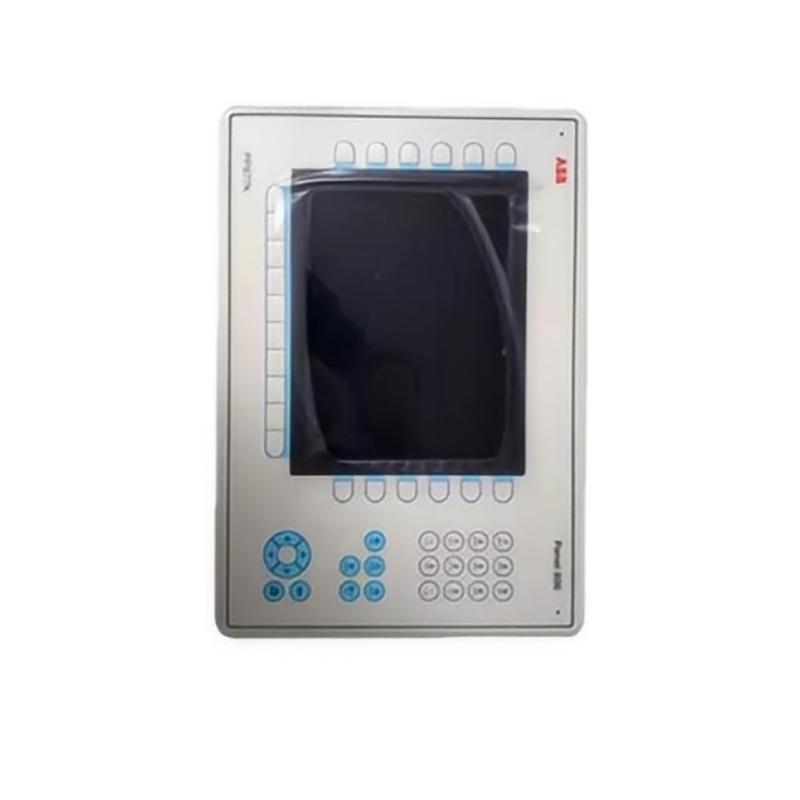

ABB PP877K 3BSE069274R1 Standard Operation Panel Screen

Overview

The ABB PP877K is a standard operation panel screen designed for industrial automation and process control. It delivers high-resolution display, user-friendly interface, and reliable performance for monitoring and managing industrial operations.

General Information

Part Number: 3BSE069274R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PP (Process Panel / Operation Panel)

Type: Standard Operation Panel Screen

Mounting: Panel-mounted installation

Technology: TFT display, touch interface, integrated system feedback

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 120 W

Input Protection: Overvoltage, short-circuit, and surge protection

Indicators: LED indicators for power and system status

Backup Power: Optional UPS or battery support

Communication & Interface

Communication Ports: Ethernet, Modbus TCP/IP, PROFIBUS DP

I/O Modules: N/A (display interface only)

Diagnostics: System status display, alarm logging, and fault indicators

Operator Interface: Touchscreen, LED indicators

Reset Features: Soft and hardware reset supported

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP54 (dust and water resistant for industrial use)

Vibration & Shock: Tested to IEC 60068 standards

Dimensions & Weight

Dimensions (L × W × H): 410 × 286 × 83 mm

Weight: 3.8 kg
