ABB 5SDD2545L0001 3BHL000986P3012 IGCT/Thyristor Module Price Advantage

Overview

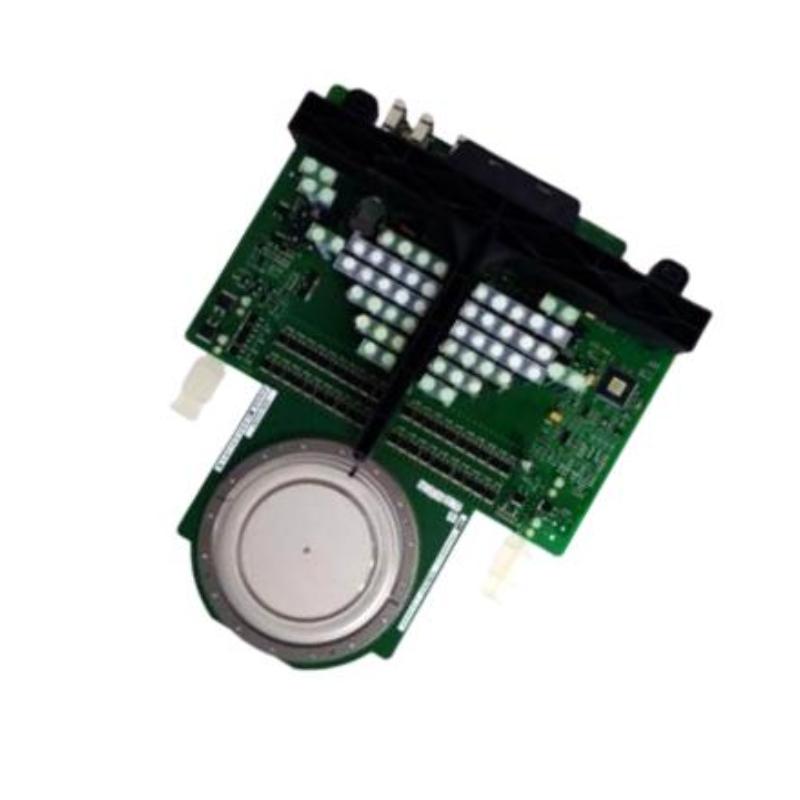

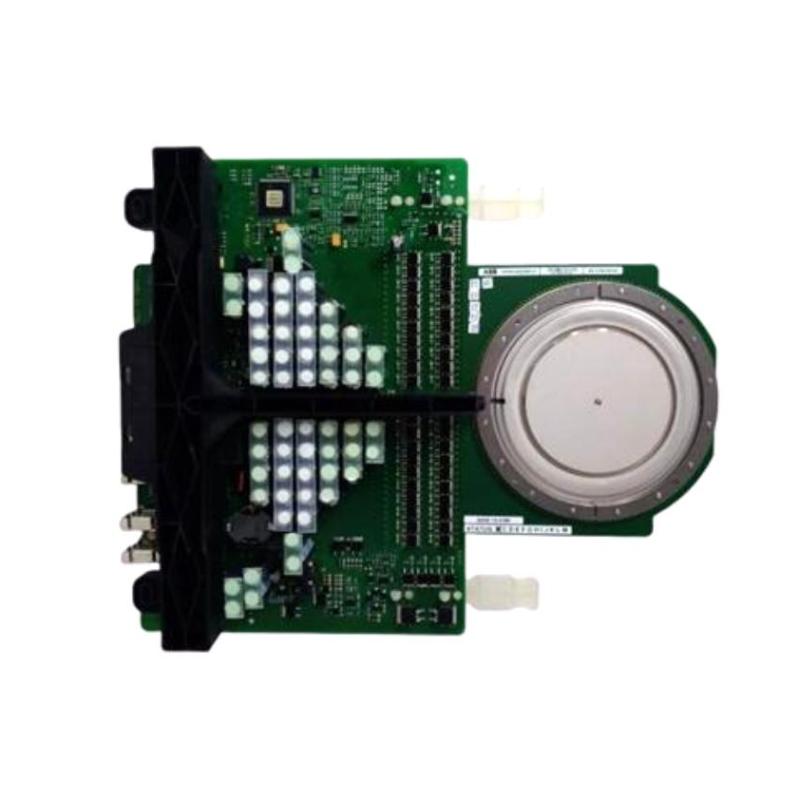

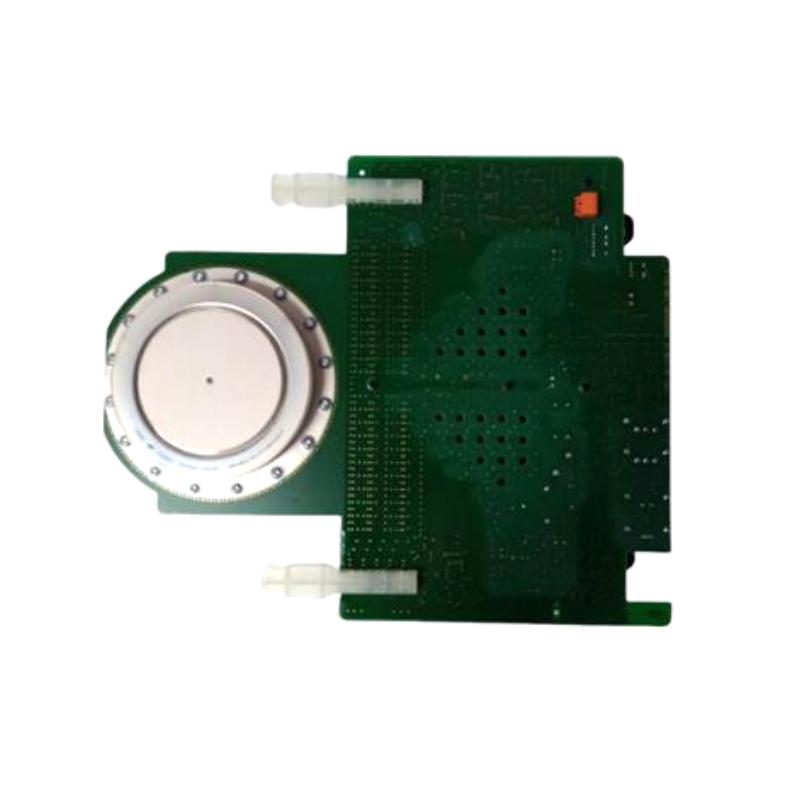

The ABB 5SDD2545L0001 (also marked with 3BHL000986P3012) is a high-power semiconductor module (IGCT/thyristor module) designed for industrial power control applications, such as medium-voltage drives, converters and rectifier systems.

General Information

• Part Number: 5SDD2545L0001

• Alternate / Associated Part Number: 3BHL000986P3012

• Manufacturer: ABB

• Country of Origin: Sweden

• Product Category: IGCT/Thyristor Module – Power Semiconductor Device

• Application: High-current, high-voltage industrial power conversion and control

Electrical & Functional Specifications

• Rated blocking voltage (VRRM): 4,500 V

• Rated continuous current: High-current module for heavy duty applications

• Device type: IGCT (Integrated Gate Commutated Thyristor) or similar power semiconductor module

• Turn-off gain: > 5 (typical)

• dV/dt capability (turn-off): 6 kV/µs

• dI/dt capability (turn-on): 2 kA/µs

• Power dissipation: Efficient design with low losses for industrial environments

• Designed for integration into drive and converter systems requiring robust dynamic switching

Environmental Conditions

• Operating Temperature Range: –30 °C to +65 °C (typical for the product)

• Storage Temperature Range: –40 °C to +85 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Class: Intended for installation inside power cabinets or drive enclosures with appropriate cooling and ventilation

• Cooling Requirement: High power module; requires mounting on heat-sink or appropriate cooling surface

Dimensions & Weight

• Dimension: 32 x 127x 127 mm

• Weight: 0.2 kg

Stock includes brand-new originals, 24/7 customer service available, transparent pricing provided.
