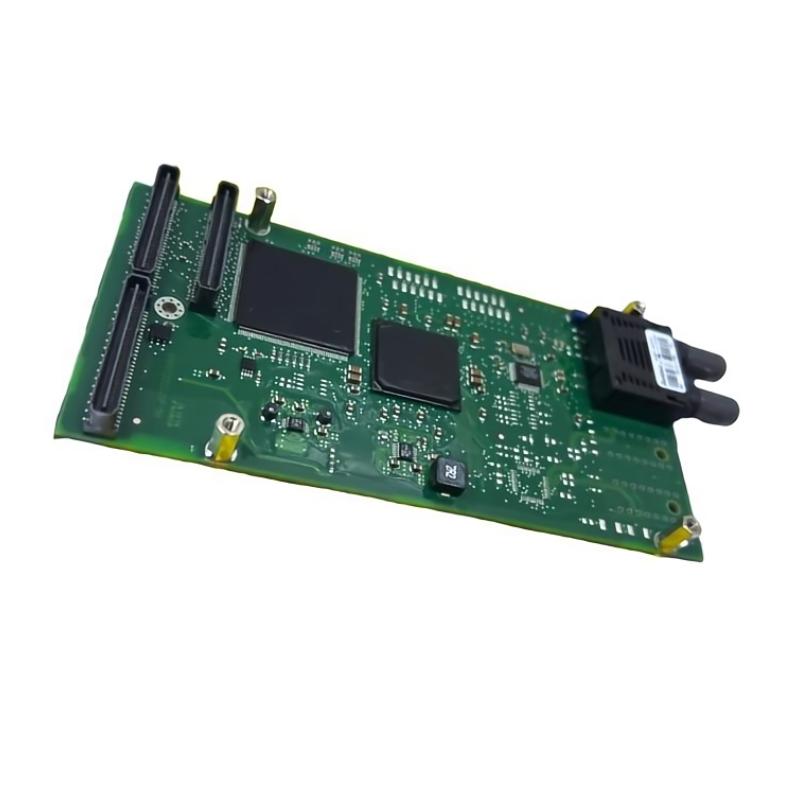

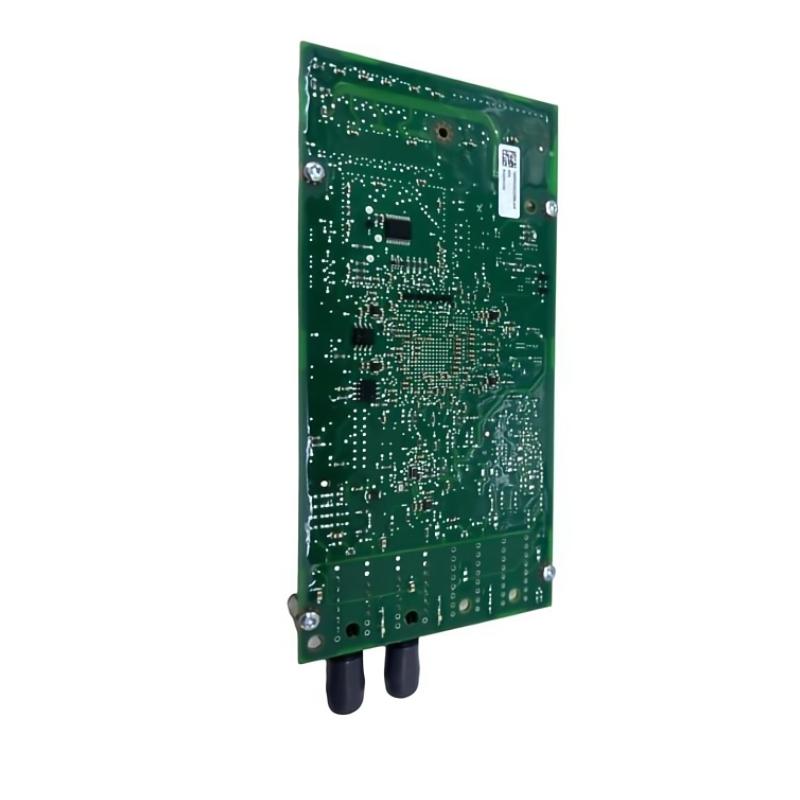

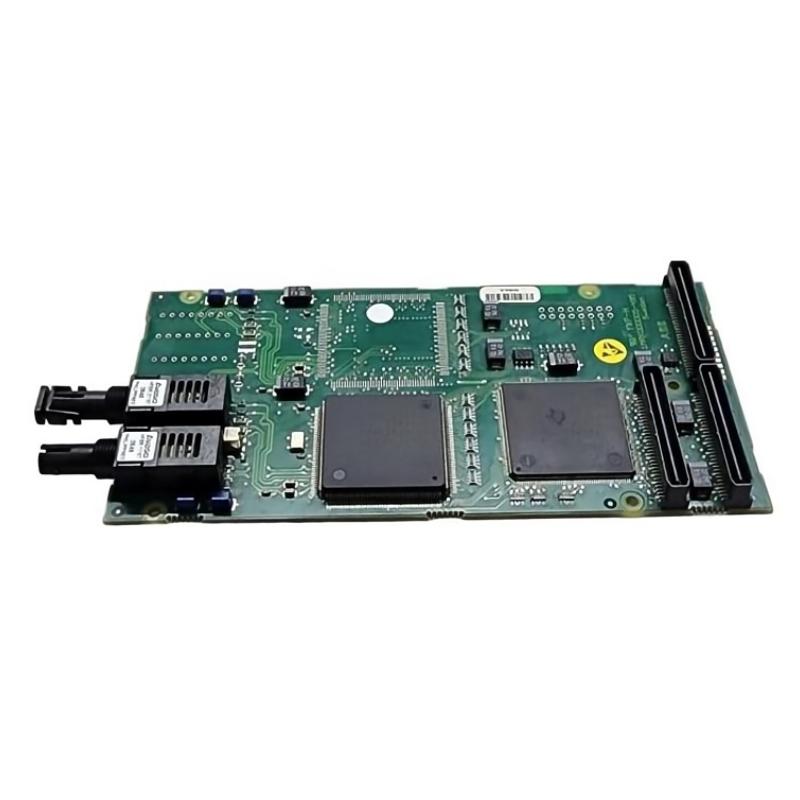

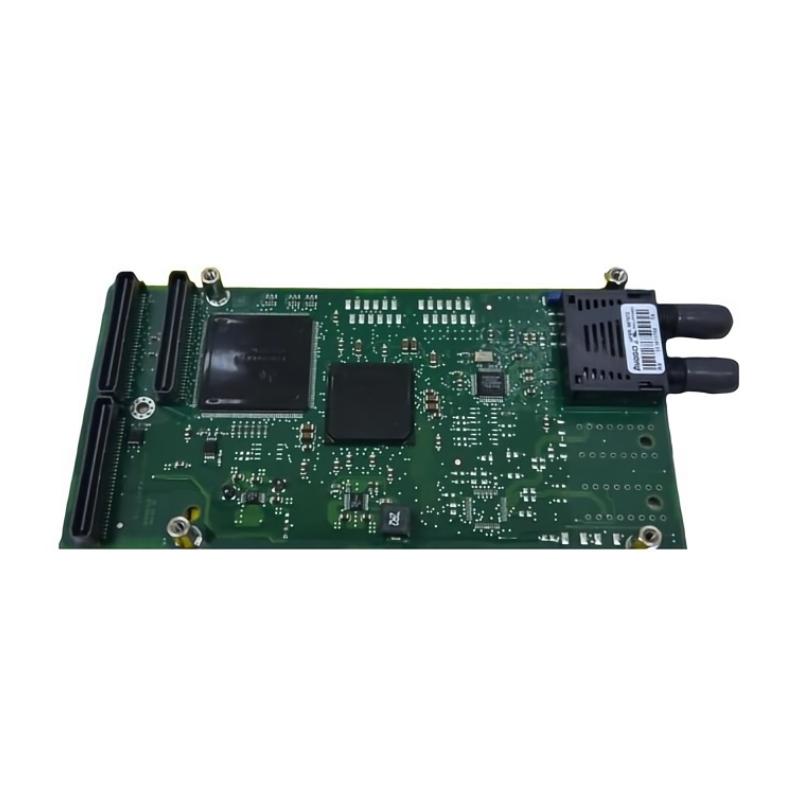

ABB P13AC8 1MRK002266-AAR03 Binary Input/Output Module

Overview

The ABB P13AC8 1MRK002266-AAR03 is a binary input/output module designed for industrial automation and protection systems. It provides reliable digital signal acquisition and output control, enabling efficient monitoring and operation of connected field devices.

General Information

Part Number: P13AC8 / 1MRK002266-AAR03

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Protection & Control I/O Modules

Type: Binary Input/Output Module

Application: Digital signal input and output processing in automation and protection systems

Installation: Mounted within control cabinets or protection panels

Function: Interfaces field devices with control systems for signal monitoring and actuation

Power Specifications

Operating Supply: Powered via system interface

Power Consumption: Low power design

Input Type: Digital (binary) signal inputs

Output Type: Relay or transistor outputs depending on configuration

Protection Features: Designed for stable and reliable system operation

Communication & Interface

Control Interface: Integrated with ABB protection and control systems

I/O Interface: Multiple binary input and output channels

Data Handling: Real-time signal acquisition and control

Diagnostics: Status monitoring and fault indication via system

Operator Interface: LED indicators for channel status

Environmental

Operating Temperature: -20 to +60 °C

Storage Temperature: -40 to +85 °C

Humidity: Up to 95% non-condensing

Cooling Method: Passive cooling

Installation Environment: Industrial control cabinet or protection panel

Dimensions & Weight

Dimensions: 230 × 130 × 30 mm

Weight: 0.208 kg

Easy Installation, Ships Quickly!
