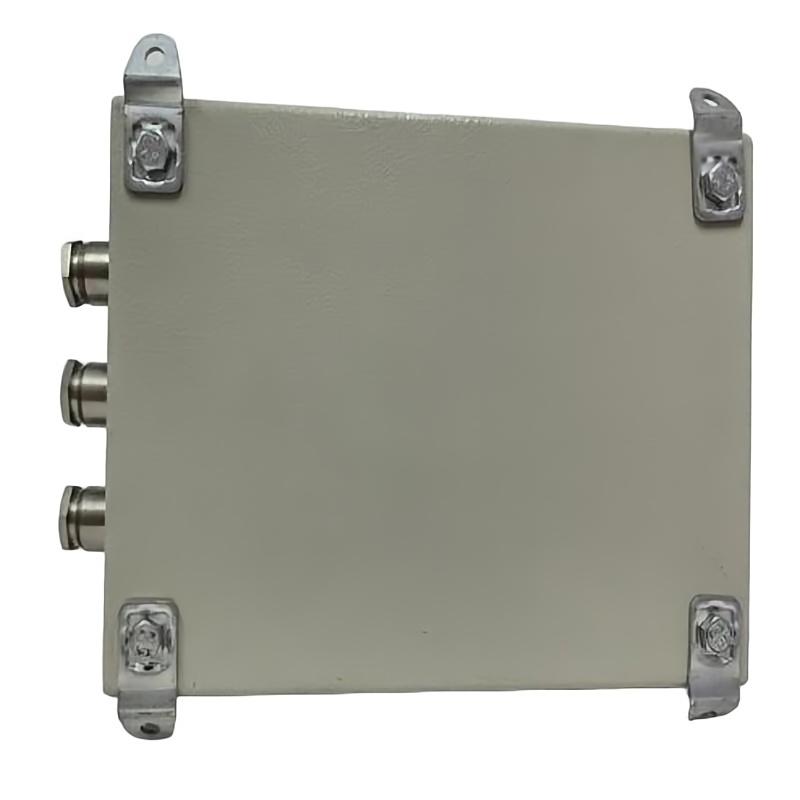

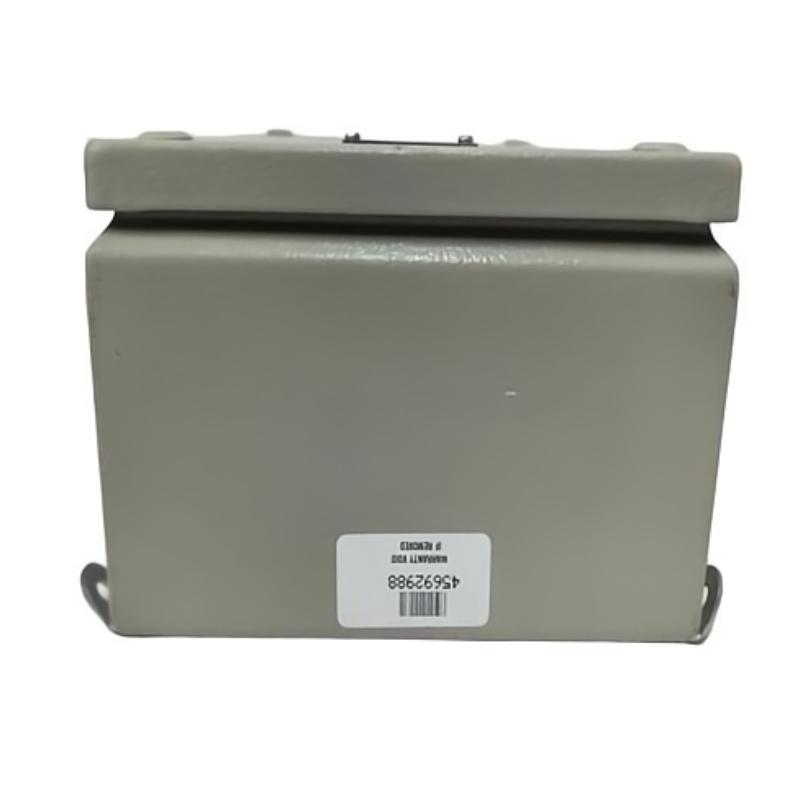

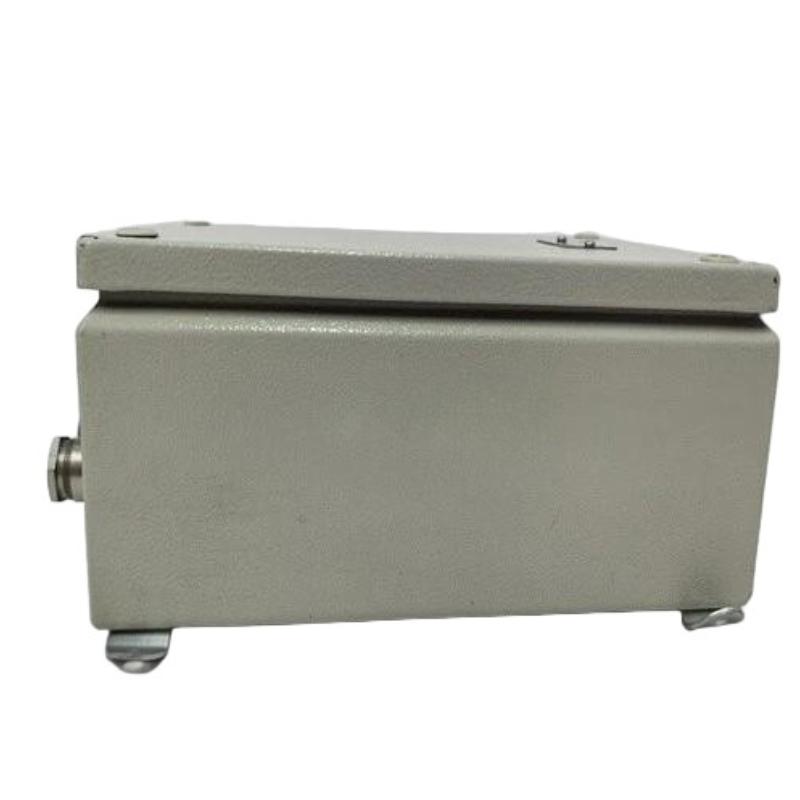

ABB PFVO142 3BSE023732R1 Matching Unit

Overview

The ABB PFVO142 3BSE023732R1 is a matching unit designed for use in ABB tension control and measurement systems. It ensures accurate signal conditioning and matching between sensors and control units, enabling precise tension measurement and stable system performance.

General Information

Part Number: PFVO142 / 3BSE023732R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Tension Control System Components

Type: Matching Unit

Application: Signal matching and conditioning for tension measurement systems

Installation: Mounted within control cabinet or system enclosure

Function: Adapts and conditions sensor signals for accurate processing by control units

Power Specifications

Operating Supply: Powered via system interface

Power Consumption: Low power design

Input Type: Sensor signal input (e.g., load cells)

Output Type: Conditioned signal output to control unit

Protection Features: Designed for stable and reliable operation

Communication & Interface

Control Interface: Integrated with ABB tension control systems

Input Interface: Sensor signal connections

Output Interface: Conditioned signal output to controller

Data Handling: Real-time signal conditioning and transmission

Diagnostics: Status monitoring via system integration

Operator Interface: No direct interface

Environmental

Operating Temperature: -20 to +60 °C

Storage Temperature: -40 to +85 °C

Humidity: Up to 95% non-condensing

Cooling Method: Passive cooling

Installation Environment: Industrial control cabinet

Dimensions & Weight

Dimensions: 120 × 160 × 30 mm

Weight: 7 kg
