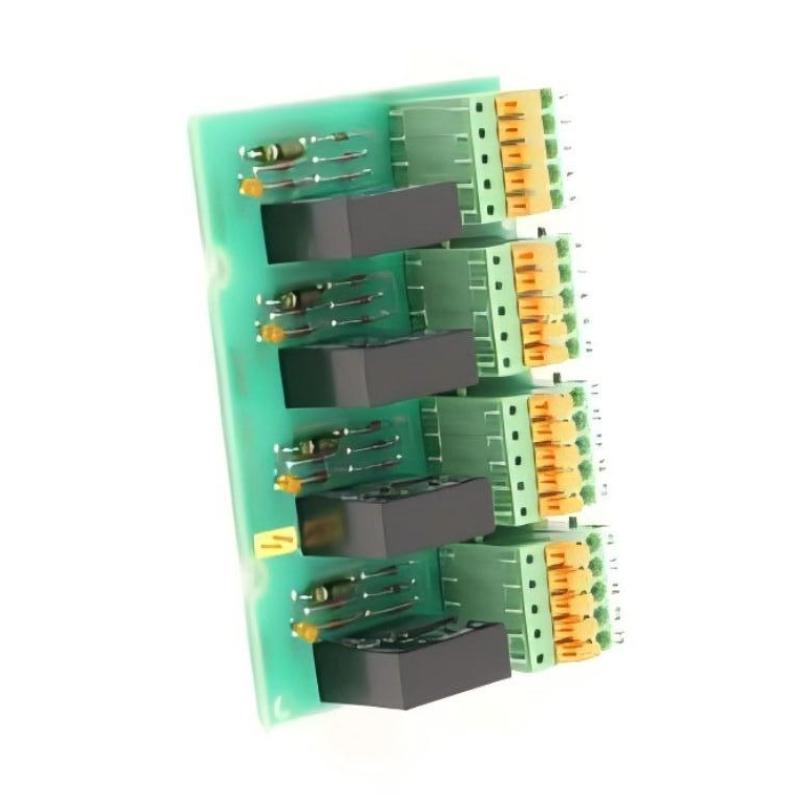

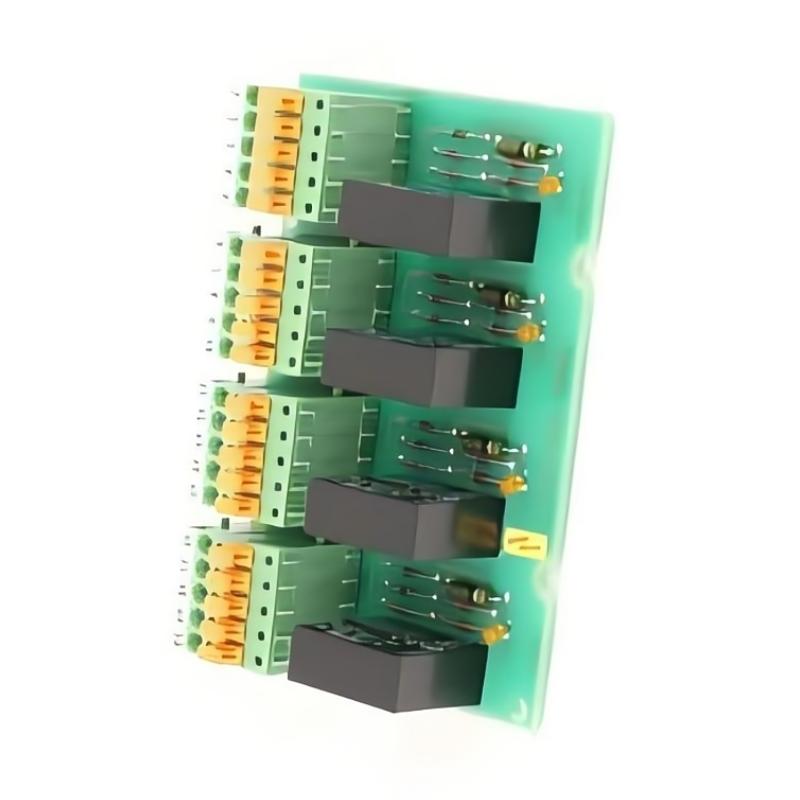

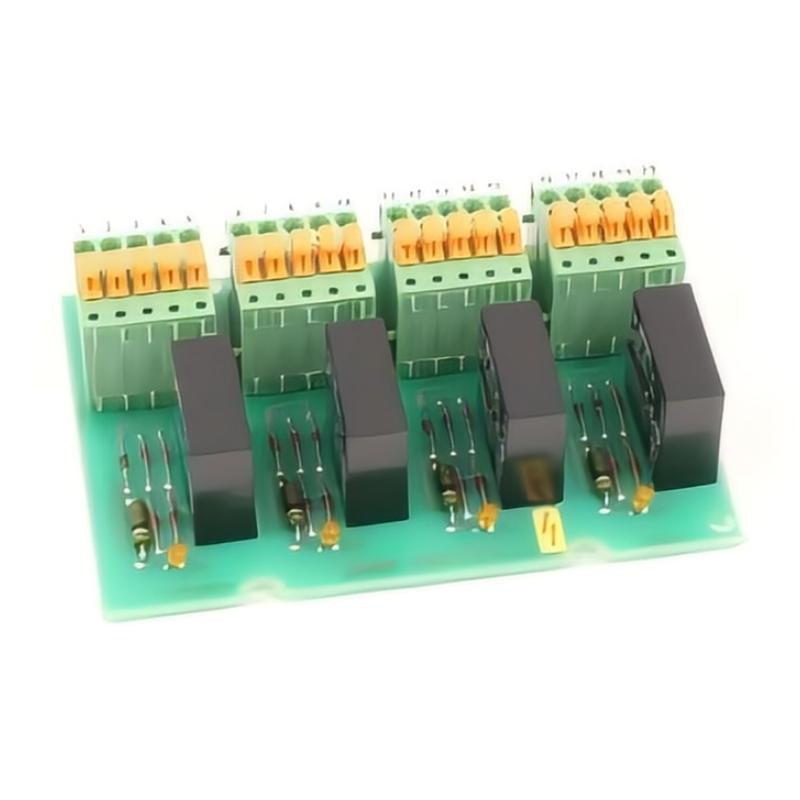

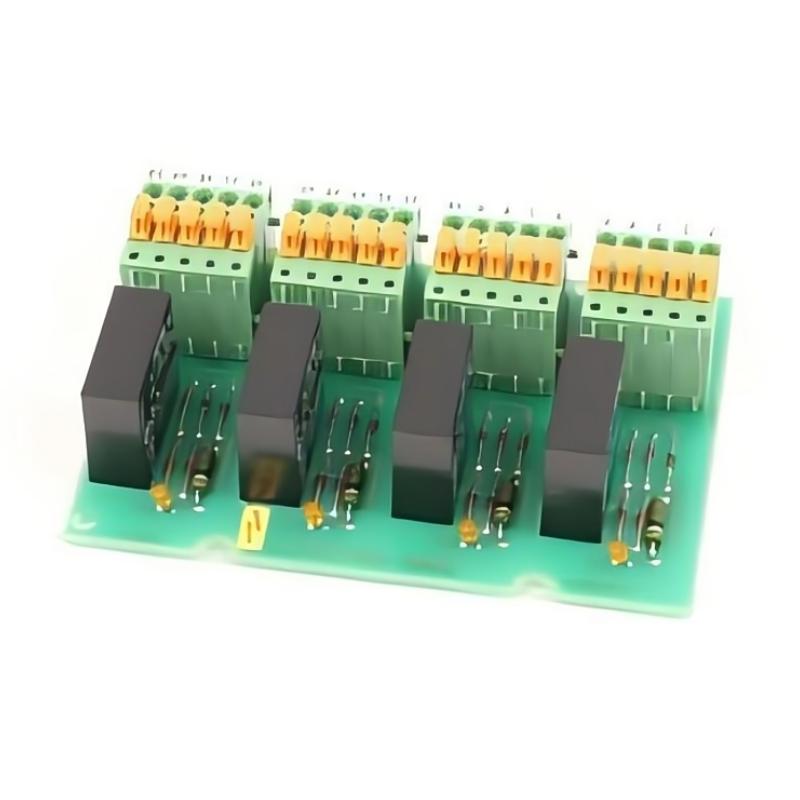

ABB PFVK 108 YM110001-SH Relay Board

Overview

The ABB PFVK 108 YM110001-SH is a relay board designed for industrial control and automation systems. It provides reliable switching and signal isolation, enabling safe and efficient control of external circuits and devices in demanding environments.

General Information

Part Number: YM110001-SH

Manufacturer: ABB

Brand: ABB

Country of Origin: Sweden

Series: PFVK Relay Board Series

Type: Relay Board

Mounting: Installed within control cabinet or system rack

Technology: Electromechanical relay switching with robust isolation and control capability

Power Specifications

Supply Voltage: Powered via system interface or external control circuit

Power Consumption: Low, dependent on relay activation

Input: Control signals from PLC or controller

Protection: Electrical isolation between control and load circuits

Indicators: LED indicators for relay status and operation

Communication & Interface

Interface Type: Discrete control signal interface

Relay Channels: Multiple relay outputs for switching applications

Switching Capacity: Suitable for industrial control loads

Diagnostics: Basic status monitoring through system interface

Operator Interface: No direct interface; controlled via PLC or system controller

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for installation inside industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 120 × 80 × 60 mm

Weight: 0.205 kg
