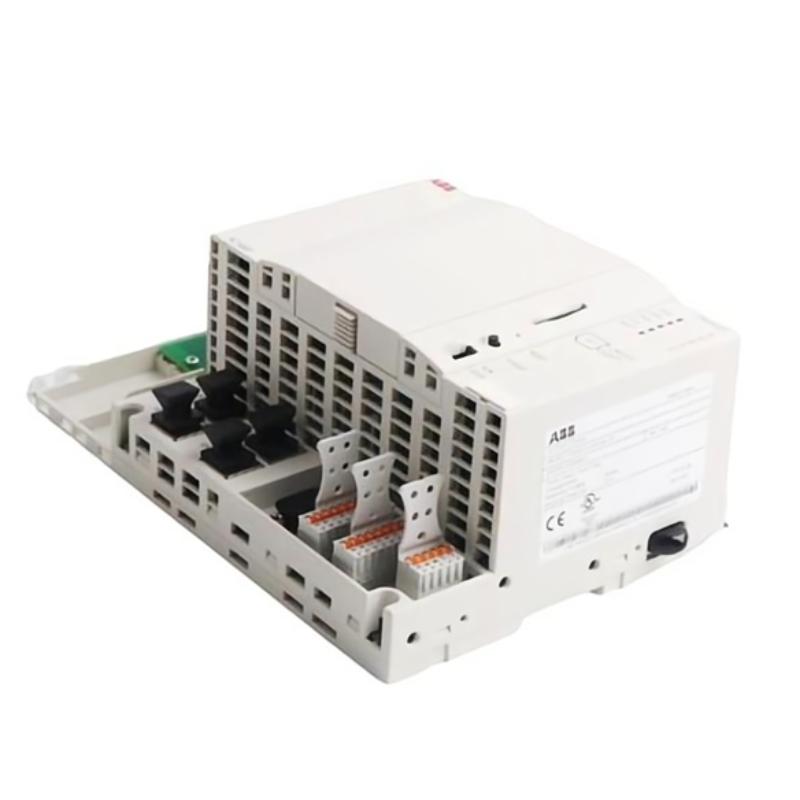

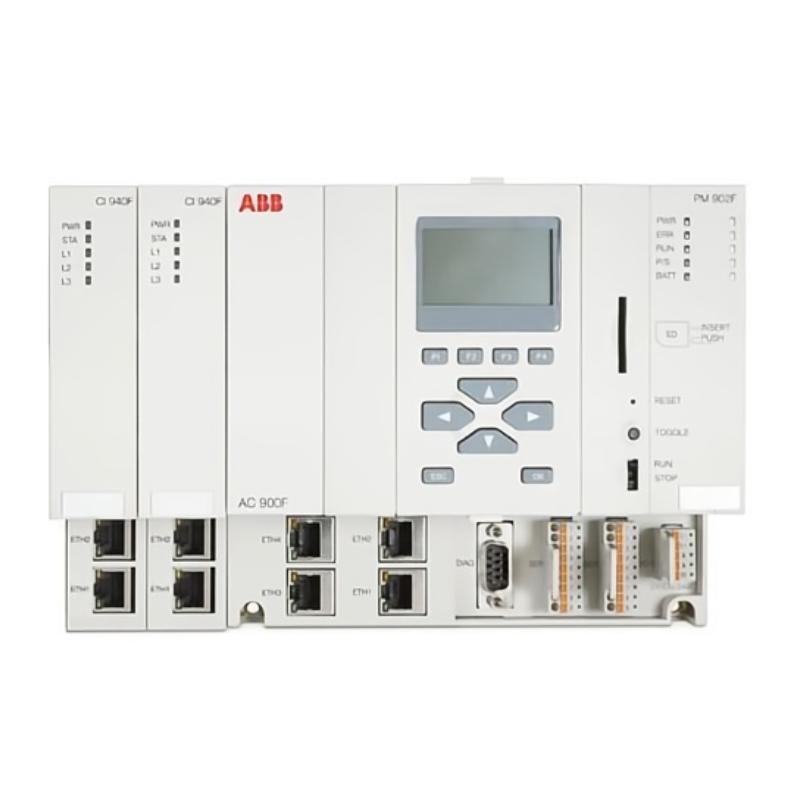

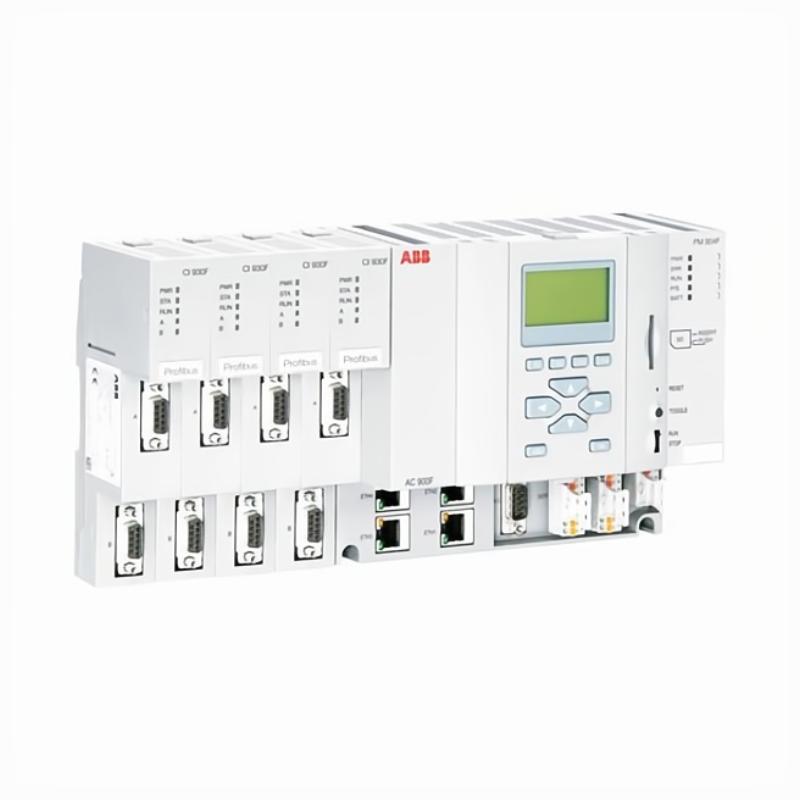

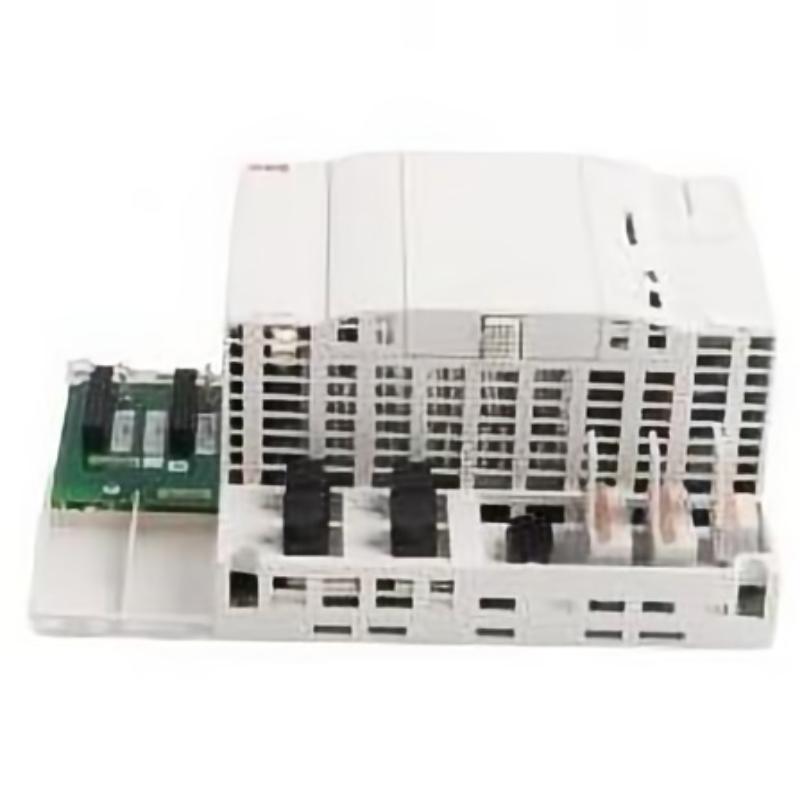

ABB PM 902F 3BDH001000R0001 CPU Processor Unit

Overview

The ABB PM 902F 3BDH001000R0001 is a high-performance CPU processor unit designed for advanced industrial automation systems. It serves as the central control unit, executing complex logic, managing system communication, and ensuring reliable real-time performance in demanding process environments.

General Information

Part Number: 3BDH001000R0001

Manufacturer: ABB

Brand: ABB

Country of Origin: Sweden

Series: PM 900 Series

Type: CPU Processor Unit

Mounting: Rack-mounted or cabinet installation

Technology: Advanced industrial processor with enhanced computing power and system integration capabilities

Power Specifications

Supply Voltage: Powered via system backplane or dedicated power module

Power Consumption: Moderate, depending on application and system load

Input: Integrated system power supply

Protection: Designed with internal safeguards for stable and continuous operation

Indicators: LED indicators for power, status, and diagnostics

Communication & Interface

System Interface: High-speed backplane communication with I/O modules

Processing Capability: Executes control logic, data processing, and system coordination

Communication Ports: Supports multiple industrial communication protocols

Diagnostics: Advanced diagnostics, fault detection, and performance monitoring

Operator Interface: Configured via engineering and control software tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial control cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 227 × 152 × 95 mm

Weight: 1.1 kg

Available Now
