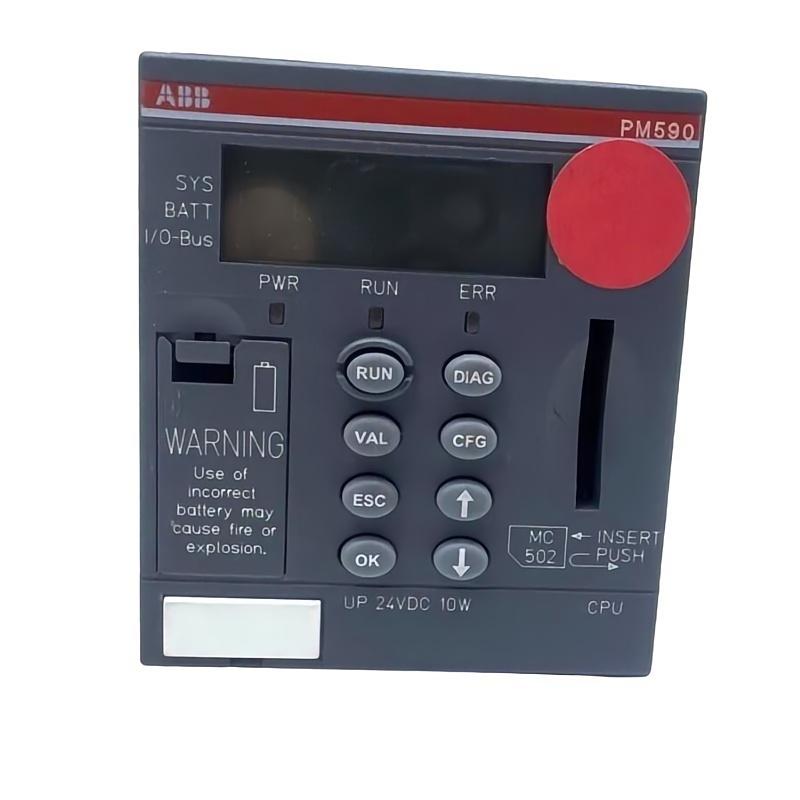

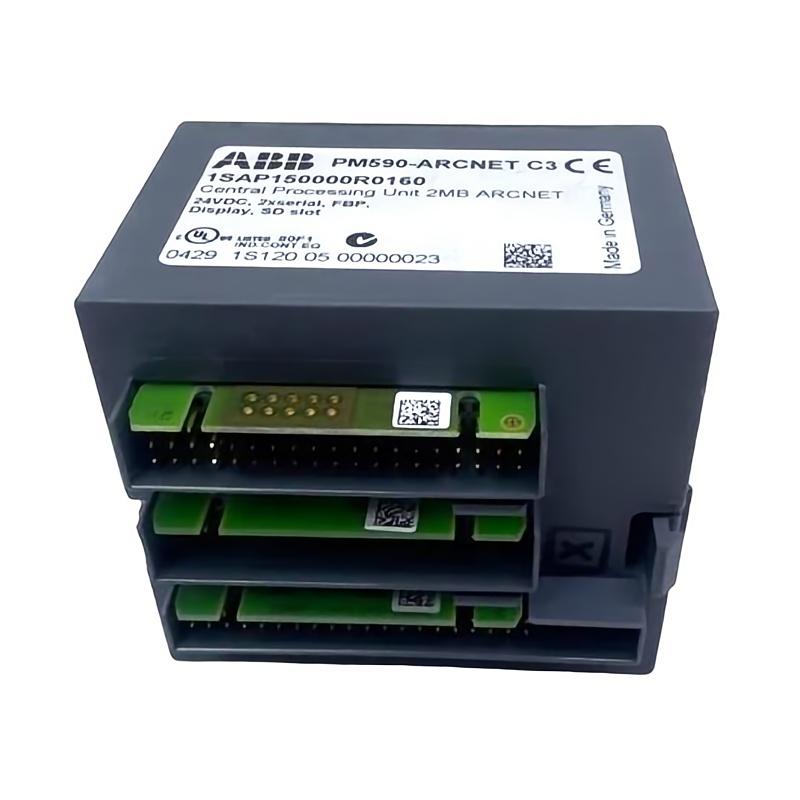

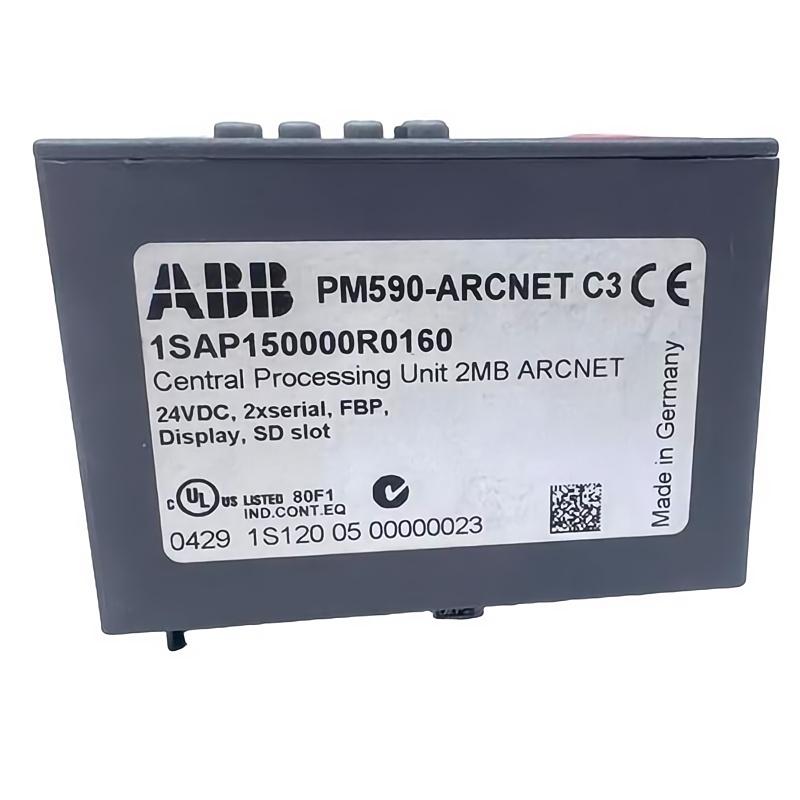

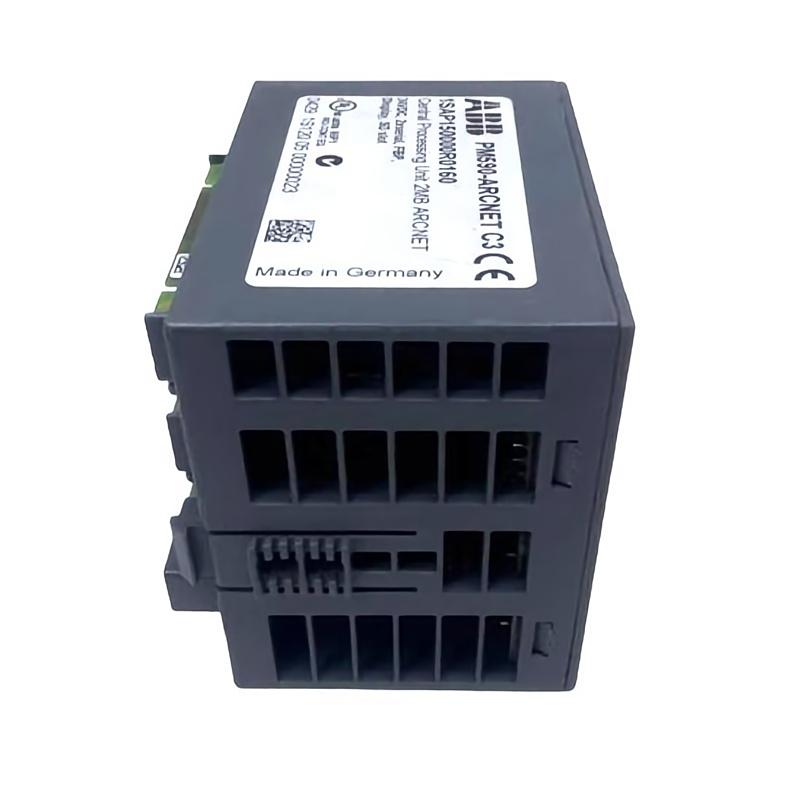

ABB PM590-ARCNET 1SAP150000R0160 CPU Processor Unit

Overview

The ABB PM590-ARCNET is a compact CPU processor unit designed for industrial automation applications requiring reliable control and fast communication. It features ARCNET network support, enabling high-speed, deterministic data exchange for process and factory automation systems. This unit is ideal for space-constrained installations without compromising performance.

General Information

Part Number: 1SAP150000R0160

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: CPU Processor Unit

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, real-time execution, ARCNET network communication, integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and network activity

Communication & Interface

Ethernet / Fieldbus Ports: ARCNET network interface

Bus Coupler Role: Interfaces controller bus with ARCNET network and connected I/O modules

Diagnostics: CPU and network supervision, fault logging, status reporting

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: 0.16 kg

Compact Design, Maximum Automation Performance!
