Overview

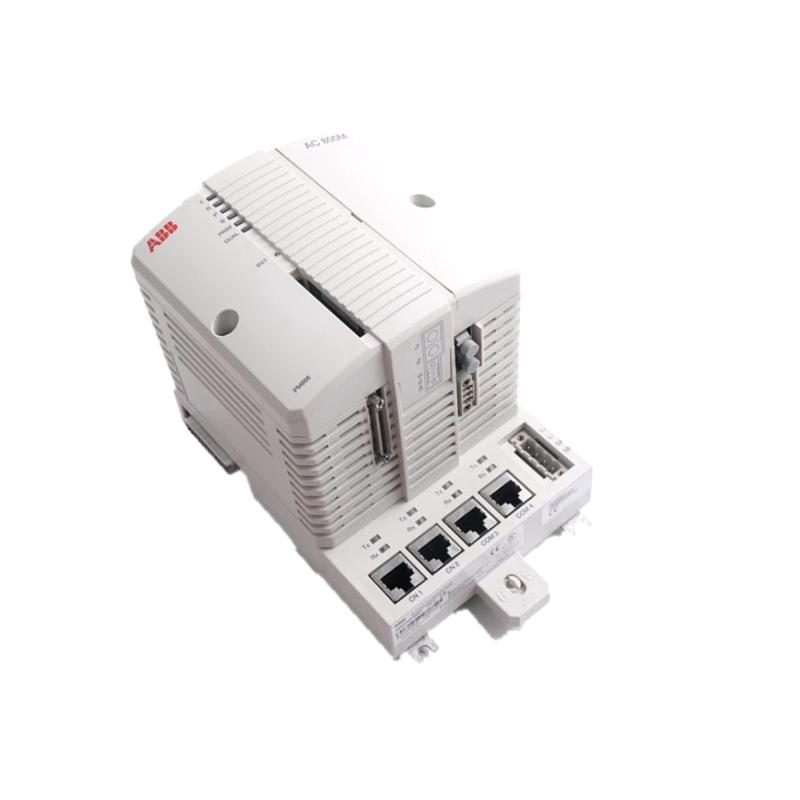

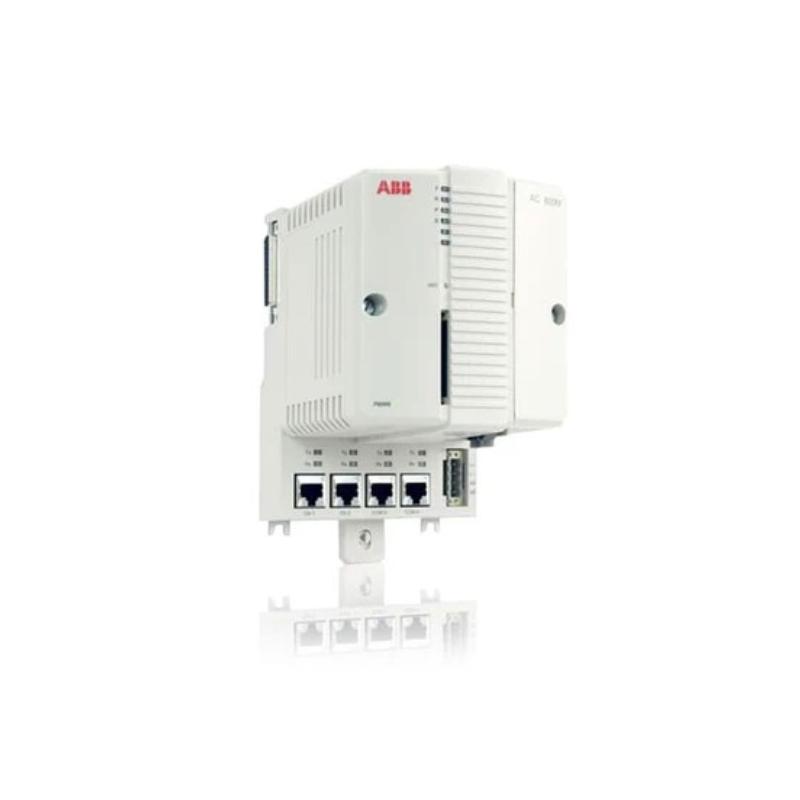

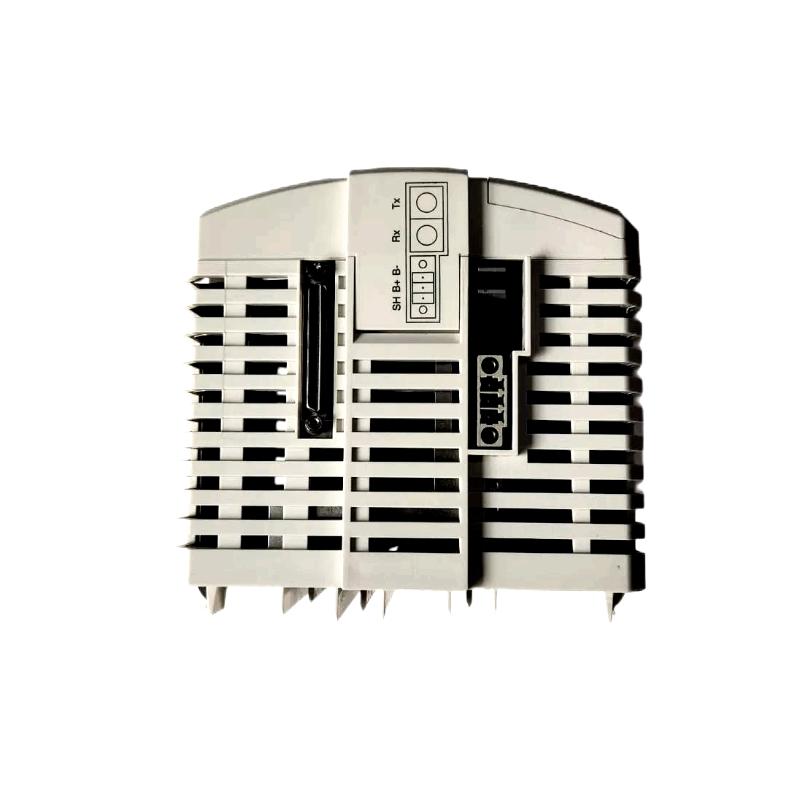

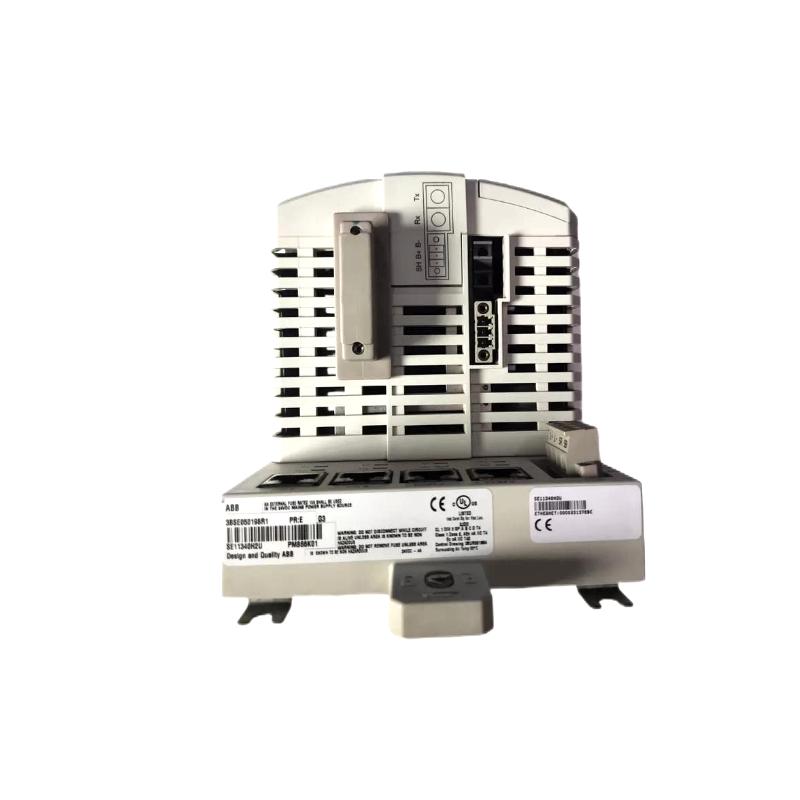

The ABB PM866K01 (3BSE050198R1) is a high-performance processor unit for the AC 800M control system. It offers robust processing and flexible connectivity for demanding industrial automation applications.
General Information
Part Number: 3BSE050198R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Product Type: Processor Unit
Series: AC 800M
Mounting: Rack or DIN-rail installation
Power Specifications
Supply Voltage: 24 V DC
Typical Current: ~300 mA
Memory: 64 MB RAM (as per spec)
Onboard Interfaces: Ethernet ports and serial ports for communication and configuration
Communication & Interface
Ethernet Ports: Dual ports for network redundancy
Serial Ports: One standard and one isolated port for tool access
Redundancy Support: CPU, communication bus and I/O redundancy support for high availability
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: –40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (W × H × D): 119 × 186 × 135 mm (approx.)
Weight: ~1.1 kg
