Overview

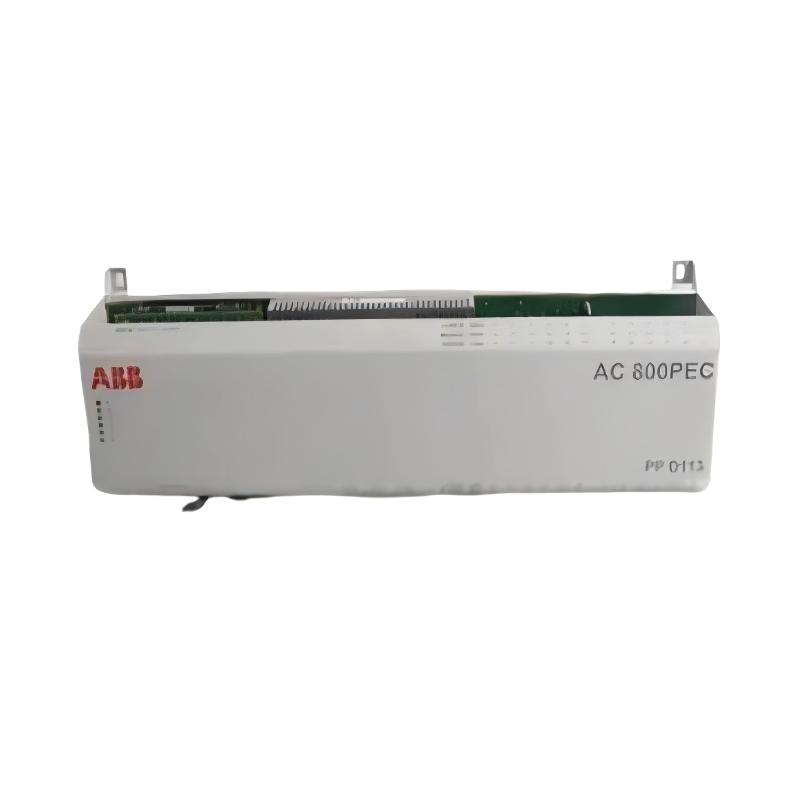

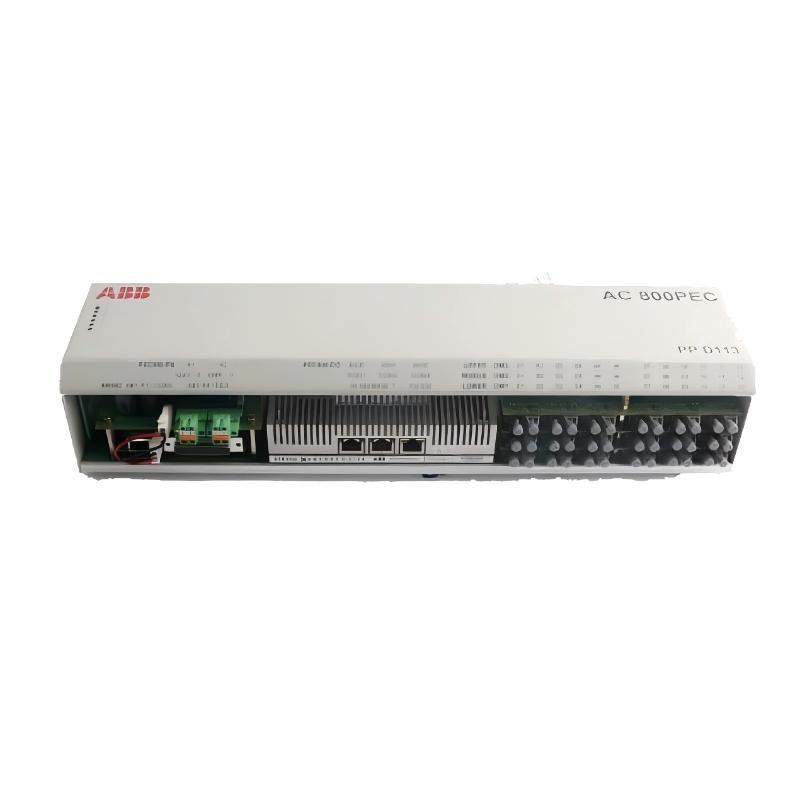

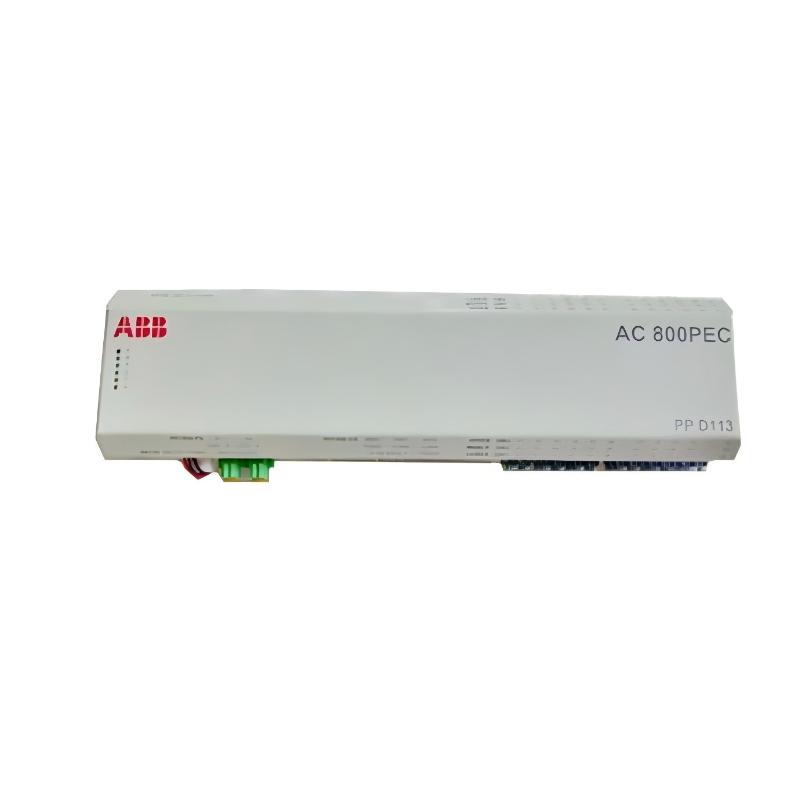

The ABB PP D113 B01-25-111000 (3BHE023784R2530) is a controller module designed for the ABB AC 800PEC automation system. It provides high-speed control and communication capabilities for demanding industrial and power electronic applications.
General Information
Part Number: 3BHE023784R2530
Manufacturer: ABB
Brand / Country of Origin: ABB / Switzerland
Series: PP D113
Type: Controller Module
Mounting: Rack-mounted module
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input Power Source: From system backplane
Protection: Overvoltage and reverse-polarity protection
Communication & Interface
Communication Ports: CEX2-Bus (RS422), Modbus TCP, Anybus support
I/O Slots: Supports expansion via optional UF D128 and Anybus modules
Indicators: LED status indicators for power, communication, and fault status
Environmental
Operating Temperature: 0 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 145 × 450 × 100mm
Weight: 2.59 kg
