Overview

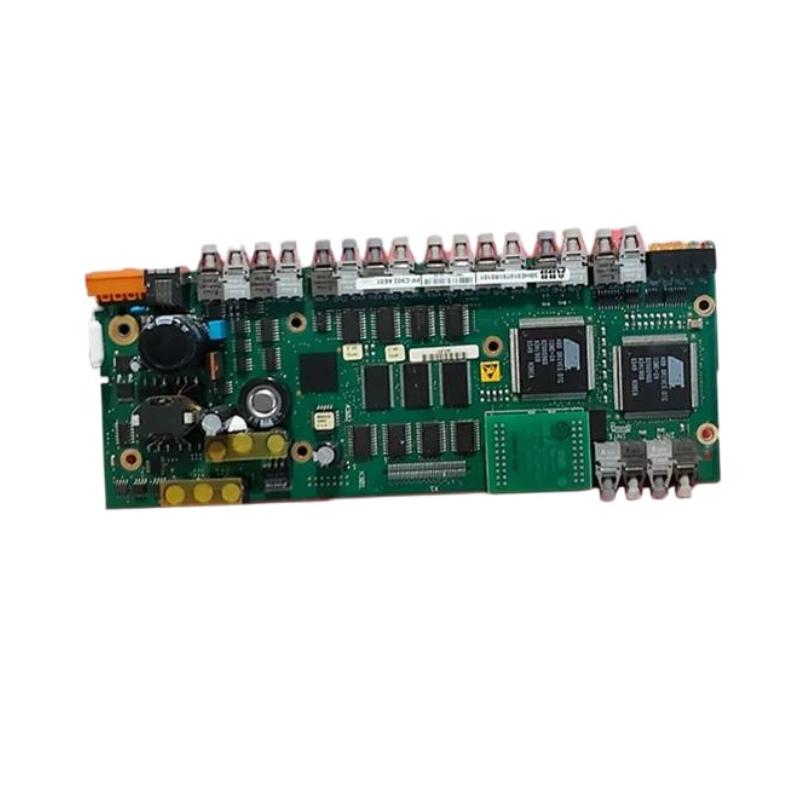

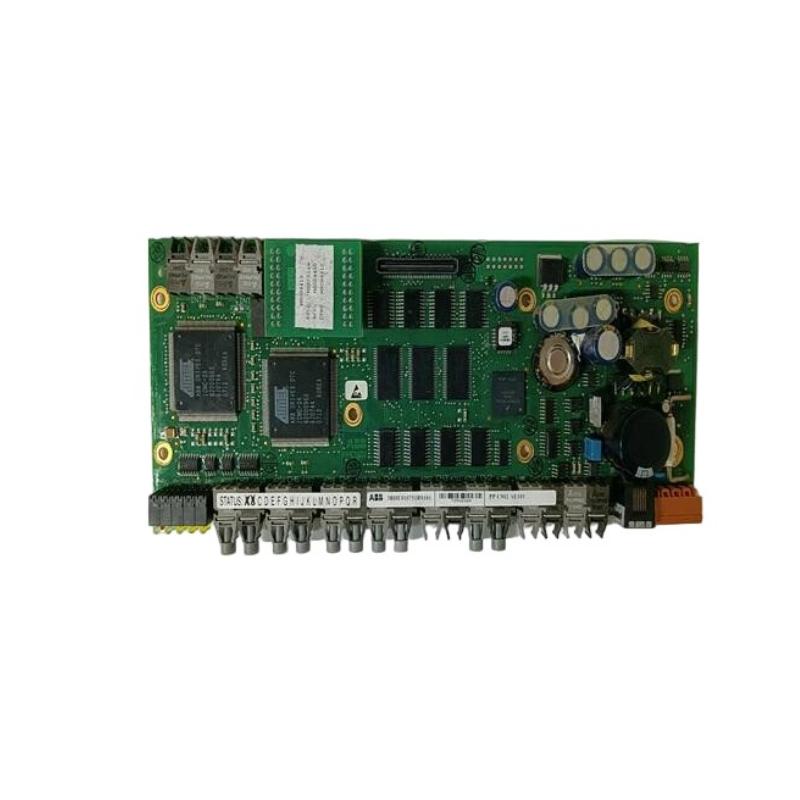

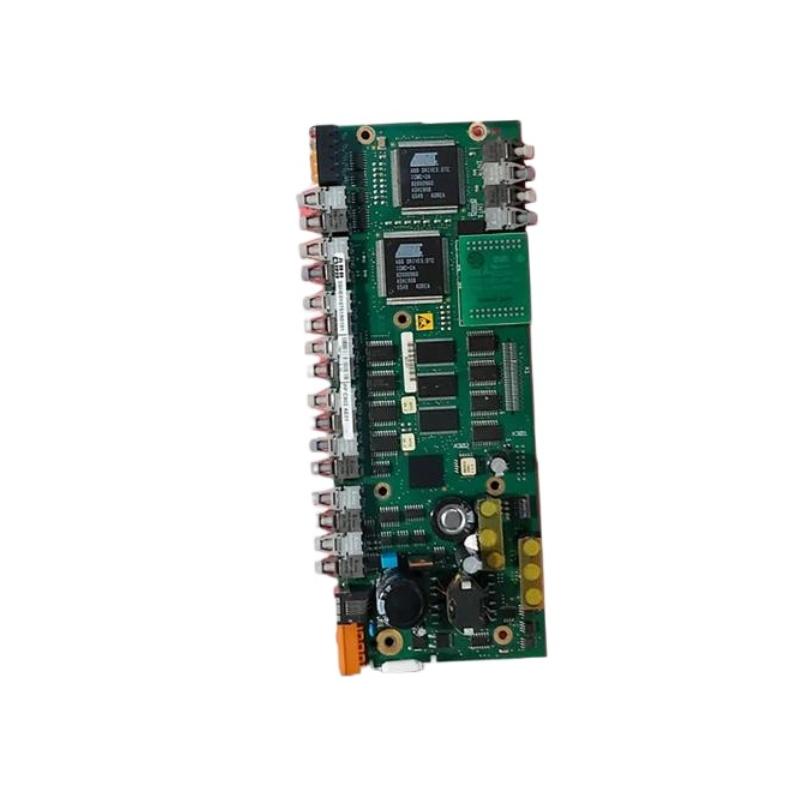

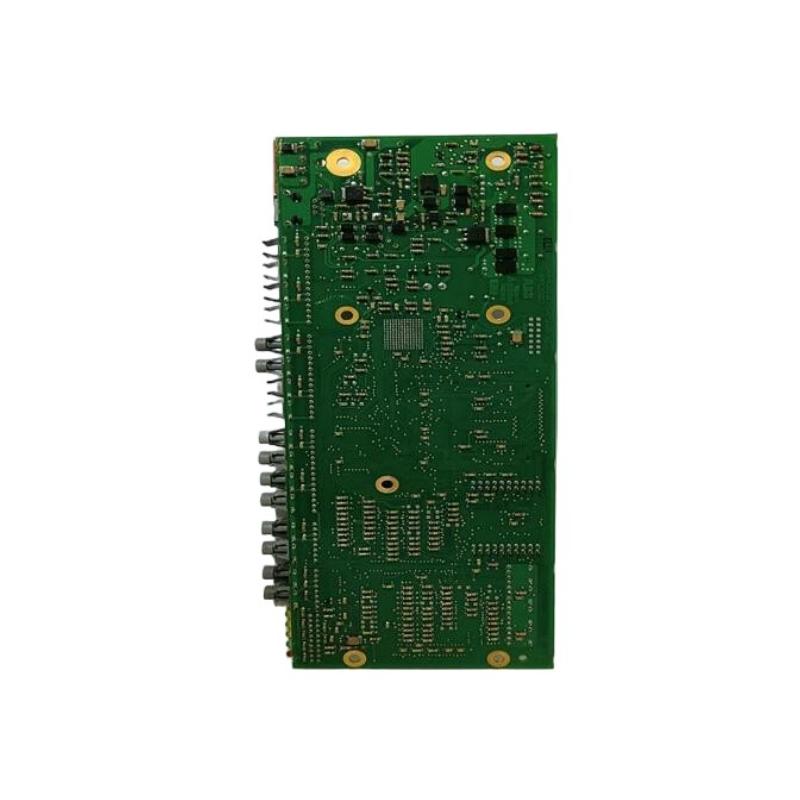

The ABB PPC902AE101 (3BHE010751R0101) is a high-speed I/O control board designed for ABB’s Ability™ System 800xA and AC 800M platforms. It handles both digital input and output channels, offering reliable performance in advanced automation systems.
General Information
Part Number: 3BHE010751R0101
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Type: I/O Control Board
Channels: 32 digital inputs + 32 digital outputs
Mounting: Rack-mounted circuit board
Power Specifications
Supply Voltage: 24 V DC
Typical Power Consumption: ≤ 6 W
Signal Conditions: DC 0-30 V for input/output channels
Response Time: ≤ 1 ms
Communication & Interface
Digital Inputs: 32 channels (24 V DC)
Digital Outputs: 32 channels (24 V DC)
Interface: RS-485 communications for networked I/O integration
High-Speed Counter Support: 4 channels, up to 100 kHz
Environmental
Operating Temperature: –25 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 130 × 35 × 130 mm
Weight: Approx. 0.3 kg
