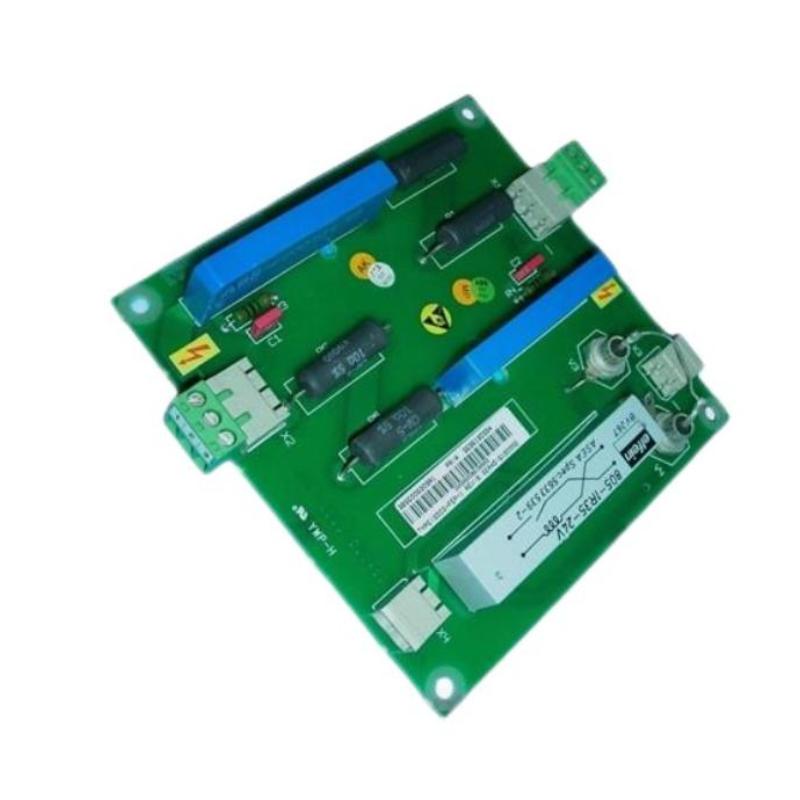

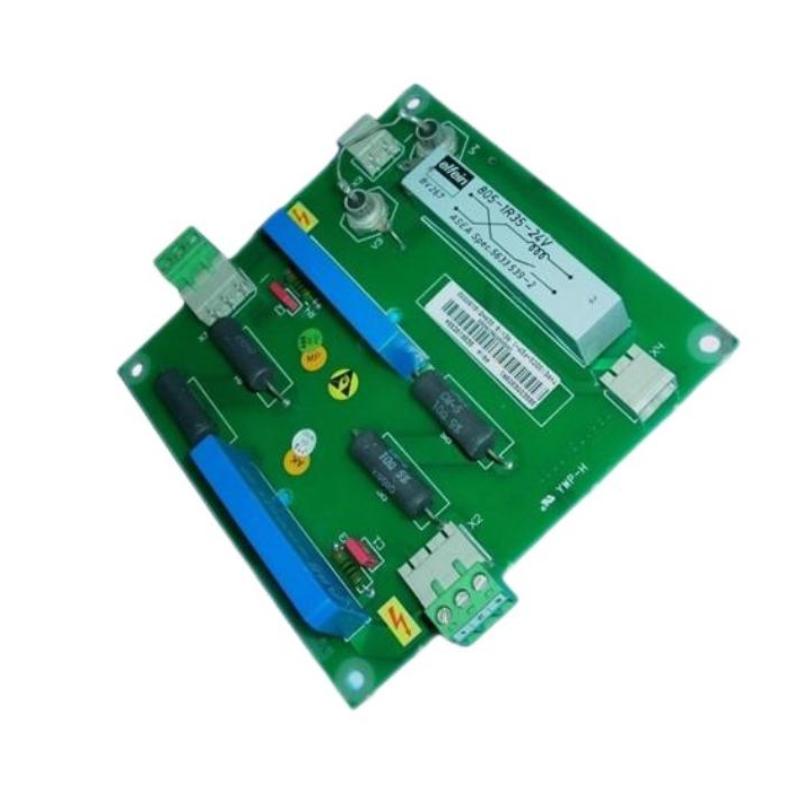

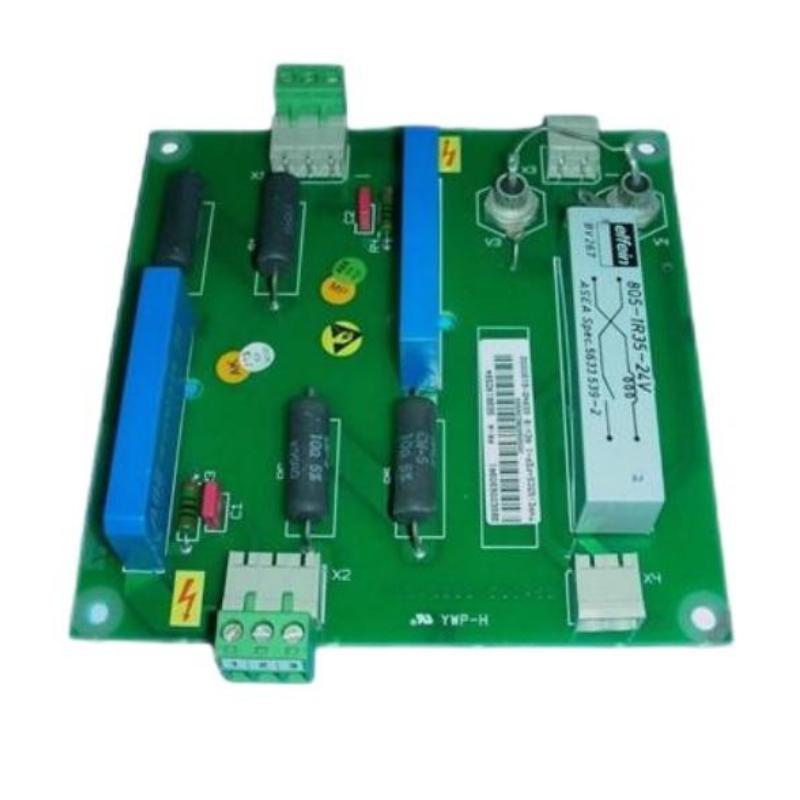

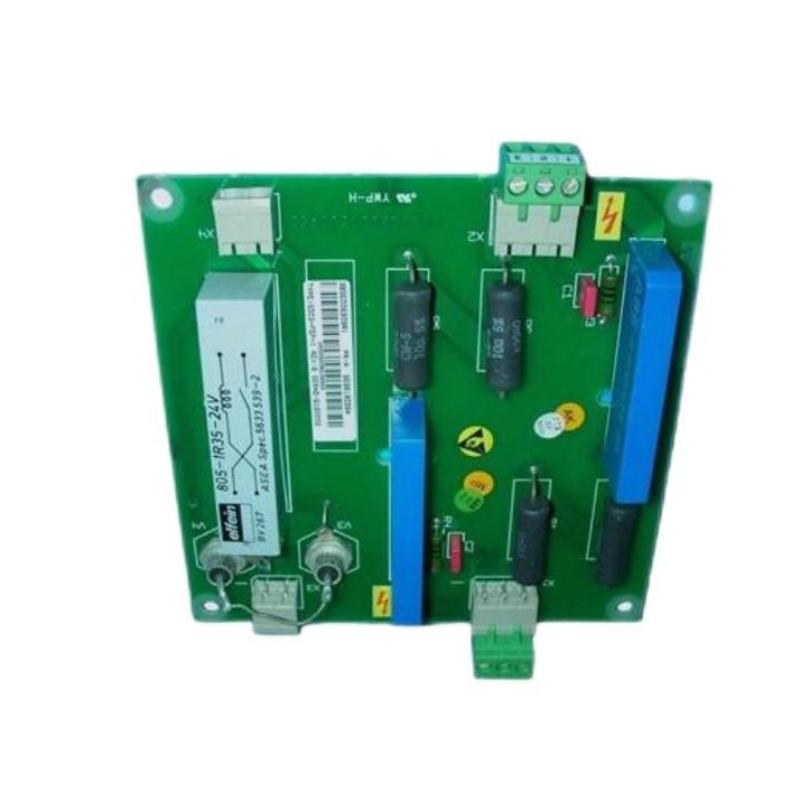

ABB SDCS-FEP-1 3BSE006309R0001 Field Protection Devices

Overview

The ABB SDCS-FEP-1 is a field protection device designed for SDCS automation systems. It safeguards field equipment against electrical faults, ensuring reliable operation and preventing damage to connected devices in industrial environments.

General Information

Part Number: 3BSE006309R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SDCS (System Digital Control System)

Type: Field Protection Device / Safety Module

Mounting: Panel or rack installation within SDCS systems

Technology: Surge protection, short-circuit prevention, and fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LED indicators for power, fault, and protection status

Communication & Interface

Interface Ports: Standard SDCS backplane connection

Network Role: Monitors and protects field devices while relaying status to the controller

Diagnostics: Real-time fault detection and system monitoring

Operator Interface: LED indicators for immediate visual status

Reset Features: Supports manual and remote reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20 for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 185 × 120 × 45 mm

Weight: 0.5 kg
