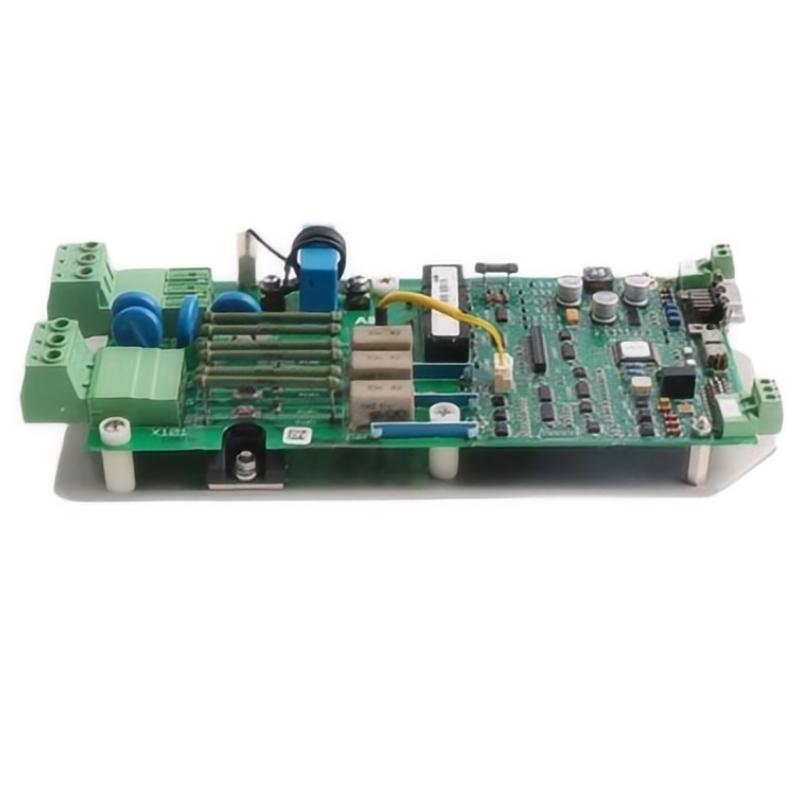

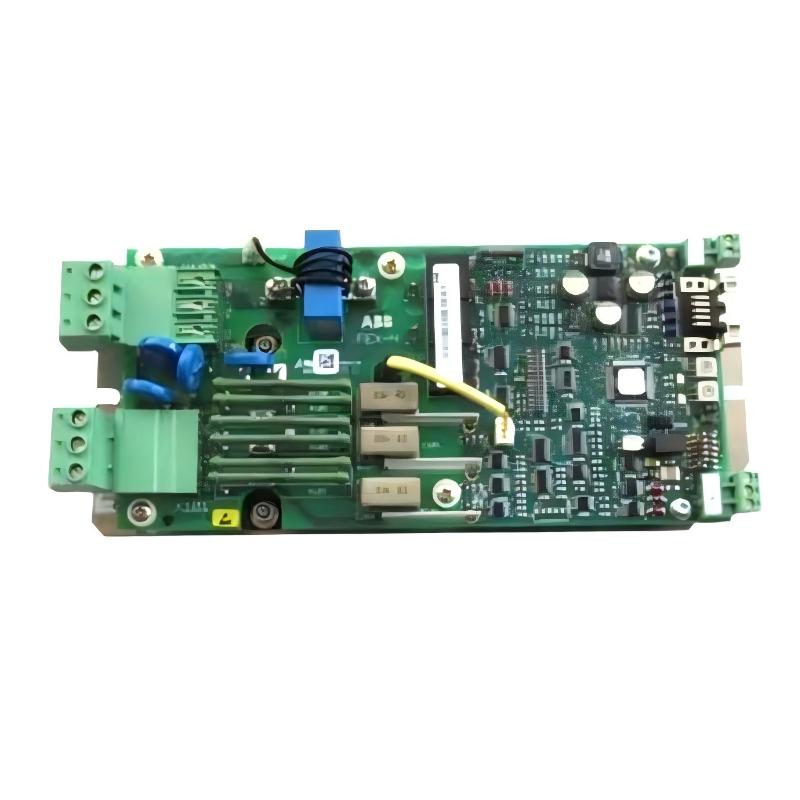

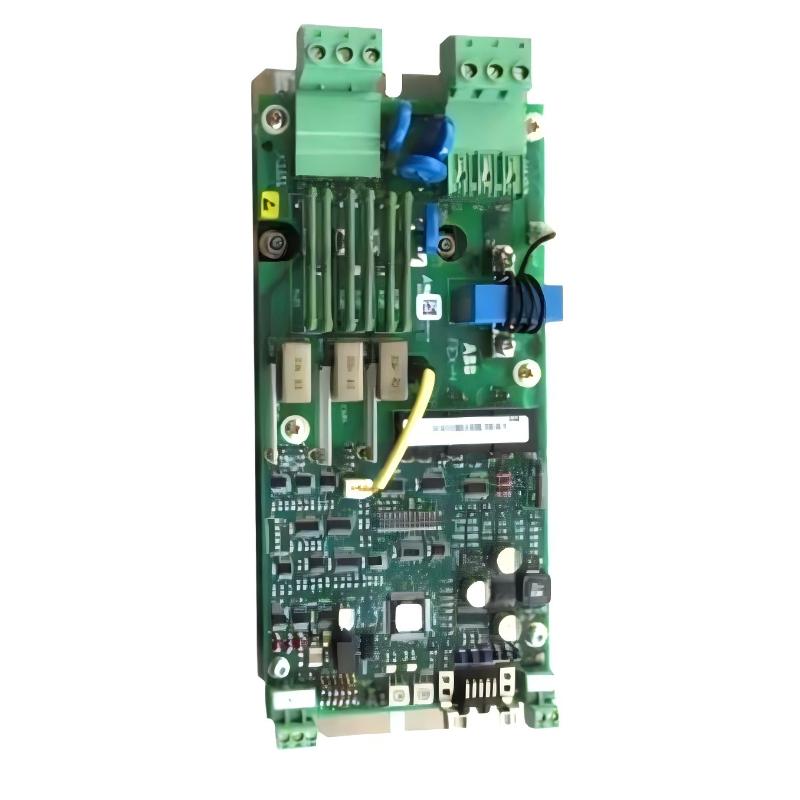

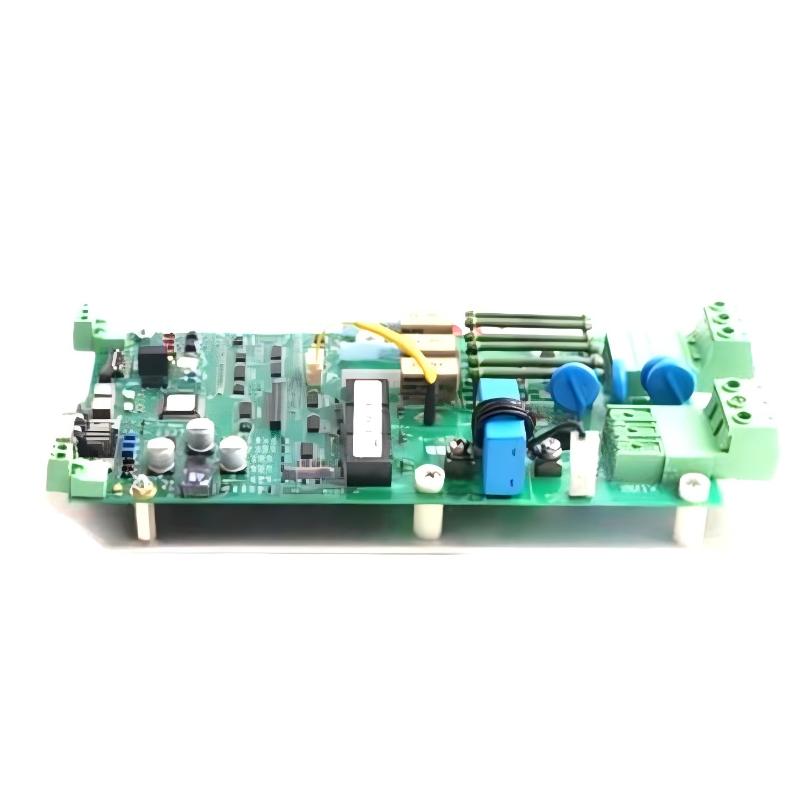

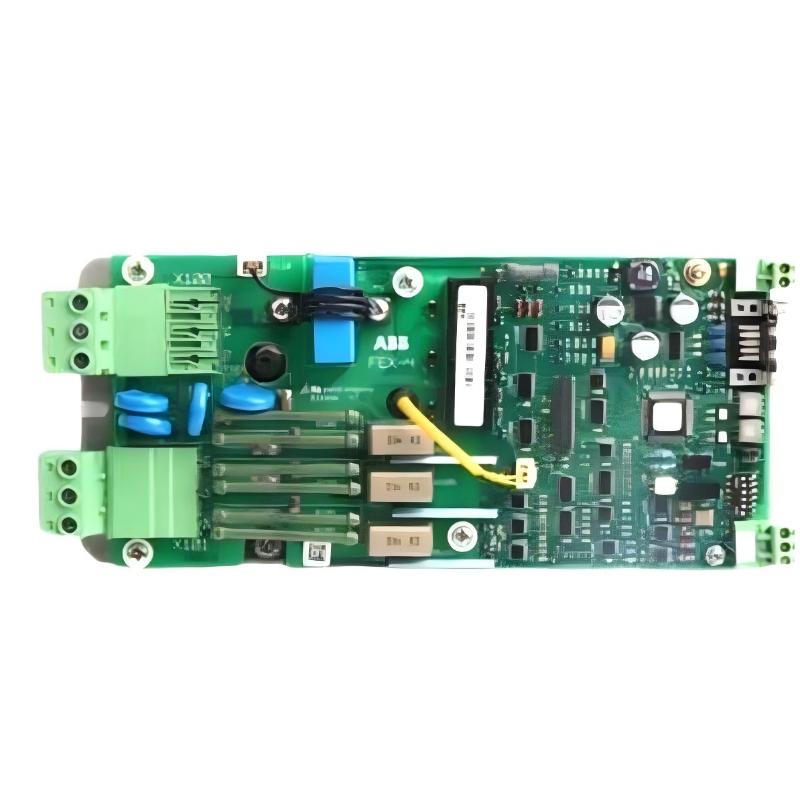

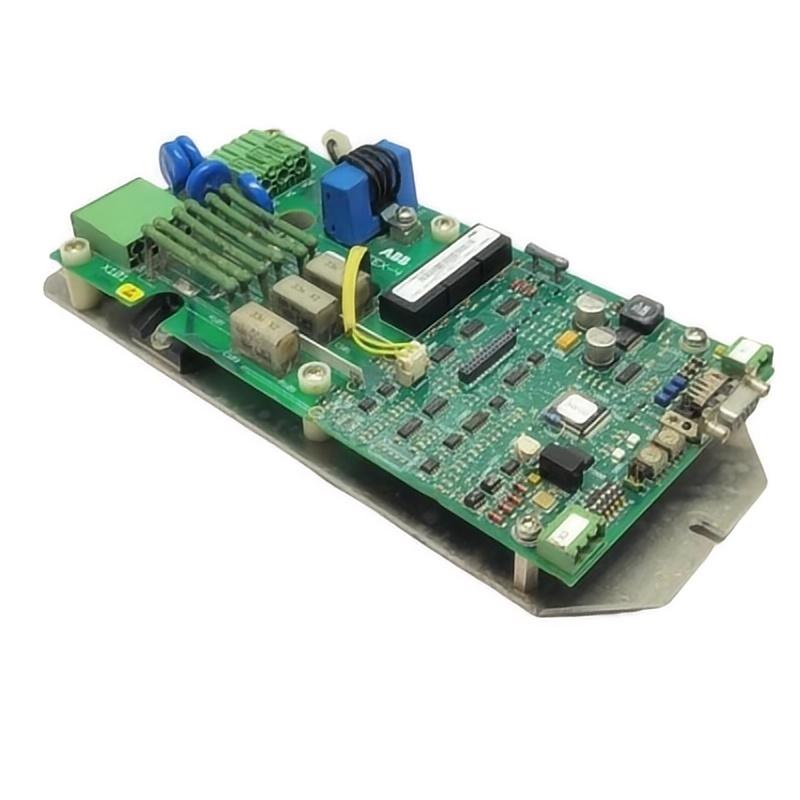

ABB SDCS-FEX-4 3ADT209022R0001 DC Speed Controller Excitation Module
| Release time | Apr 29, 2026 |
|---|---|
| Brand | ABB PLC |
| Product Numbe | SDCS-FEX-4 |
| Country Of Origin | Sweden (SE) |
| Dimensions | 100 x 50 x 20 mm |
| Weight | 0.66 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The ABB SDCS-FEX-4 (3ADT209022R0001) is a DC speed controller excitation module designed to provide accurate field excitation control for DC motor drive systems. It plays a critical role in maintaining stable motor performance by regulating field current, ensuring consistent torque output and precise speed response in demanding industrial environments.
General Information
Part Number: 3ADT209022R0001
Manufacturer: ABB
Brand: ABB
Country of Origin: Switzerland / Sweden
Series: SDCS (DC Drive Control System)
Type: Excitation Module / DC Speed Controller Component
Application: Field excitation control for DC motors in industrial automation systems
Installation: Installed within SDCS drive cabinets or control racks
Technology: Closed-loop excitation control with integrated drive feedback
Power Specifications
Supply Voltage: Typically 24 V DC control supply (system dependent)
Output: Controlled DC excitation current for motor field winding
Control Method: Closed-loop regulation via drive controller
Power Consumption: Low internal consumption, system-driven output load
Protection: Integrated system-level protection including overcurrent and thermal safeguards
Operation Mode: Continuous duty for industrial drive applications
Communication & Interface
Control Interface: Backplane connection to SDCS drive system
Signal Type: Analog and digital control signals
Feedback Input: Field voltage and current monitoring
Diagnostics: Available through drive system interface and status indicators
Integration: Fully synchronized with drive control system logic
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −25 to +70 °C
Humidity: Up to 95% RH, non-condensing
Cooling Method: Forced air cooling within control cabinet
Protection Class: Typically IP20 (installed inside industrial enclosure)
Dimensions & Weight
Dimensions (L × W × H): 100 × 50 × 20 mm
Weight: 0.66 kg
