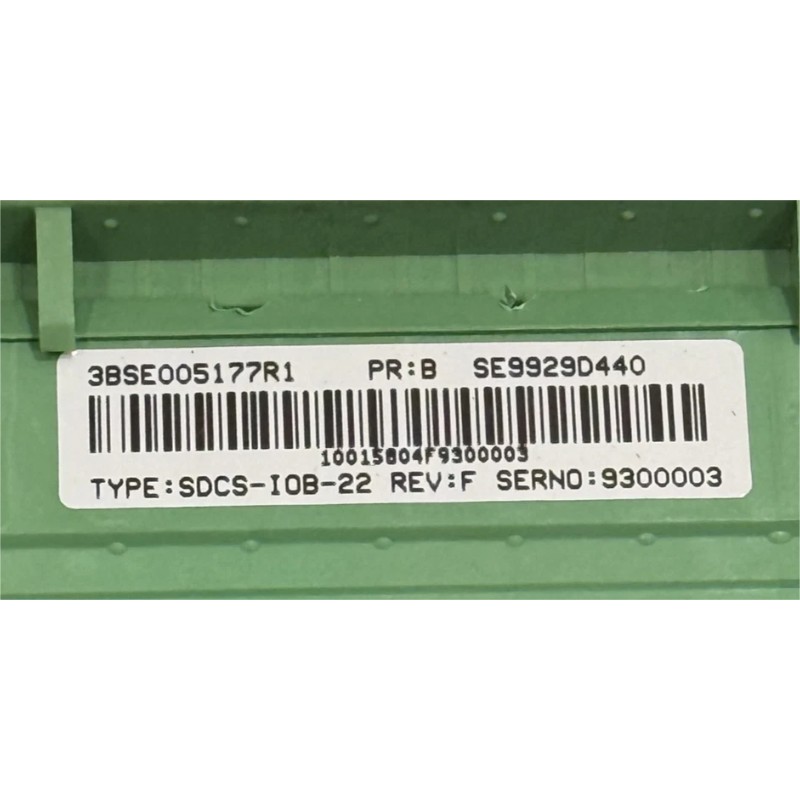

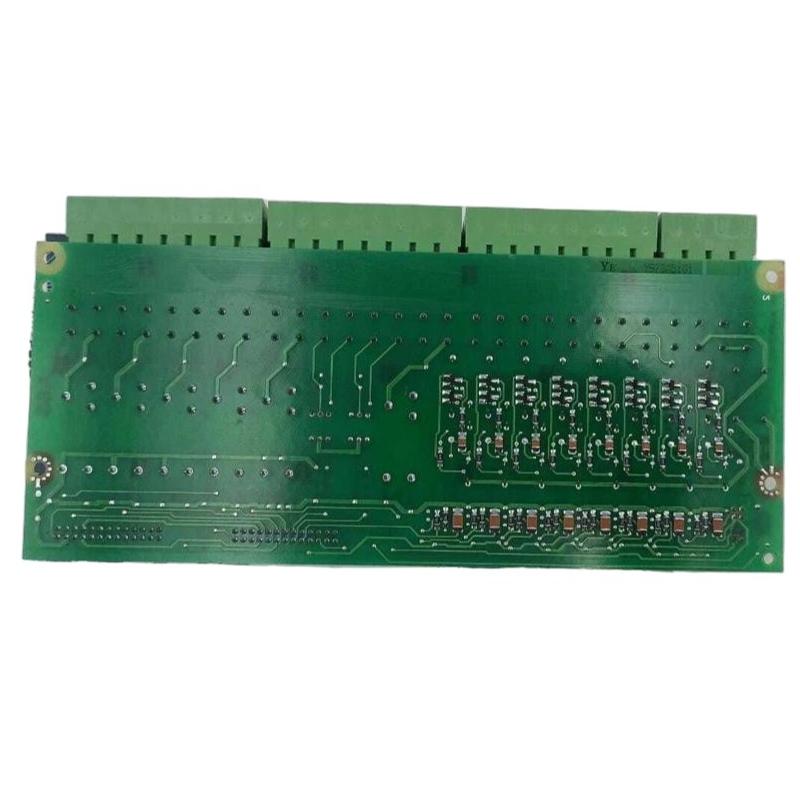

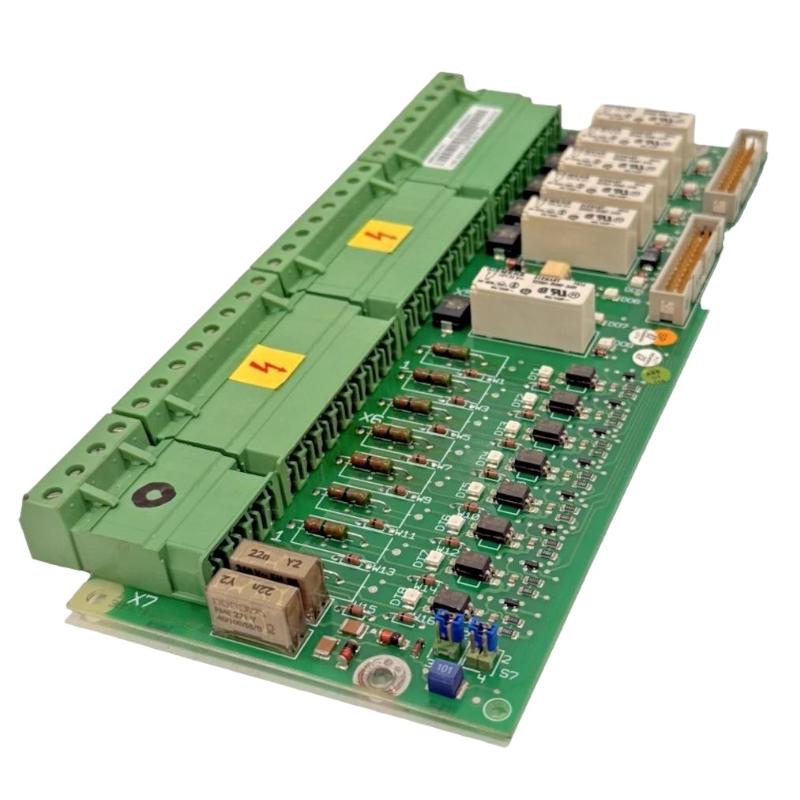

ABB SDCS-IOB-22 3BSE005177R1 Digital Connection Board

Overview

The ABB SDCS-IOB-22 is a digital connection board designed for SDCS (System Digital Control System) platforms. It provides reliable digital I/O connectivity between control units and field devices, ensuring fast signal processing and seamless integration into industrial automation systems.

General Information

Part Number: 3BSE005177R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SDCS (System Digital Control System)

Type: Digital Connection Board

Mounting: Rack or panel-mounted within SDCS chassis

Technology: Digital signal interface with fault detection and isolation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via SDCS backplane

Protection: Short-circuit and reverse-polarity protection

Indicators: LEDs for power, communication, and fault status

Communication & Interface

Digital Inputs: Standard TTL and industrial logic levels

Digital Outputs: Configurable sourcing or sinking outputs

Bus Interface: Direct SDCS backplane connection for signal routing

Diagnostics: Channel monitoring, error detection, and status feedback

Operator Interface: LED indicators and diagnostic test points

Reset Features: Soft reset via controller or hardware reset via onboard jumper

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 233.5 × 97.5 × 18.5 mm

Weight: 0.34 kg
